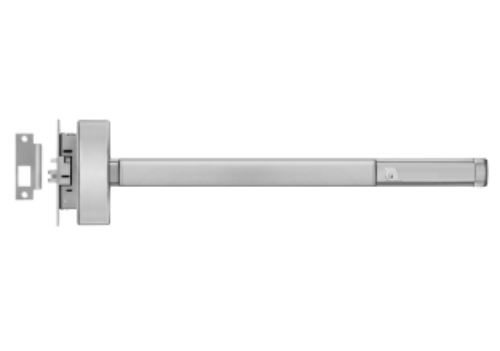

PHI Precision 2302CD Apex Mortise Exit Device - Wide Stile, Exit Only, Dummy Trim Prep, Cylinder Dogging

PHI Precision 2302CD Apex Mortise Exit Device - Wide Stile, Exit Only, Dummy Trim Prep, Cylinder Dogging

Product Details

PHI Precision 2301CD Apex Mortise Exit Device - Wide Stile, Exit Only, Dummy Trim Prep,Cylinder Dogging

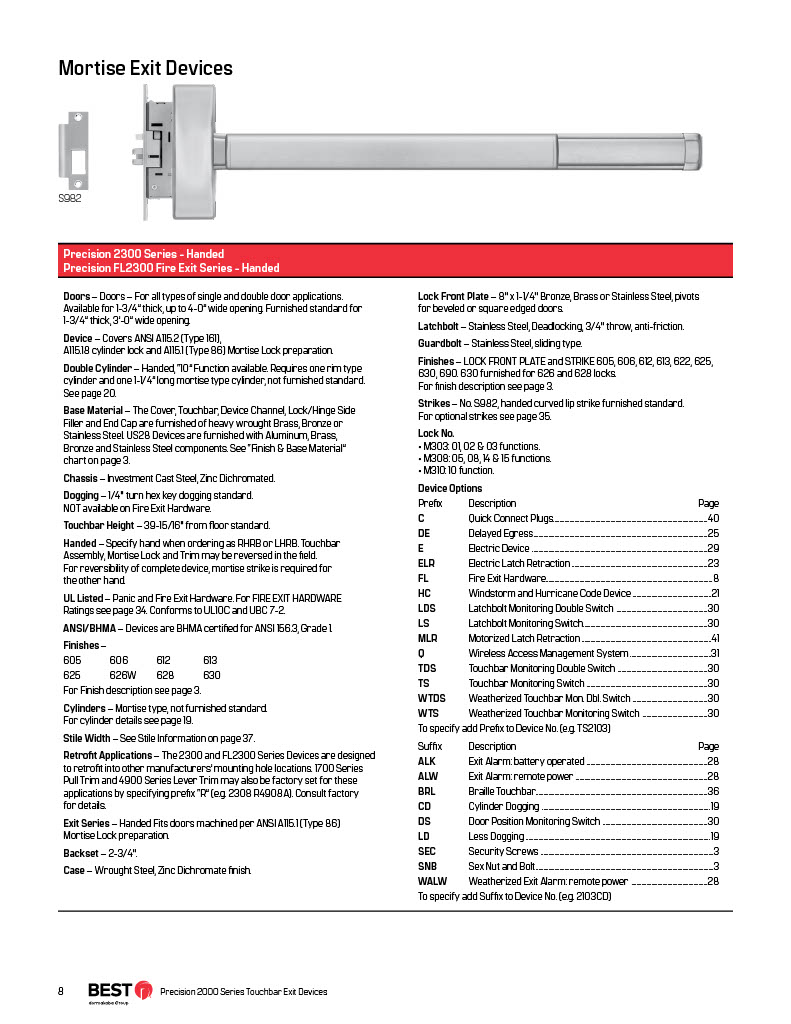

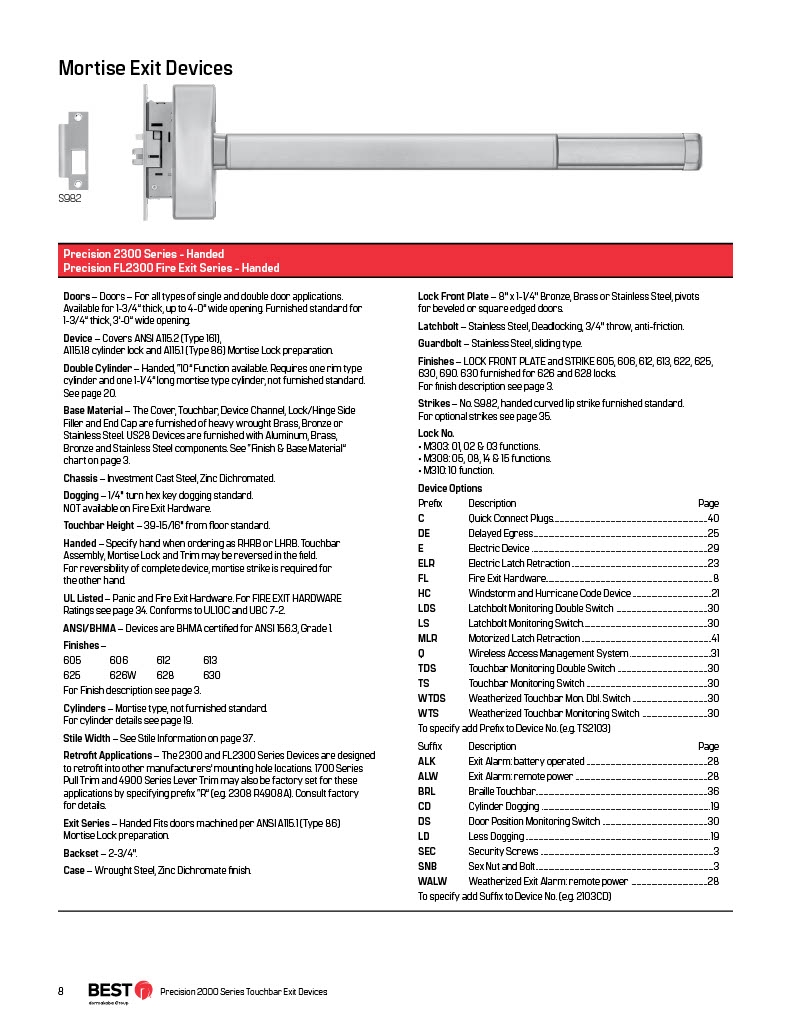

Description and Features:

Door Sizes: 36" - 2'-7" to 3' Door Width 48"- 3'-1" to 4' Door Width ( If Required, cut to size in the field)

Device:Covers ANSI A115.1 (Type 86) Mortise Lock preparation

Base Material:The Cover, Touchbar, Device Channel, Lock/Hinge Side Filler and End Cap are furnished of heavy wrought Brass, Bronze or Stainless Steel. 628 Devices are furnished with Aluminum, Brass, Bronze and Stainless Steel components.

Chassis:Investment Cast Steel, Zinc Dichromated.

Dogging:1/4" turn hex key dogging standard.

UL Listed: Panic and Fire Exit Hardware.

ANSI/BHMA: Devices are BHMA certified for ANSI 156.3, Grade 1.

Fits doors machined per ANSI A115.1 (Type 86) Mortise Lock preparation.

Backset:2-3/4".

Case:Wrought Steel, Zinc Dichromate finish.

Lock front plate:8" x 1-1/4" Bronze, Brass or Stainless Steel, pivots for beveled or square edged doors.

Latchbolt:Stainless Steel, Deadlocking, 3/4" throw, anti-friction.

Guardbolt:Stainless Steel, sliding type.

Strikes:No. S982, handed curved lip strike furnished standard

Stile Width:See Catalog Page # 36

Model: Stanley-Precision 2302CD-LHR-630-36, 2302CD-LHR-606-48 , 2302CD-LHR-630-36 , 2302CD-LHR-630-36, 2302CD-RHR-630-36, 2302-RHR-606-48 , 2302-RHR-630-36 , 2302-RHR-630-36, 2302CD LHR 630 36, 2302CD LHR 606 48 , 2302CD LHR 630 36 , 2302CD LHR 630 36, 2302CD RHR 630 36, 2302 RHR 606 48 , 2302 RHR 630 36 , 2302 RHR 630 36

PHI Precision 2302CD Apex Mortise Exit Device - Wide Stile, Exit Only, Dummy Trim Prep, Cylinder Dogging

Name: PHI Precision 2302CD Apex Mortise Exit Device - Wide Stile, Exit Only, Dummy Trim Prep, Cylinder Dogging
SKU: 2302CD
Price: 1979.61 USD
Availability: InStock

SKU: 2302CD

In Stock

Chat

$1,979.61

$3,473.00

You saved $1,493.39

About this item

The Apex 2000 Series Touchbar Style Exit Device is highly regarded by architects and end-users alike. Many of the nation’s largest healthcare and educational facilities prefer the Apex for it’s aesthetic design and efficient engineering.
