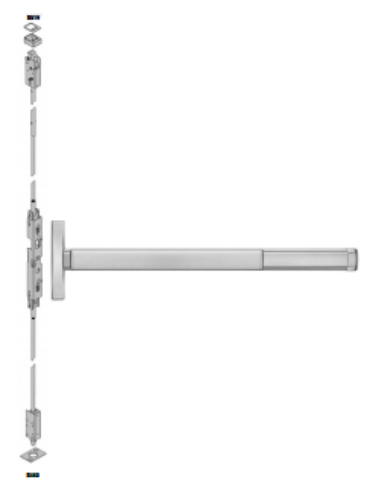

Precision FL2600 (FL2603) Apex Fire Rated Concealed Vertical Rod Exit Device - Narrow Stile

Precision FL2600 (FL2603) Apex Fire Rated Concealed Vertical Rod Exit Device - Narrow Stile

Model:FL2601,FL2602,FL2603,FL2605,FL2614,FL2615 Functions(models) are field selectable. The “03" function is furnished standard

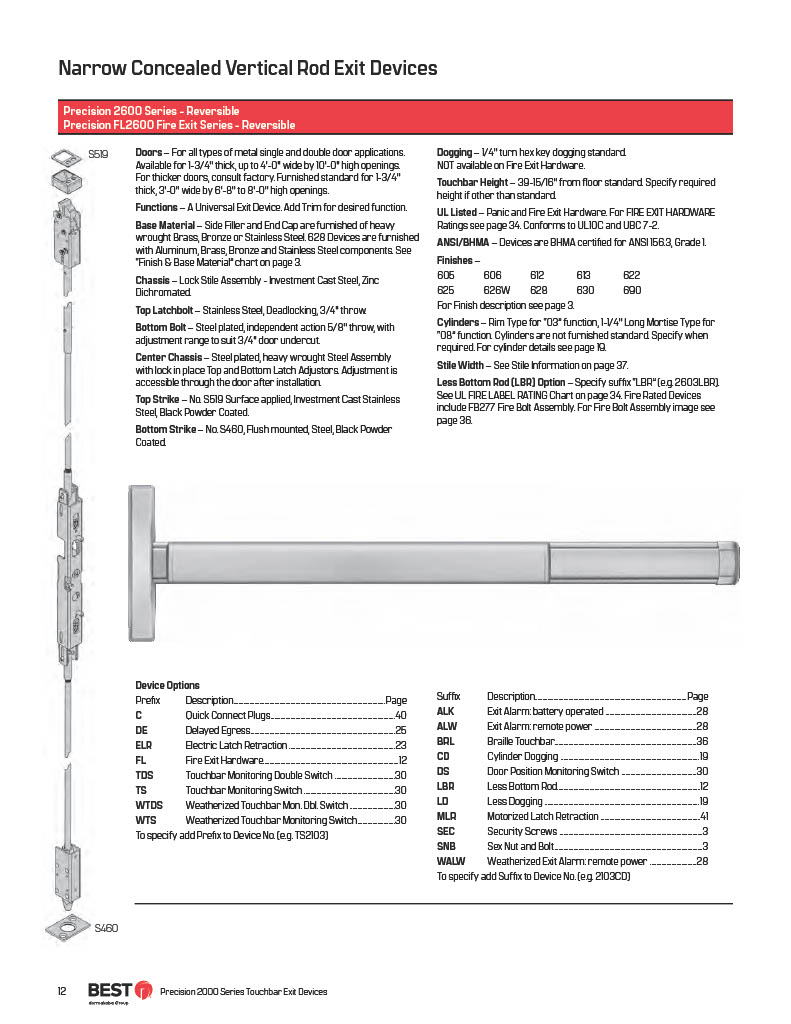

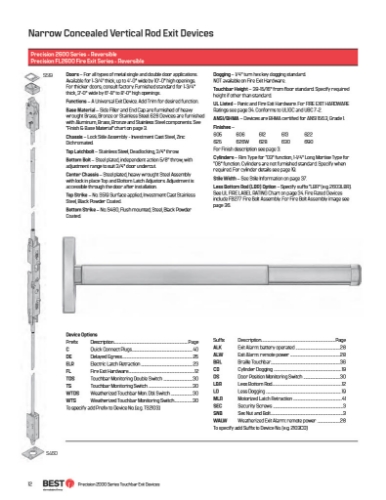

Description and Features:

Doors:For all types of metal single and double door applications

Door Sizes:

Width: 36" - 2'-7" to 3' Door Width  48"- 3'-1" to 4' Door Width ( If Required, cut to size in the field)

Height:7' - For 7’-0" doors 8'- For 8’-0" door Heights 10'- For 10’-0" door Heights

Base Material:Side Filler and End Cap are furnished of heavy wrought Brass, Bronze or Stainless Steel. 628 Devices are furnished with Aluminum, Brass, Bronze and Stainless Steel components.

Chassis:Investment Cast Steel, Zinc Dichromated.

Top Latchbolt:Stainless Steel, Deadlocking, 3/4" throw.

Bottom Bolt:Steel plated, independent action 5/8" throw, with adjustment range to suit 3/4" door undercut.

Top StrikeNo. S519 Surface applied, Investment Cast Stainless Steel, Black Powder Coated.

Bottom Strike: No. S460, Flush mounted, Steel, Black Powder Coated. UL Listed:   Panic and Fire Exit Hardware.

ANSI/BHMA:Devices are BHMA certified for ANSI 156.3, Grade 1.

Stile Width:See Catalog Page # 36

Model:Stanley-Precision FL2603-630-36, FL2603-630-48 , FL2603-628-36 , FL2603-628-48, FL2605-630-36, FL2605-630-48 , FL2605-628-36 , FL2605-628-48, FL2602-630-36, FL2601-630-48 , FL2601-628-36 , FL2602-628-48, FL2614-630-36, FL2615-630-48 , FL2614-628-36 , FL2615-628-48
