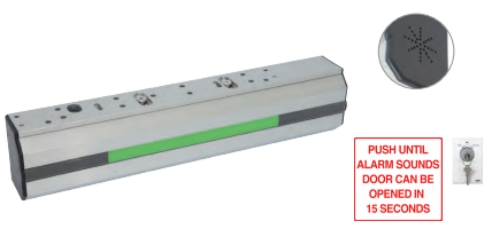

RCI DE8310S-28 Electromagnetic Lock For Single Doors - Delayed Egress W/ Built-In Sounder

RCI ( Rutherford) DE8310S-28 Electromagnetic Lock*For Single Doors -*Delayed Egress W/ Built-In Sounder - Brushed Anodized Aluminum

Description And Features:

Built-In Sounder (S)- Built-in sounder pulses slowly during the short nuisance delay and sounds steady through the release delay and will continue until reset. If forced open before the set release delay has lapsed, the sounder cannot be turned off without switching the system power off

 For single outswinging perimeter door. 11-3/4"W x 2-7/8"H x 2-1/8"D (299mm x 73mm x 54mm) – Includes 1/4" (6mm) mounting bracket Armature Plate: 7-7/16"W x 2-3/8"H x 5/8"D (190mm x 61mm x 16mm) Mode: Fail-Safe Built-in sensor detects when pressure is applied to outward swinging doors – no need to replace existing door hardware Field-selectable 15 or 30 second release delay with field-selectable 0 to 3 second nuisance delay Provision for IBC, SBC, NFPA101, UBC, BOCA or NBC of Canada compliance Unique highly visible red/green light panel indicates status of door (local) Includes 960 Keyswitch for reset and override, Building Code Sign and base unit (DE8310) includes a 914 External Sounder Dry contact SPDT and DPDT relays provided for local and/or remote monitoring Adjustable keyhole mounting Convenient plug-in wiring harnesses Easy-access wiring cavity Stabilizing 4-bolt “drop stop" mounting Surge protection Designed to overcome residual magnetism Hardened steel armature nut Includes self-drilling Teks® fasteners Includes 5/8" (16mm) armature plate Brushed Anodized Aluminum (28) finish UL 10C Auxiliary Locks Listed for fire doors rated up to 1-1/2-hour UL 294 Special Locking Arrangements Component Fire-Rated: CAN/ULC S104, UL 10C 1-1/2-Hour Strength: Up To 1,200lbf Holding Force Energy:610mA1, Auto-Sensing 12-24VDC Monitoring: Local & Remote Relay Outputs & Optional, Built-In Sounder Warranty: 5 Year Limited Warranty
