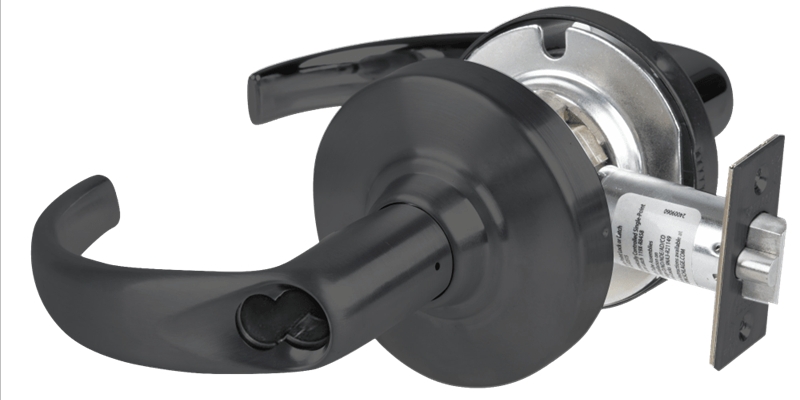

Schlage ND50BD SPA - Grade 1 Entrance/Office Lock, Sparta Lever, SFIC Prep Less Core

Schlage ND50BD SPA - Heavy Duty Entrance/Office Lever Lock - Small format IC core - less core - Sparta Style

(accepts "Best" Interchangable cores, core not included)

Entrance Office Lock -ANSI F82

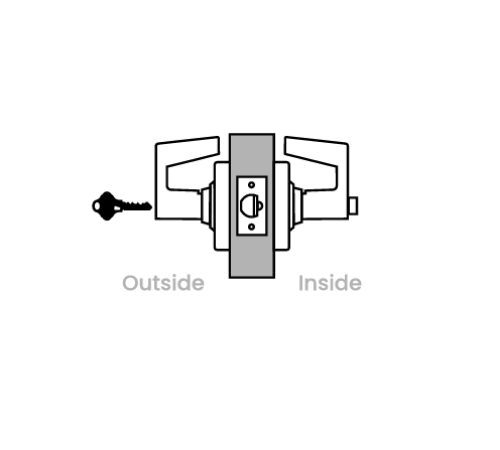

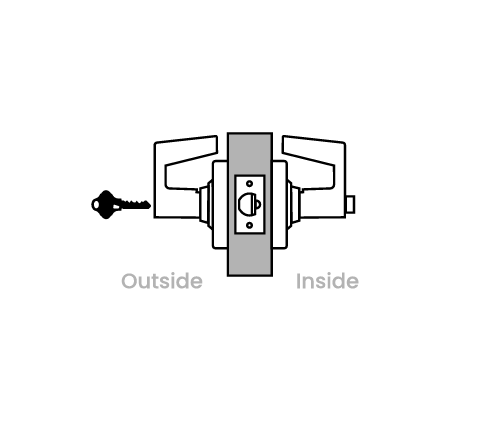

Push-button locking. Push-button locks outside lever until it is unlocked with key or by turning inside lever.

Lever Styles: Sparta (SPA)

Finishes: 605 - Bright Brass, 606 - Satin Brass, 612 - Satin Bronze, 613 - Oil Rubbed Bronze, 619 - Satin Nickel, 622 -Matte Black, 625 - Bright Chrome, 626 - Satin Chrome, 626am - Satin Chrome Antimicrobial, 643E - Aged Bronze

Certifications: ANSI A156.2, 1996, Series 4000 Grade 1. UL Listed.    The door range is 1 5/8" - 2 1/8" standard. The 1 3/8" door thickness requires 2 spacers in order to fit and must be specified or ordered separately(please call).

Backset: 2 3/4" (70 mm) standard. 2 3/8" (60 mm) available. 3-3/4" Backset and 5" (127 mm) backset link also available(please call).

Latch Bolt: Steel, 1/2" (12 mm) throw. 3/4" (19 mm) throw anti-friction latch available for pairs of fire doors(please call).

Strikes: ANSI curved lip strike 1 1/4" x 4 7/8" (32 mm x 124 mm), 1 3/16" (30 mm) to center standard. Optional strikes, lip lengths and ANSI strike box available.

Model: Schlage, Schlage ND50BD, ND50, ND50BDSPA605,  ND50BDSPA606,  ND50BDSPA612,  ND50BDSPA613,  ND50BDSPA619,  ND50BDSPA622, ND50BDSPA625,  ND50BDSPA626, ND50BDSPA626AM,  ND50BDSPA643E,  605, 606, 612, 613, 619, 622, 625, 626, 626AM.

Standard Features

Cylindrical lock housing. Cold rolled steel, corrosion treated for normal atmospheric conditions

Key removable outside knobs for easy cylinder replacement

Solid brass 6-pin cylinders

No exposed mounting screws

Exceeds 800,000 cycle ANSI Grade 1 requirements by nearly 4 times (3,000,000 cycles)

Warranty:

Seven-year limited warranty for all functions including Vandlgard.

Exposed Trim:

Levers are pressure cast zinc, plated to match finishes. Roses are solid brass plated to match finishes.

Adjustable brass or bronze latch faceplates and strikes, furnished in compatible lock trim finishes.
