Product Details

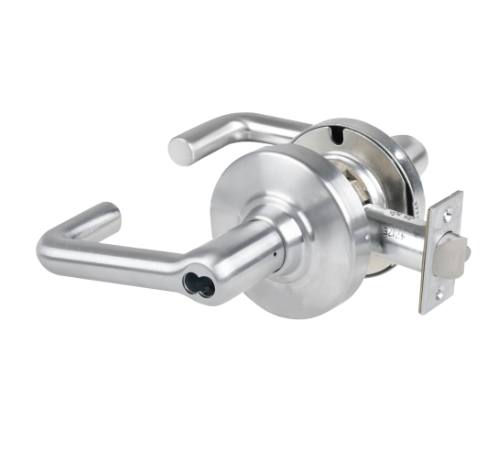

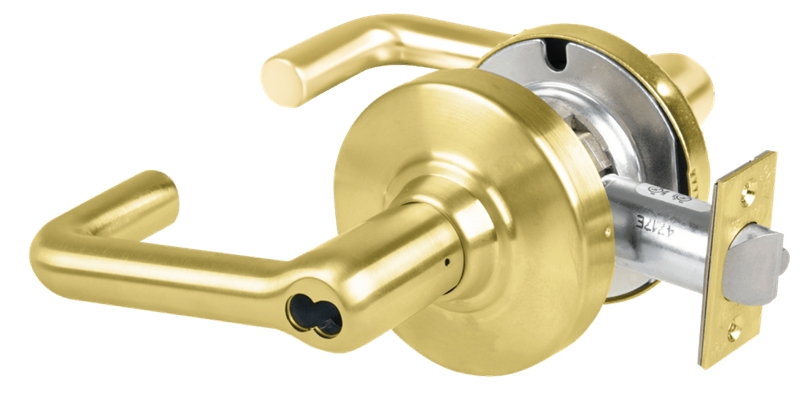

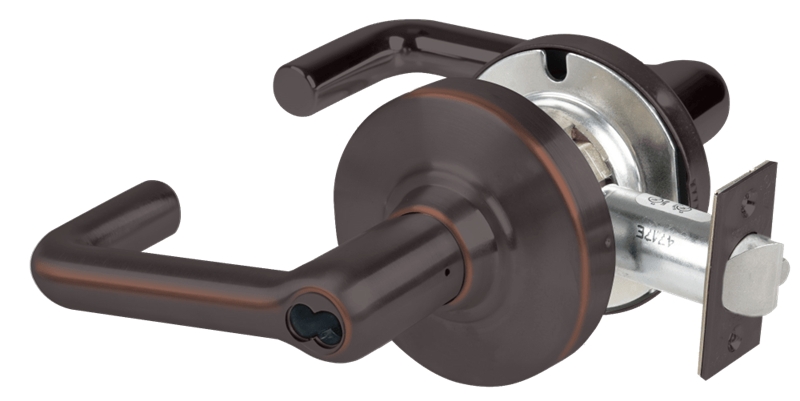

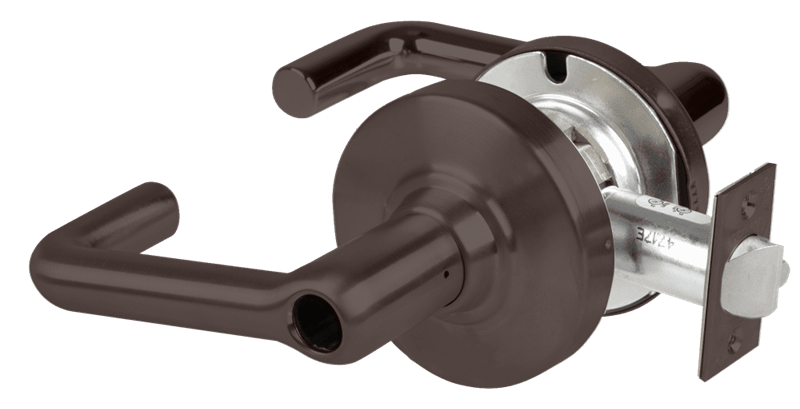

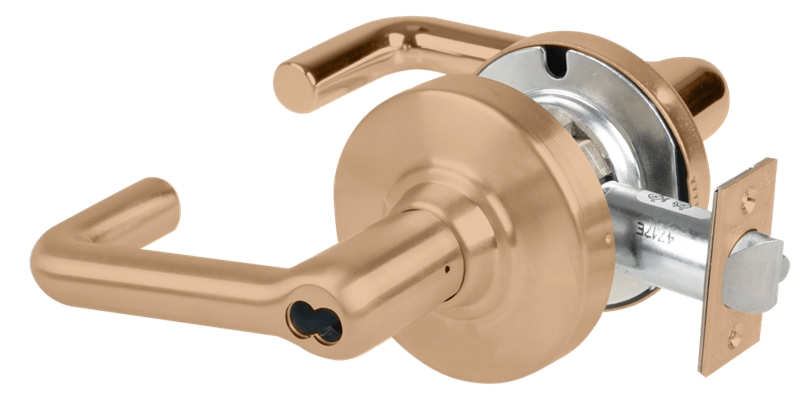

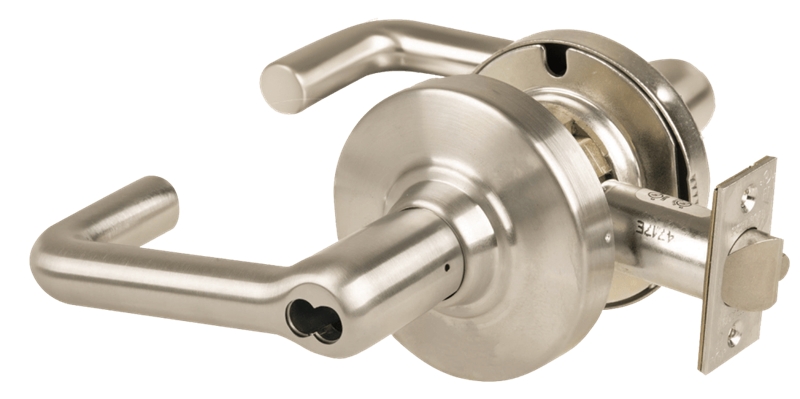

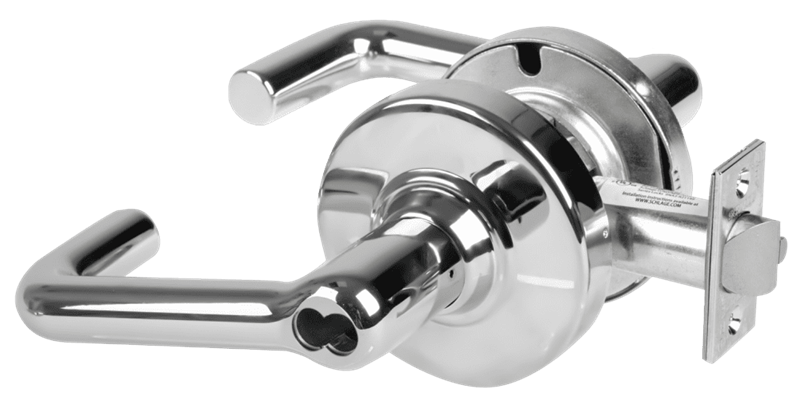

Schlage ND96JD TLR- Vandlgard Storeroom Lever Lock - Large format IC core - less core - Tubular Style
(accepts Schlage Interchangable cores, core not included)
Storeroom Lock - Vandlgard-ANSI-F86

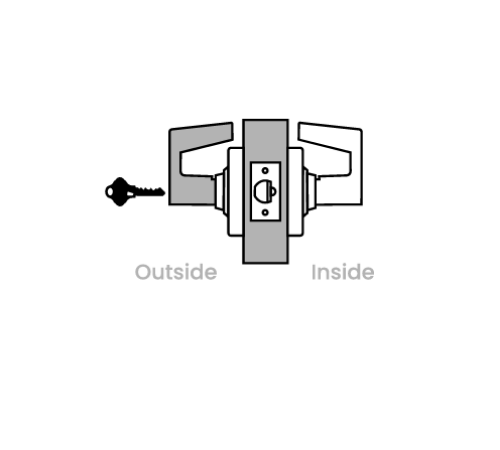

Outside lever is fixed. Entrance by key only. Inside lever always unlocked.
Vandlgard is designed to disengage outside spindle from latch when locked
Lever Styles: Tubular (TLR),

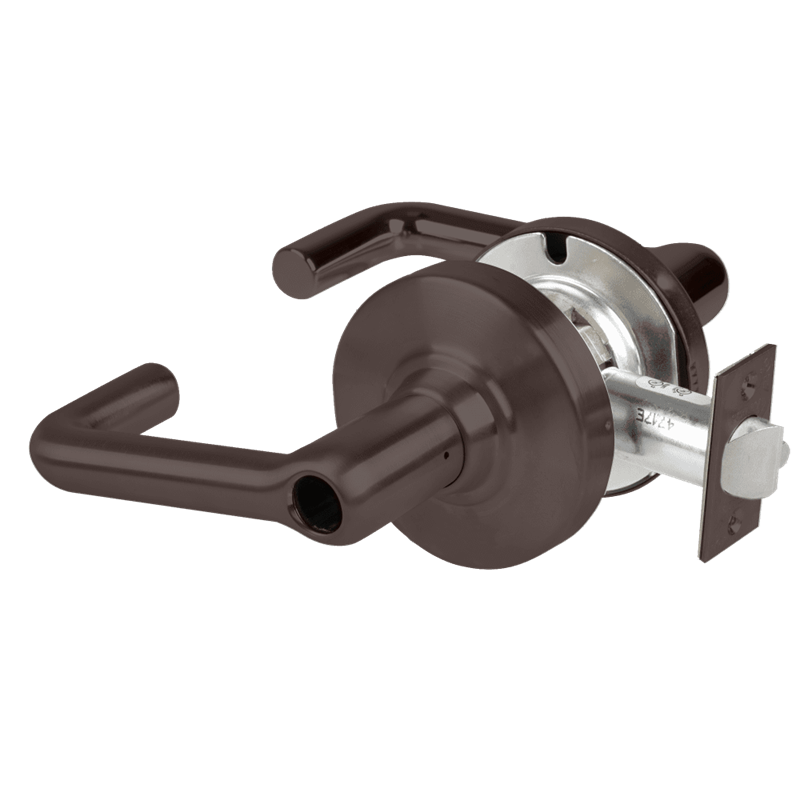

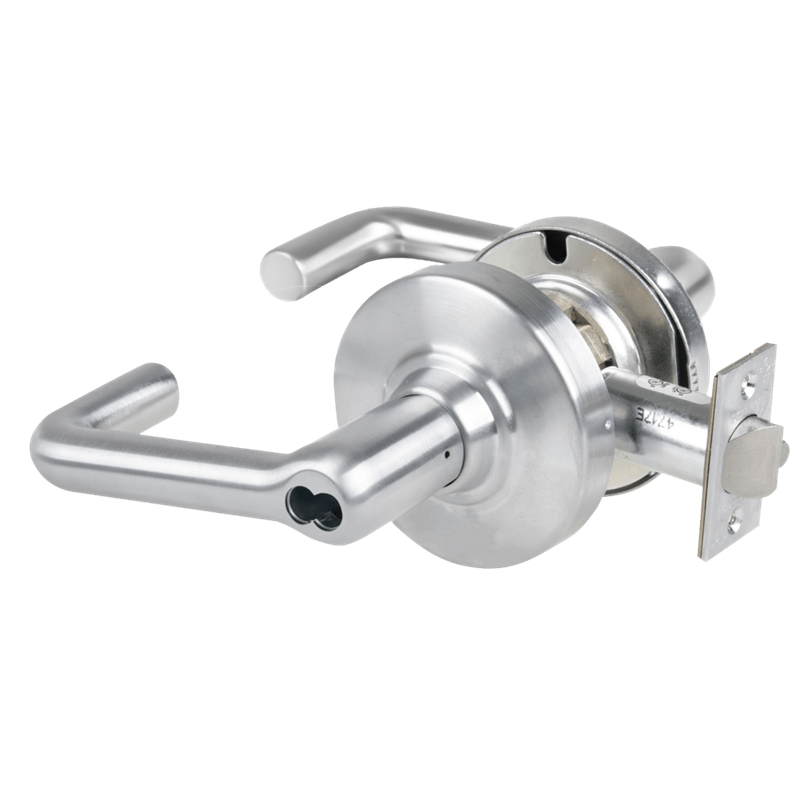

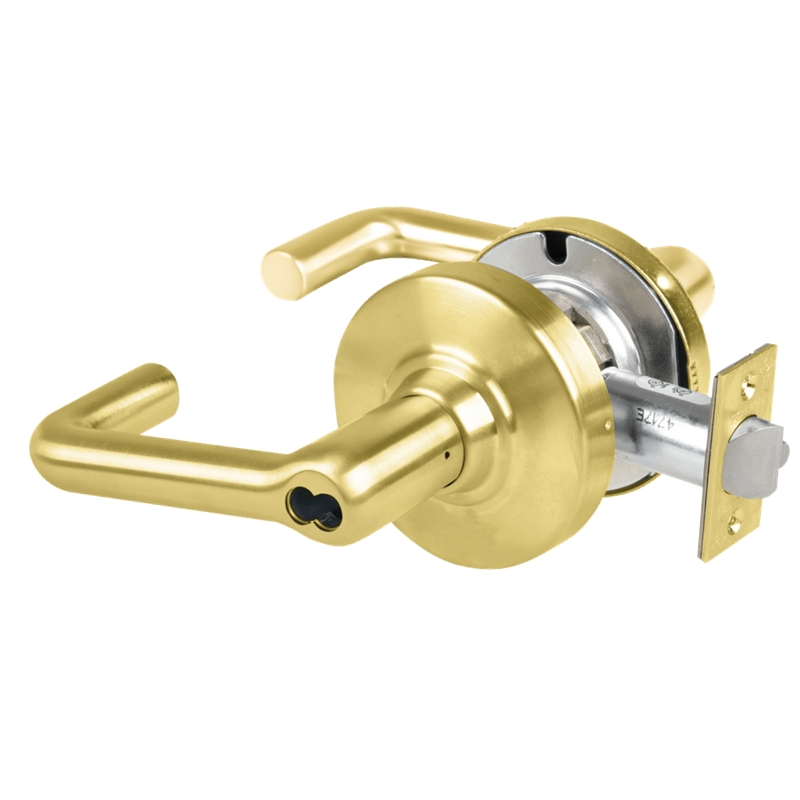

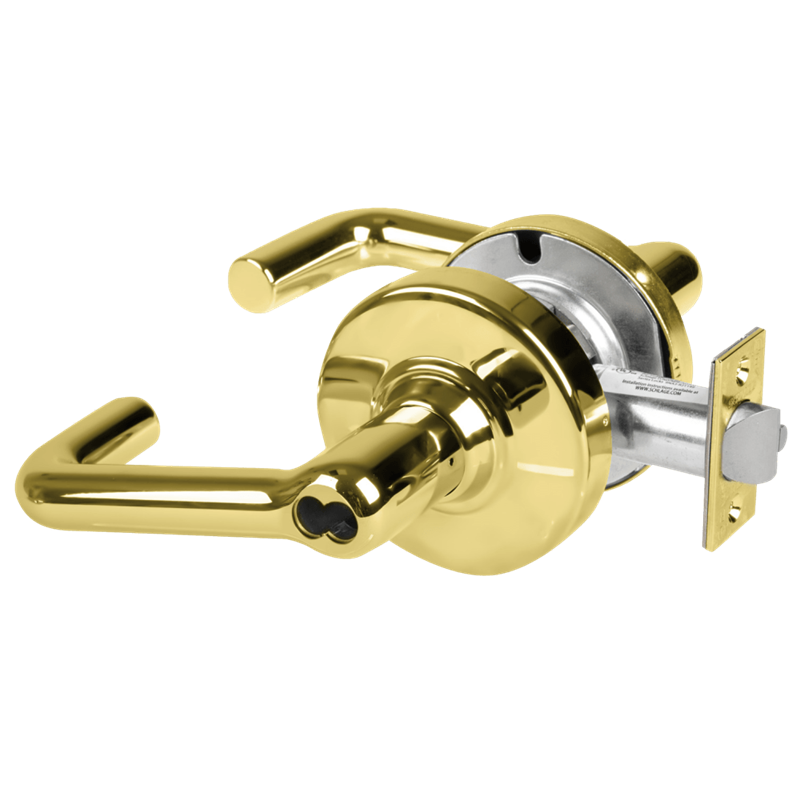

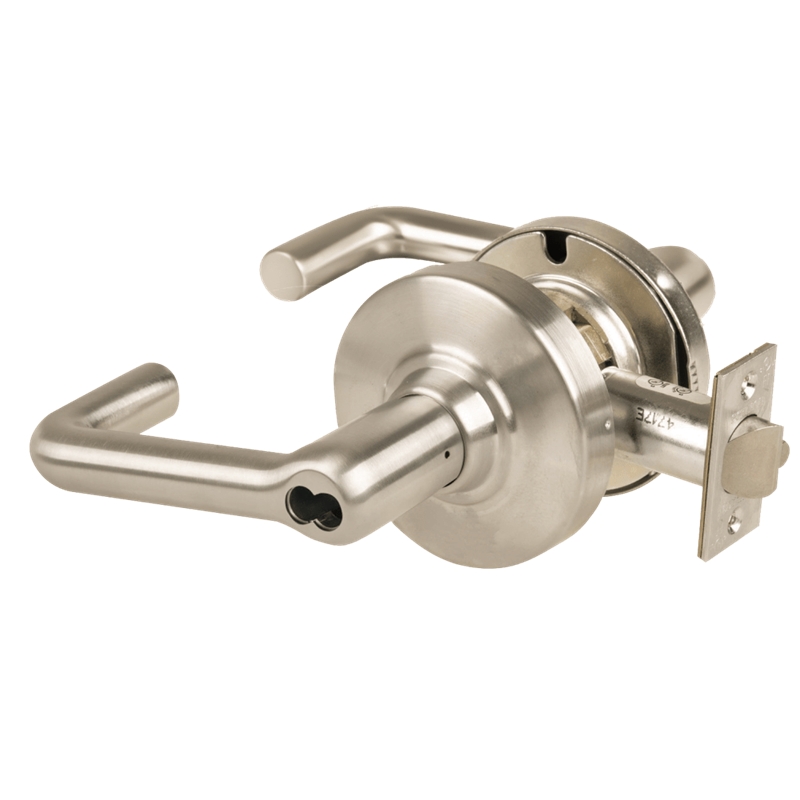

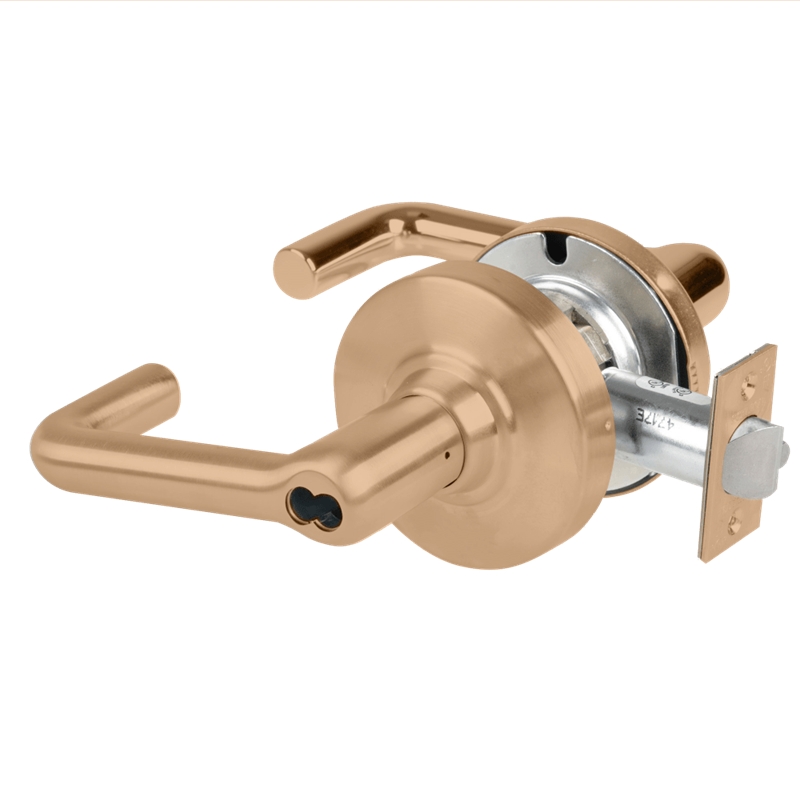

Finishes: 605 - Bright Brass, 606 - Satin Brass, 612 - Satin Bronze, 613 - Oil Rubbed Bronze, 619 - Satin Nickel, 625 - Bright Chrome, 626 - Satin Chrome, 626AM - Satin Chrome Antimicrobial, 643E - Aged Bronze, 622 - Matte Black.
Certifications: ANSI A156.2, 1996, Series 4000 Grade 1. UL Listed.
The door range is 1 5/8" - 2 1/8" standard. The 1 3/8" door thickness requires 2 spacers in order to fit and must be specified or ordered separately (please call).
Backset: 2 3/4" (70 mm) standard. 2 3/8" (60 mm) available. 3-3/4" Backset and 5" (127 mm) backset link also available (please call).
Latch Bolt: Steel, 1/2" (12 mm) throw. 3/4" (19 mm) throw anti-friction latch available for pairs of fire doors (please call).
Strikes: ANSI curved lip strike 1 1/4" x 4 7/8" (32 mm x 124 mm), 1 3/16" (30 mm) to center standard. Optional strikes, lip lengths and ANSI strike
ND96PD - 6-Pin conventional (standard)
ND96LD - Conventional - Less Cylinder
ND96BD - Small format IC core - less core (accepts "Best" Interchangable cores, core not included)
ND96JD- Large format IC core - less core (accepts Schlage Interchangable cores, core not included)
Model: Schlage, ND96JD, ND95, ND96JDTLR605, ND96JDTLR606, ND96JDTLR612, ND96JDTLR613, ND96JDTLR619, ND96JDTLR622, ND96JDTLR625, ND96JDTLR626, ND96JDTLR626AM, ND96JDTLR643E, 605, 606, 612, 613, 619, 622, 625, 626, 626AM, 643E.
