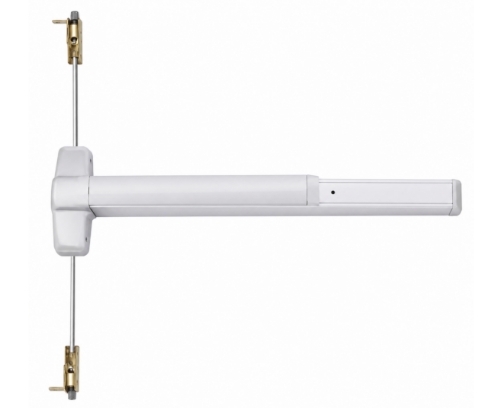

Von Duprin 9848EO / 9948EO Concealed Vertical Rod Device, For Metal Doors, Bottom Latch Has Longer Throw

Von Duprin 9848EO / 9948EO Concealed Vertical Rod Device,Exit Only, Bottom Latch Has Longer Throw

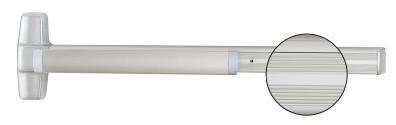

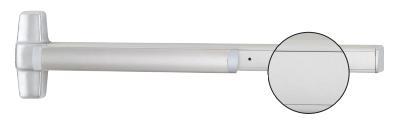

The 9848 device has a smooth mechanism case and the 9948 device has a grooved case.

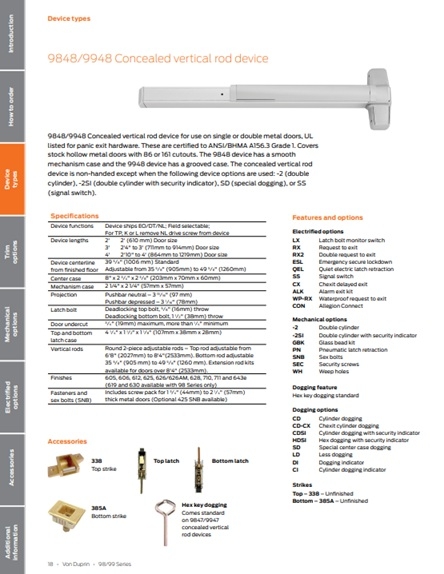

9848/9948 concealed vertical rod device for use on single or doublemetal doors, UL listed for Panic Exit Hardware.

Devices are ANSI A156.3 2001 Grade 1.

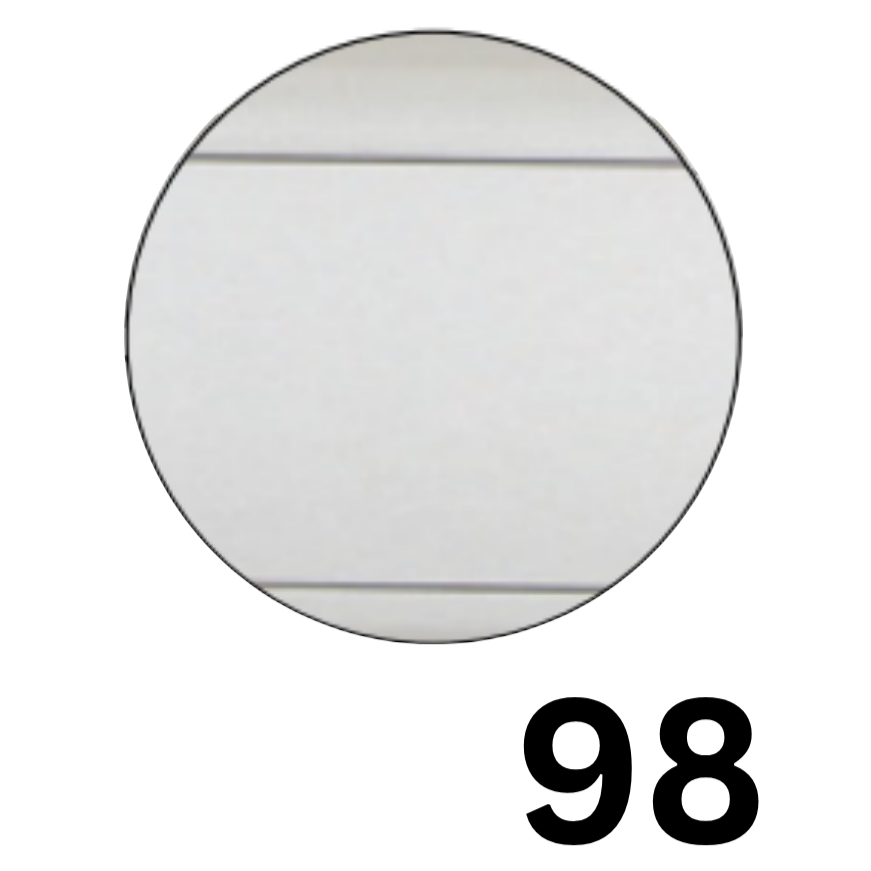

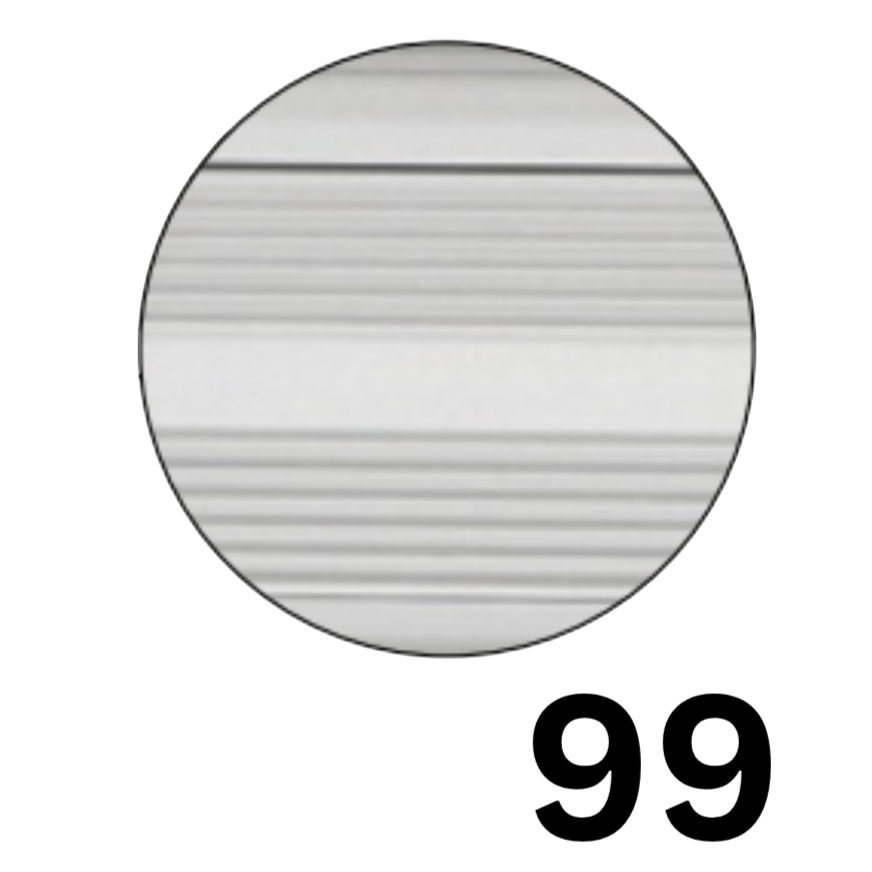

The 9848 device has a smooth mechanism case and the 9948 device has a grooved case.

Device Handing:Non-Handed.

Device Lengths:3' (914mm): 2'4' to 3' (711mm to 914 mm) Door Size. 4' (1219mm): 2'10" to 4' (864 mm to 1219 mm) Door Size.

Door Height - Vertical Rods:Round 2-piece adjustable rods Top rod adjustable from 6'8" (2027mm) to 8'4"(2533mm). Bottom rod adjustable 35-5/8" (905 mm) to 49 5/8" (1260 mm). Extension rod kits available for doors over 8'4" (2533mm).

Dogging Feature:Hex key dogging standard.

Latch Bolt: Deadlocking Top Bolt,3/4" (19mm) throw. Deadlocking Bottom Bolt,1-1/2" (38mm) throw.

Strike:Top - 338 Unfinished, Bottom 385A - Unfinished.

Fasteners:Includes screw pack for 1-3/4" (44mm) and 2-1/4" (57mm) thick metal doors. Optional 425 SNB available.

Finishes:US3 - Polished Brass , US4 - Dull Brass, US10 - Dull Bronze, US15 - Satin Nickel, US26 - Polished Chromium, US26D - Dull Chromium, US28 - Anodized Aluminum, 313 - Duranodic Dark Bronze, 315 - Black, US32D - Satin Stainless Steel available with 98 Series only

Dimensions

Device lengths: 3' - 2'4' to 3' (711mm to 914 mm) Door Size. 4' - 2'10" to 4' (864 mm to 1219 mm) Door Size.

Device Centerline from Finished Floor:39-5/8" (1006 mm). Center Case Dimensions:8" x 2-3/4" x 2-3/8" (203mm x 70mm x 60mm).

Mechanism Case Dimensions:2-1/4" x 2-1/4" (57mm x 57mm).

Top & Bottom Latch Case:4-1/2" x 2-1/2" x 1-1/2" (114mm x 54mm x 38mm).

Projection: Pushbar Neutral 3-13/16" (97 mm). Pushbar Depressed 3-1/16" (78 mm).

All 98 and 99 series exit devices are UL listed for Panic Hardware or Fire Hardware, and are certified to ANSI A156.3, 2001, Grade 1.
