Von Duprin QEL9857EO / QEL9957EO Quiet Electric Three-Point Latching

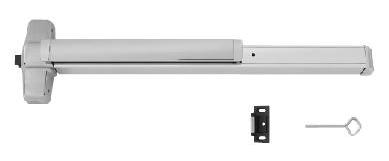

Von Duprin QEL9857EO / QEL9957EO Three-Point Latching Panic Device*with Electric Latch Retraction - Exit Only*

The QEL feature allows for the remote unlatching of exit devices. A control station operator can flip a switch to retract the latch bolt and immediately change an exit door to push-pull operation. Different than the popular EL, the QEL quiet operation is achieved using an electric drive motor which retracts the latch bolt either momentary unlatching or for extended periods of time. This feature is an alternative to manual dogging.

QEL devices are also useful with automatic door operators, and may be applied to fire-rated applications when under the control of an automatic fire alarm system.

UL approved for Class II circuit applications.

The QEL option does not include the power transfer from door to frame, the power supply, or the control operator. Refer to EPT-2 power transfer and the PS902 or 914 power supply.

QEL9857/QEL9957 three-point latching device for all types of single or double doors, UL listed for Panic Exit Hardware. Devices are ANSI A156.3 2001 Grade 1.

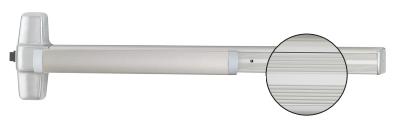

The QEL9857 device has a smooth mechanism case and the QEL9957 device has a grooved case.

Device Handing: Non-Handed

Device Length: 3' (914mm)

Door Height: 7' (2134mm) standard door height. Extension rods available for door heights up to 10"

Covers stock hollow metal doors with 86 or 161 cutouts on single doors

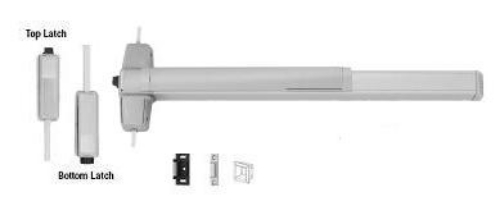

Latch Bolt: Deadlocking Anti-friction Top & Bottom Bolt, 5/8" (16mm) throw - Rim Bolt, 3/4" (19mm) throw

Strike: Top & Middle - 299 - Dull Black, Bottom 248L4 & 304L - Unfinished

Fasteners: Includes screw pack for 1-3/4" (44mm) to 2-1/4" (57mm) thick metal or wood doors, and 325 SNB for top and bottom latch. Optional 425 SNB available.

Finishes:US26D - Dull Chromium,US32D - Satin Stainless Steel - available with 98 Series only

Dimensions

Device-lengths: 3' 2'4' to 3' (711mm to 914 mm) Door Size

Device Centerline from Finished Floor: 39-5/8" (1006 mm)

Center Case Dimensions: 8" x 2-3/4" x 2-3/8" (203mm x 70mm x 60mm)

Mechanism Case Dimensions: 2-1/4" x 2-1/4" (57mm x 57mm)

Top & Bottom Latch Case: 4-1/2" x 2-1/2" x 1-1/2" (114mm x 54mm x 38mm)

Projection: Pushbar Neutral 3-13/16" (97 mm) Pushbar Depressed 3-1/16" (78 mm)

All 98 and 99 series exit devices are UL listed for Panic Hardware or Fire Hardware, and are certified to ANSI A156.3, 2001, Grade 1.

Model: Von Duprin QEL9857, QEL9957, QEL9857EO, QEL9957EO, QEL9857/QEL9957, QEL9857/QEL9957EO,RXQEL9857, RXQEL9957, RXQEL9857EO, RXQEL9957EO, US26D, US32D

Solenoid Specifications: Solenoid Resistance: Continuous Duty - 24 VDC -grn-yel 1.2 " 2.2 OHMS Current Inrush - 16 Amps -grn-org 100 " 150 OHMS Current Holding  - 0.3 Amps
