Cal-Royal ALBR2260V / ALBRF2260 Vertical Rod Exit Device Less Bottom Rod

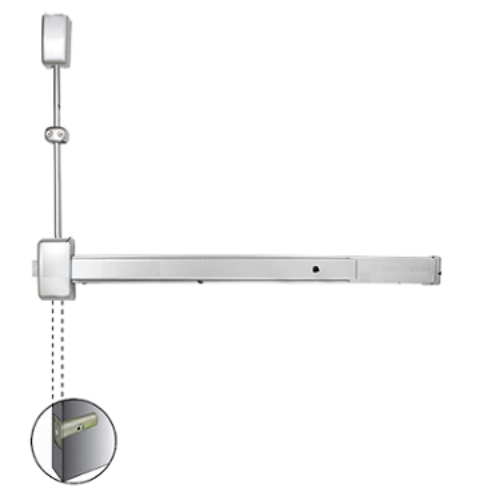

Cal-Royal ALBR2260V / ALBRF2260V Vertical Rod Exit Device Less Bottom Rod

**Fire rated model includes Auxiliary Spring Latch to be installed in the lower edge of door.

LBR - No Bottom Strike. Free access for wheel chairs, stretchers and carts which eliminates tripping potential and disfiguration of floors due to dragging of bottom bolts.

*Door Thickness:* 1-3/4" thick standard.

Stile:3-3/4" minimum stile width required for single door application. 3-1/2" minimum stile width required for double door application. 2 3/4" backset

Top Chassis:Non-ferrous Alloy (Panic Grade), Steel (Fire Grade)

Cover:Non-ferrous Alloy. Covers stock hollow metal doors with 161 cutout

Mounting:Furnished standard with wood and machine screws. Thru-bolts are standard packaging on fire rated devices

End Cap:Steel Construction

Hand:Handed. Easily field reversible. Specify at time of order LHR, RHR for convenience

Latch Bolt, Spring:Stainless Steel

Auxiliary Spring Latch:Auxiliary spring loaded latchbolt is installed in the lower edge of the door, when exposed to fire latchbolt releases keeping the door closed and regulated

ANSI Standard:A156.3, Grade 1

Rail Assembly:Heavy gauge steel, painted

Dogging Feature: Allen-type key furnished standard on non-fire labeled devices

UL and ULC Listed:All Series for panic. LBR Series for fire exit hardware for all types of 8' x 8' double doors including double egress for up to 3-hour metal, 1 1/2 hour wood doors fire labeled installations. Conforms to standards UL10C and UBC 7-2-1997 codes

DIMENSIONS

Touchbar height to finished floor:41" (1041 mm) at center

Touchbar projection*Neutra:*Neutral 2 1/2" (64 mm) - Depressed1 3/4" (45 mm)

Panic grade top & bottom latch case:3 15/16" x 2 1/8" x 1 3/8" (100 mm x 54 mm x 35 mm)

Fire grade top latch case:3 15/16" x 2 11/16" x 2 1 /16" (100 mm x 68 mm x 52 mm)

Fire grade bottom latch case:3 15/16 x 2 1/8" x 1 3/8" (100 mm x 54 mm x 42 mm)

Top and bottom rod length for 36" x 84" doors:Top rod 39 3 /16" (995 mm), bottom rod 37 3 /16" (945 mm)

Top and bottom rod length for 48" x 96" doors:Top rod 51 3 /16" (1300 mm), bottom rod 37 3 /16" (945 mm)

Vertical Rods: 1/2" (13 mm) Round tubing A2210V2484 - AF2210V2484Actual Length:

 20" - Max Cut Down: 2" Door size: 22" to 24" door width

A2260V3684, AF2260V3684, A2270V3284, AF2270V3284,A2290V3696,AF2290V3696, A2250V36120,* * Actual Length: 32" - Max Cut Down: 6" Door size: 30" to 36" door width

A2280V4896, AF2280V4896, A2240V48120 Actual Length: 44" - Max Cut Down: 12" Door size: 36" to 48" door width
