Detex EAX-2500SK GRAY/BLACK, Wall Mount, Kit - Surface Mount AC/DC Powered Alarm, EA-561 Warning Sign, Flush Magnetic Switch Contacts and 24VAC Transformer Included

The Detex EAX-2500SK is a complete exit alarm kit, not just the alarm unit. The "SK" suffix indicates Surface Kit: every component needed for a fully functional surface-mounted hardwired exit alarm ships in one package. Open the box and you have the EAX-2500S surface mount alarm, the EA-561 Warning Sign, the black back box (standard 4"x4" double switch/outlet box), flush magnetic switch contacts, and the 24VAC transformer. No return trip to the supplier for the transformer. No searching for the right magnetic switch contacts. Everything needed for installation is in the kit.

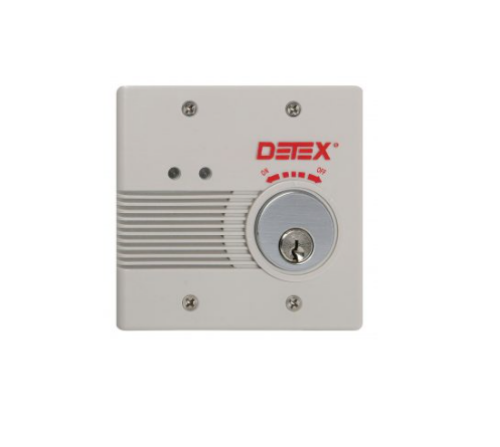

The alarm itself is 100dB, powered by AC/DC hardwired power, and includes an optional 9VDC backup battery input so the alarm remains operational during a power failure. When the monitored door opens without authorization, the alarm sounds. For all exit alarm and access control products, browse our electronic hardware catalog. For all commercial exit hardware, view our exit hardware catalog.

What's in the EAX-2500SK Kit

The SK designation is the important part of this model number for purchasing. Buyers who order the EAX-2500S receive only the alarm unit at a lower price point. The EAX-2500SK kit adds four components that would otherwise require separate orders: the EA-561 Warning Sign, the back box, the flush magnetic switch contacts, and the 24VAC transformer. For a single-door installation, the SK kit eliminates component sourcing entirely. For multi-door projects, knowing that SK includes the transformer and contacts simplifies purchase orders.

The comparable Flush Mount kit is the EAX-2500FK, which includes the same accessories but with the alarm configured for flush mounting into a wall rather than surface mounting on it.

Detex EAX-2500SK Technical Specifications

SKU: EAX2500SK. Also known as: EAX-2500SK, EAX2500SK, EAX-2500SKBK, EAX-2500S-BK, Detex 2500SK. Alarm sound level: 100dB piezo horn. Power: AC/DC hardwired; optional 9VDC backup battery (not included in kit). Housing: Fits standard 4"x4" double switch/outlet box. Cylinder: Patented cam assembly auto-adjusts for different cylinder sizes without spacers; uses mortise cylinder with standard Yale cam. Kit includes: EAX-2500S surface mount alarm, EA-561 Warning Sign, black back box, flush magnetic switch contacts, 24VAC transformer. Available colors: Gray (standard), Black. Relay output: Yes, for signaling external accessories. Warranty: 3-year limited manufacturer's warranty.

Field-Selectable Features

Four features are field-selectable on the EAX-2500SK after installation, allowing the alarm to be configured for the specific application without ordering a different model:

Status indicators are field selectable for visual notification of arm/disarm and alarm state. Auto re-arm options are field selectable: the alarm can be configured to re-arm automatically after the door closes following an alarm event. Low battery alert is field selectable for notification of backup battery status. Silent arming is field selectable for situations where audible confirmation of arming would be disruptive.

Extended Bypass Feature

The extended bypass allows the alarm to remain silenced while a door is held open for authorized purposes, such as during a delivery or maintenance window. When the door closes, the alarm automatically re-arms, so staff don’t need to reset it manually.This feature eliminates the nuisance of repeated alarm silence requests during legitimate extended door-open events while maintaining automatic protection once the event ends.

EAX-2500 Series: SK vs S vs F vs FK

The EAX-2500S is the surface mount alarm unit only. The EAX-2500SK (this product) is the surface mount kit with transformer, magnetic switch contacts, back box, and warning sign. The EAX-2500F is the flush mount alarm unit only. The EAX-2500FK is the flush mount kit with the same accessories. Choose SK for surface mounting with a complete kit. Choose FK for flush mounting with a complete kit.
