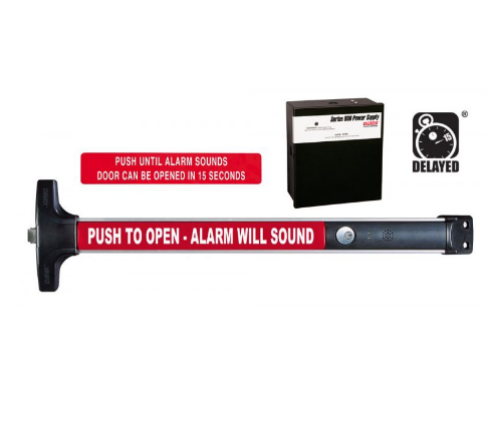

Detex V40 EE CD Delayed Egrees Rim Exit Device

Detex V40 EE CD Delayed Egrees Rim Exit Device

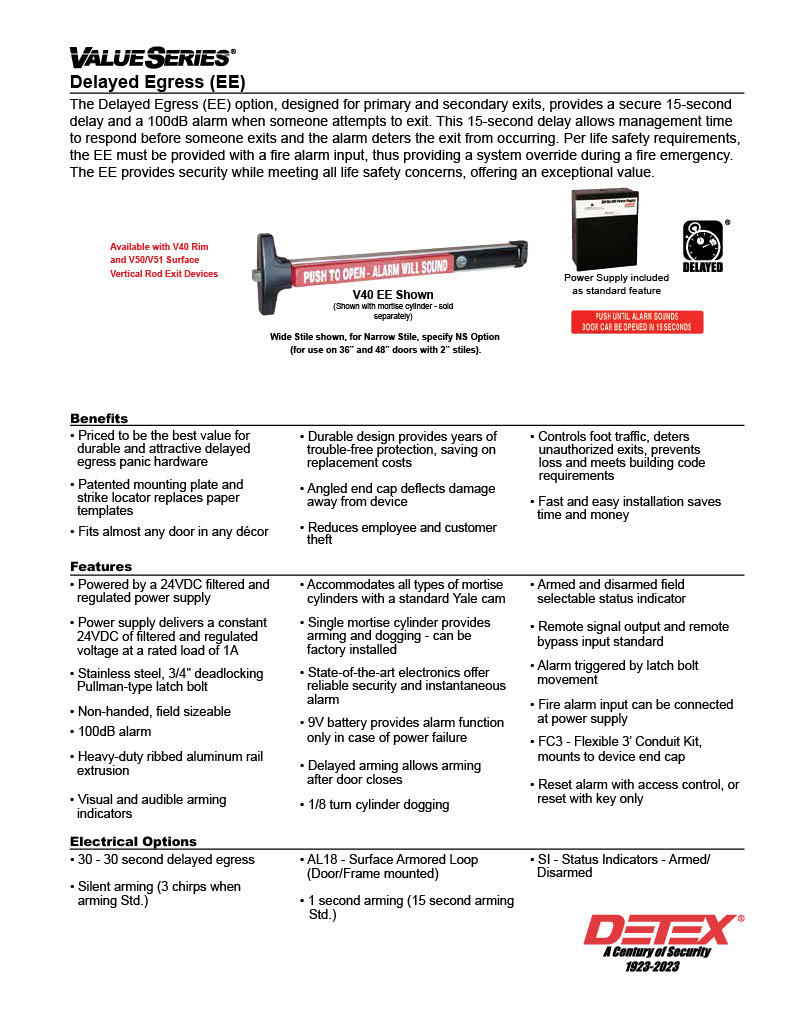

Delayed Egress (EE) - Available on all VS Devices

Standard Package Includes: - Switch monitors latch bolt and triggers alarm - 15-second Delayed Egress with dead latch monitoring - 15-second arming delay (AD) with extended bypass (alarm arms after door closes) - 1-second nuisance delay - Comes standard with 24V Filtered and Regulated Power Supply with simplified fire loop connections (NOTE: Detex Power Supply required and included with standard EE Package, can power both devices for a pair of doors, specify V40 EExPSO for second door) - Remote Alarm Relay output (std.) Common, Normally Open or Normally Closed Relay contacts - Bypass Alarm Relay input (std.) Normally Open Relay Contacts - Low-Battery Alert (std.), field-selectable option to remove backup battery / disable low-battery alert - Cylinder Dogging (CD) standard or Less Dogging (LD - NOTE: Fire Rated devices come LD only) - Delayed Egress Door Sign (ECL-395 English, 15 seconds, Red) - Flexible 3' Conduit Loop and Endcap Connector - Pushpad Signage "Push to Open Alarm Will Sound" For non-standard arming delay, non-standard nuisance delay, 2-minute alarm silence, non-extended bypass, set grant times and other non-standard options or features, contact factory.

Trims For the V40 series are: *01P, 01PN, 02A, 02AN, 02WP, 03P, 03PN, 03CN, 03WS, 03A, 03AN, 02BN, 08BN, 09BN, 14BN.*

Benefits

- Controls foot traffic, deters unauthorized exits, prevents loss and meets building code requirements

Features

- Includes delayed egress panic bar, 24VDC filtered and regulated power supply, door sign and 3’ conduit loop

- Powered by a 24VDC filtered and regulated power supply

- Power supply delivers a constant 24VDC of filtered and regulated voltage at a rated load of 1A

- Stainless steel, 3/4" deadlocking Pullman-type latch bolt

- Non-handed, field sizeable

- 100dB alarm

- 1/8 turn cylinder dogging

- Sturdy angled end-cap

- Heavy-duty ribbed aluminum rail extrusion

- Accommodates all types of mortise cylinders with a standard Yale cam

- Single mortise cylinder provides arming and dogging - Sold Separately

- Visual and audible arming indicators

- 9V battery provides alarm function only in case of power failure

- Armed and disarmed field selectable status indicator

- Delayed arming allows arming after door closes

- Remote signal output and remote bypass input standard

- Alarm triggered by latch bolt movement

- Fire alarm input can be connected at power supply

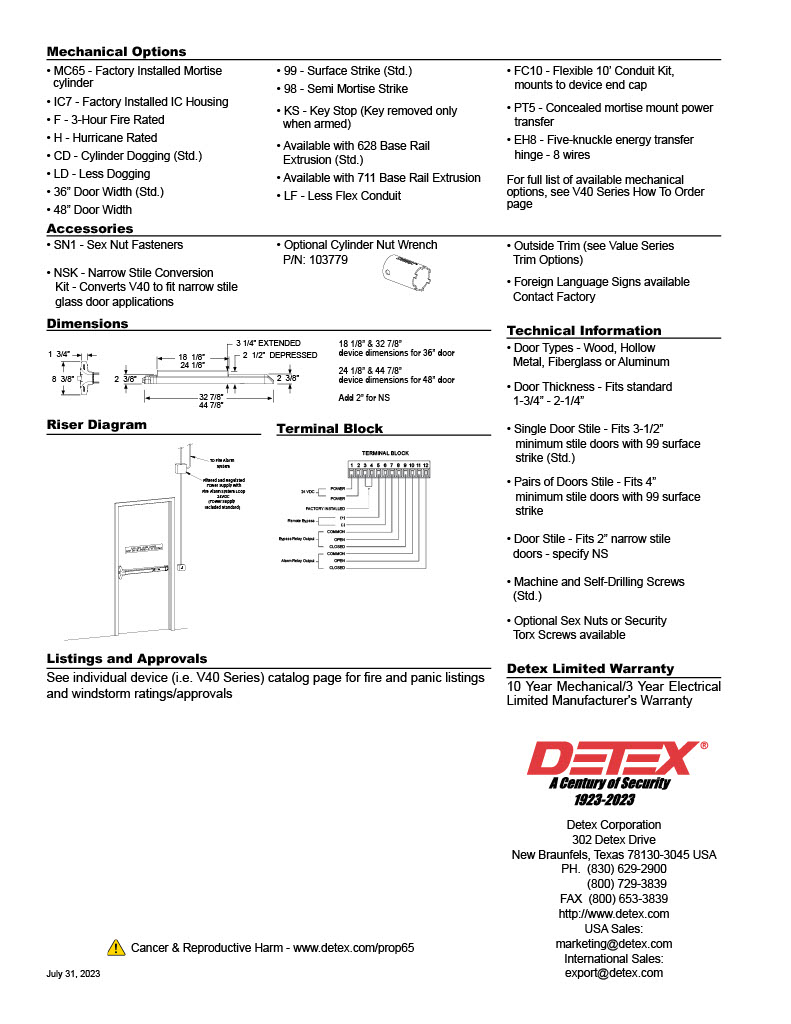

Mechanical Options

- CD - Cylinder Dogging (Std.)

- 36" Door Width (Std.)

- 48" Door Width

- 99 - Surface Strike (Std.)

98 - Semi Mortise Strike

- Available with 628 Base Rail Extrusion (Std.)

- Available with 711 Base Rail Extrusion

Accessories

- NSK - Narrow Stile Conversion Kit - Converts V40 to fit narrow stile glass door applications

- Outside Trim -See Below

- Foreign Language Signs available Contact Factory

Technical Information

- Door Types - Wood, Hollow Metal, Fiberglass or Aluminum

- Door Thickness - Fits standard 1-3/4" - 2-1/4"

- Machine and Self-Drilling Screws (Std.)

- Optional Sex Nuts or Security Torx Screws available

Detex Limited Warranty

10 Year Mechanical/3 Year Electrical Limited Manufacturer's Warranty

Model:Detex V40EE, V40EECD,  V40EECD628, V40EECD6289936-48V40EECD628993648

**

**

Listings and Approvals

UL Listed Panic Hardware

 UL Listed Fire Exit Hardware for 3 hours, maximum 4'x10' single doors and pairs of 4'x8' with F90KR keyed removable Mullion UL Listed Controlled Exit Device (FULA) UL Listed Special Locking Arrangements (FWAX)

 Meets ADA requirements

 UBC 97, Standard 7-2 and UL10C for positive pressure

 ANSI/BHMA certified (ANSI A156.3 and ANSI A156.24 Grade 1)

 Meets NFPA 80 & 101 for Life Safety

 Miami-Dade County, Florida NOA 10-0303.02 State of Florida Approval #FL9052 EXP. 04/07/15

 California State Fire Marshall - 4140-0127:105, 3774-0127:106 and 3725-0127:108
