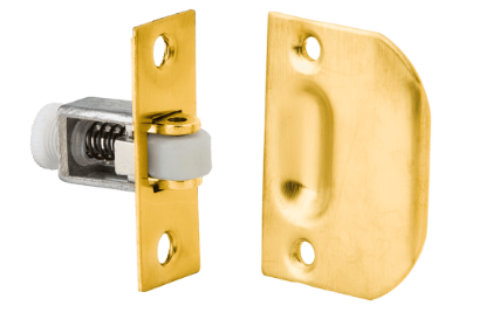

Ives 336 Adjustable Roller Catch

**Ives 336 Roller Catch

**Smooth, positive latching action insured by powerful conical spring.

Durable nylon roller insures quiet operation.

Adjustable tension. Adjustments can be varied from 4 to 17 lbs. of holding power making possible a wide range of door performance.

Easily installed on thin doors.

Standard box type strike designed for neat appearance.

Made from wrought brass or wrought steel.

Packed with sheet metal screws.

**Dimensions

**Face Plate: 7/8" Wide x 2-1/4" High

Bore: 13/16" Diameter x 1-3/4" Deep

Strike: 7/8" Wide x 2-1/4" High, Lip to center- 1-1/8"

Finishes: B3 - Brass Material - Bright Brass (605)  B4 - Brass Material - Satin Brass (606)  B5 - Brass Material - Antique Brass (609)  B10 - Bronze Material - Satin Bronze (612)  B10B - Bronze Material - Oil Rubbed Bronze (613)  B15 - Brass Material - Satin Nickel (619)  B26 - Brass Material - Polished Chrome Plated (625)  B26D - Brass Material - Satin Chrome Plated (626)

Model: 336B3, 336B4, 336B5, 336B10, 336B10B, 336B15, 336B26, 336B26D
