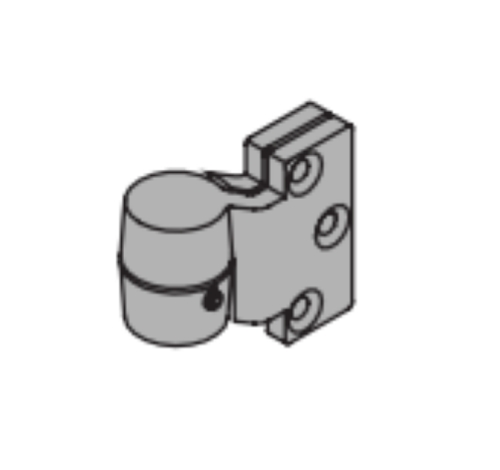

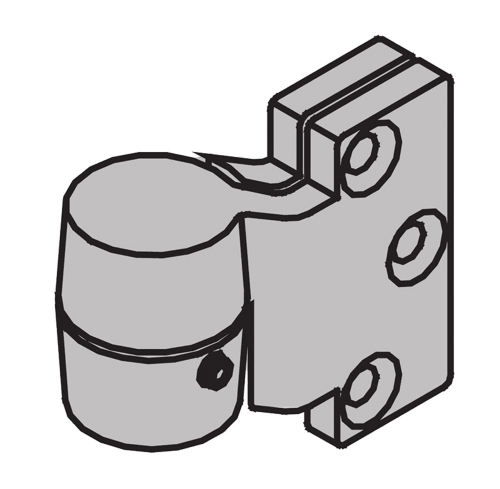

Ives 7222-INT Intermediate Pivot

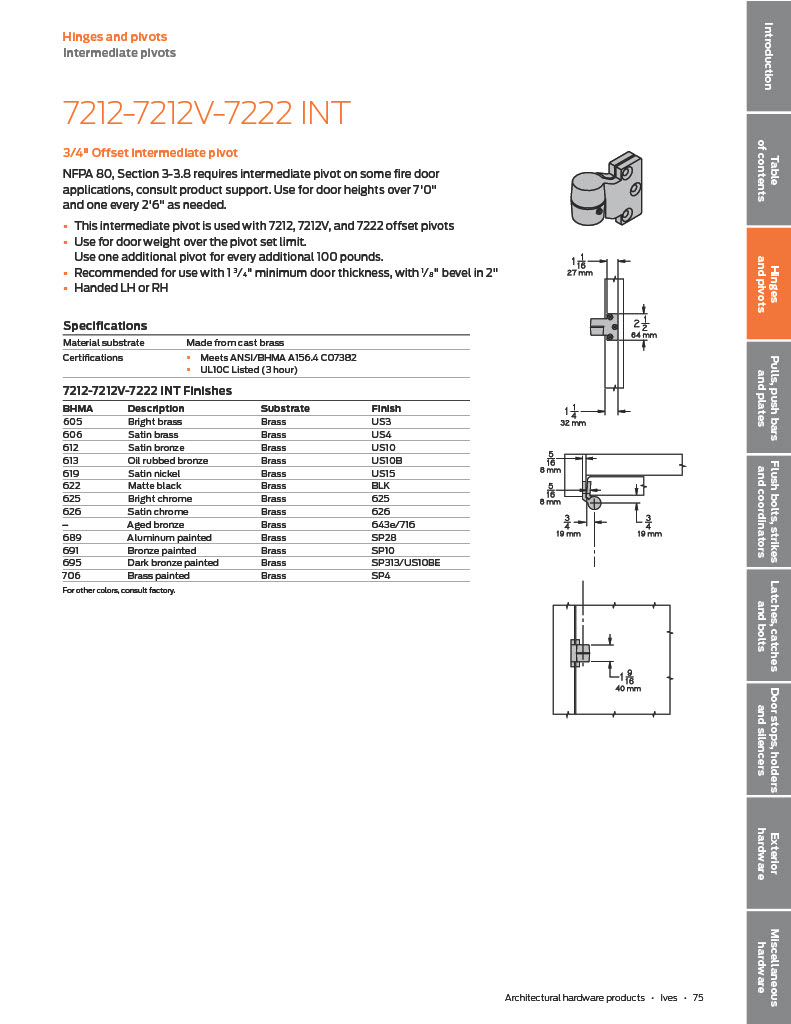

Ives 7226 INT, Intermediate Pivot

This intermediate pivot is used with 7212, 7212V, and 7222 offset pivots Use for door weight over the pivot set limit.

Use one additional pivot for every additional 100 pounds.

Recommended for use with 1-3/4" minimum door thickness, with 1/8" bevel in 2".

Handed LH or RH.

Certifications:  Meets ANSI/BHMA A156.4 C07382  UL Listed, 20 minute fire doors

Material substrate: Made from cast brass

NFPA 80, Section 3-3.8 requires intermediate pivot on some fire door applications, consult

factory. Use for door heights over 7'0" and one every 2'6" or . Use for door weight over

the pivot set limit. One additional for every additional 100 pounds. Door thickness 1-3/4"

mimumum with 1/8" bevel in 2".
