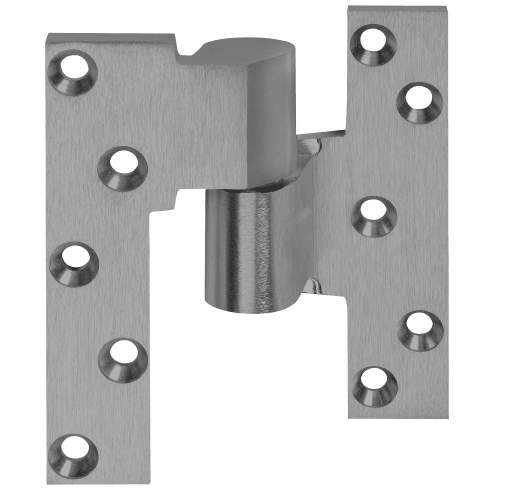

Norton Rixson M190 Heay-Duty Intermediate Pivot, 3/4" Offset

Norton Rixson *M190 Heay-Duty Intermediate Pivot, 3/4" Offset*

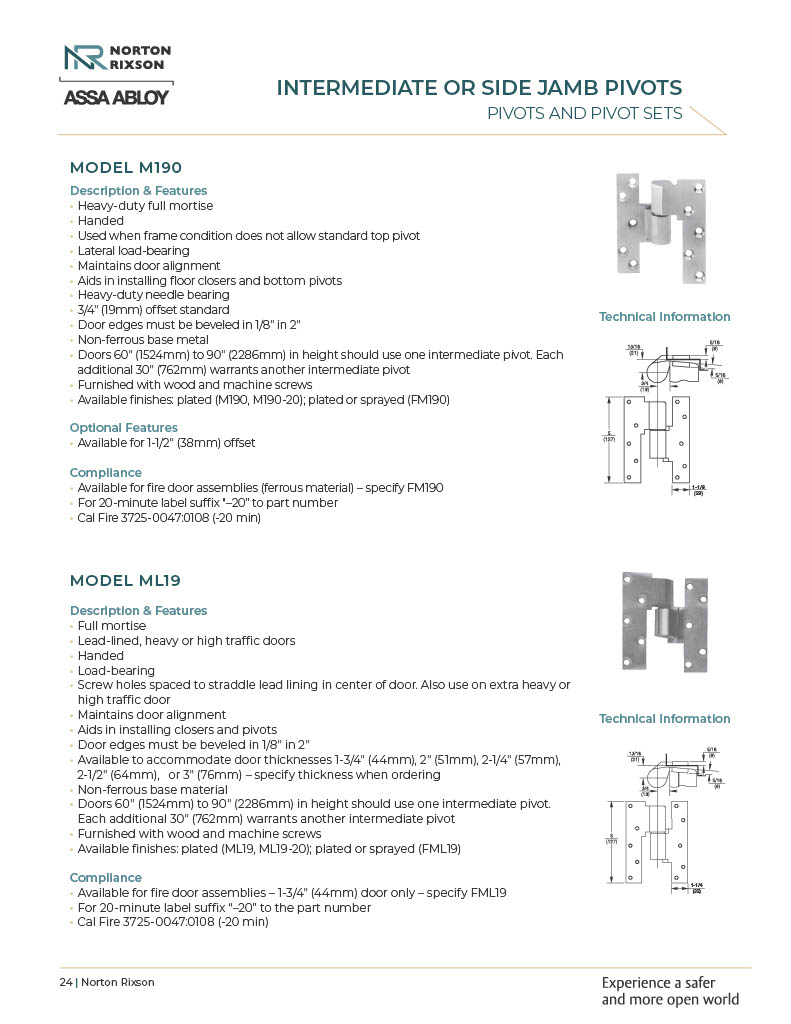

Application:

 Heavy-Duty Full Mortise Handed Load-Bearing Pivot

Description/Features:

Used when frame condition does not allow standard top pivot Lateral load-bearing

 Maintains door alignment Aids in installing floor closers and bottom pivots Heavy-duty needle bearing Non-ferrous base metal 3/4" (19mm) offset standard Available for 1-1/2" (38mm) offset Doors 60" (1524mm) to 90" (2286mm) in height should use one intermediate pivot. Each additional 30" (762mm) warrants another intermediate pivot Door edges must be beveled in 1/8" in 2" Furnished with wood and machine screws

Model:M190-RH-605, M190-RH-613, M190-RH-626, M190-RH-619, M190-LH-605, M190-LH-613, M190-LH-626, M190-LH-619
