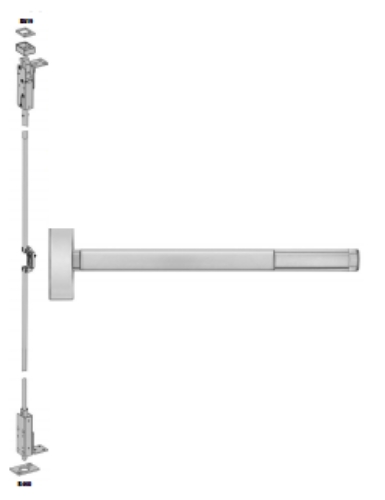

Precision FL2700 (FL2703) Apex Fire Rated Wood Door Concealed Vertical Rod Exit Device - Wide Stile

Precision FL2700 (*FL*2703) Apex Fire Rated Wood Door Concealed Vertical Rod Exit Device - Wide Stile

Model:FL2701,FL2702,FL2703,FL2705,FL2714,FL2715 Functions(models) are field selectable. The “03" function is furnished standard

Description and Features:

Doors:For all types of single and double door applications.

Door Sizes:

Width: 36" - 2'-7" to 3' Door Width  48"- 3'-1" to 4' Door Width (If Required, cut to size in the field)

Height:7' - For 7’-0" doors 8'- For 8’-0" door Heights 10'- For 10’-0" door Heights

Base Material:Side Filler and End Cap are furnished of heavy wrought Brass, Bronze or Stainless Steel. 628 Devices are furnished with Aluminum, Brass, Bronze and Stainless Steel components.

Chassis:Lock Stile Assembly - Investment Cast Steel, Zinc Dich-romated.

Vertical Rods: Steel, plated. Top Rod is adjustable from 6’-8" to 8’-0" or from 8’-1" to 10’-0". Additional adjustments are available through the lock front filler.

Top Latchbolt:Stainless Steel, Deadlocking, 3/4" throw.

Bottom Bolt:Steel plated, independent action 5/8" throw, with adjustment range to suit 3/4" door undercut.

Top StrikeNo. S519 Surface applied, Investment Cast Stainless Steel, Black Powder Coated.

Bottom Strike: No. S460, Flush mounted, Steel, Black Powder Coated.

Reversible:Reversible for all functions and trims. Standard packaging RHRB.

UL Listed:  Panic and Fire Exit Hardware.

ANSI/BHMA:Devices are BHMA certified for ANSI 156.3, Grade 1.

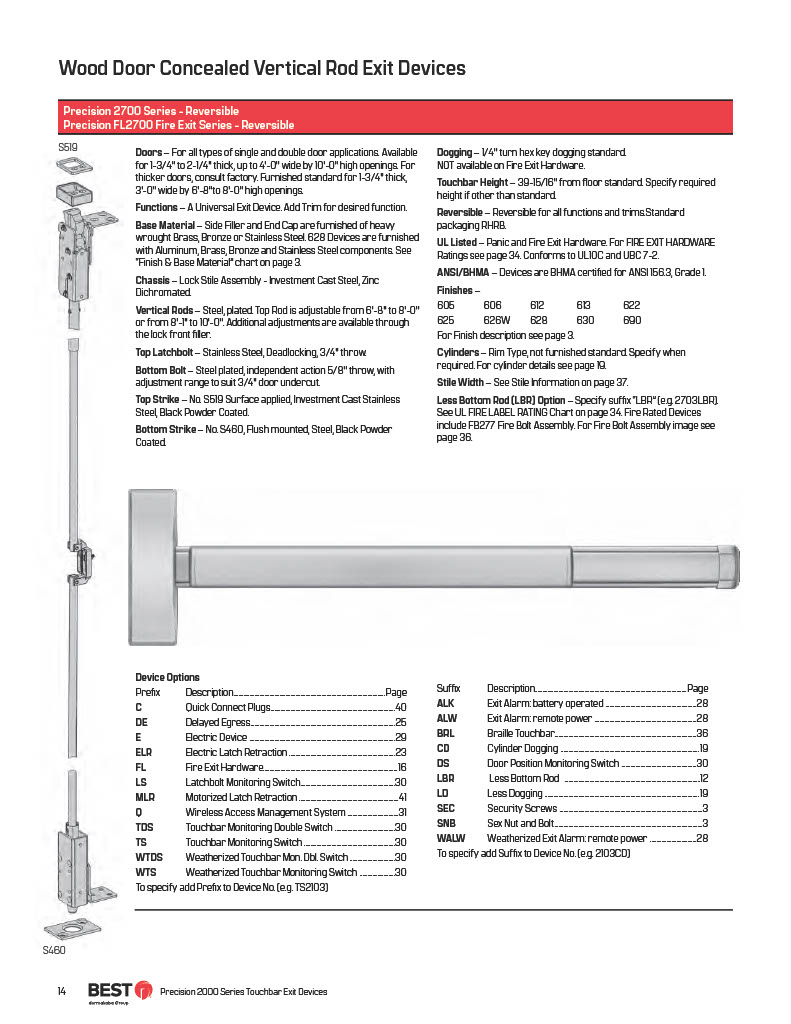

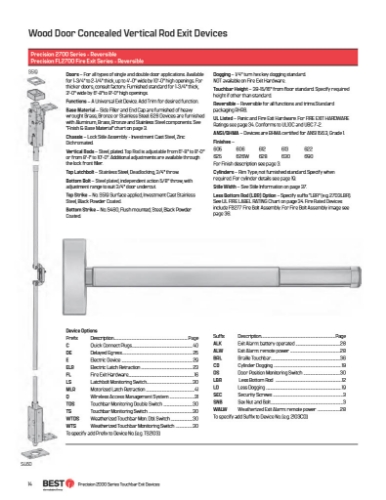

Stile Width:See Catalog Page # 36

Model:Stanley-Precision FL2703-630-36, FL2703-630-48 , FL2703-628-36 , FL2703-628-48, FL2705-630-36, FL2705-630-48 , FL2705-628-36 , FL2705-628-48, FL2702-630-36, FL2701-630-48 , FL2701-628-36 , FL2702-628-48, FL2714-630-36, FL2715-630-48 , FL2714-628-36 , FL2715-628-48
