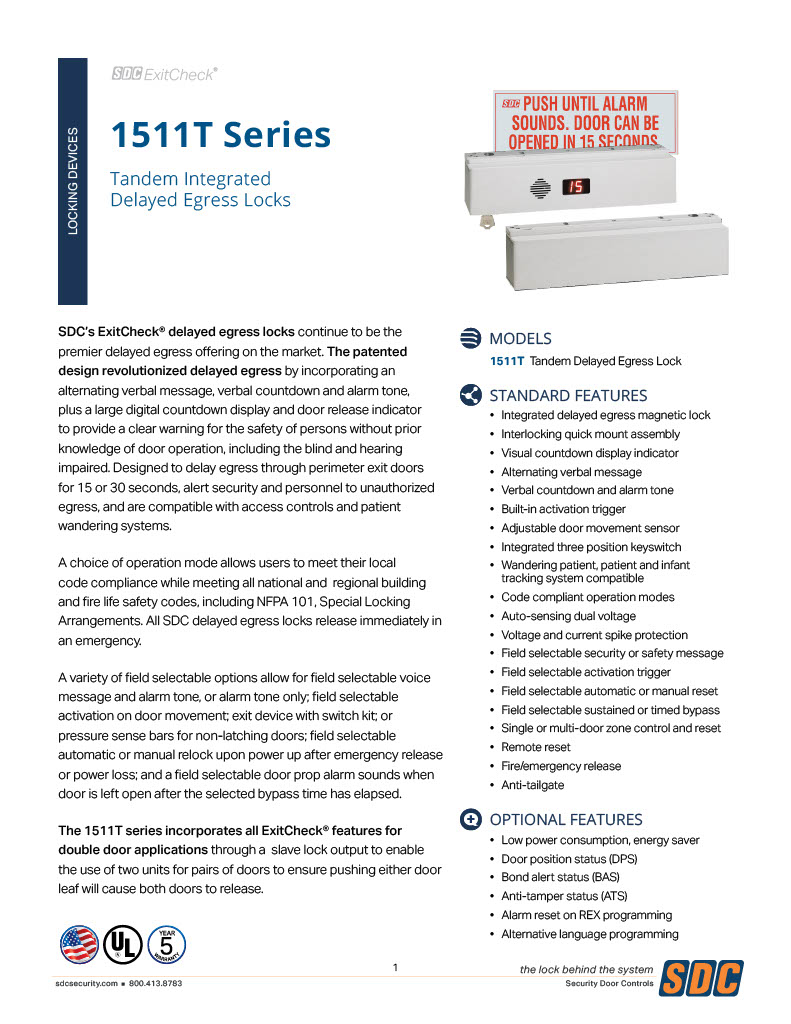

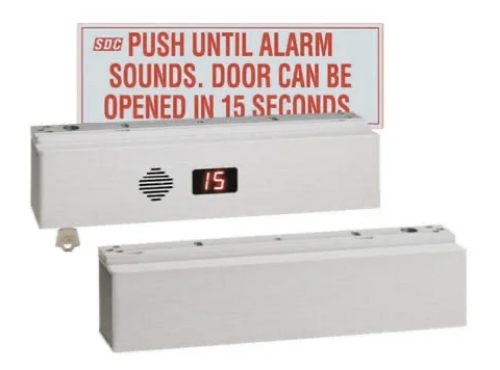

SDC 1511T-NA-K-V Delayed Egress Lock - Tandem - Built in key switch - Aluminum

SDC 1511T-NA-K-V Delayed Egress Lock -*Tandem - Built in key switch - Surface Mount - 1650lbs Holding Force - Aluminum*

T - TandemActivating either door unlocks both doors. For use with pairs of doors equipped with: - Mortise or rim mount exit devices - Surface or concealed vertical rod exit devices with surface or concealed strikes and triggers.  Mortise or cylindrical locksets

NA - NFPA 101, IBC and IFC Compliant:Field selectable 15 or 30 second exit delay; 1 or 2 second nuisance delay Field selectable automatic or manual power-up after emergency release

K - Built in key switch. Provides 1-30 second timed bypass, sustained bypass and alarm reset (std)

Features:

-  Field selectable voice message and alarm tone, or alarm tone only, 75 db @ 3 ft

• The visual display provides a digital countdown, indicates lock release and verifies if the door was opened for egress.

• Field selectable security or safety message

• Field selectable activation: Door movement; Exit device with switch kit; Exit sense bar for non-latching doors

• Field selectable automatic or manual relock upon power up after emergency release or power loss.

• Field selectable door prop alarm: Alarm sounds when door is left open after selected bypass time has elapsed.

CONTROL INPUTS: - Remote access control and REX input, field adjustable for 1,15, 20 or 30 seconds - Remote reset input - Manual power-up input  Emergency release input - Anti-tailgate input

MONITORING OUTPUTS:

• Door secure and unlocked output

• Delayed egress activation alarm output

Specifications:

Electrical:

Input Voltage: Dual voltage Sensing 12/24 VDC ± 10%

820mA @ 12VDC | 500mA @ 24VDC

Mechanical:

Master - 11"L x 2-3/4"H x 2-5/8"D

Slave - 11"L x 2-3/4"H x 2-5/8"D

Armature - 7-3/8"L x 2-3/8"H x 9/16"D

Inputs:

Request to Exit: Normally open, dry

Fire Alarm Release: Alarm panel closed dry contact.Opening of contact releases lock.

Monitoring Outputs:

Alarm Output: SPDT Dry, 1 Amp @ 30VDC

Lock Secure UnlockedOutput: SPDT Dry, 1 Amp @ 30VDC
