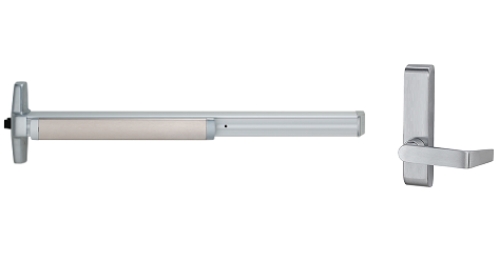

Von Duprin 33A-L-BE Rim Panic Exit Device, With 360L-BE Lever Trim, Blank Escutcheon

Von Duprin 33A-L Rim Panic Touch Bar Exit Device - With 360L-BE*Lever Trim - Blank Escutcheon*

"33A Series has a "grooved mechanism case".

360LBE Lever Blank Escutcheon:Always Operable (No Cylinder). Trim description - 360-L-BE. Base size - 7 1/2" x 1 11/16" x 7 /8" (190x43x22mm). Projection - 3" (76mm). Handing - Handed/Reversible. Note: 360L & 360T used on wood door require the 33A-WDA cover plate.

Device Handing:Non-Handed (except when the SS (Signal Switch) option is used).

Device Lengths:*3- 2' 4" to 3 (711mm to 914 mm) Door Size,4-*2' 10" to 4 (864 mm to 1219 mm) Door Size.

Finishes:US3 - Bright Brass, US4 - Satin Brass, US10 - Satin Bronze, US26 - Bright Chrome, US26D - Satin Chrome, US28 -Aluminum Anodized, 313AN - Anodized Duranodic (Dark Bronze), 315AN - Anodized Black.

Strike:1439 Dull Black.

Dogging Feature:Hex key dogging standard.

Fasteners:Includes 1 3/4" (19mm) 2 1/4" (57mm) Wood & Metal Doors; Sex Bolts #425 SNB furnished standard for end case #325 SNB furnished standard for EO (exit only device).

Latch Bolt:Deadlocking, 3/4" (19mm) throw.

Device Centerline from Finished Floor:39 13/16" (1011mm) at center of device; 39 11/16" (1008mm) with Mullion.

Fits door stiles as narrow as 1-3/4" (44mm).

All 33A/35A series exit devices are UL listed for Panic Hardware or Fire Hardware, and are certified to ANSI A156.3, 2001, Grade1.

Model:Von Duprin 33ABE, US3, US4, US10, US26, US26D, US28, 313AN, 33ABEUS28 , 33ABE313.
