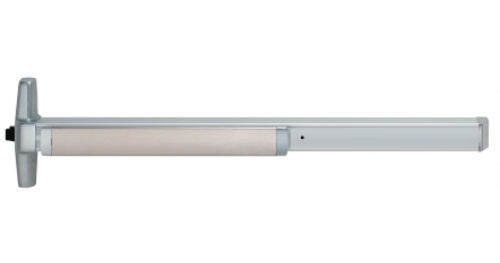

Von Duprin 35A-EO Rim Panic Exit Device - Exit Only

Von Duprin 35A-EO Rim Panic Touch Bar Exit Device - Exit Only

"35A Series has a smooth mechanism case"

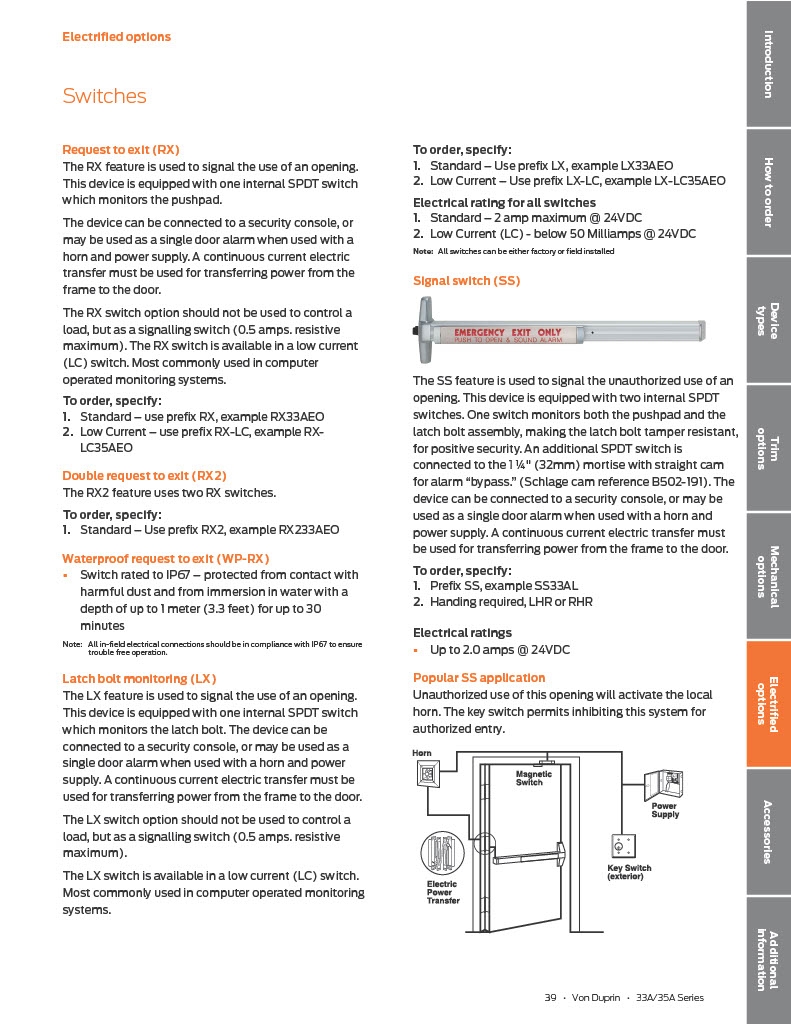

Device Handing:Non-Handed (except when the SS (Signal Switch) option is used).

Device Lengths:*3'- 2' 4" to 3' (711mm to 914 mm) Door Size,4-*2' 10" to 4' (864 mm to 1219 mm) Door Size.

Finishes:US3 - Bright Brass, US4 - Satin Brass, US10 - Satin Bronze,US26 - Bright Chrome, US26D - Satin Chrome, US28 -Aluminum Anodized, 313AN - Anodized Duranodic (Dark Bronze), 315AN - Anodized Black.

Strike: 1439 Dull Black.

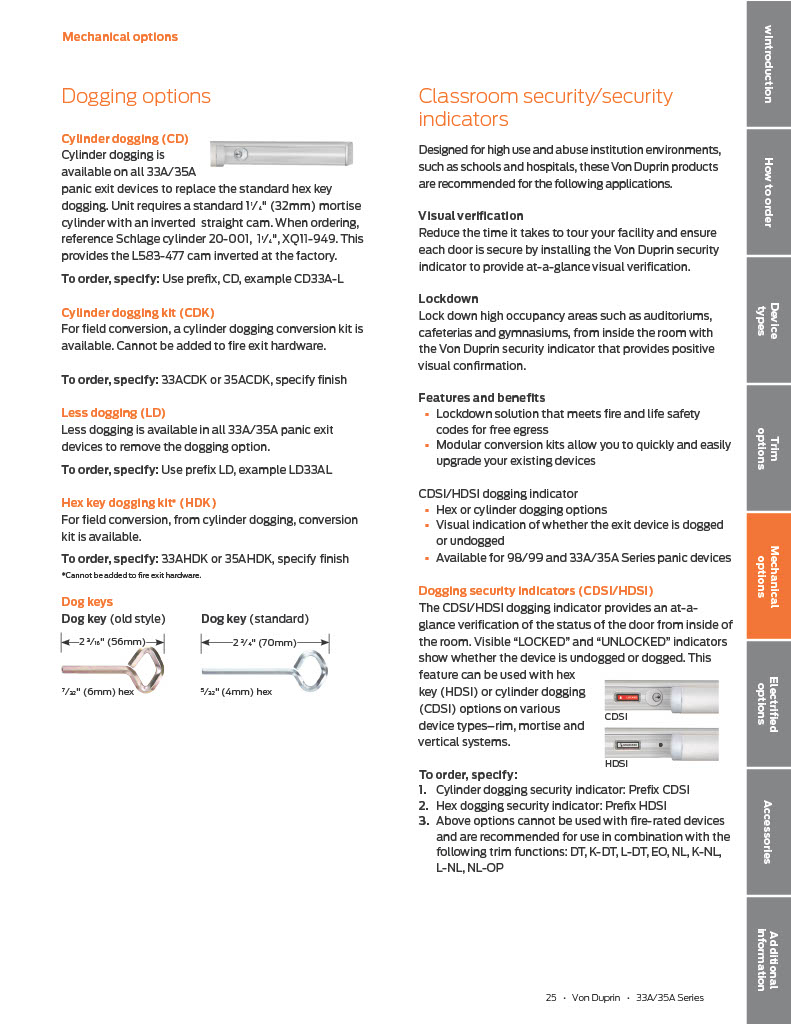

Dogging Feature:Hex key dogging standard.

Fasteners:Includes 1 3/4" (19mm) 2 1/4" (57mm) Wood & Metal Doors; Sex Bolts #425 SNB furnished standard for end case #325 SNB furnished standard for EO (exit only device).

Latch Bolt:Deadlocking, 3/4" (19mm) throw.

Device Centerline from Finished Floor:39 13/16" (1011mm) at center of device; 39 11/16" (1008mm) with Mullion.

Fits door stiles as narrow as 1-3/4" (44mm).

All 33A/35A series exit devices are UL listed for Panic Hardware or Fire Hardware, and are certified to ANSI A156.3, 2001, Grade1.

Model:Von Duprin 35A, QEL35AEO, ALK35AEO, 35AEO, EL35AEO,  RX35AEO, CD35AEO, 35AEO-f, US3, US4, US10, US26, US26D, US28, 313AN, 35AEOUS28 , 35AEO313.
