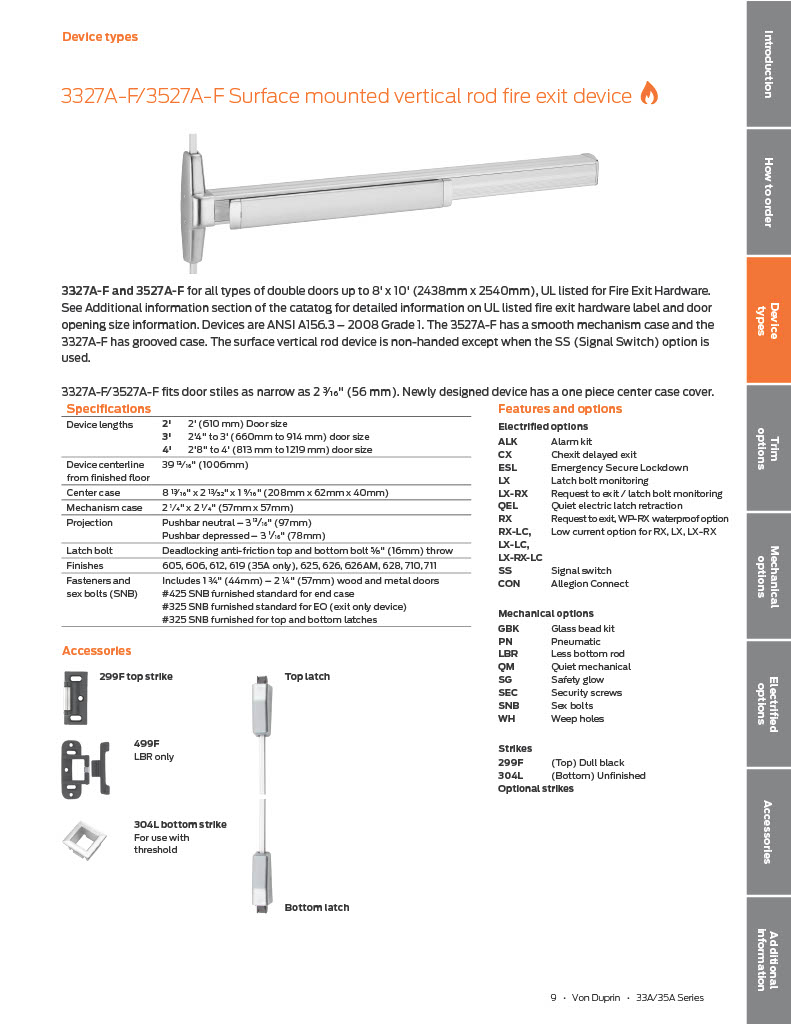

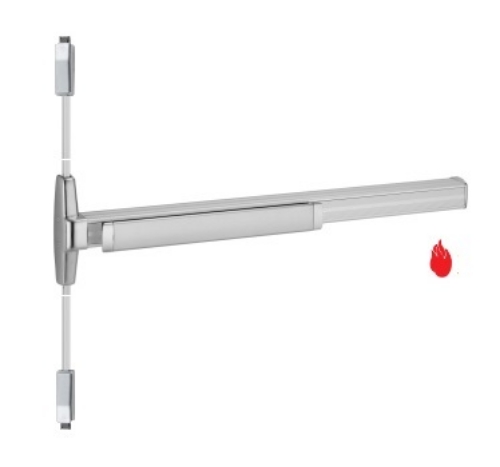

Von Duprin 3327A-F-EO Fire Rated Vertical Rod Touch Bar Exit Device - Exit Only

"3327A-F Series has a grooved mechanism case"

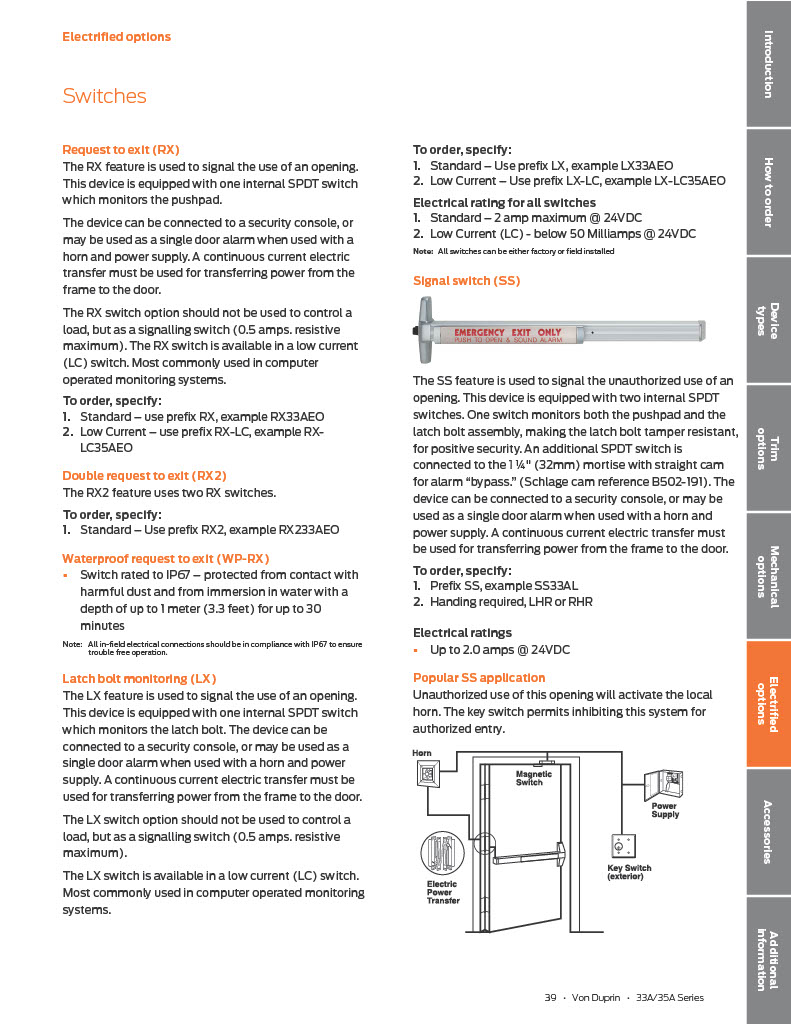

Device Handing:Non-Handed (except when the SS (Signal Switch) option is used)

Device Lengths:*3- 2'4" to 3' (711mm to 914 mm) Door Size,4-*2'10" to 4' (864 mm to 1219 mm) Door Size

Door Height:*7'*(2134mm) standard door height. Extension rods available for door heights up to 10'

Finishes:US3 - Bright Brass, US4 - Satin Brass, US10 - Satin Bronze,US26 - Bright Chrome, US26D - Satin Chrome, US28 -Aluminum Anodized, 313AN - Anodized Duranodic (Dark Bronze), 315AN - Anodized Black

Strike: Top 299F - Dull Black, Bottom 304L Unfinished

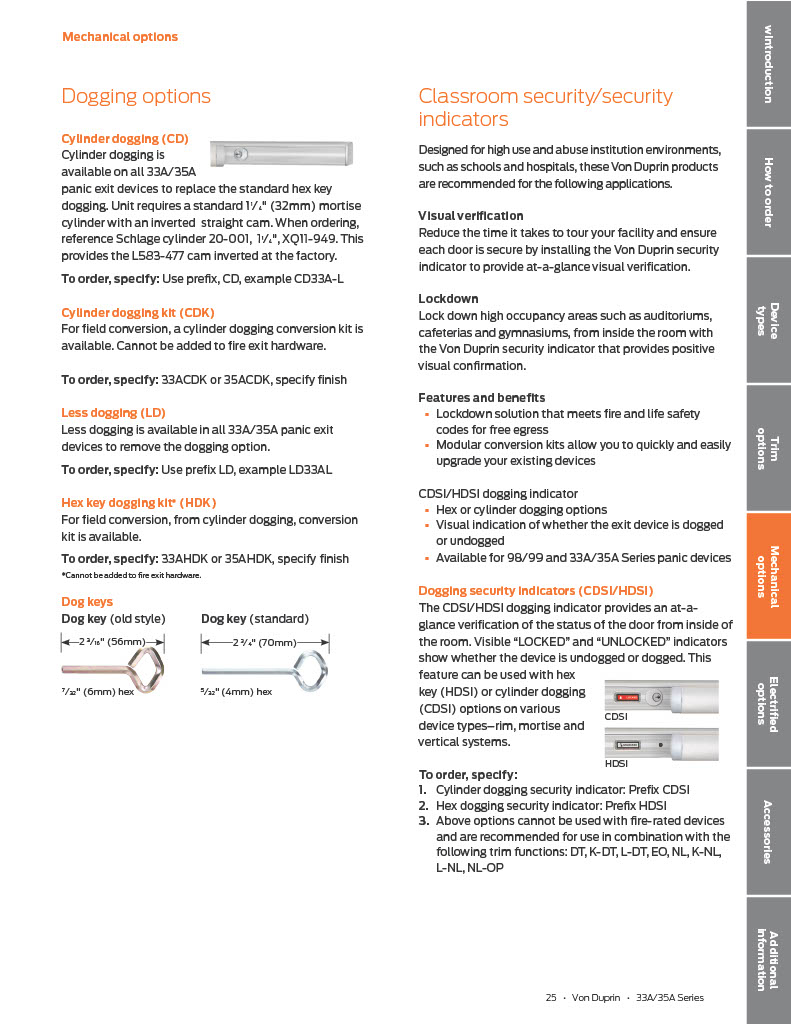

Dogging Feature:No mechanical Dogging

Fasteners:Includes 1 3/4" (19mm) 2 1/4" (57mm) Wood & Metal Doors; Sex Bolts #425 SNB furnished standard for end case

325 SNB furnished standard for EO (exit only device)

325 SNB furnished for top and bottom latches

Latch Bolt:Deadlocking Anti-friction Top & Bottom Bolt 5/8" (16mm) throw

Device Centerline from Finished Floor:39 5/8" (1006mm) at center of device

Fits door stiles as narrow as 2-3/16" (56 mm).

All 33A/35A series exit devices are UL listed for Panic Hardware or Fire Hardware, and are certified to ANSI A156.3, 2001, Grade1.

Model:Von Duprin 3327AF, 3327AFEO, 3327AEOF,EL3327AF, EL3327AFEO, EL3327AEOF,RX3327AF, RX3327AFEO, RX3327AEOF,US28, 3327AFEOUS28
