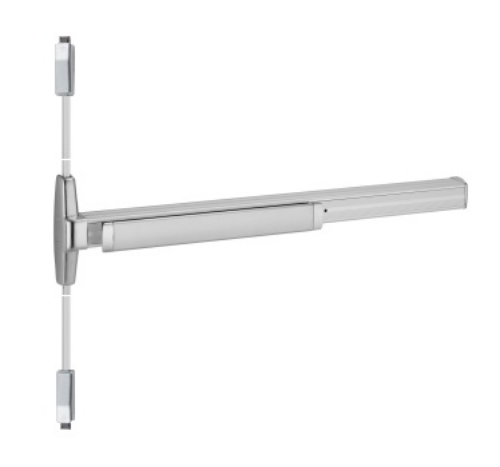

Von Duprin 3527A-EO Vertical Rod Exit Device - Smooth Mechanism Case

Von Duprin 3527A-EO Vertical Rod Touch Bar Exit Device - Exit Only

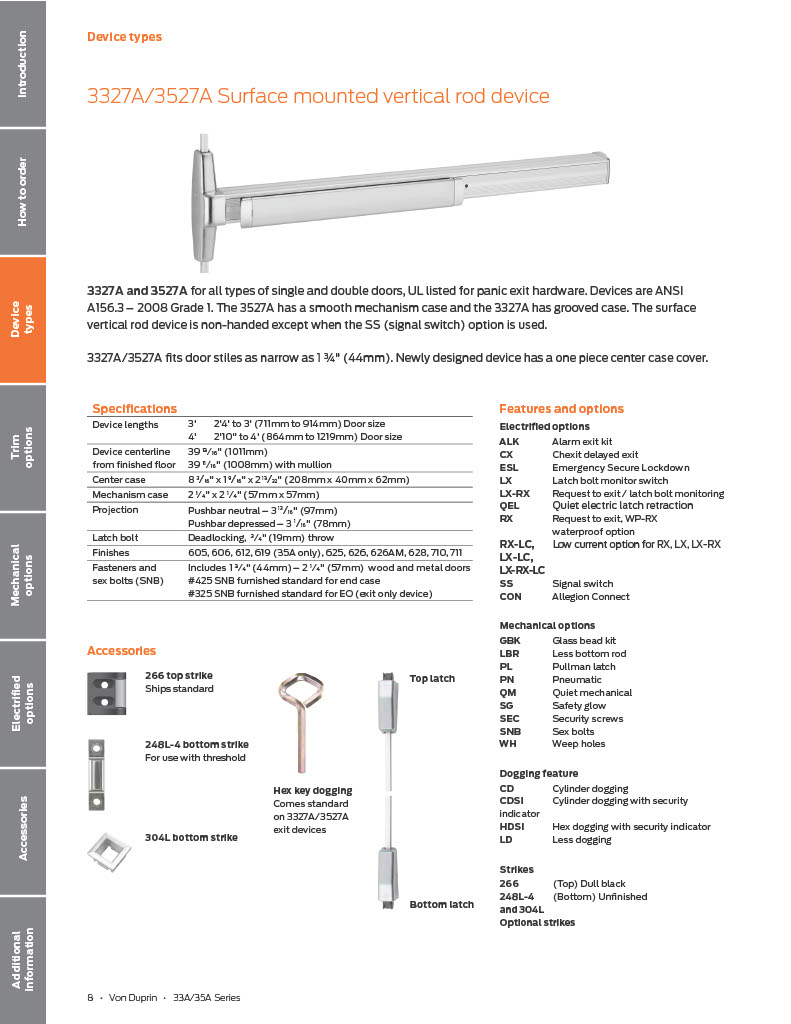

"3527A Series has a smooth mechanism case"

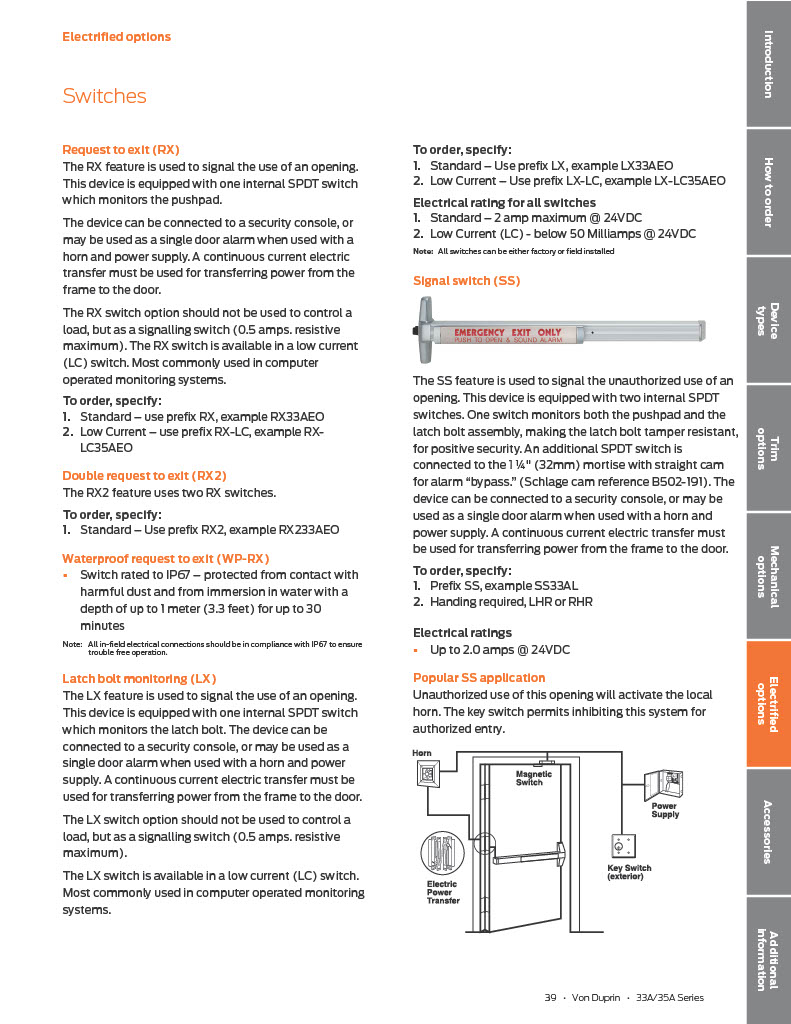

Device Handing:Non-Handed (except when the SS (Signal Switch) option is used).

Device Lengths:*3'- 2'4" to 3' (711mm to 914 mm) Door Size,4-*2'10" to 4' (864 mm to 1219 mm) Door Size.

Door Height:*7'*(2134mm) standard door height. Extension rods available for door heights up to 10'.

Finishes:US3 - Bright Brass, US4 - Satin Brass, US10 - Satin Bronze,US26 - Bright Chrome, US26D - Satin Chrome, US28 -Aluminum Anodized, 313AN - Anodized Duranodic (Dark Bronze), 315AN - Anodized Black.

Strike:266 Dull Black, Bottom 248L4 & 304L Unfinished

.

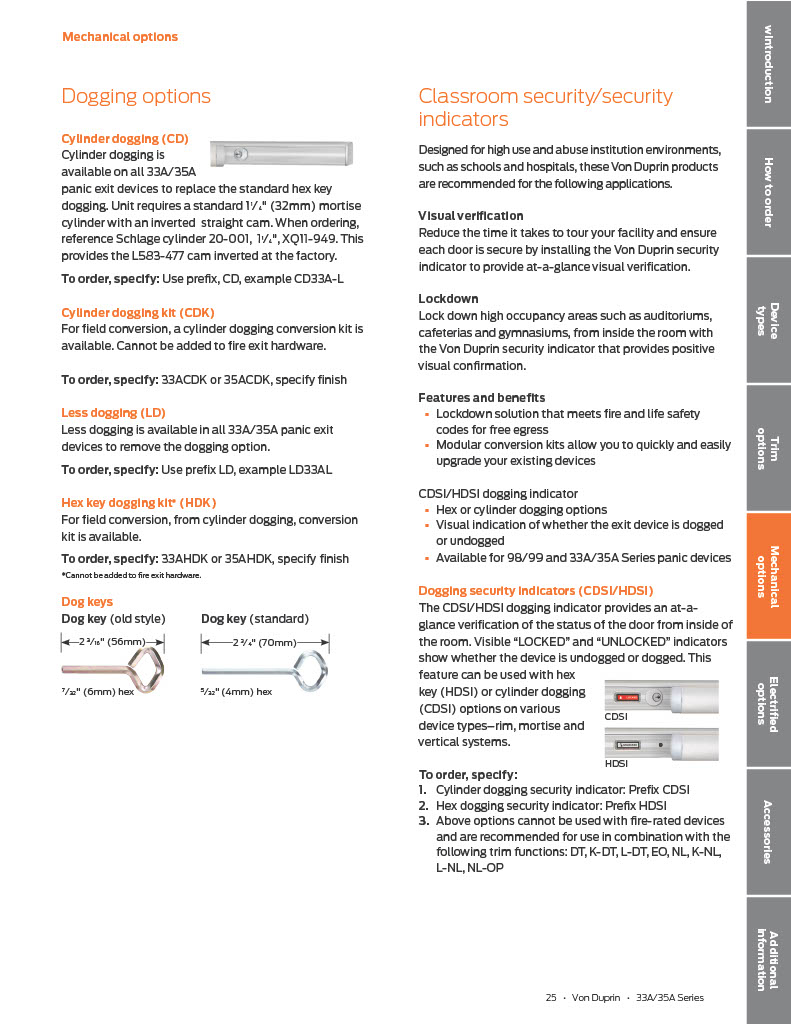

Dogging Feature:Hex key dogging standard.

Fasteners:Includes 1 3/4" (19mm) 2 1/4" (57mm) Wood & Metal Doors; Sex Bolts #425 SNB furnished standard for end case #325 SNB furnished standard for EO (exit only device).

Latch Bolt:Deadlocking Anti-friction Top & Bottom Bolt 5/8" (16mm) throw.

Device Centerline from Finished Floor:39 5/8" (1006mm) at center of device.

Fits door stiles as narrow as 1-3/4"(44mm).

All 33A/35A series exit devices are UL listed for Panic Hardware or Fire Hardware, and are certified to ANSI A156.3, 2001, Grade1.

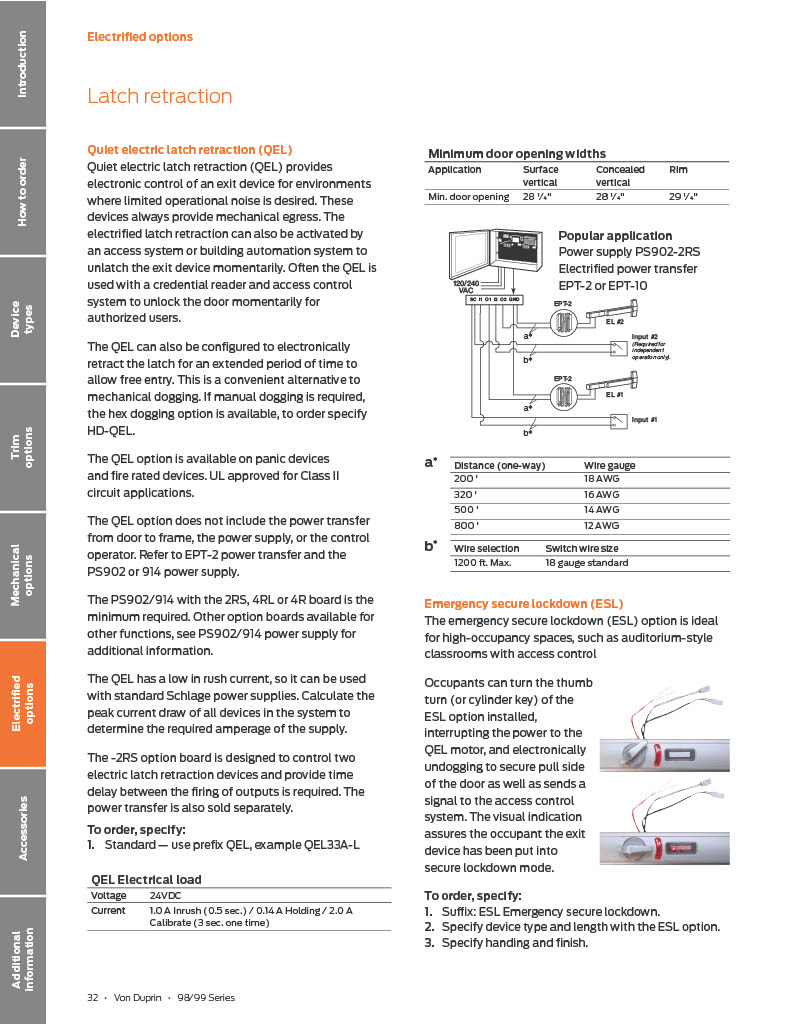

Model:Von Duprin 3527A, 3527AEO, QEL3527A, QEL3527AEO, EL3527A, EL3527AEO, RX3527A, RX3527AEO, US3, US4, US10, US26, US26D, US28, 313AN, 3527AEOUS28 , 3527AEO313.
