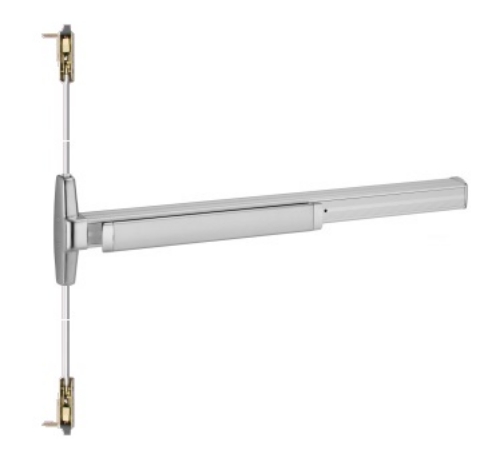

Von Duprin 3347A-EO Concealed Vertical Rod Exit Device - Grooved Mechanism Case

Von Duprin 3347A-EO Concealed Vertical Rod Touch Bar Exit Device - Exit Only

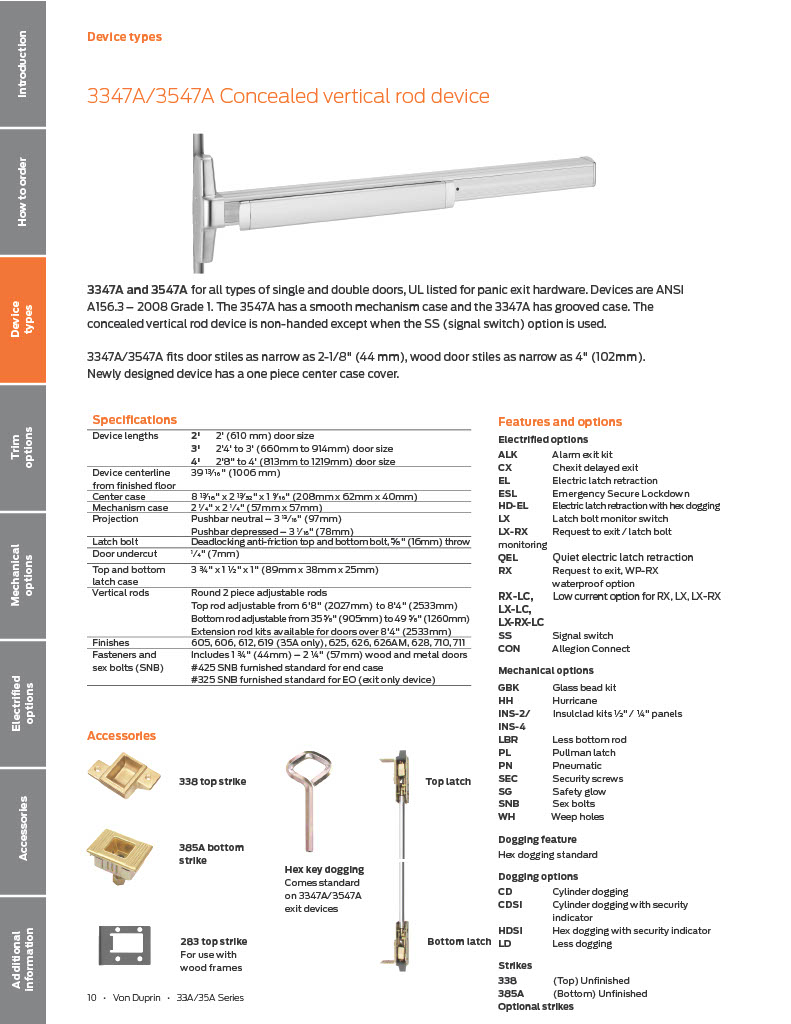

3347A Series has a grooved mechanism case

Device Handing: Non-Handed (except when the SS (Signal Switch) option is used).

Device Lengths: 3- 2'4" to 3' (711mm to 914 mm) Door Size, 4- 2'10" to 4' (864 mm to 1219 mm) Door Size.

Door Height: up to 8'4" (2533mm). Extension rods available for door heights up to 10'.

Finishes: US3 - Bright Brass, US4 - Satin Brass, US10 - Satin Bronze,US26 - Bright Chrome, US26D - Satin Chrome, US28 -Aluminum Anodized, 313AN - Anodized Duranodic (Dark Bronze), 315AN - Anodized Black.

Strike: Top 338 Unfinished, Bottom 385A Unfinished

Dogging Feature: Hex key dogging standard.

Fasteners: Includes 1 3/4" (19mm) 2 1/4" (57mm) Wood & Metal Doors; Sex Bolts #425 SNB furnished standard for end case #325 SNB furnished standard for EO (exit only device).

Latch Bolt: Deadlocking Anti-friction Top & Bottom Bolt 5/8" (16mm) throw.

Device Centerline from Finished Floor: 39 5/8" (1006mm) Standard, Adjustable from 35 5/8" (905mm) to 49 5/8" (1260mm).

3347A/3547A fits door stiles as narrow as 1-3/4" (44 mm), wood door stiles as narrow as 4" (102mm).

All 33A/35A series exit devices are UL listed for Panic Hardware or Fire Hardware, and are certified to ANSI A156.3, 2001, Grade1.

Models: Von Duprin 3347A, EL3347A, EL3347AEO, RX3347AEO US3, US4, US10, US26, US26D, US28, 313AN, 3347AEOUS28 , 3347AEO313.
