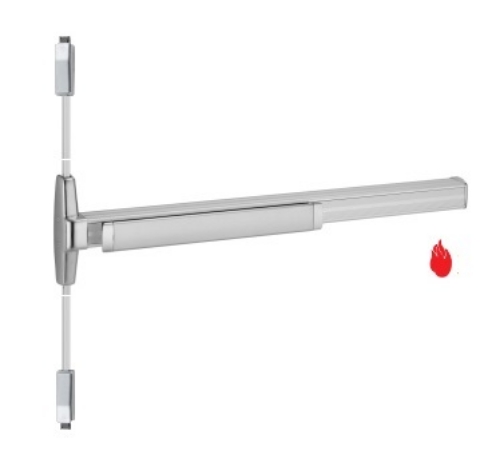

Von Duprin 3527A-EO-F Vertical Rod Exit Device - Fire Rated - Smooth Mechanism Case
Product Details

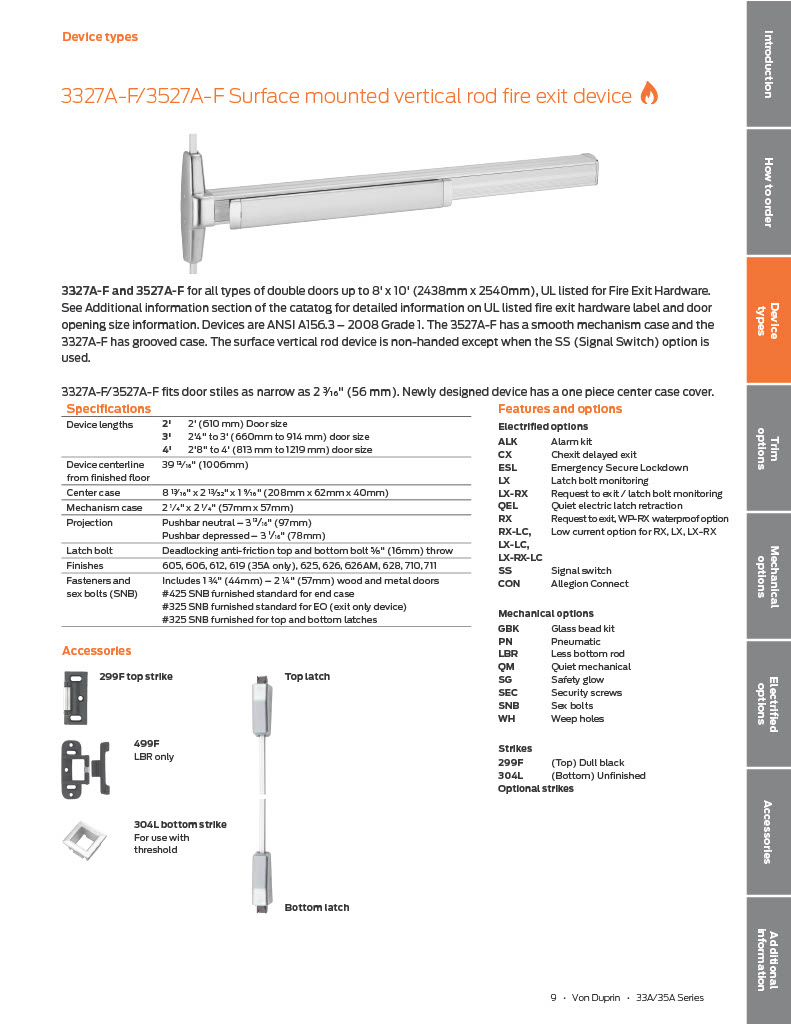

Von Duprin 3527A-F-EO Fire Rated Vertical Rod Touch Bar Exit Device - Exit Only
"3527A-F Series has a smooth mechanism case"

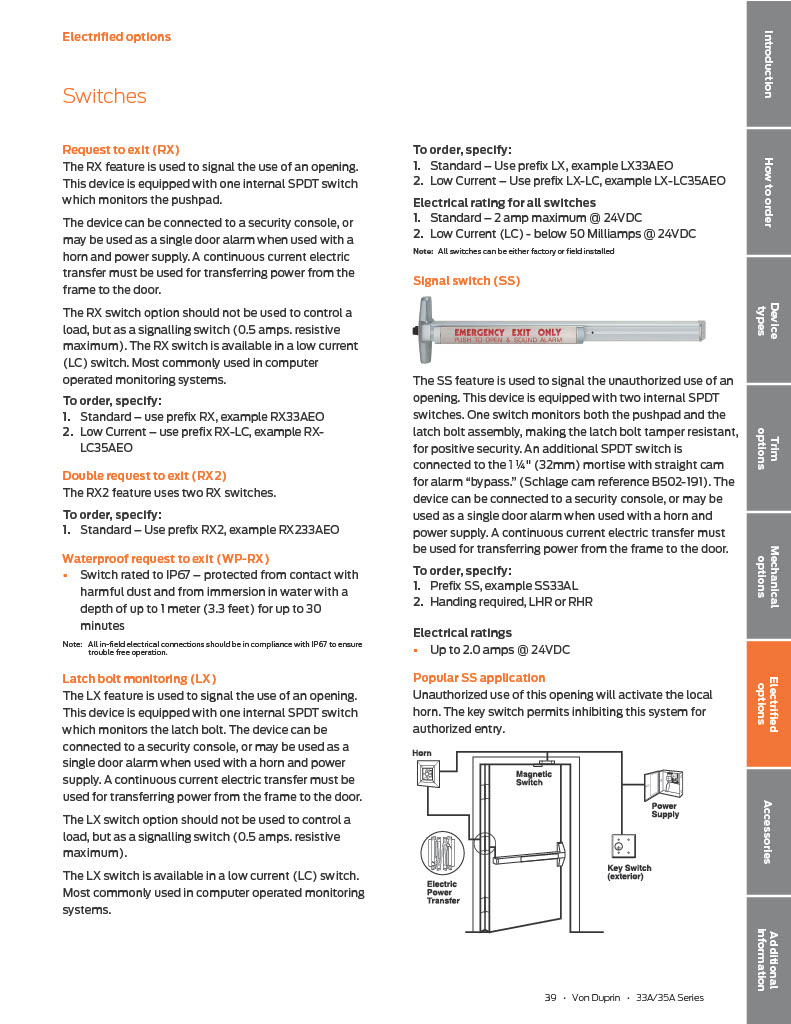

Device Handing:Non-Handed (except when the SS (Signal Switch) option is used).
Device Lengths:3'- 2' 4" to 3' (' 711mm to 914 mm) Door Size,4-2' 10" to 4' (864 mm to 1219 mm) Door Size.
Door Height:*7'*(2134mm) standard door height. Extension rods available for door heights up to 10'.
Finishes:US3 - Bright Brass, US4 - Satin Brass, US10 - Satin Bronze,US26 - Bright Chrome, US26D - Satin Chrome, US28 -Aluminum Anodized, 313AN - Anodized Duranodic (Dark Bronze), 315AN - Anodized Black.
Strike:Top 299F - Dull Black, Bottom 304L Unfinished.

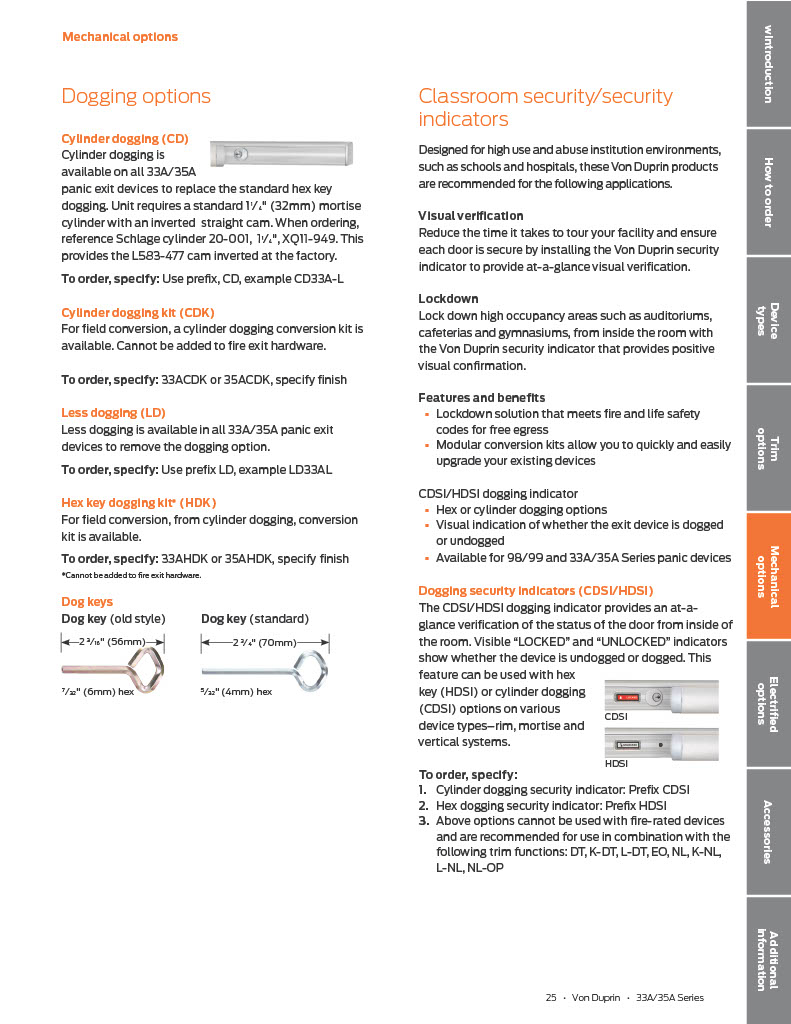

Dogging Feature:No mechanical Dogging.
Fasteners:Includes 1 3/4" (19mm) 2 1/4" (57mm) Wood & Metal Doors; Sex Bolts #425. SNB furnished standard for end case.
325 SNB furnished standard for EO (exit only device).
325 SNB furnished for top and bottom latches.
Latch Bolt:Deadlocking Anti-friction Top & Bottom Bolt 5/8" (16mm) throw.
Device Centerline from Finished Floor:39 5/8" (1006mm) at center of device.
Fits door stiles as narrow as 2-3/16" (56 mm).
All 33A/35A series exit devices are UL listed for Panic Hardware or Fire Hardware, and are certified to ANSI A156.3, 2001, Grade1.

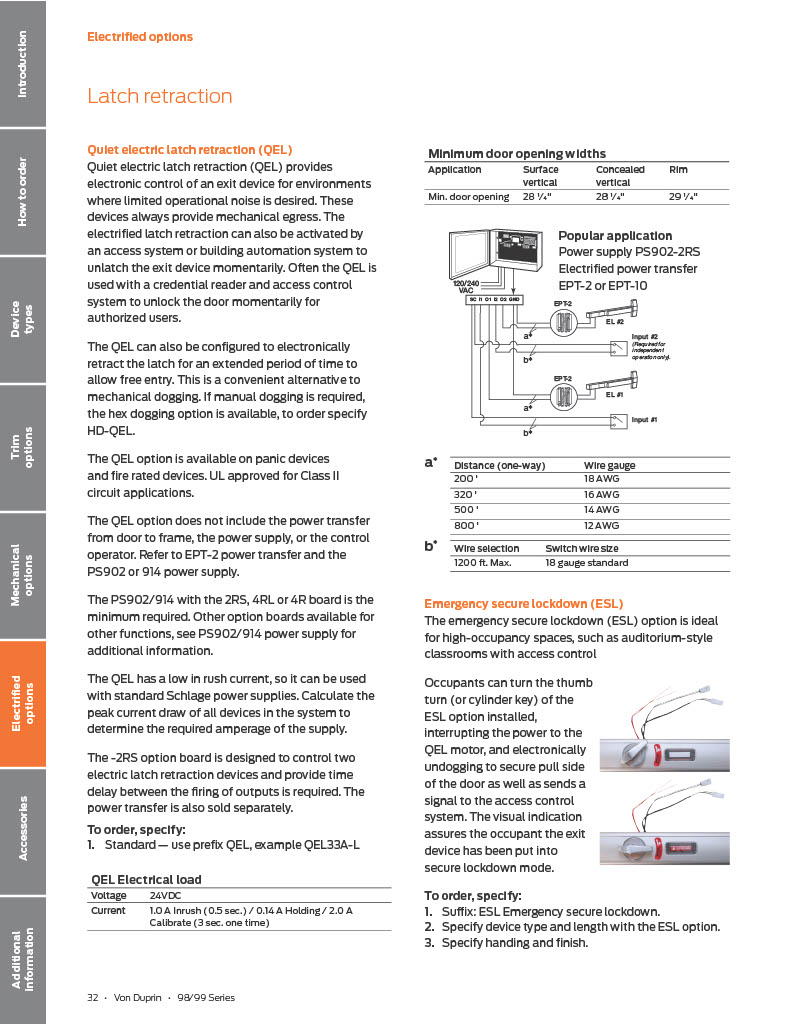

Model:Von Duprin 3527AF, 3527AEOF,RX3527AF, RX3527AFEO,EL3527AF, EL3527AFEO,QEL3527AF, QEL3527AFEO,US28, 3527AFEOUS28
