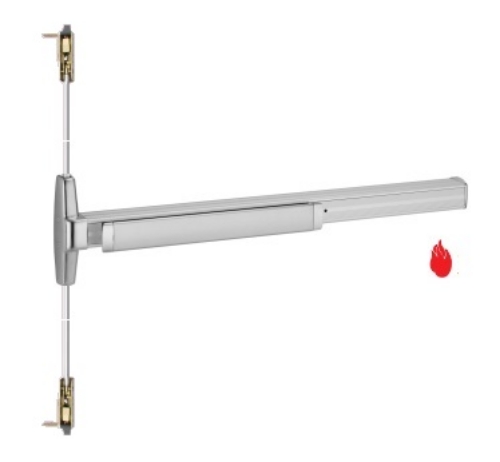

Von Duprin 3347A-EO-F Concealed Vertical Rod Exit Device - Fire Rated - Grooved Mechanism Case

Von Duprin 3347A-F-EO Fire Rated Concealed Vertical Rod Touch Bar Exit Device - Exit Only

"3347A-F Series has a grooved mechanism case"

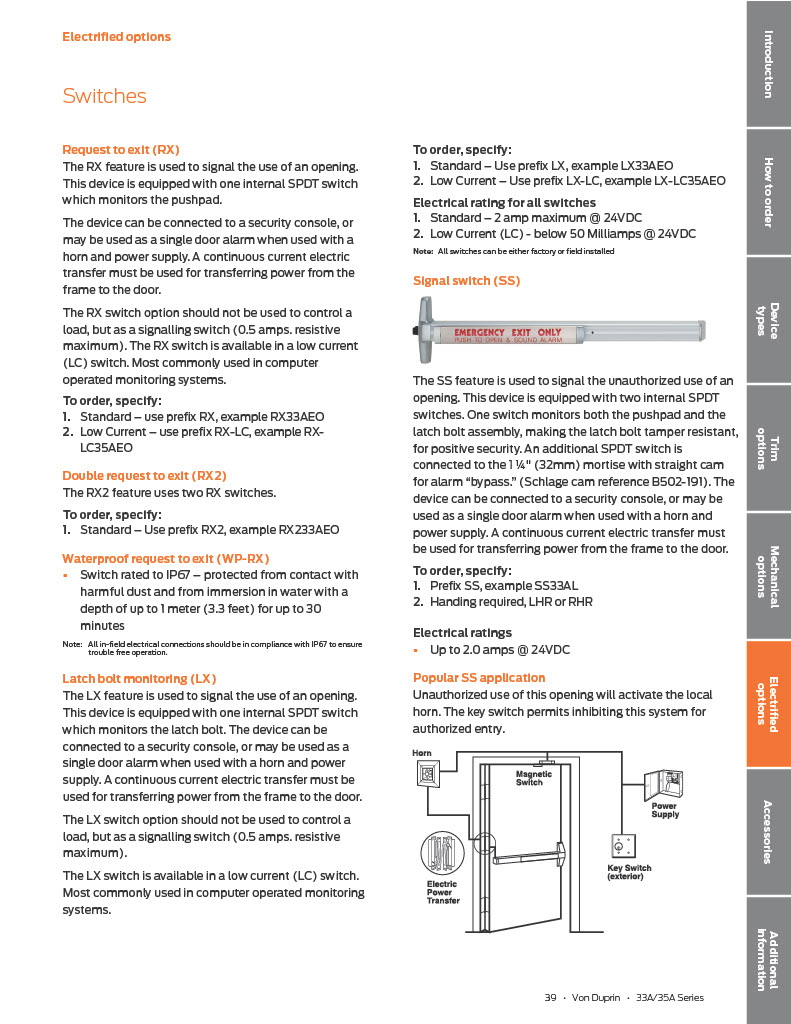

Device Handing:Non-Handed (except when the SS (Signal Switch) option is used).

Device Lengths:3'- 2'4" to 3' (711mm to 914 mm) Door Size,4-2'10" to 4' (864 mm to 1219 mm) Door Size.

Door Height:up to 8'4 (2533mm). Extension rods available for door heights up to 10'.

Finishes:US3 - Bright Brass, US4 - Satin Brass, US10 - Satin Bronze,US26 - Bright Chrome, US26D - Satin Chrome, US28 -Aluminum Anodized, 313AN - Anodized Duranodic (Dark Bronze), 315AN - Anodized Black.

Strike: Top 338 Unfinished, Bottom 385A Unfinished.

Dogging Feature:No mechanical Dogging.

Fasteners:Includes 1 3/4" (19mm) 2 1/4" (57mm) Wood & Metal Doors; Sex Bolts #425 SNB furnished standard for end case #325 SNB furnished standard for EO (exit only device).

Latch Bolt:Deadlocking Anti-friction Top & Bottom Bolt 5/8" (16mm) throw.

Device Centerline from Finished Floor:39 5/8" (1006mm) Standard, Adjustable from 35 5/8" (905mm) to 49 5/8" (1260mm).

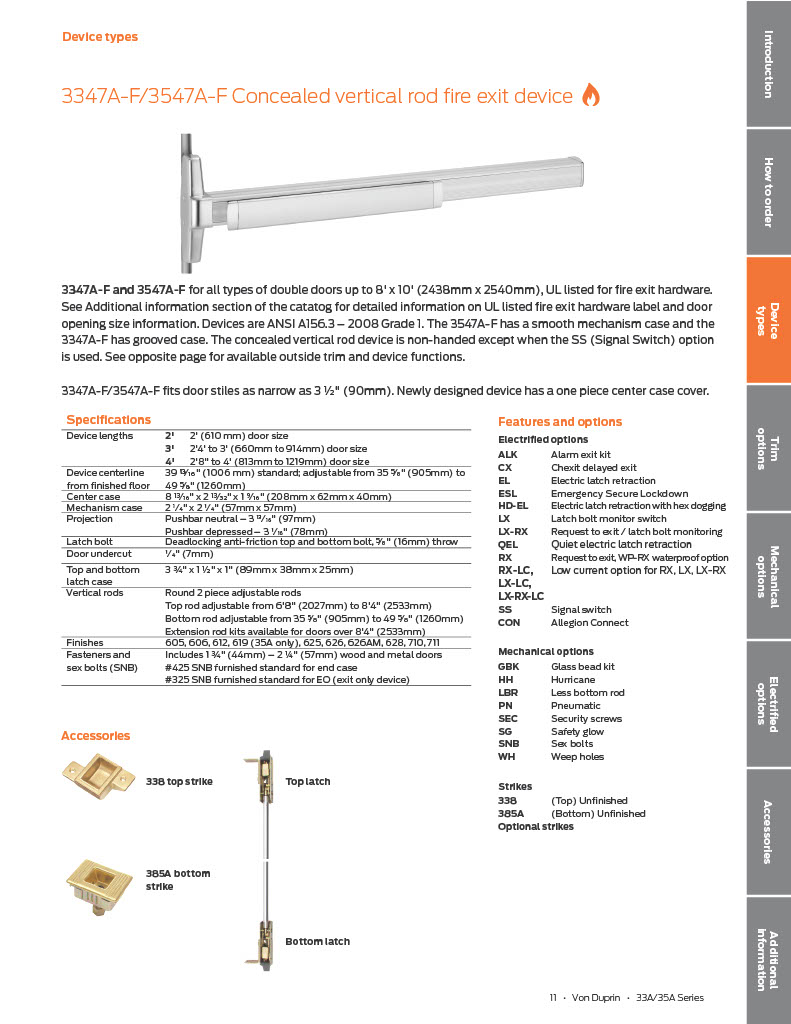

3347A-F/3527A-F fits door stiles as narrow as 3 1/2" (90mm).

All 33A/35A series exit devices are UL listed for Panic Hardware or Fire Hardware, and are certified to ANSI A156.3, 2001, Grade1.

Modela:Von Duprin 3347AEOF, US26D, US28, 313, 3347AEOFUS28 , 3347AEOF313.
