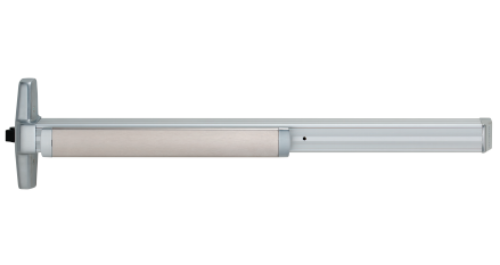

Von Duprin CXA33A-EO Rim Panic Exit Device, Chexit Delayed Exit

Von Duprin QEL33A-EO Rim Panic Exit Device, Chexit Delayed Exit

"33A Series has a "grooved mechanism case".

The Von Duprin Chexit device is designed for controlled egress applications. It meets both life safety and security needs, as well as the requirements of NFPA 101 for "Special Locking Arrangement" and IBC "Special Egress-Control Devices". All control inputs, auxiliary locking, local alarm and remote signaling outputs are self-contained in the Chexit assembly. Numerous configurable options allow the device to be customized for the specific code or application requirements.  The standard Chexit device sounds an alarm and keeps the door secured for 15 seconds following an exit attempt with immediate release upon fire.

The Chexit device includes a 6" x 20" decal for application on door. "PUSH UNTIL ALARM SOUNDS. DOOR CAN BE OPENED IN 15 "

Device Handing:Non-Handed (except when the SS (Signal Switch) option is used).

Device Lengths:*3- 2' 4" to 3 (711mm to 914 mm) Door Size,4-*2' 10" to 4 (864 mm to 1219 mm) Door Size.

Finishes:US3 - Bright Brass, US4 - Satin Brass, US10 - Satin Bronze, US26 - Bright Chrome, US26D - Satin Chrome, US28 -Aluminum Anodized, 313AN - Anodized Duranodic (Dark Bronze), 315AN - Anodized Black.

Strike:1439 Dull Black.

Dogging Feature:Hex key dogging standard.

Fasteners:Includes 1 3/4" (19mm) 2 1/4" (57mm) Wood & Metal Doors; Sex Bolts #425 SNB furnished standard for end case #325 SNB furnished standard for EO (exit only device).

Latch Bolt:Deadlocking, 3/4" (19mm) throw.

Device Centerline from Finished Floor:39 13/16" (1011mm) at center of device; 39 11/16" (1008mm) with Mullion.

Fits door stiles as narrow as 1-3/4" (44mm).

All 33A/35A series exit devices are UL listed for Panic Hardware or Fire Hardware, and are certified to ANSI A156.3, 2001, Grade1.

Model:Von Duprin 33A, 33AEO, QEL33A, QEL33AEO, US3, US4, US10, US26, US26D, US28, 313AN, QL33AEOUS28 ,QL 33AEO313.
