Product Details

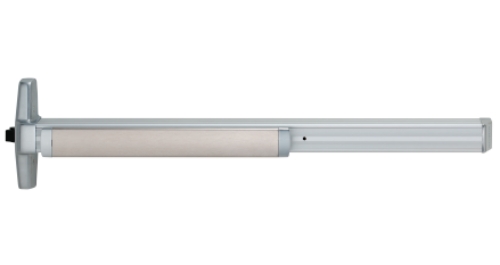

Von Duprin QEL33A-EO Rim Panic Exit Device,*Quiet Electric*Latch Retraction
"33A Series has a "grooved mechanism case".
QEL Quiet Electric latch retraction:
The QEL feature allows for the remote unlatching of exit devices. A control station operator can flip a switch to retract the latch bolt and immediately change an exit door to push-pull operation. Different than the popular EL, the QEL quiet operation is achieved using an electric drive motor which retracts the latch bolt either momentary unlatching or for extended periods of time. This feature is an alternative to manual dogging.
QEL devices are also useful with automatic door operators, and may be applied to fire-rated applications when under the control of an automatic fire alarm system.
UL approved for Class II circuit applications.
The QEL option does not include the power transfer from door to frame, the power supply, or the control operator. Refer to EPT-2 power transfer and the PS902 or 914 power supply.
The PS902/914 with the 2RS, 4RL or 4R board is the minimum required. Other option boards available for other functions, see PS902/914 power supply for additional information.
Device Handing:Non-Handed (except when the SS (Signal Switch) option is used).
Device Lengths:*3- 2' 4" to 3 (711mm to 914 mm) Door Size,4-*2' 10" to 4 (864 mm to 1219 mm) Door Size.
Finishes:US3 - Bright Brass, US4 - Satin Brass, US10 - Satin Bronze, US26 - Bright Chrome, US26D - Satin Chrome, US28 -Aluminum Anodized, 313AN - Anodized Duranodic (Dark Bronze), 315AN - Anodized Black.
Strike:1439 Dull Black.
Dogging Feature:Hex key dogging standard.
Fasteners:Includes 1 3/4" (19mm) 2 1/4" (57mm) Wood & Metal Doors; Sex Bolts #425 SNB furnished standard for end case #325 SNB furnished standard for EO (exit only device).
Latch Bolt:Deadlocking, 3/4" (19mm) throw.
Device Centerline from Finished Floor:39 13/16" (1011mm) at center of device; 39 11/16" (1008mm) with Mullion.
Fits door stiles as narrow as 1-3/4" (44mm).
All 33A/35A series exit devices are UL listed for Panic Hardware or Fire Hardware, and are certified to ANSI A156.3, 2001, Grade1.
Model:Von Duprin 33A, 33AEO, QEL33A, QEL33AEO, US3, US4, US10, US26, US26D, US28, 313AN, QL33AEOUS28 ,QL 33AEO313.
