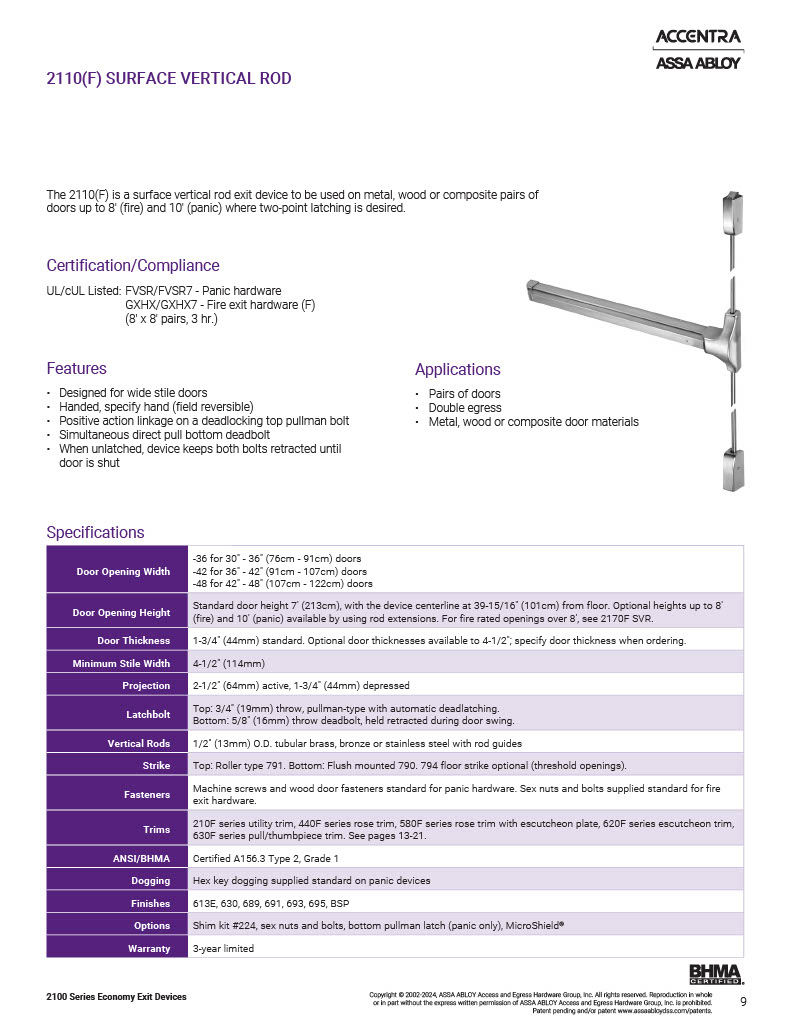

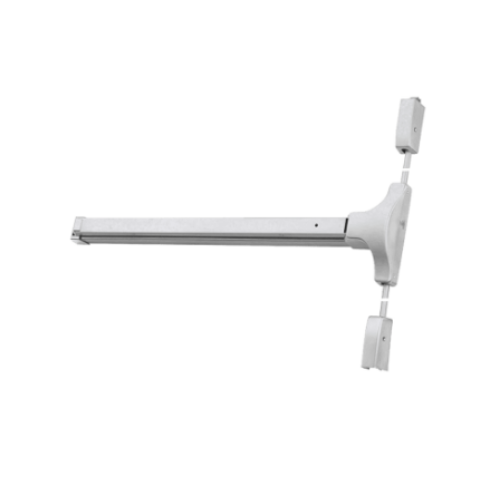

Accentra (Yale) 2110 Surface Vertical Rod Exit Device - 48"

Accentra (Yale)2110 Surface Vertical Rod Exit Device - 48"

features

Designed for wide stile doorsHanded (field reversible)Positive action linkage on a deadlocking top pullman boltSimultaneous direct pull bottom deadboltWhen unlatched, device keeps both bolts retracted until door is shut

applications

Pairs of doorsDouble EgressMetal, wood or composite door materials

specifications

Door Opening Width: 42" - 48" (107cm - 122cm) doors

Door Opening Height: Standard door height 7' (213cm), with the device centerline at 39-15/16" (101cm) from floor. Optional heights up to 8' (fire) and 10' (panic) available by using rod extensions.

Door Thickness:1-3/4" (44mm) standard.

Minimum Stile Width:4-1/2" (114mm)

Projection:2-1/2" (64mm) active, 1-3/4" (44mm) depressed

Latchbolt: Top: 3/4" (19mm) throw, pullman-type with automatic deadlatching.Bottom:5/8" (16mm) throw deadbolt, held retracted during door swing.

Strike:Top: Roller type 791. Bottom: Flush mounted 790

Fasteners:Machine screws and wood door fasteners standard for panic hardware.

Dogging:Hex key dogging supplied standard on panic devices

Warranty:3-year limited

certification/compliance

UL/cUL Listed:FVSR/FVSR7 - Panic hardware

ANSI/BHMA Certified:A156.3 Type 2, Grade 1

Model: Accentra (Yale)2110630, 2110689, 2110-630, 2110-689, 2110-689-48, 2110-48-630
