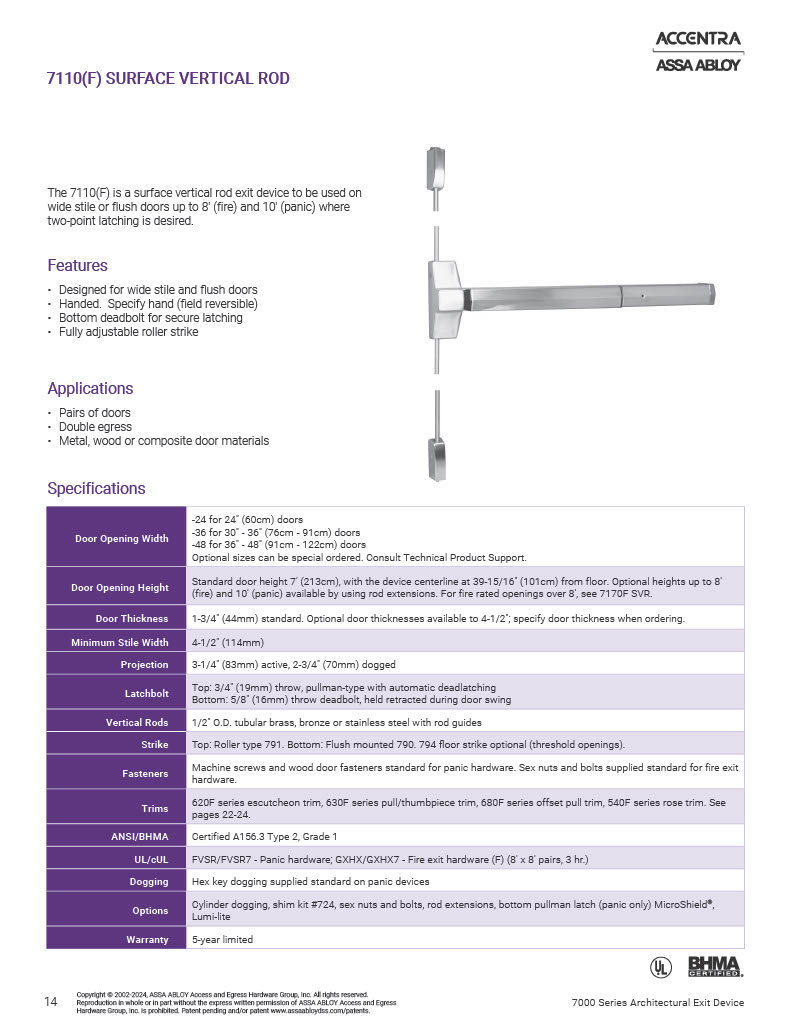

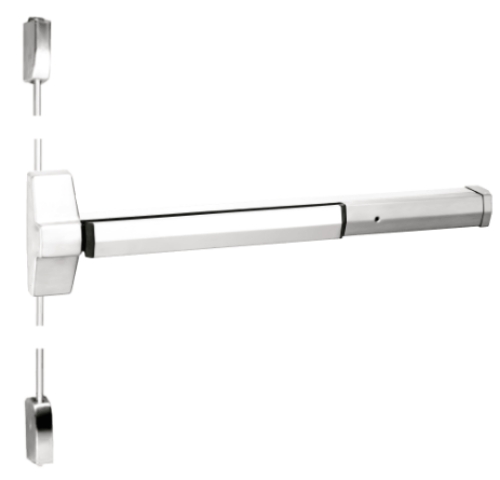

Accentra (Yale) 7110 surface vertical rod Exit Device -48"

Accentra (Yale) *7110 surface vertical rod Exit Device *-48"

features:

Designed for wide stile and flush doorsHanded. Specify hand (field reversible)Bottom deadbolt for secure latchingFully adjustable roller strike

applications:

Pairs of doorsDouble egressMetal, wood or composite door materials specifications:

Door Opening Width: for 36" - 48" (91cm - 122cm) doors

Door Opening Height:Standard door height 7' (213cm), with the device centerline at 39-15/16" (101cm) from floor.Optional heights up to 8' (fire) and 10' (panic) available by using rod extensions.

Door Thickness:1-3/4" (44mm) standard

Minimum Stile Width:4-1/2" (114mm)

Projection:3-1/4" (83mm) active, 2-3/4" (70mm) dogged

Latchbolt:Top: 3/4" (19mm) throw, pullman-type with automatic deadlatching

Bottom:5/8" (16mm) throw deadbolt, held retracted during door swing

Vertical Rods:1/2" O.D. tubular brass, bronze or stainless steel with rod guides

Strike: Top:Roller type 791. Bottom: Flush mounted 790.

Fasteners:Machine screws and wood door fasteners standard for panic hardware.

Dogging:Hex key dogging supplied standard on panic devices

Warranty:5-year limited

certification/compliance: UL/cUL Listed

: FVSR/FVSR7 - Panic hardware GXHX/GXHX7 - Fire exit hardware (F) (8' x 8' pairs, 3 hr.)

ANSI/BHMA Certified:A156.3 Type 2, Grade 1

Model: Accentra (Yale) 7110-613E-48, 7110-630, 7110-612, 7110613E48, 7110630, 7110612
