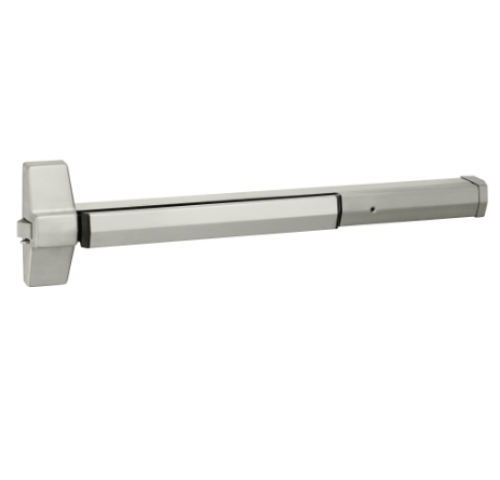

Accentra (Yale) 7100 Rim Exit Device - 48"

Accentra (Yale)7100 Rim Exit Device - 48"

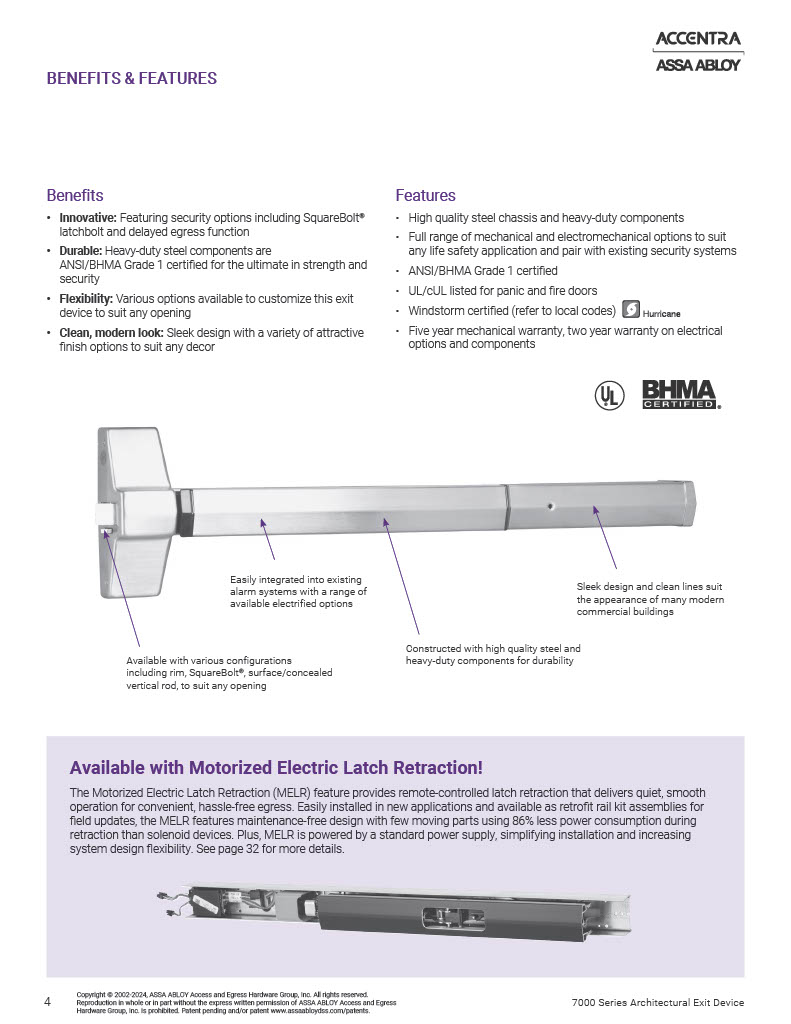

features:

Designed for wide stile doors3/4" throw deadlocking stainless steel pullman latchboltElectroplated ferrous components provide corrosion resistance

applications:

Non-handed for easy installationSingle swing doorsPairs of doors with removable mullionsMetal, wood or composite door materials

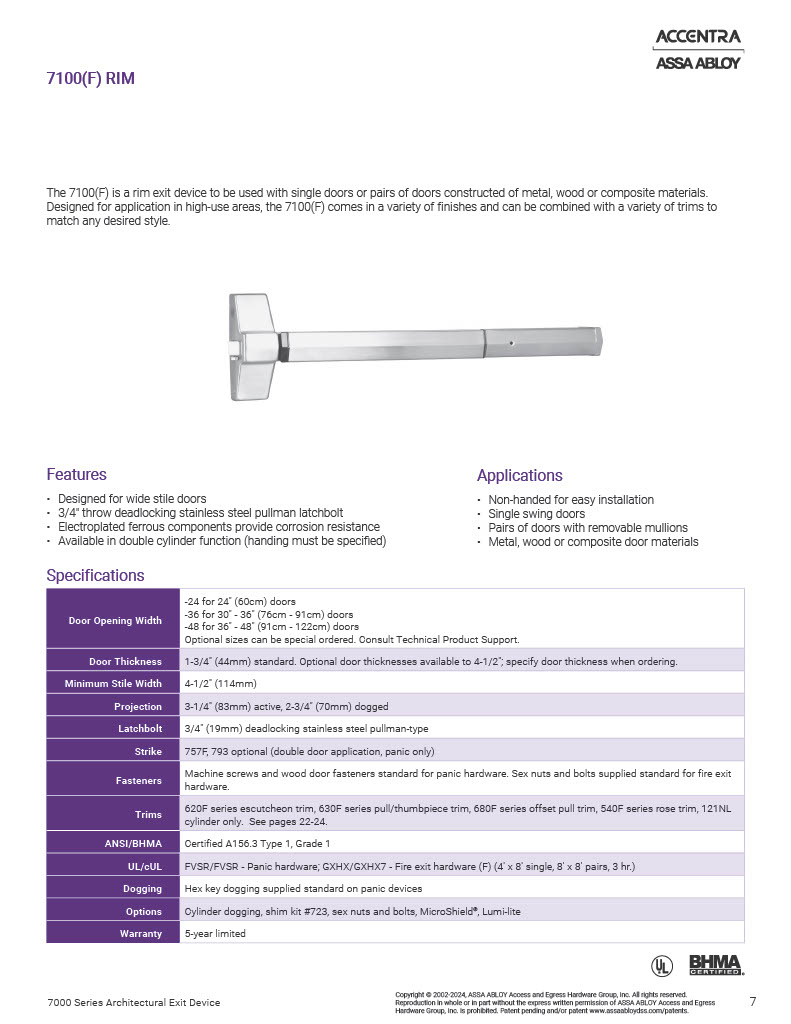

specifications:

Door Opening Width: For 36" - 48" (91cm - 122cm) doors

Door Thickness:1-3/4" (44mm) standard.

Minimum Stile Width:4-1/2" (114mm)

Projection:3-1/4" (83mm) active, 2-3/4" (70mm) dogged

Latchbolt:3/4" (19mm) deadlocking stainless steel pullman-type

Strike:757F, 793 optional (double door application, panic only)

Fasteners:Machine screws and wood door fasteners standard for panic hardware.

Dogging:Hex key dogging supplied standard on panic devices

Warranty: 5-year limited

certification/compliance:

UL/cUL Listed:FVSR/FVSR7 - Panic hardware GXHX/GXHX7ANSI/BHMA Certified:A156.3 Type 1, Grade 1

Model: Accentra (Yale) 7100-48-605, 7100-48-612, 7100-48-613E, 7100-48-630, 710048605, 7100-48, 7100-630, 710048630.
