Accentra (Yale) 7105 Rim Exit Device W/ Cylinder Dogging - 36"

Accentra (Yale)7105 Rim Exit Device W/ Cylinder Dogging - 36"

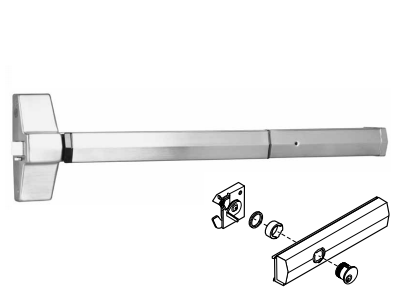

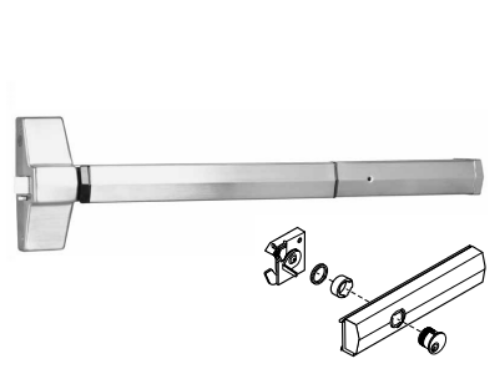

Yale 7105 Rim Exit Device**requires use of 1-1/8" mortise cylinder

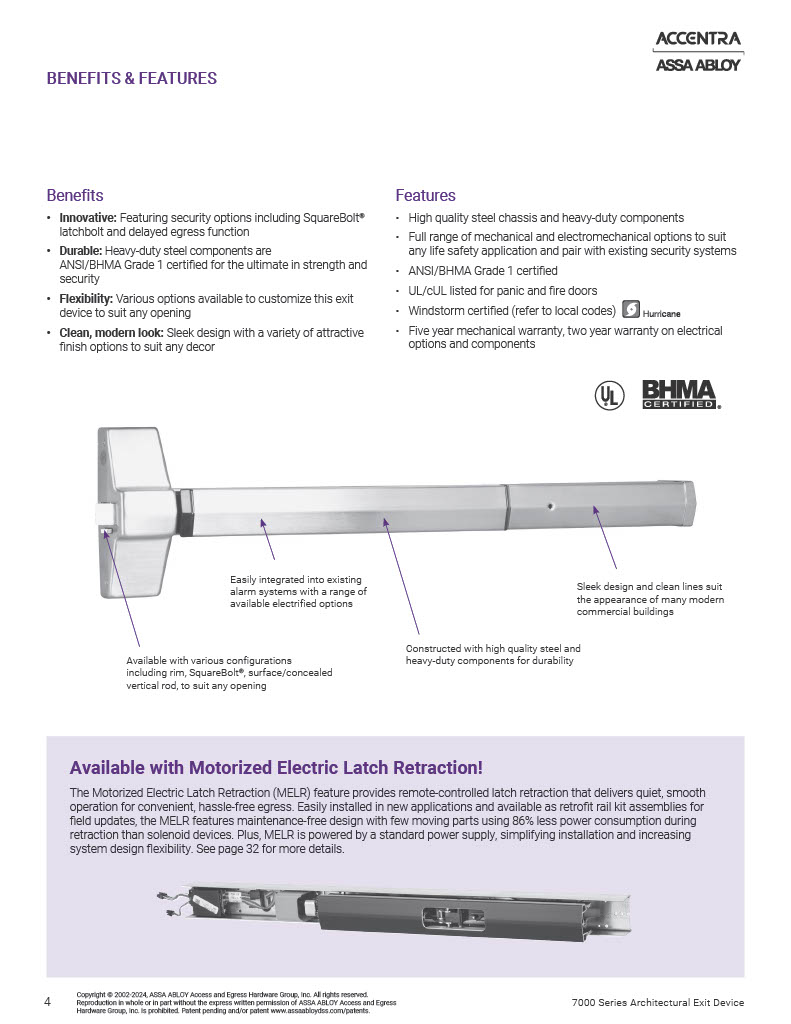

features:

Designed for wide stile doors3/4" throw deadlocking stainless steel pullman latchboltElectroplated ferrous components provide corrosion resistance

applications:

Non-handed for easy installationSingle swing doorsPairs of doors with removable mullionsMetal, wood or composite door materials

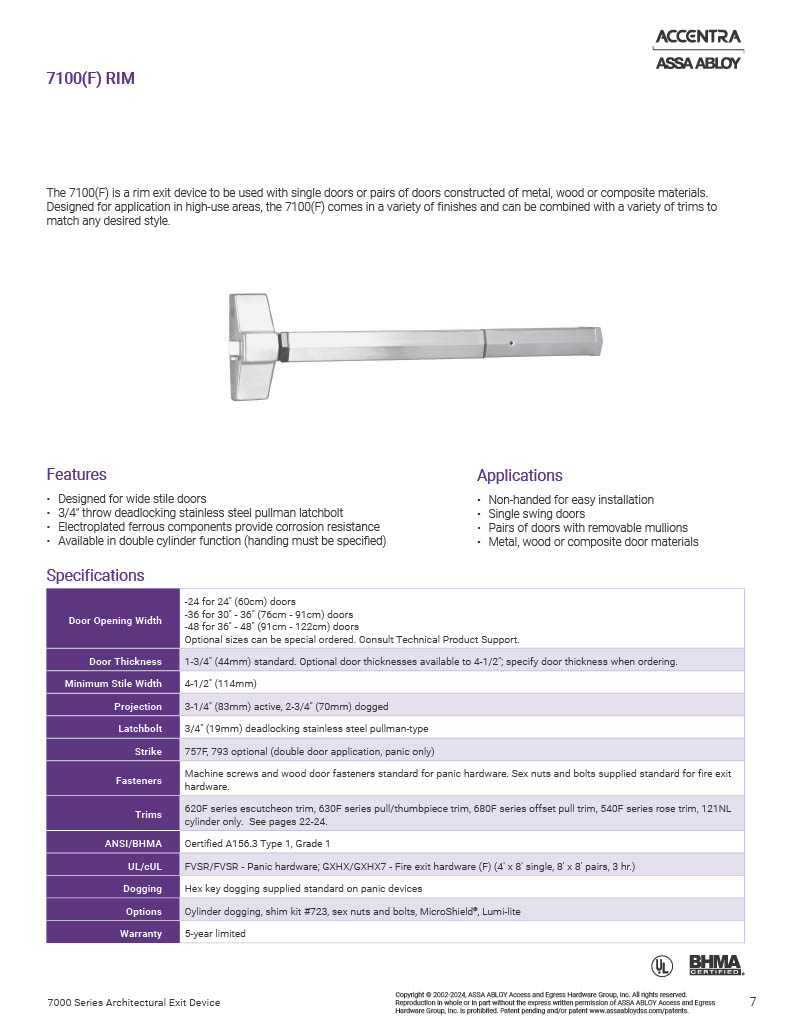

specifications:

Cylinder dogging, shim kit #723, sex nuts and bolts

Door Opening Width:for 30" - 36" (76cm - 91cm) doors

Door Thickness:1-3/4" (44mm) standard.

Minimum Stile Width:4-1/2" (114mm)

Projection:3-1/4" (83mm) active, 2-3/4" (70mm) dogged

Latchbolt:3/4" (19mm) deadlocking stainless steel pullman-type

Strike:757F, 793 optional (double door application, panic only)

Fasteners:Machine screws and wood door fasteners standard for panic hardware.

Dogging:Hex key dogging supplied standard on panic devices

Warranty: 5-year limited

certification/compliance:

UL/cUL Listed:FVSR/FVSR7 - Panic hardware GXHX/GXHX7ANSI/BHMA Certified:A156.3 Type 1, Grade 1

Model: Accentra (Yale)7105-630, 7105-36, 710536630, 7105-36-630,
