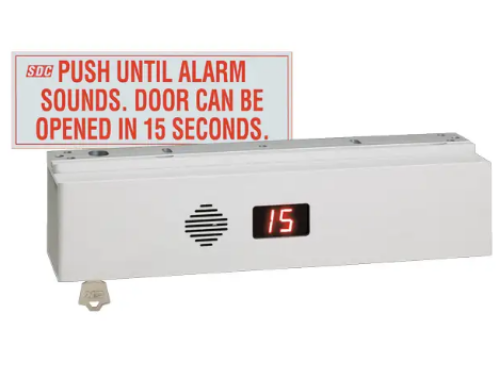

SDC 1511S-ND-K-V Delayed Egress Lock - Single - Built in key switch - Aluminum

SDC 1511S-ND-K-V Delayed Egress Lock - Single -*Built in key switch* - Surface Mount - 1650lbs Holding Force - Aluminum

S-SINGLE MODEL - For use with single doors equipped with Exit Sense Bars, surface vertical rod, concealed vertical rod, mortise and rim mount exit devices, mortise locksets and cylindrical locksets

ND - IBC, IFC, NFPA 101, NFPA 1-UFC, UBC,SBC CompliantFixed 15 exit delay, 0/1 second nuisance delay

K - Built in key switch. Provides 1-30 second timed bypass, sustained bypass and alarm reset (std)

Features:

-  Field selectable voice message and alarm tone, or alarm tone only, 75 db @ 3 ft

• The visual display provides a digital countdown, indicates lock release and verifies if the door was opened for egress.

• Field selectable security or safety message

• Field selectable activation: Door movement; Exit device with switch kit; Exit sense bar for non-latching doors

• Field selectable automatic or manual relock upon power up after emergency release or power loss.

• Field selectable door prop alarm: Alarm sounds when door is left open after selected bypass time has elapsed.

CONTROL INPUTS: - Remote access control and REX input, field adjustable for 1,15, 20 or 30 seconds - Remote reset input - Manual power-up input - Emergency release input - Anti-tailgate input

MONITORING OUTPUTS:

• Door secure and unlocked output

• Delayed egress activation alarm output

Specifications:

Electrical:

Input Voltage: Dual voltage Sensing 12/24 VDC ± 10%

820mA @ 12VDC | 500mA @ 24VDC

Mechanical:

Single: 11" L x 2 3/4" H x 2 5/8" D (279 L x 70 H x 67 D mm)

Armature: 7 3/8" L x 2 3/8" H x 9/16" D 187 L x 60 H x 14 D mm)

Sign: 13" L x 4 1/2" H (330 L x 114 H mm)

Inputs:

Request to Exit: Normally open, dry

Fire Alarm Release: Alarm panel closed dry contact.Opening of contact releases lock.

Monitoring Outputs:

Alarm Output: SPDT Dry, 1 Amp @ 30VDC

Lock Secure UnlockedOutput: SPDT Dry, 1 Amp @ 30VDC
