Von Duprin 3547A-EO Concealed Vertical Rod Exit Device - Smooth Mechanism Case

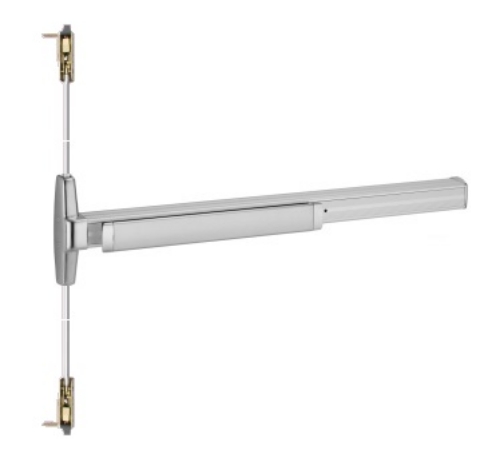

The Von Duprin 3547A-EO is a concealed vertical rod exit device engineered for narrow stile commercial doors where a surface-mounted device is not an option architecturally or per specification. The CVR configuration routes the latching rods inside the door, keeping the perimeter of the opening clean while delivering the same ANSI A156.3 Grade 1 performance that specifiers expect from the 35A series. This is a stock item at American Locksets, shipped via UPS with free shipping on orders over $300.

Von Duprin 3547A-EO Concealed Vertical Rod Exit Device, Smooth Mechanism Case

The 3547A-EO carries an exit only (EO) function, meaning the device provides egress from the interior without outside trim engagement. It ships less outside trim as standard. For openings that require a keyed entry function, a thumbturn, or a lever from the exterior, outside trim is ordered separately from the Von Duprin Exit Device Trims collection.

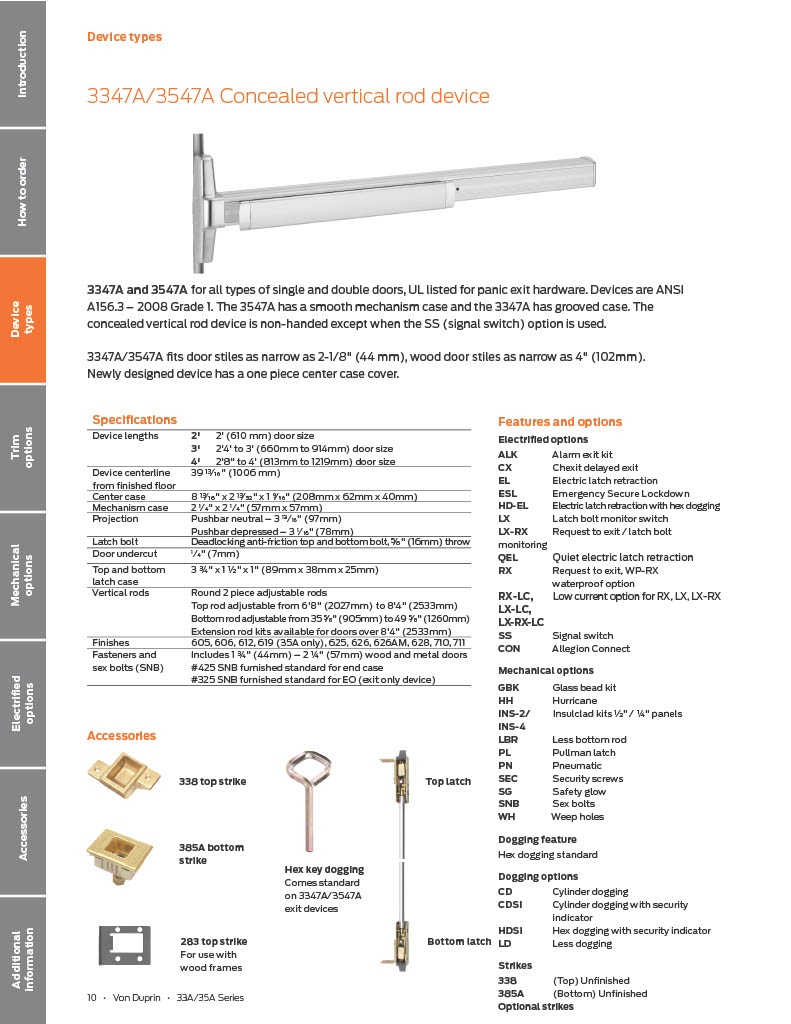

The smooth mechanism case distinguishes the 3547A from its counterpart, the 3347A, which carries a grooved case. The smooth case is the visual identifier for the 35A product family. If your hardware schedule calls for 35A series active devices on the active leaf, the 3547A is the correct CVR model to match. Specifying a 3347A against a 35A active device creates a case profile mismatch that gets caught on site.

Specifications

• Standard: ANSI A156.3, 2001/2008 Grade 1 certified, UL listed for Panic Exit Hardware
• Case type: Smooth mechanism case, one-piece center case cover
• Function: Exit Only (EO), no outside trim standard
• Handing: Non-handed except when SS (Signal Switch) option is used
• Door stile compatibility: Metal stiles as narrow as 1-3/4 inch (44mm), wood stiles as narrow as 4 inch (102mm)
• Device lengths: 3-foot for doors 2'4" to 3" wide, 4-foot for doors 2'10" to 4' wide
• Latch bolt: Deadlocking anti-friction top and bottom bolt, 5/8 inch (16mm) throw
• Device centerline from finished floor: 39-5/8 inch (1006mm) standard, field adjustable from 35-5/8 inch to 49-5/8 inch
• Vertical rods: Two-piece adjustable round rods; top rod adjusts 6'8" to 8'4", bottom rod adjusts 35-5/8" to 49-5/8"; extension rod kits available for doors over 8'4"
• Pushbar projection neutral: 3-13/16 inch (97mm); depressed: 3-1/16 inch (78mm)
• Strikes: Top - 338 Unfinished, Bottom - 385A Unfinished
• Available finishes: US3, US4, US10, US26, US26D, US28, 313, 315

Key Performance Features

The 3547A-EO includes a fluid dampener on the pushpad return stroke, standard across all 33A/35A series devices. This decelerates the bar as it returns to neutral and significantly reduces the impact noise that exit devices generate in high-use environments like school corridors and hospital wings. It is not an add-on. It ships with every unit.

The deadlocking latchbolt design prevents forced retraction of the bolt from the exterior, which matters on perimeter openings and any door on a security-conscious schedule. The modular design of the 35A series also supports in-field upgrades without full device replacement as facility requirements change.

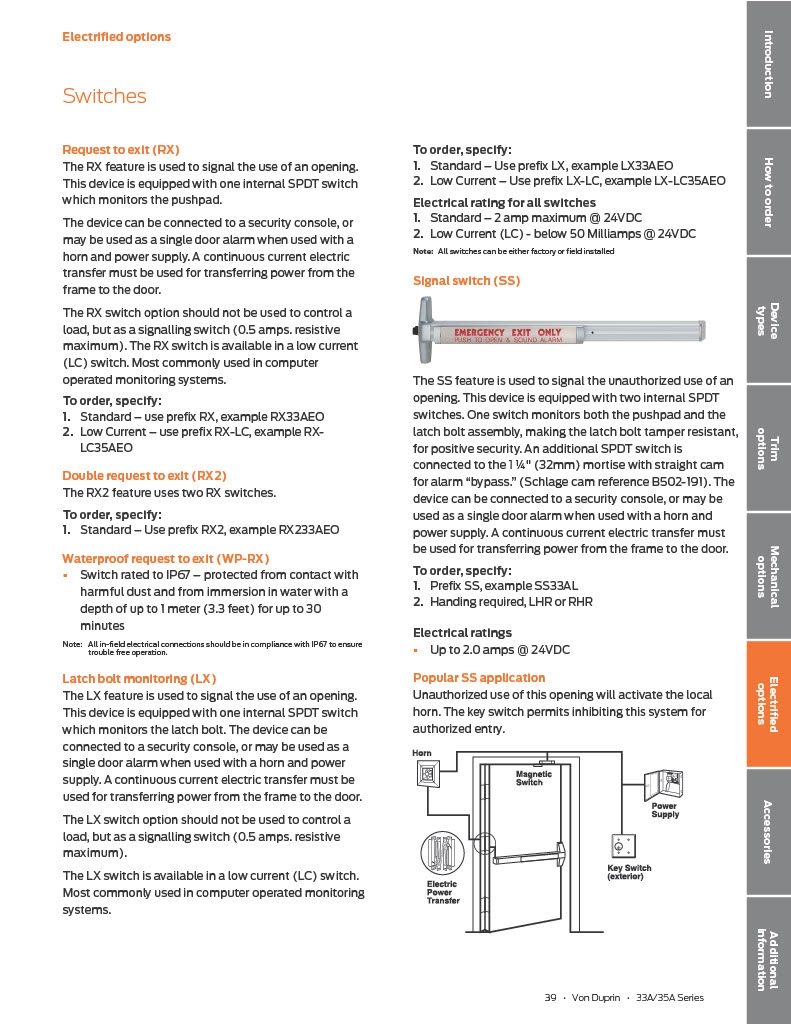

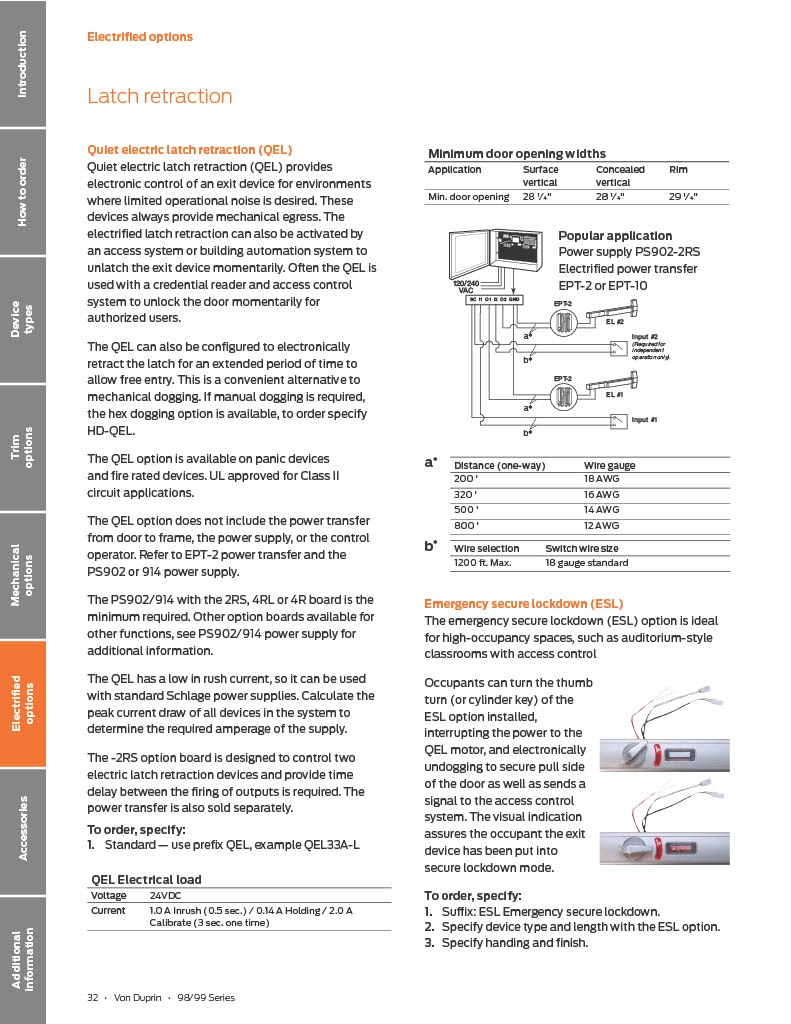

For openings where access control integration is required, the RX (Request to Exit) option adds a signal switch output to your access control panel. The ALK battery alarm kit is available for applications that need unauthorized exit deterrence without a hardwired alarm system. The QEL (Quiet Electrified Latch) option supports electronic unlatching for push-pull continuous operation and is compatible with building automation and access control systems.

Compatible Devices and Related Products

The 3547A-EO is part of the Von Duprin 3347A/3547A CVR Exit Devices family within the broader 33A/35A Series Exit Devices lineup. For the surface-mounted vertical rod equivalent with the same smooth case, see the 3527A-EO. For the fire-rated CVR version, the 3547A-EO-F adds UL fire exit hardware listing for rated openings.

American Locksets is an authorized Allegion distributor and has carried Von Duprin products since 2001. Every unit sourced through us carries full manufacturer warranty backing. For specification questions on finish availability, trim compatibility, or rod kit requirements for non-standard door heights, call 877-471-4870 before placing your order. Browse the complete Von Duprin Panic Devices and Accessories catalog or explore all exit hardware categories for related products.
