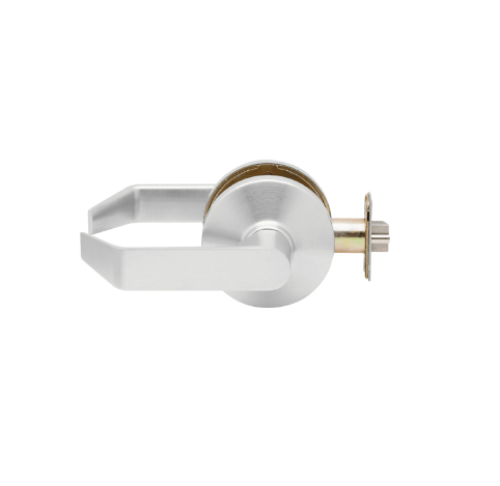

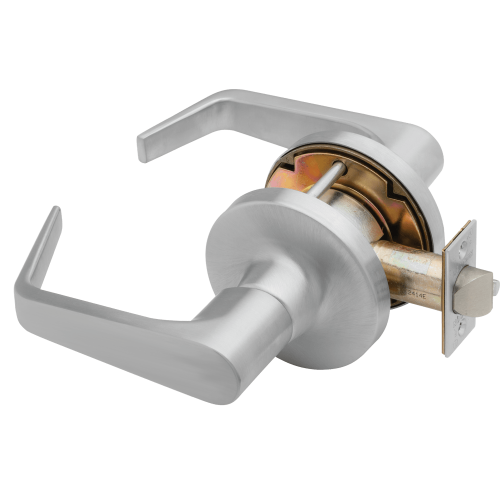

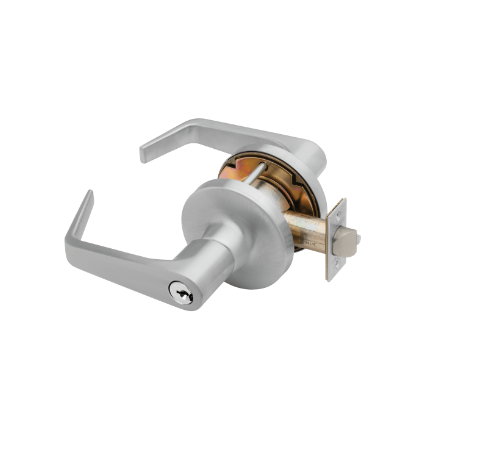

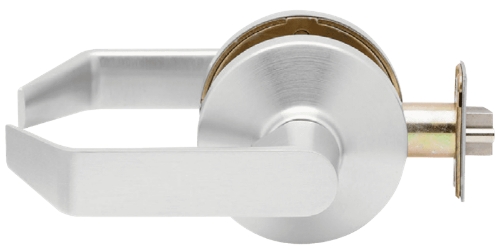

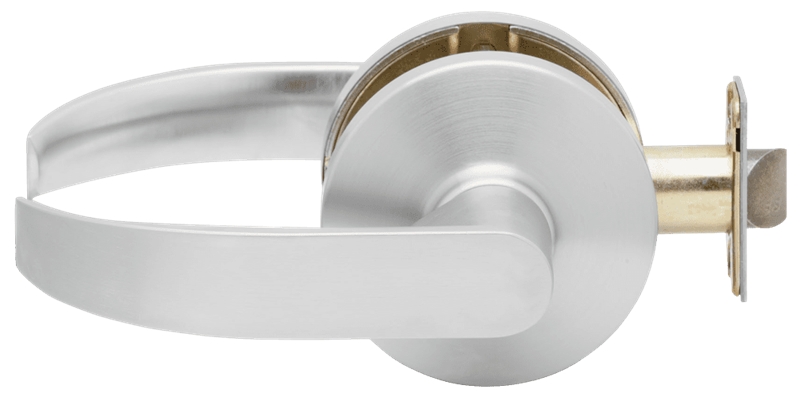

Falcon B101S - Grade 2 Cylindrical Lock, Passage/Closet Function

Falcon B101S - Grade 2 Passage Lever Set -*ANSI F75*

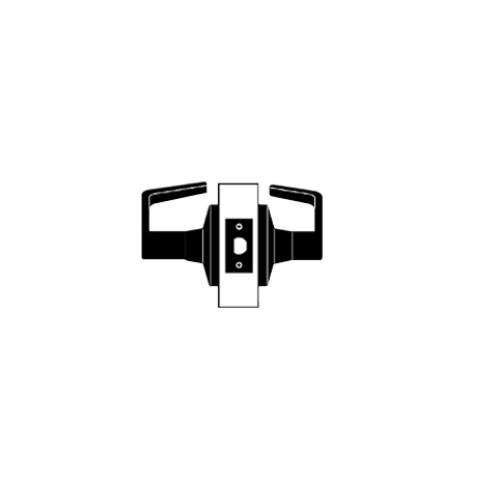

Latch bolt by levers at all times.

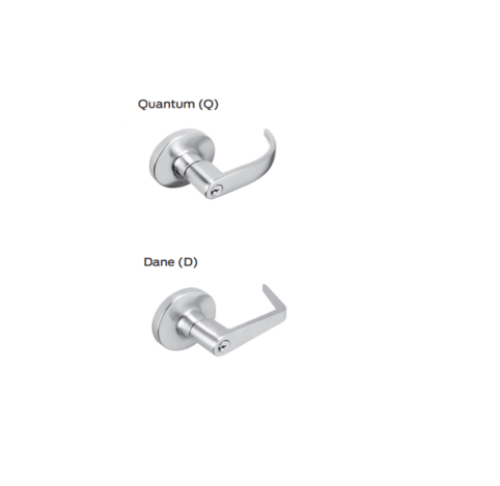

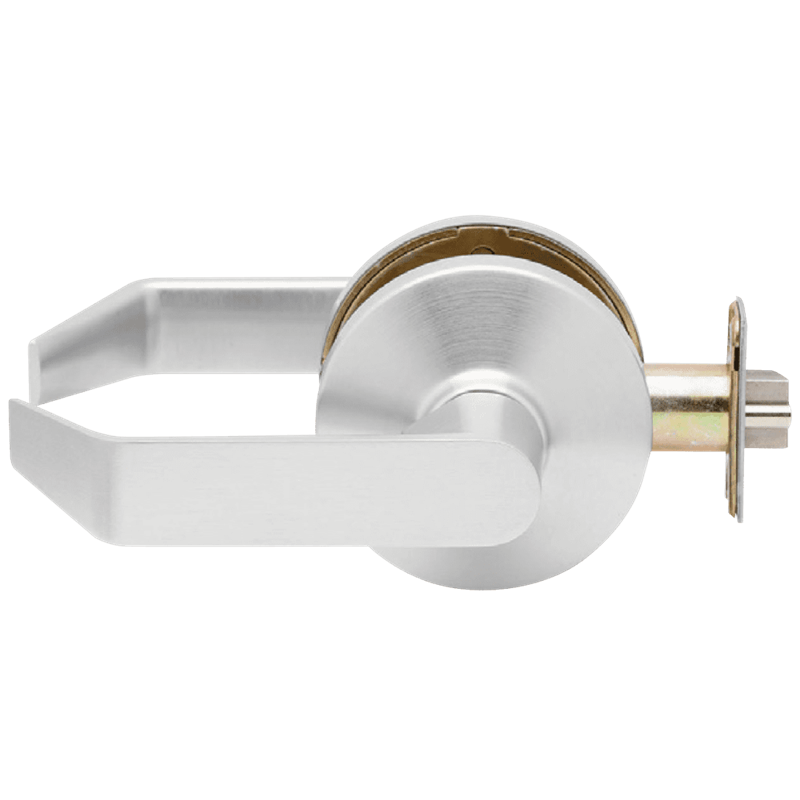

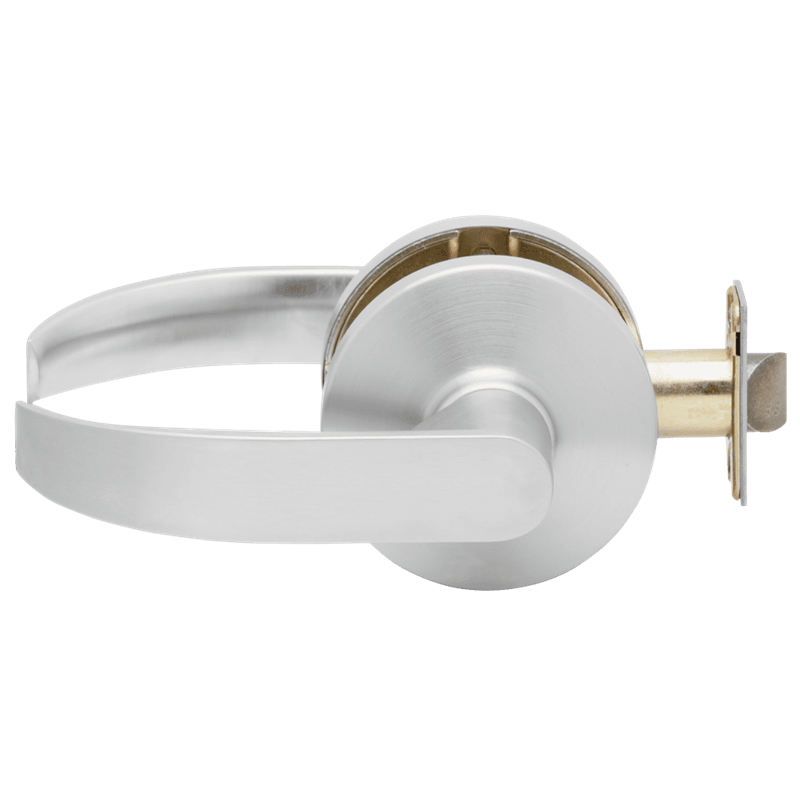

Lever:D - Dane, Q - Quantum

Finishes:Bright brass 605, Satin brass 606, Satin bronze 612, Oil rubbed bronze 613, Bright chrome 625, Satin chrome 626

Door Thickness:1-3/8" to 2" standard.

Backset:2-3/4" standard. 2-3/8",3-3/4" and 5" also available.

Handing:Locks are non-handed.

Cylinders:Drilled with 6 pin chambers, pinned in 5. Cylinder assemblies removable to rekey. Also vailable with 6 or 7 pin interchangeable core cylinders. Cylinder housings and plugs machined from solid brass. Springs are phosphor bronze. Two nickel silver keys furnished standard.

Strikes:4-7/8" x 1-1/4" ANSI strike with curved lip to meet ANSI A115. or T-strike available

Screws:Furnished with combination screws for use in wood or metal doors and frames.

ANSI/BHMA:Meets ANSI/BHMA A156.2, Series 4000, Grade 2.

UL:3 hour A label.

Model:Falcon, B101, B101S, B101SD, B101SQ, B101SDAN, B101SQUA,  101SD626, B101SQ626, B101SDAN626, B101SQUA626, B101SD625, B101SQ625, B101SDAN625, B101SQUA625, B101SD605, B101SQ605, B101SDAN605, B101SQUA605, B101SD606, B101SQ606, B101SDAN606, B101SQUA606, B101SD613, B101SQ613, B101SDAN613, B101SQUA613,

Mechanism:Parts constructed of brass or cold formed steel, zinc plated and dichromated for rust resistance.Springs are stainless steel.

Attachment:Lock chassis secured to door by two screws which pass through a steel rose insert inside and thread directly into the outer rose mounting assembly.

Trim:Roses are 3-1/2" diameter, heavy wrought brass or bronze,installed over steel rose inserts which are through-bolted through door. Levers are pressure cast (solid levers no inserts) material finished to match mating parts.
