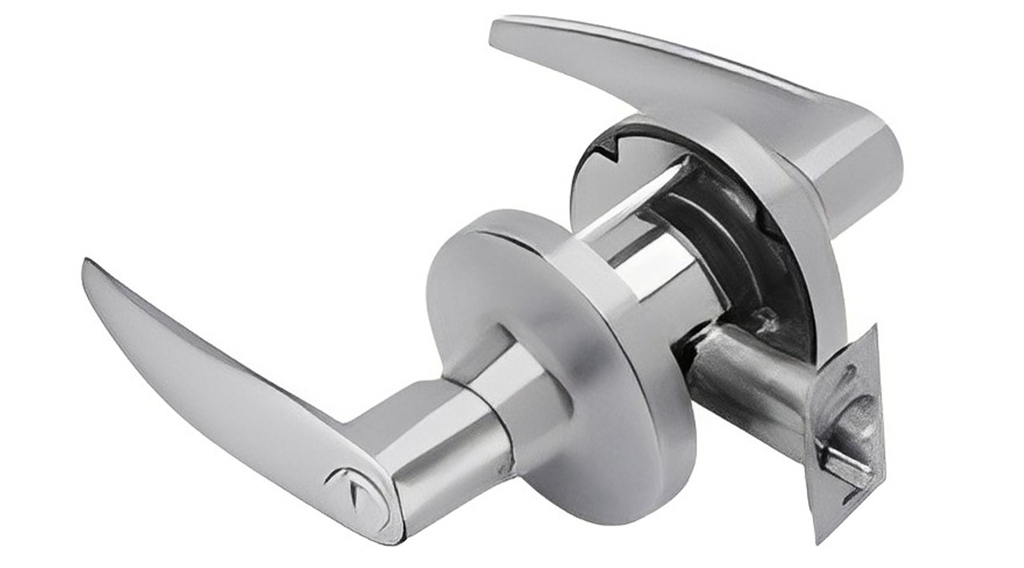

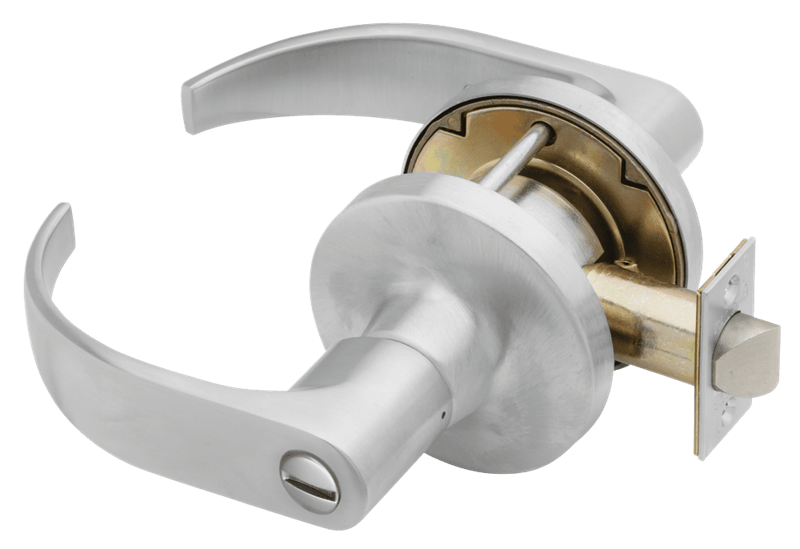

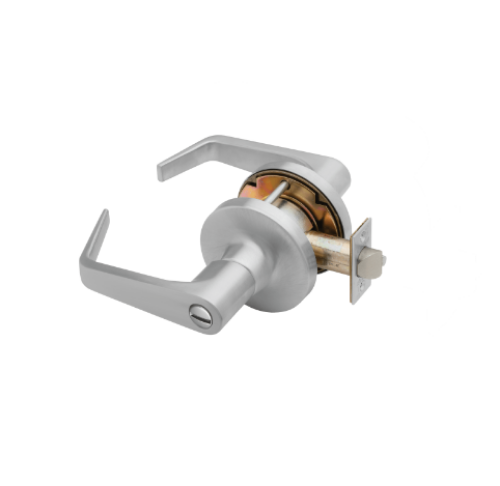

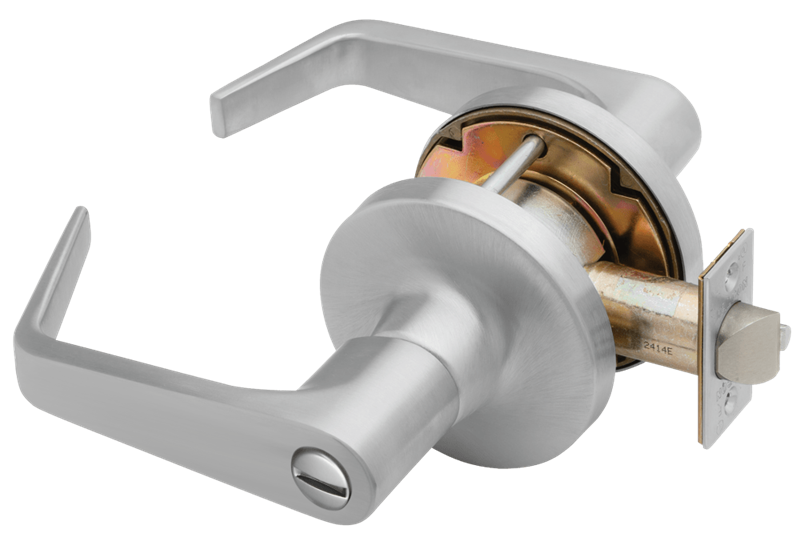

Falcon T301S Grade 1 Privacy Cylindrical Lock

Falcon T301S Privacy Lever Set, Non-Keyed, Non-Handed

ANSI F76

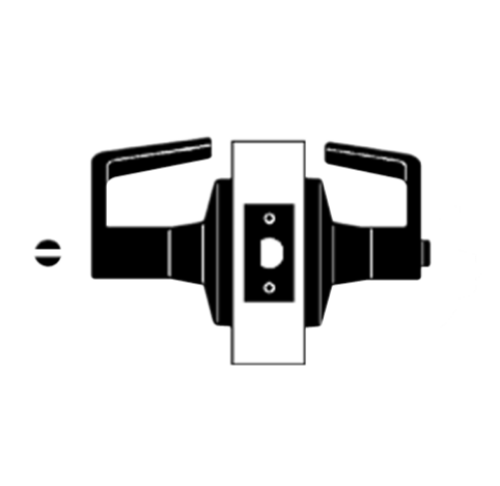

Latch bolt by levers. Outside lever locked by push button in inside lever. Rotating inside lever or closing door releases push button. Emergency release in outside lever unlocks door.

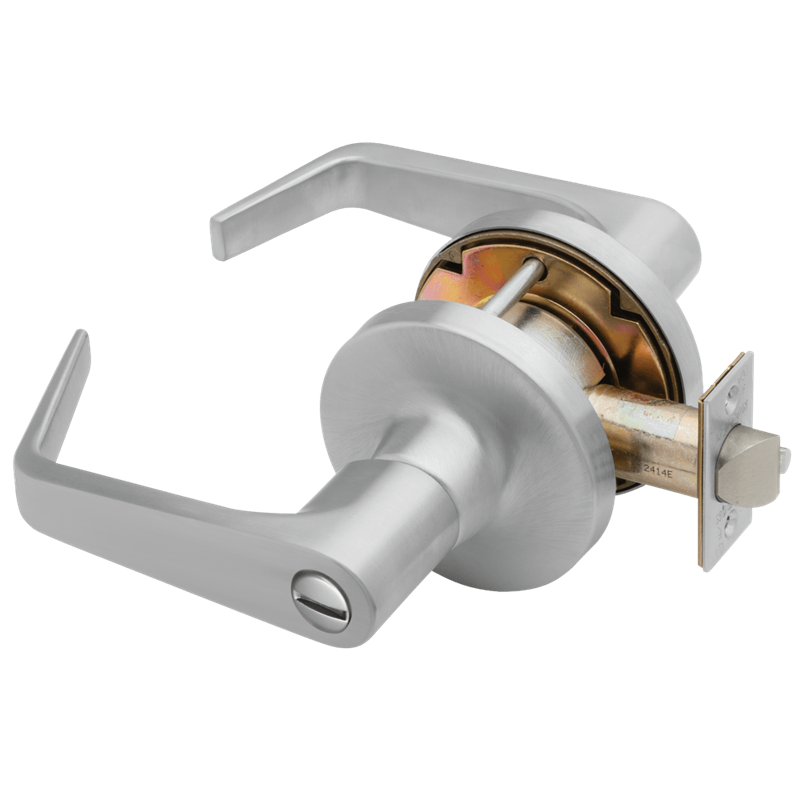

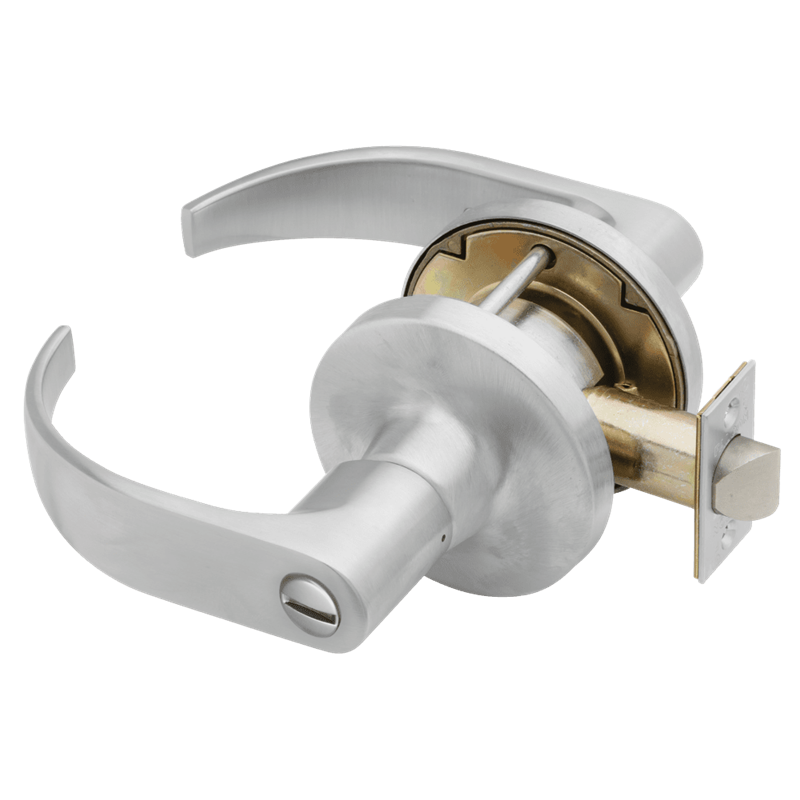

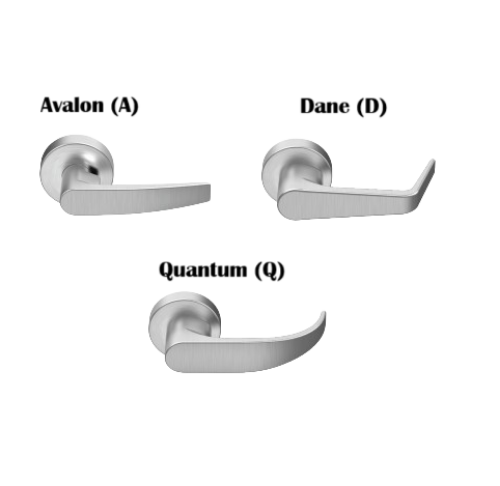

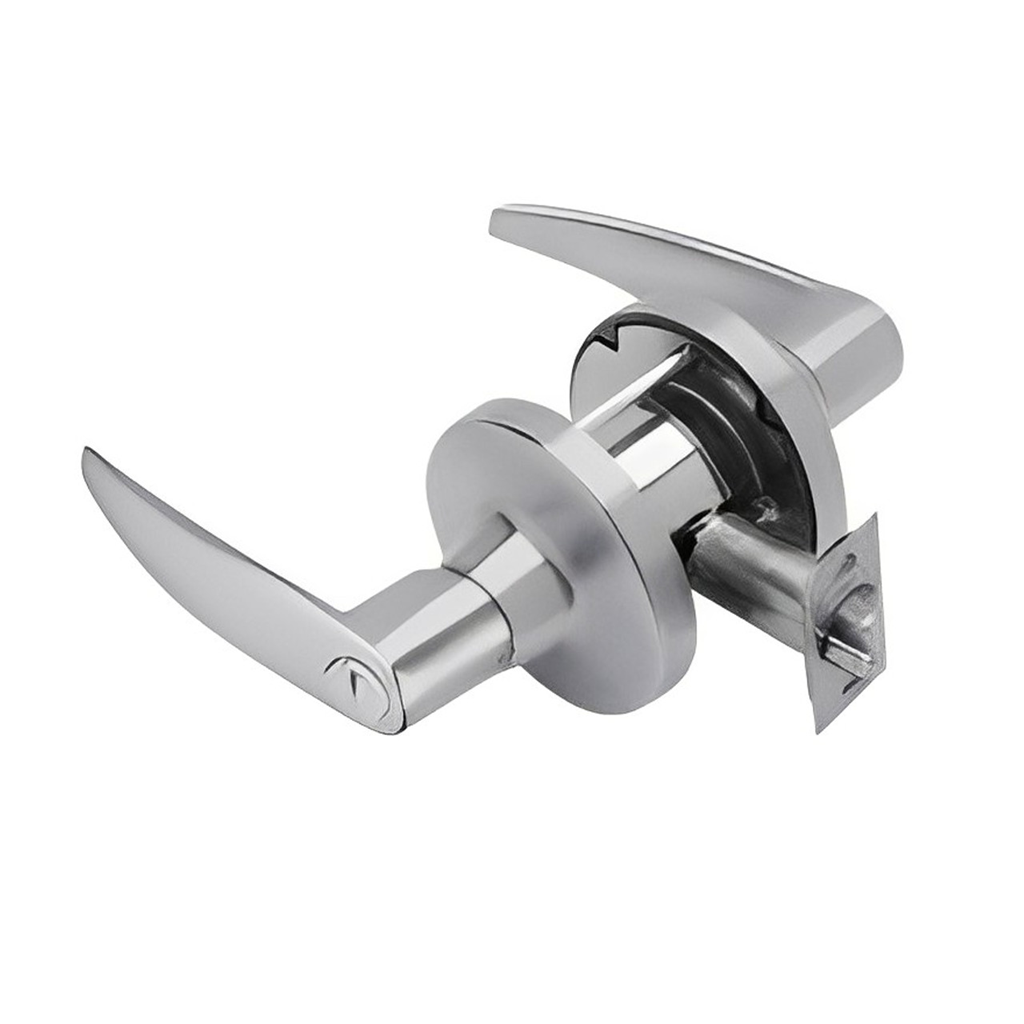

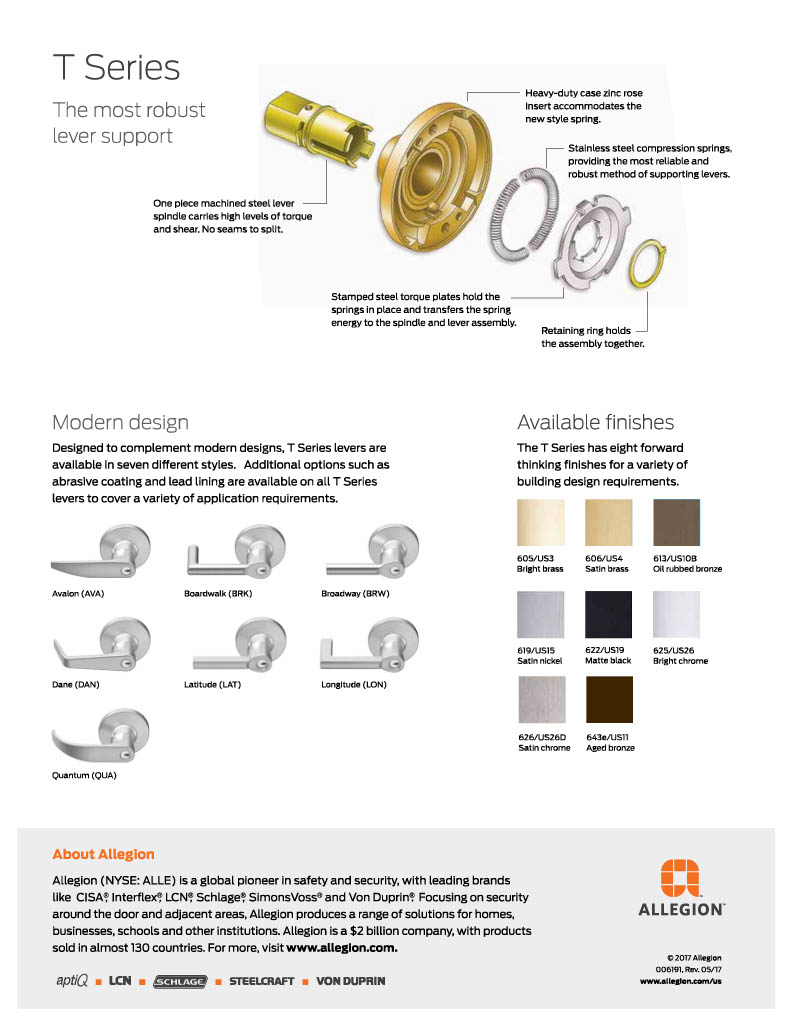

Lever Styles: Avalon (A), Dane (D), Quantum (Q).

Finishes: 606 - Satin Brass, 613 - Oil Rubbed Bronze, 622 - Matte Black, 626 - Satin Chrome

ANSI/BHMA: Meets ANSI/BHMA A156.2,Series 4000,Grade 1.

Door Thickness: 1-3/4" to 2-1/8" standard. Thin door adapter kit (A30775-000-00) vailable for doors thinner than 1-3/4". Thicker door locks also vailable, consult factory.

Backset: 2-3/4" standard. 2-3/8" and 5" also available.

Handing: Locks are non-handed.

Latches: 1/2" bolt projection, UL listed with latch faceplates 2-1/4" x 1-1/8" with square corners standard. 3/4" projection, UL listed latch with 2-3/4" backset also vailable. Adjustable front standard.

Strikes: 4-7/8" x 1-1/4" ANSI strike with curved lip to meet ANSI A115. 2 door frame preparation standard.

UL: 3 hour A label.

Model: Falcon T301, T301S, T301A, T301AVA, T301SA, T301SAVA, T301Q, T301QUA, T301SQ, T301SQUA, T301D, T301DAN, T301SD, T301SDAN

626, Satin Chrome, T301A626, T301AVA626, T301SA626, T301SAVA626, T301Q626, T301QUA626, T301SQ626, T301SQUA626, T301D626, T301DAN626, T301SD626, T301SDAN626

622, Bright Chrome, T301A622, T301AVA622, T301SA622, T301SAVA622, T301Q622, T301QUA622, T301SQ622, T301SQUA622, T301D622, T301DAN622, T301SD622, T301SDAN622

606, Bright Brass, T301A606, T301AVA606, T301SA606, T301SAVA606, T301Q606, T301QUA606, T301SQ606, T301SQUA606, T301D606, T301DAN606, T301SD606, T301SDAN606

613, Oil Rubbed Bronze, T301A613, T301AVA613, T301SA613, T301SAVA613, T301Q613, T301QUA613, T301SQ613, T301SQUA613, T301D613, T301DAN613, T301SD613, T301SDAN613

Mechanism: Parts constructed of brass or cold formed steel, zinc plated and dichromated for rust resistance. Springs are stainless steel.

Attachment: Lock chassis secured to door by threaded mounting nuts. Completely preassembled outer trim and inner spindle assembly are through-bolted over chassis using (2) 10-32 screws. Adding rose and lever to inner spindle assembly completes installation.

Trim: Roses are heavy wrought brass or bronze, installed over pressure cast rose inserts which are through-bolted through door. Levers are pressure cast (solid levers no inserts) material finished to match mating parts.

Pressure Release: Levers are standard. Levers are secured by a spring-loaded retainer. Retainer cannot be depressed when locks have been locked.

Screws: Furnished with combination screws for use in wood or metal doors and frames.

Electrified Functions: Available in 12 or 24 VAC or VDC.
