Falcon T411 Grade 1 Asylum Cylindrical Lock

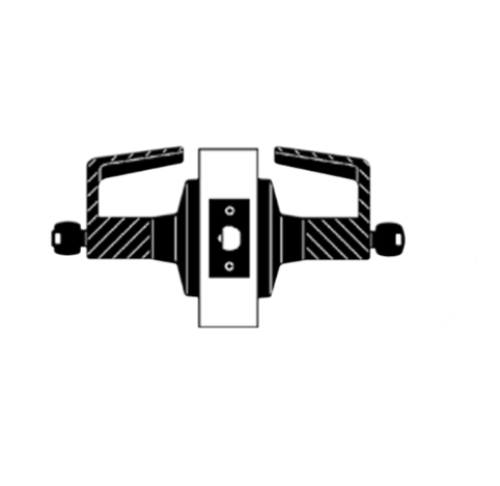

The Falcon T411 is the asylum function in the T Series Grade 1 cylindrical lock line. The function is ANSI F87, and the defining characteristic is this: neither lever operates the latch. Both the inside lever and the outside lever are permanently inoperable. The latch bolt can only be retracted by inserting a key into the cylinder on either side and turning it. No lever, no thumbturn, no push-button. Key only, from either direction, every time.

This function is specified in psychiatric hospitals, mental health residential facilities, secure behavioral health units, detention and correctional facilities, and any setting where occupants should not be able to open doors independently without staff authorization. When the door closes, the deadlocking latch engages automatically. The door cannot be opened from either side until staff use a key. The lever hardware is present on the door for grip and appearance, but it has no mechanical connection to the latch mechanism in the F87 configuration.

Note: The T411 is a made-to-order item in some configurations. Confirm availability before specifying on a project timeline. For all Falcon T Series Grade 1 cylindrical locks, browse our commercial locks catalog.

How ANSI F87 Differs from Related Functions

Three T Series functions are commonly compared when specifying secure institutional environments.

The T581 (ANSI F86 Storeroom) has an outside lever that is always locked and always requires a key for outside entry. The inside lever remains free for egress at all times. This is not an asylum lock: occupants inside can always exit on their own.

The T411 (ANSI F87 Asylum, this product) removes lever function from both sides. Neither occupant nor corridor staff can operate the latch without a key. Both directions require key operation. This is the highest-restriction cylindrical lever lock in the T Series.

The T381 (ANSI F88 Classroom Security) is a different application: the inside key controls the outside lever lockout. That function is specifically for school lockdown scenarios where a teacher needs to lock out the corridor quickly. It is not an asylum function.

If the specification requires that occupants cannot exit without staff using a key, the T411 is the correct function.

Falcon T411 Full Specifications

• SKU: T411PD D 626

• Also known as: T411, T411A, T411D, T411Q, T411PDA, T411PDD, T411PDQ, t411a, asylum lockset falcon, t411.al, Falcon T411 asylum lock

• Function: ANSI F87, Asylum

• Lever operation: Both levers permanently inoperable

• Latch operation: Key in lever cylinder retracts latch from either side

• Latch: Deadlocking, 1/2" bolt projection; UL listed; 3/4" projection optional

• Latch faceplate: 2-1/4" x 1-1/8", adjustable front, square corners standard

• Grade: ANSI/BHMA A156.2, Series 4000, Grade 1

• UL: 3-hour A label

• Handing: Non-handed

• Door thickness: 1-3/4" to 2-1/8" standard; thin door adapter kit available; thicker door versions available

• Backset: 2-3/4" standard; 2-3/8" and 5" available

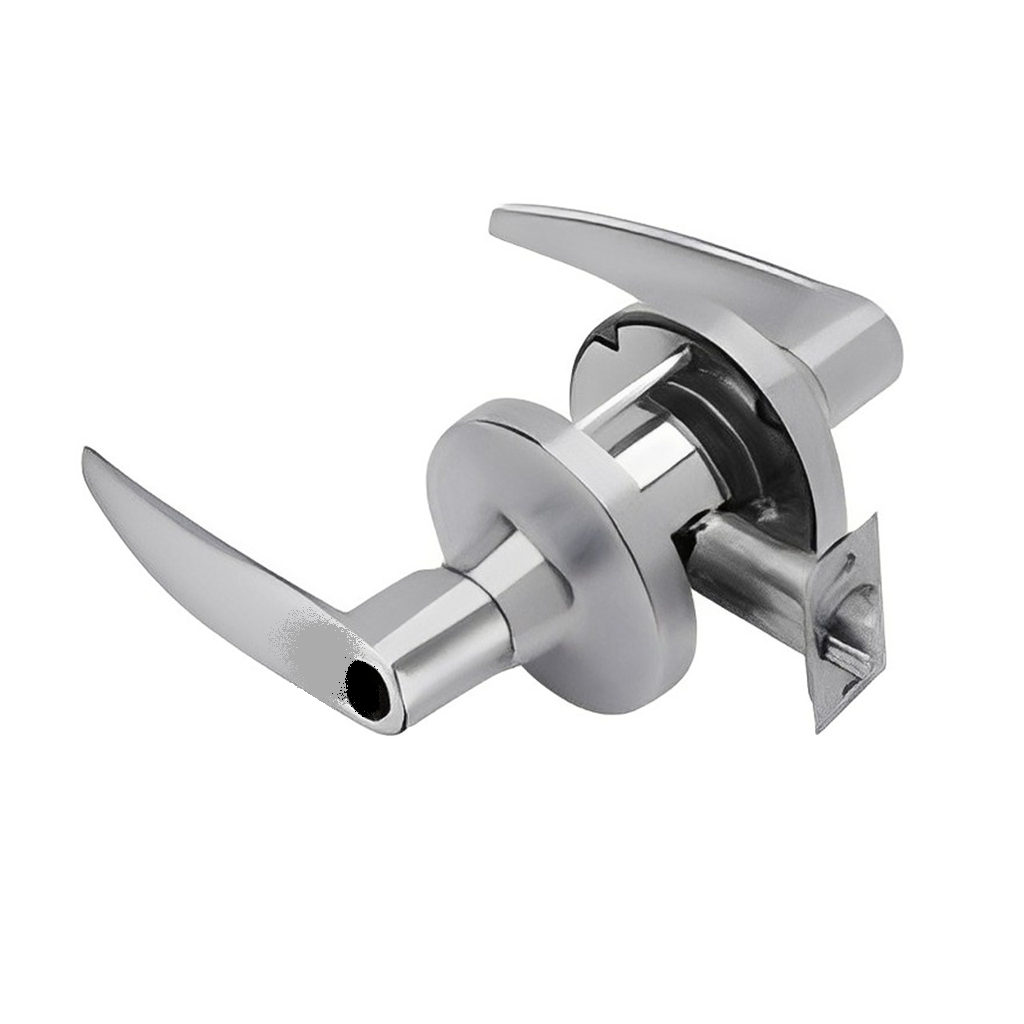

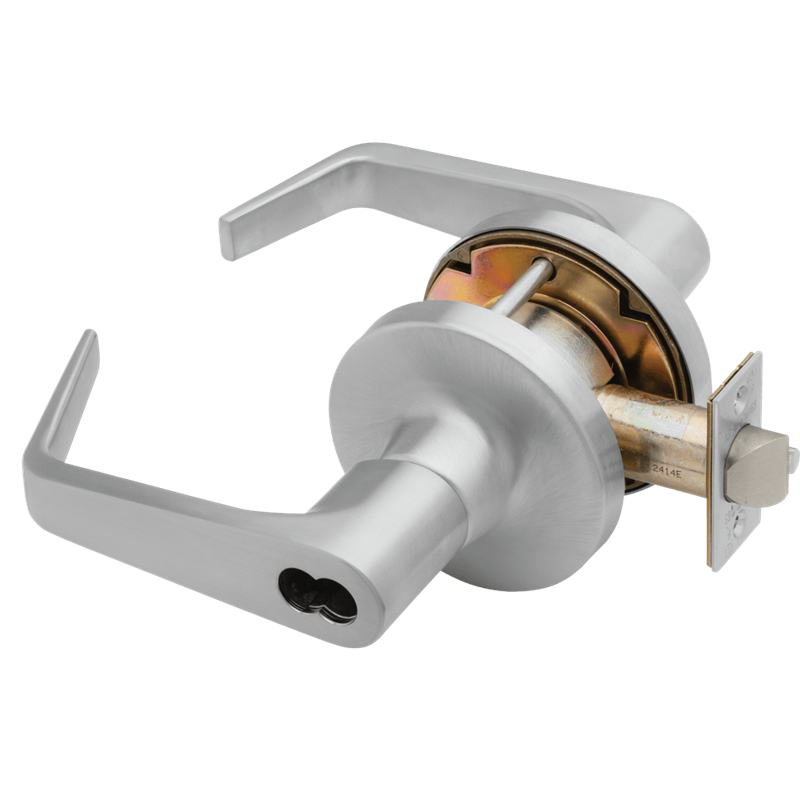

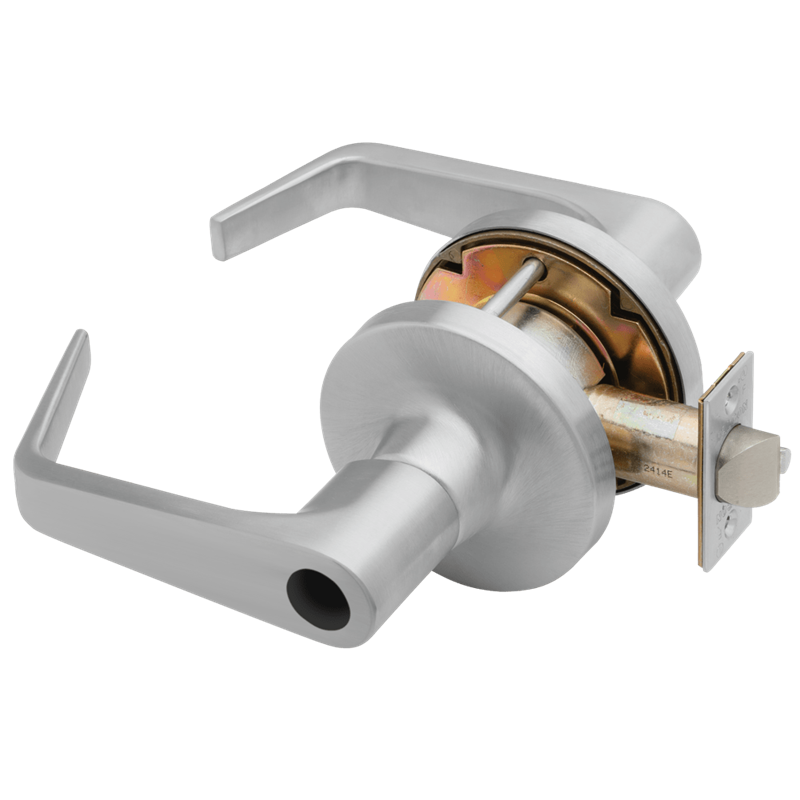

• Cylinder: 6-pin solid brass (5 loaded); 6-pin and 7-pin full available; IC available

• Keyways: G keyway standard; A keyway on IC; optional keyways available

• Keys: 2 nickel silver standard

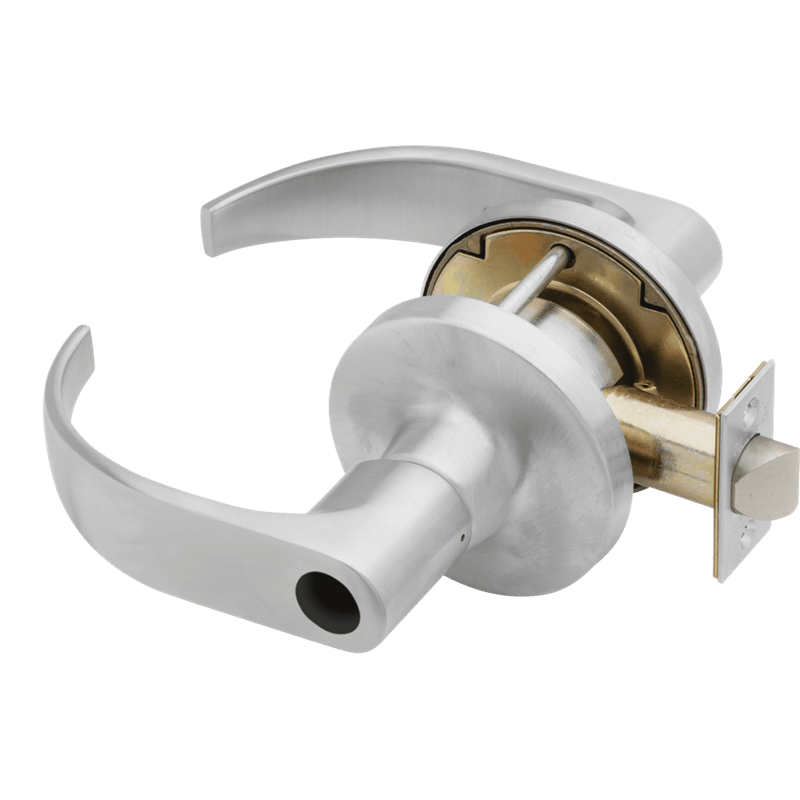

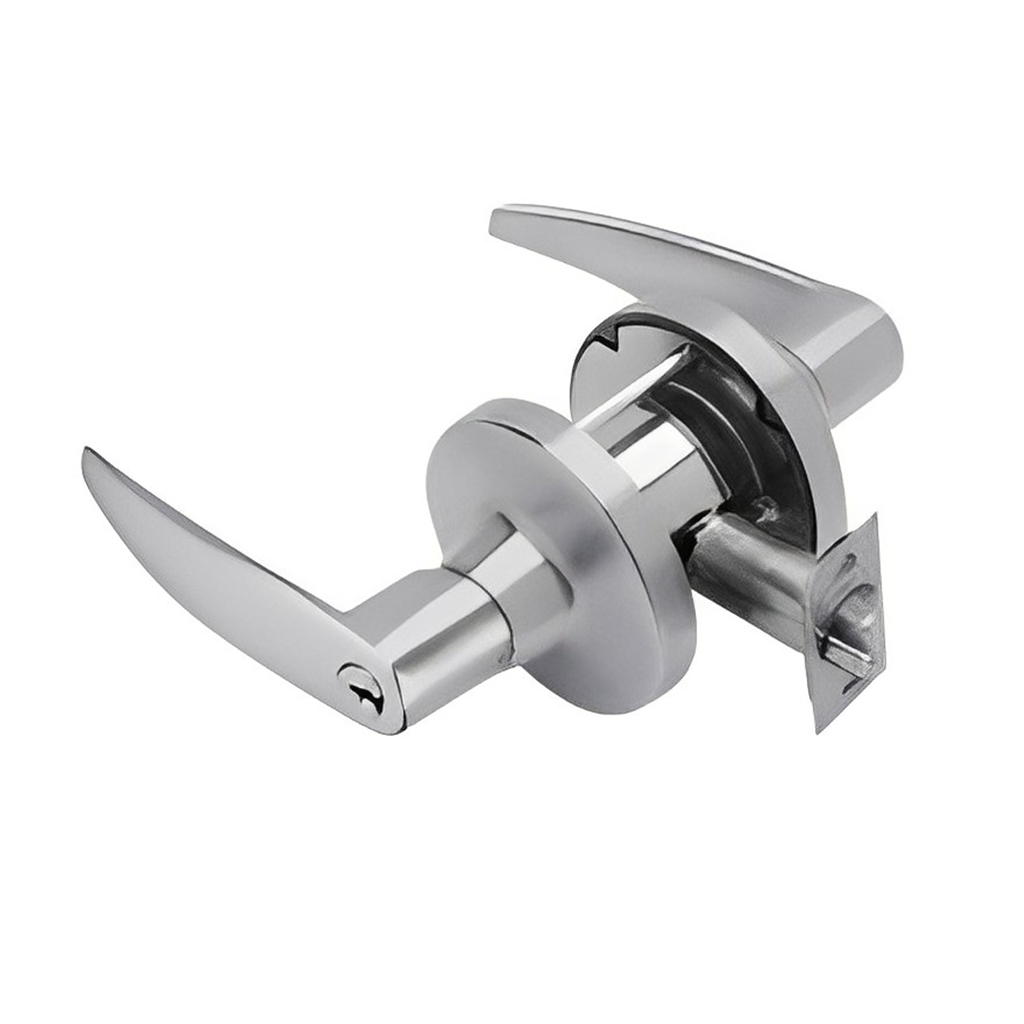

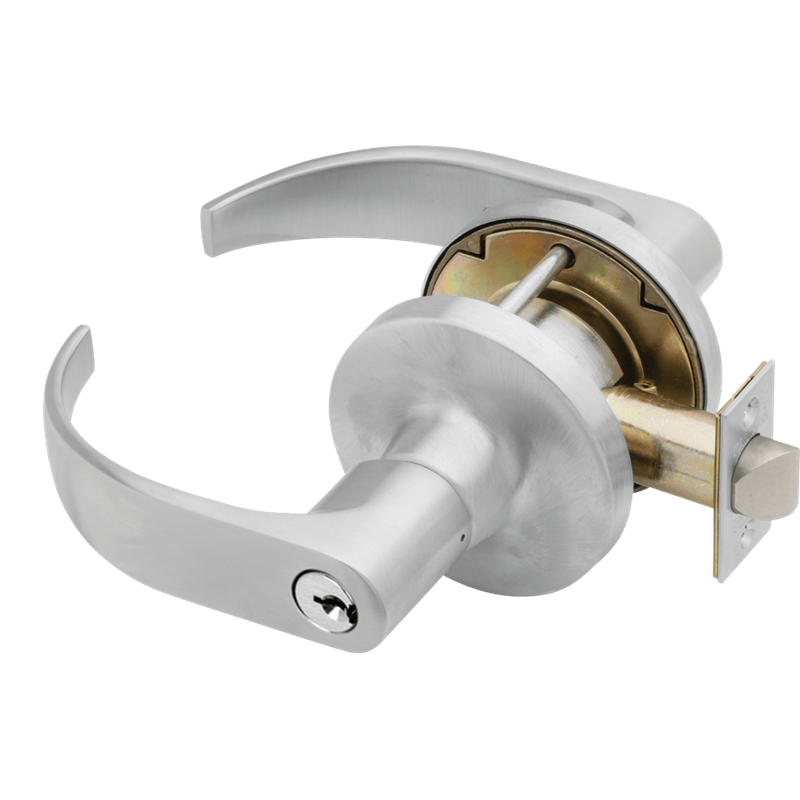

• Lever styles: Avalon (A), Dane (D), Quantum (Q)

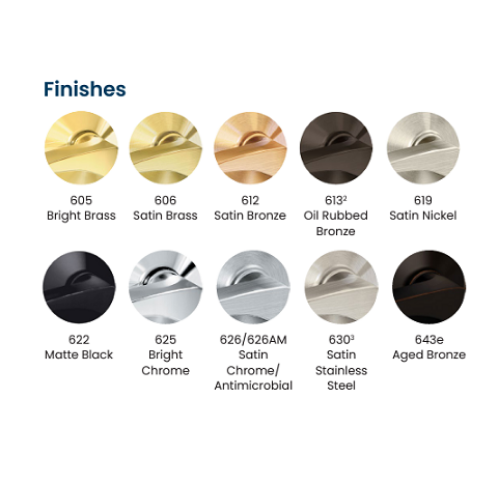

• Finishes: 626 Satin Chrome, 625 Bright Chrome, 605 Bright Brass, 613 Oil Rubbed Bronze, 619 Satin Nickel

• Strike: 4-7/8" x 1-1/4" ANSI with curved lip

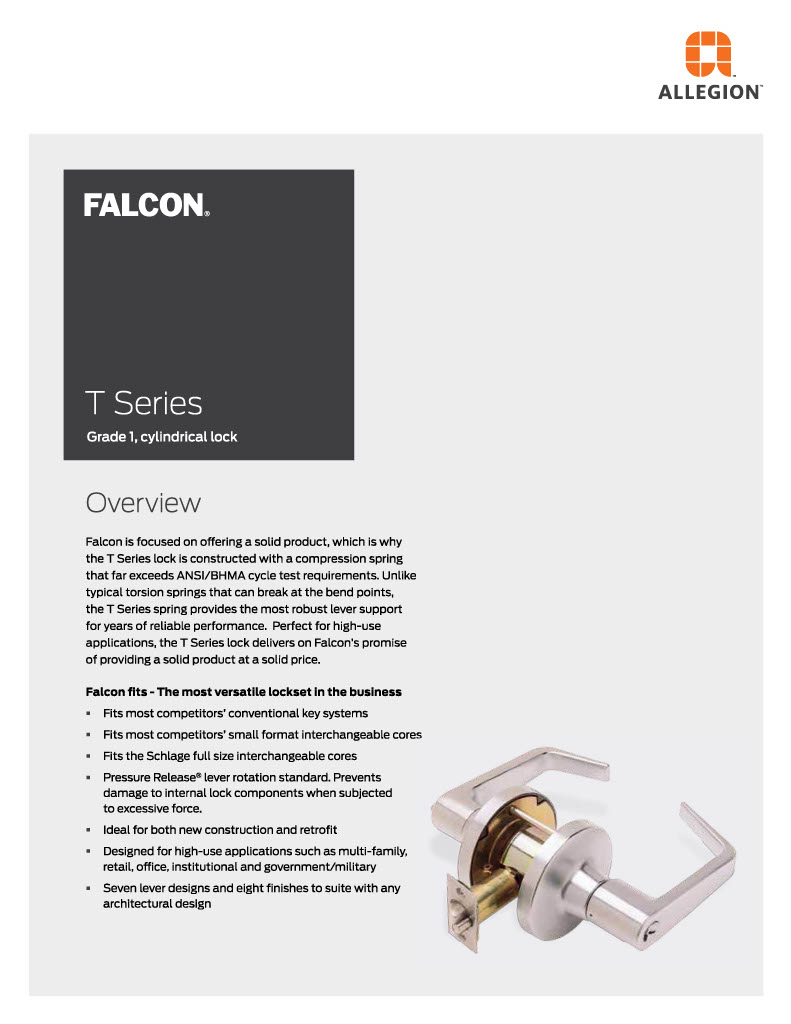

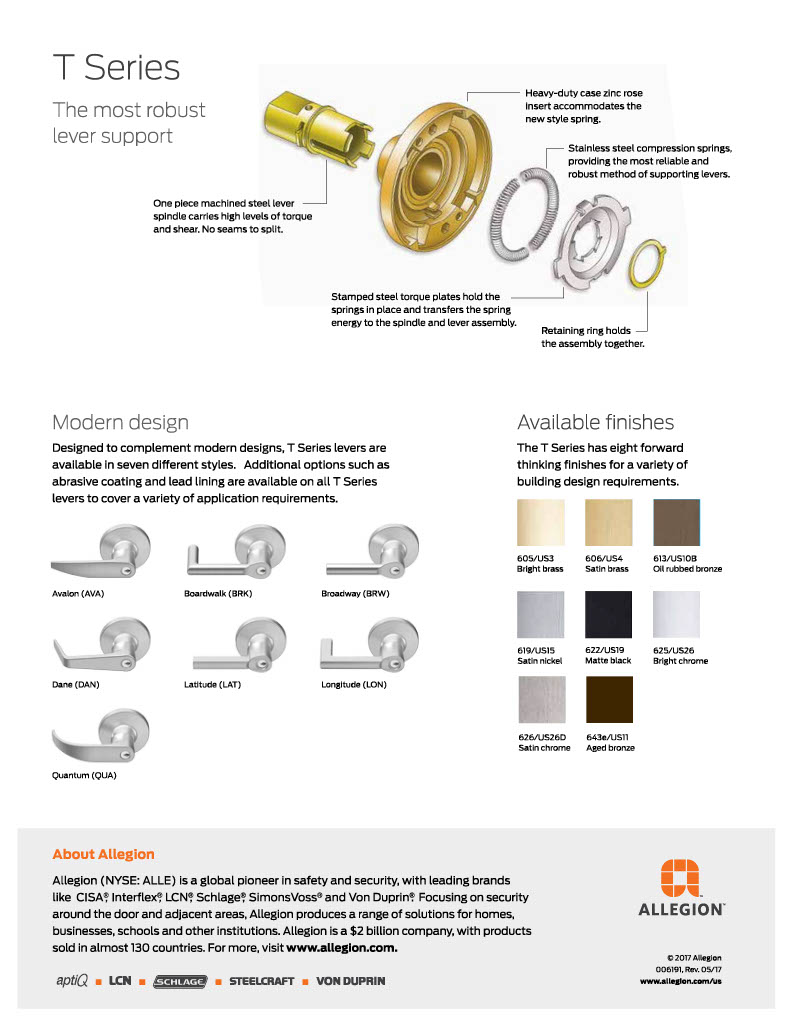

• Resources: Falcon T Series Full Catalog in Resources section

• Stock note: Some configurations may not be in stock; call to confirm availability before ordering

T411 Lever Styles and Finishes

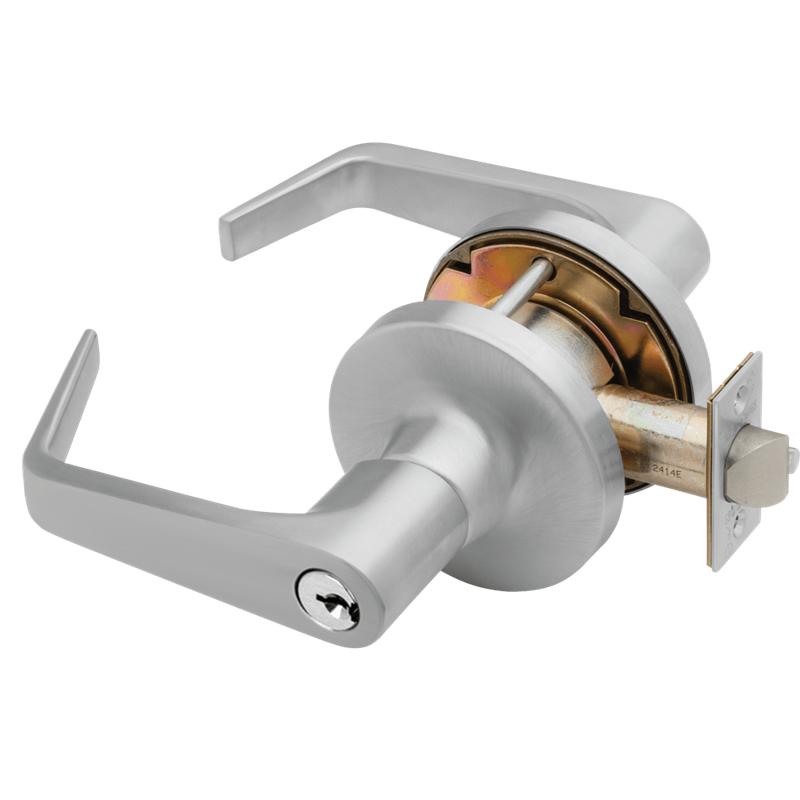

Three lever styles are available: Avalon (A), Dane (D), and Quantum (Q). Five finishes are available across all three lever styles: 626 Satin Chrome, 625 Bright Chrome, 605 Bright Brass, 613 Oil Rubbed Bronze, and 619 Satin Nickel. The model code identifies both: T411A626 is Avalon lever in Satin Chrome; T411D613 is Dane lever in Oil Rubbed Bronze. All T Series lever styles and finishes match across the full T411 through T581 function range, so facilities that standardize on the T Series maintain consistent hardware appearance across all door types.

T411 in the US Cylindrical Locks Market

The US commercial cylindrical locks market requires Grade 1 certification for institutional and government applications in the ANSI/BHMA A156.2 Series 4000 standard. The Falcon T411 meets that requirement and is listed in the Falcon T Series Full Catalog as the Grade 1 asylum function. For healthcare, behavioral health, and correctional facility procurement officers sourcing ANSI-compliant Grade 1 asylum locks, the T411 is the Falcon T Series specification for that function.
