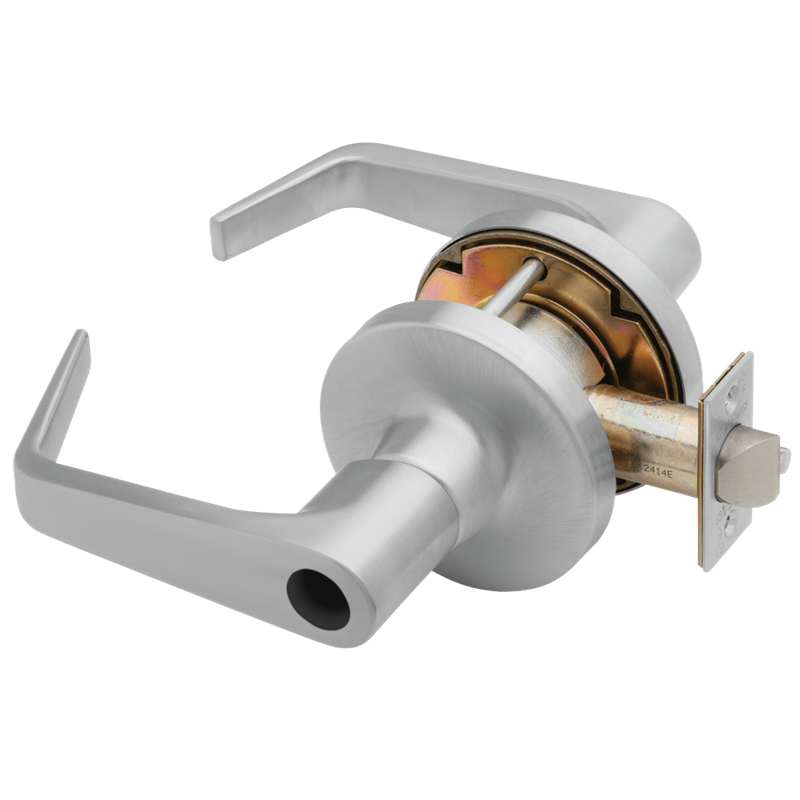

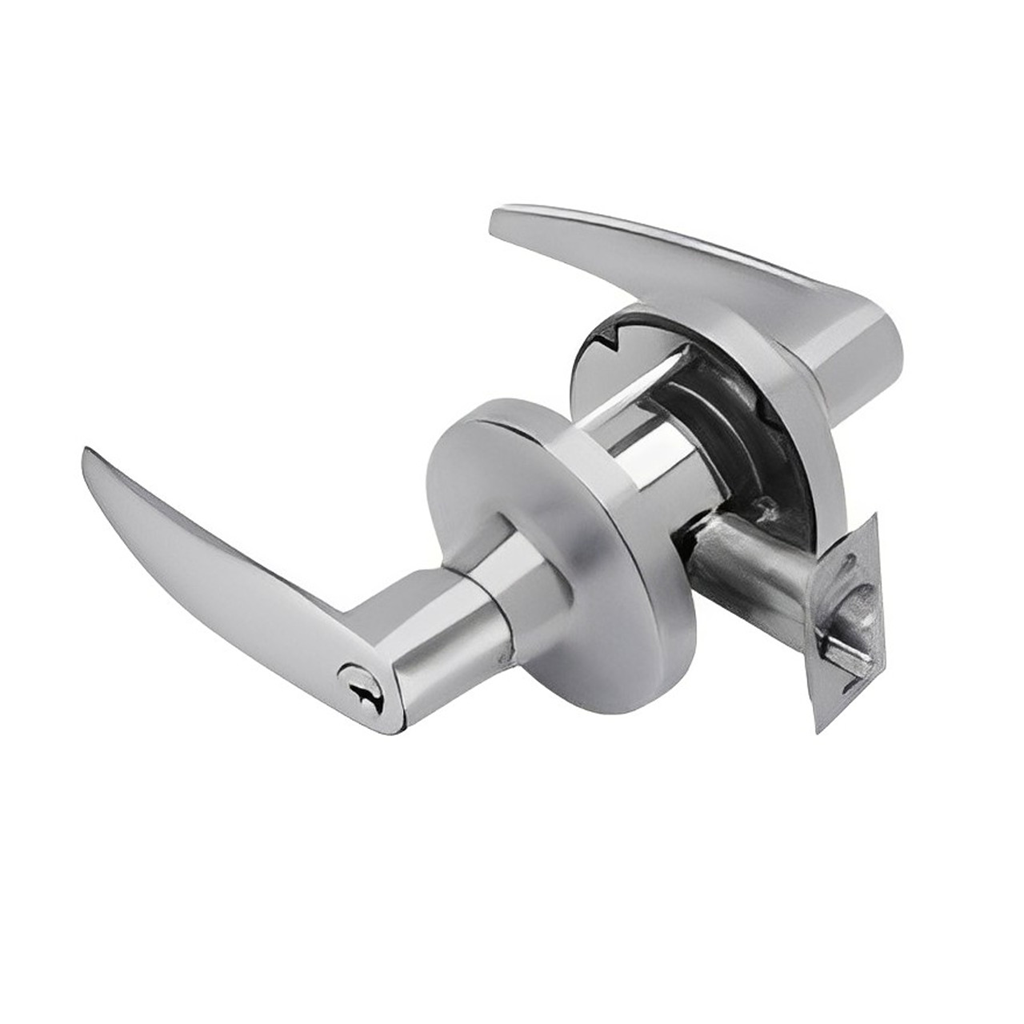

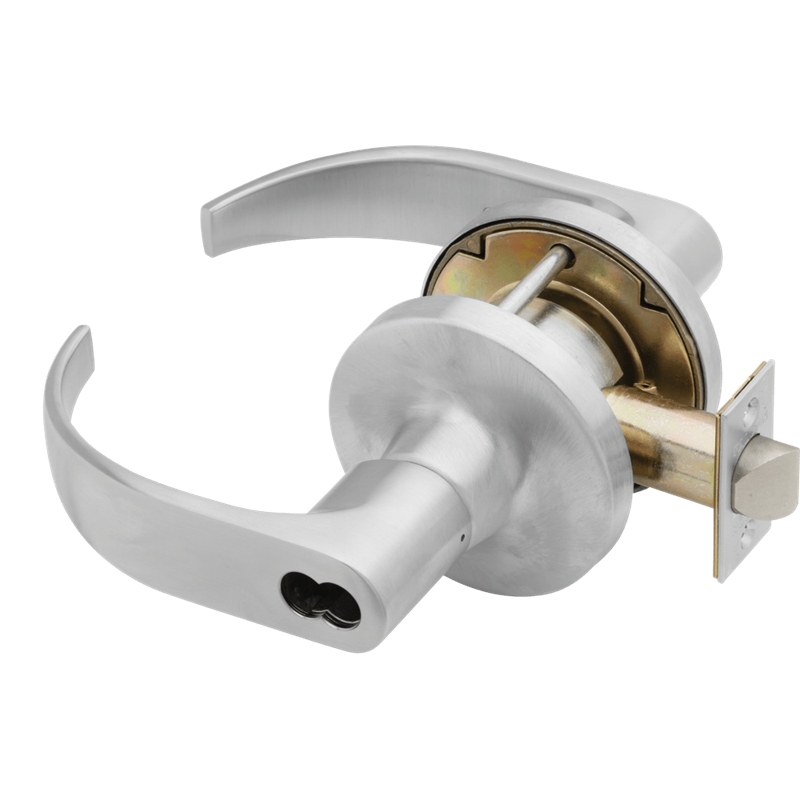

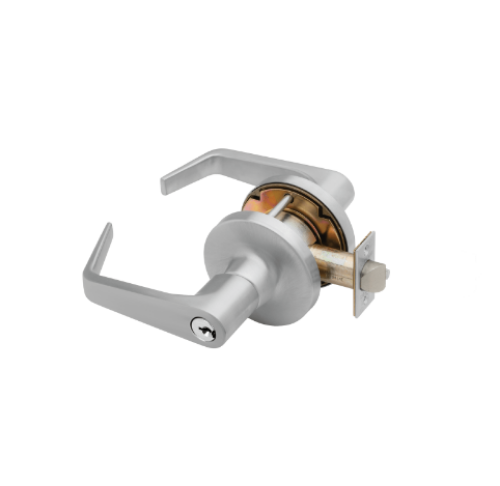

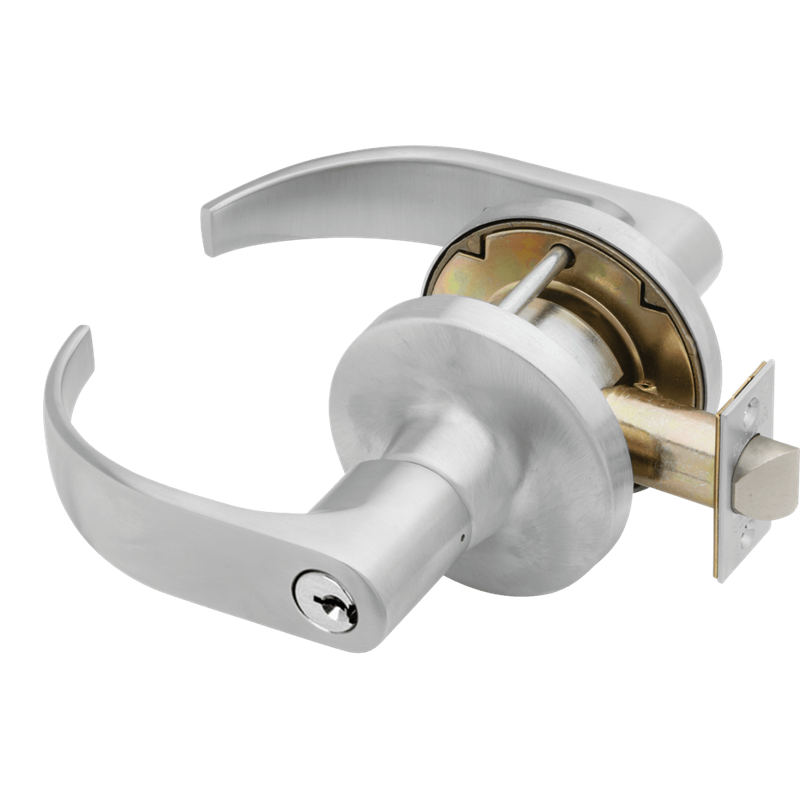

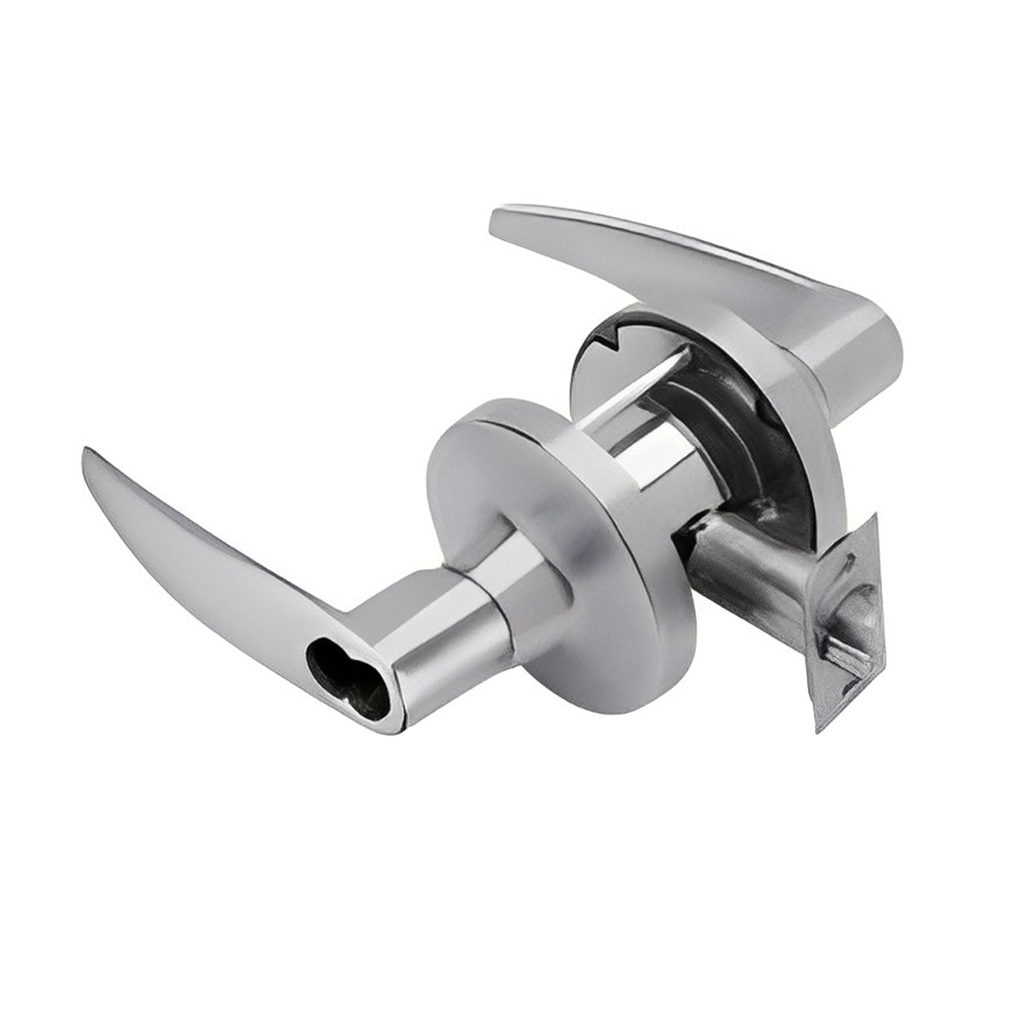

Falcon T511 Grade 1 Entry/Office Cylindrical Lock

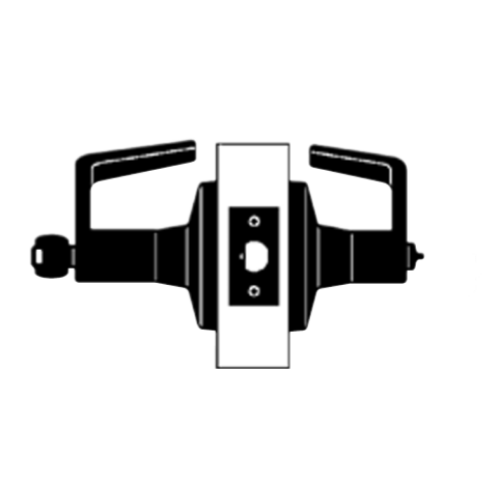

The Falcon T511 is the entry/office function in the T Series Grade 1 cylindrical lock line. The function is ANSI F109, and the defining feature is a two-mode push button that gives inside staff two different levels of outside lever lockout depending on the situation.

Mode one is a single press. The button locks the outside lever. Entry from the corridor requires a key. When someone enters with a key, the button releases and the outside lever returns to normal. When the inside occupant turns the inside lever for egress, the button also releases. The lock resets to unlock after each key entry event.

Mode two is a press-and-turn. The button locks the outside lever and stays locked even after key entry from outside. Someone enters with their key, but the outside lever remains locked. The button must be manually released from inside before the next keyless entry can work. This maintained lock mode is used when staff wants to hold the room in a secured state for a full session without resetting the button every time a visitor enters with a key.

Inside lever is always free regardless of which button mode is active. Deadlocking latch bolt engages automatically when the door closes. For all Falcon T Series Grade 1 cylindrical locks, browse our commercial locks catalog. For Falcon Grade 2 options, view our Falcon B Series Grade 2 catalog.

T511 vs T501: Two-Mode vs Single-Mode Entry

Both the T501 and T511 are T Series Grade 1 entry locks with push-button inside control. The T501 (ANSI F82) has a single-mode button: one press lock, key entry or inside lever unlocks. The lock always resets to unlock after a key is used from outside.

The T511 (ANSI F109) adds the second mode. When staff presses and turns the button, the lock enters a maintained state. Key entry from outside still opens the door, but the button remains engaged. The corridor is locked until someone inside manually releases it.

In a professional office suite, a doctor's private office, a consultation room, or any space where the occupant regularly needs to hold the room locked for extended periods between keyed visitor entries, the T511 is the correct specification. For doors that only need temporary lockout with automatic reset after each key entry, the T501 is simpler and equally effective.

Falcon T511 Full Specifications

• SKU: T511PD D 626

• Also known as: T511, T511A, T511B, T511D, T511Q, T511PDA, T511PDD, T511PDQ, falcon t511 lockset, falcon cylindrical lock entry office

• Function: ANSI F109, Entry/Office

• Push button: Two-mode; single press (resets on key entry); press-and-turn (maintained state, manual release required)

• Inside lever: Always free for egress

• Latch: Deadlocking, 1/2" projection; UL listed; 3/4" projection optional

• Latch faceplate: 2-1/4" x 1-1/8", adjustable front

• Grade: ANSI/BHMA A156.2, Series 4000, Grade 1

• UL: 3-hour A label

• Handing: Non-handed

• Door thickness: 1-3/4" to 2-1/8" standard; thin door adapter kit available

• Backset: 2-3/4" standard; 2-3/8" and 5" available

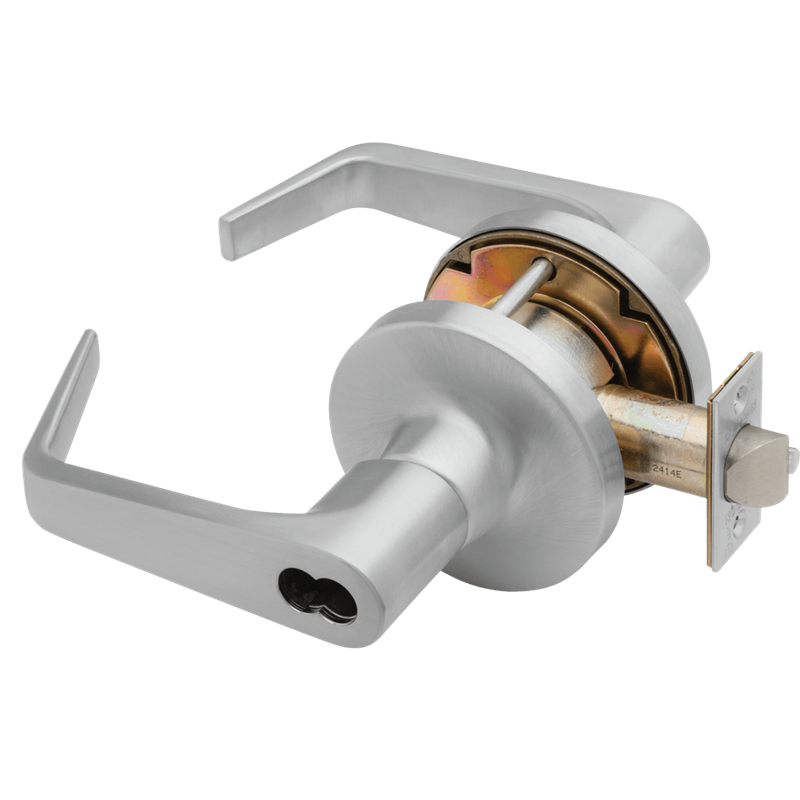

• Cylinder: 6-pin solid brass (5 loaded); 6-pin and 7-pin full available; IC available

• Keyways: G keyway standard; A keyway on IC; optional keyways available

• Keys: 2 nickel silver standard

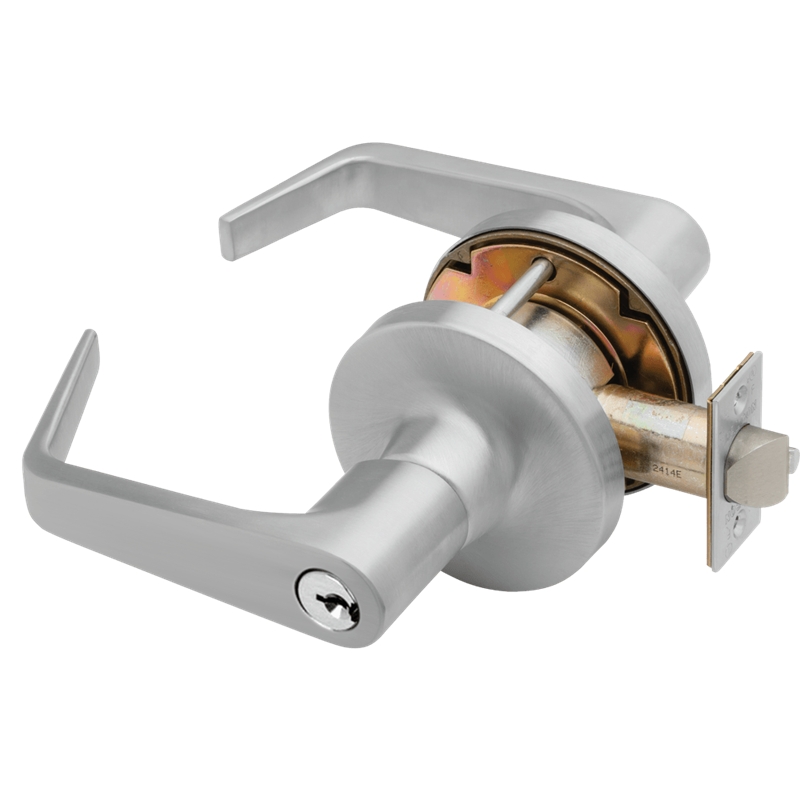

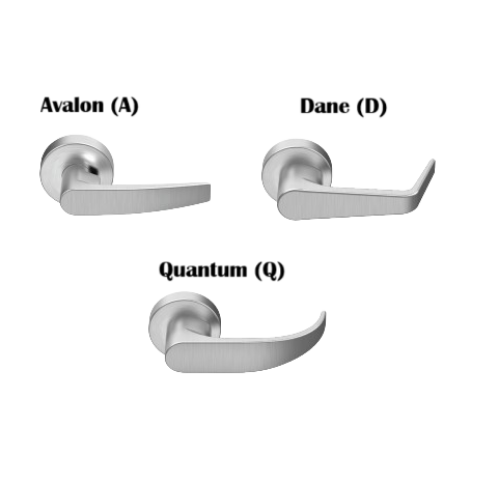

• Lever styles: Avalon (A), Dane (D), Quantum (Q)

• Finishes: 626 Satin Chrome, 625 Bright Chrome, 605 Bright Brass, 613 Oil Rubbed Bronze, 619 Satin Nickel

• Strike: 4-7/8" x 1-1/4" ANSI with curved lip

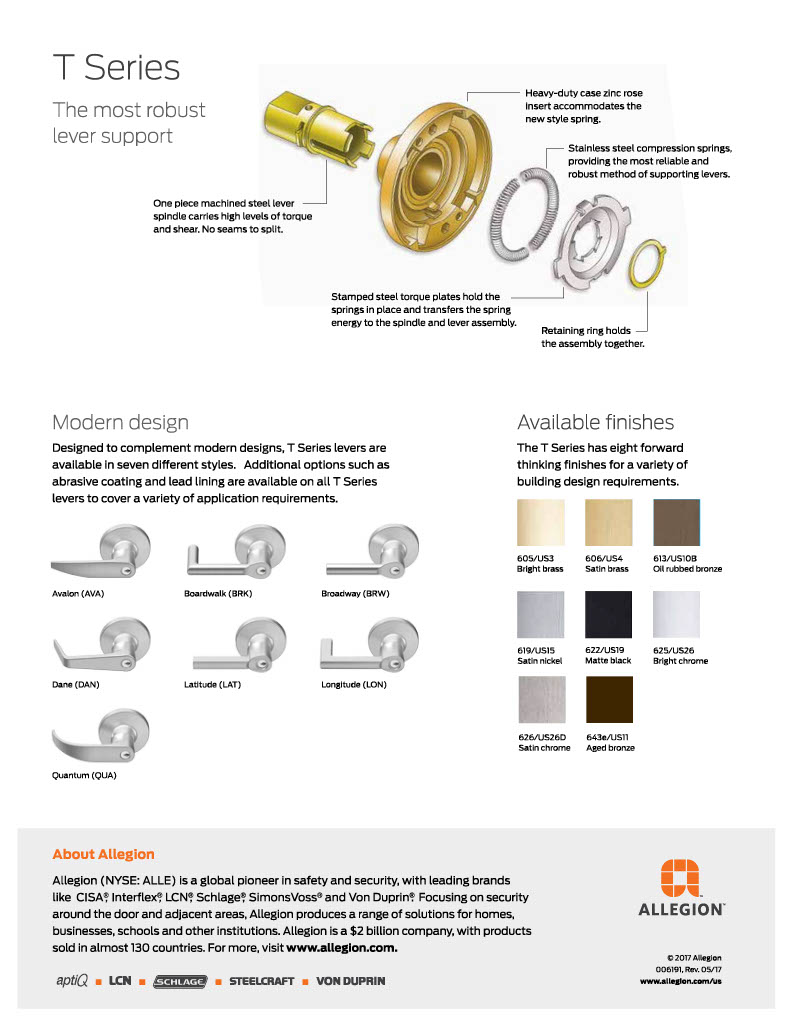

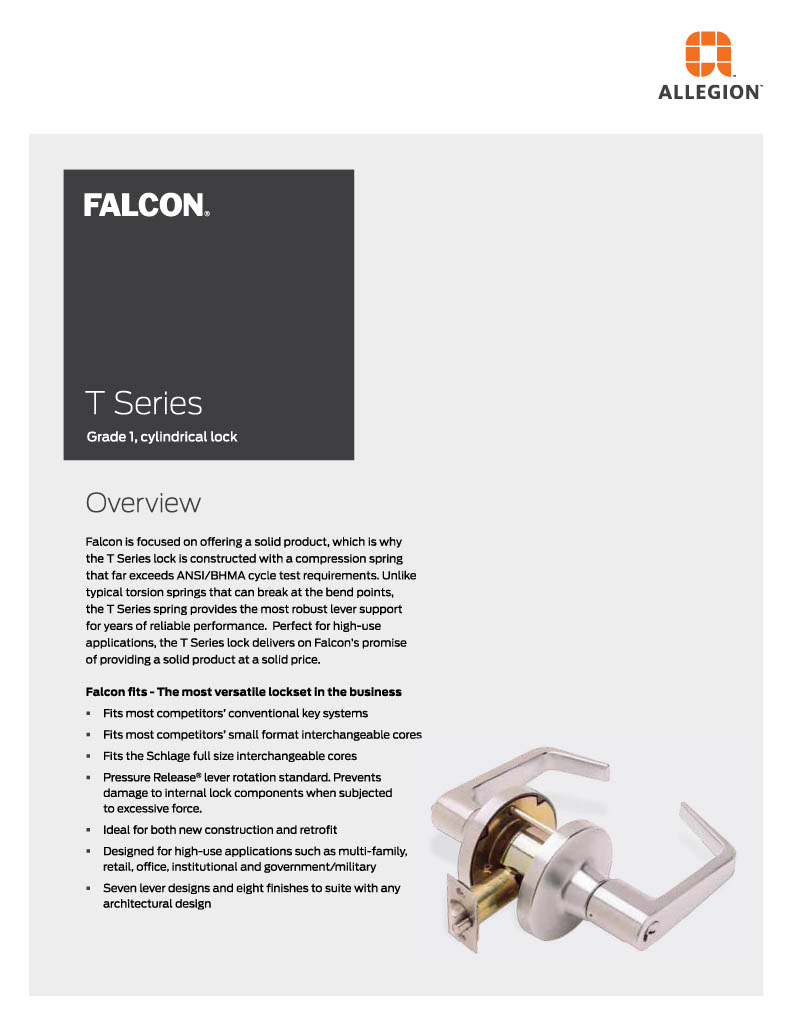

• Resources: Falcon T Series Full Catalog and Locks Product Catalog in Resources section

T511 in the Full T Series Function Range

The Falcon T Series covers every standard commercial cylindrical lock function at Grade 1. The T101S handles passage. The T301S handles privacy. The T501 (entry, single-mode) and T511 (entry/office, two-mode) cover the entry function variants. The T521 covers office functions. The T561 covers the classroom. The T571 covers the dormitory/corridor. The T581 covers the storeroom. The T381 covers classroom security (ANSI F88). The T411 covers asylum.

Every function uses the same T Series cylindrical body and the same lever options: Avalon, Dane, and Quantum in five finishes. Specifying the T Series across a building's complete door schedule means consistent hardware appearance from passage doors to storeroom doors without ordering from different product families.

T511A and T511B Variants

T511A is the T511 with the Avalon lever style. T511B likely refers to a specific cylinder or keyway variant in the T511 family. The full T Series Full Catalog in the Resources section on this page covers all T511 variant model codes and their cylinder configurations.
