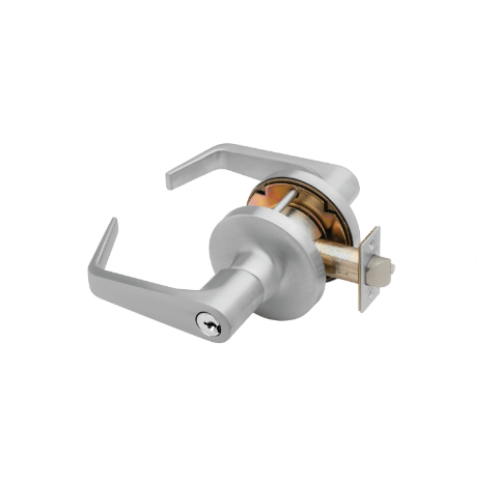

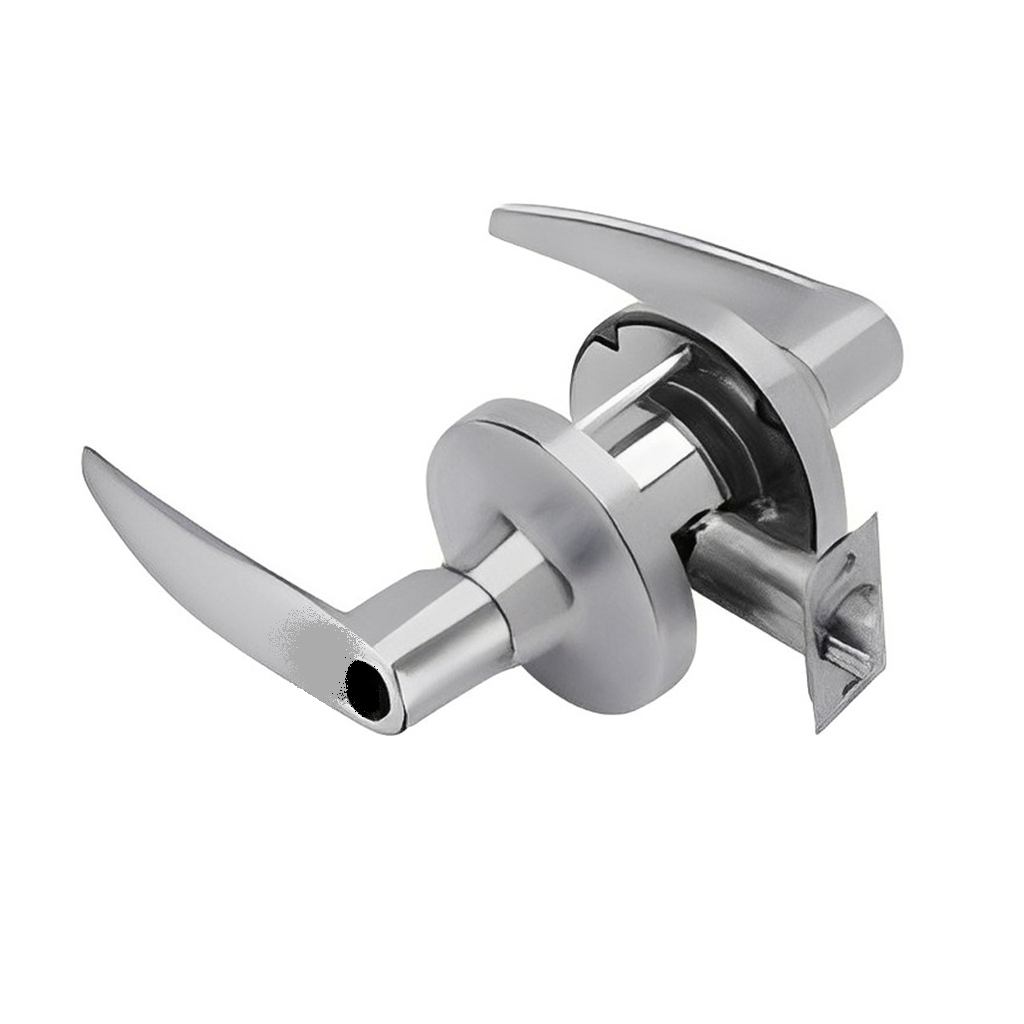

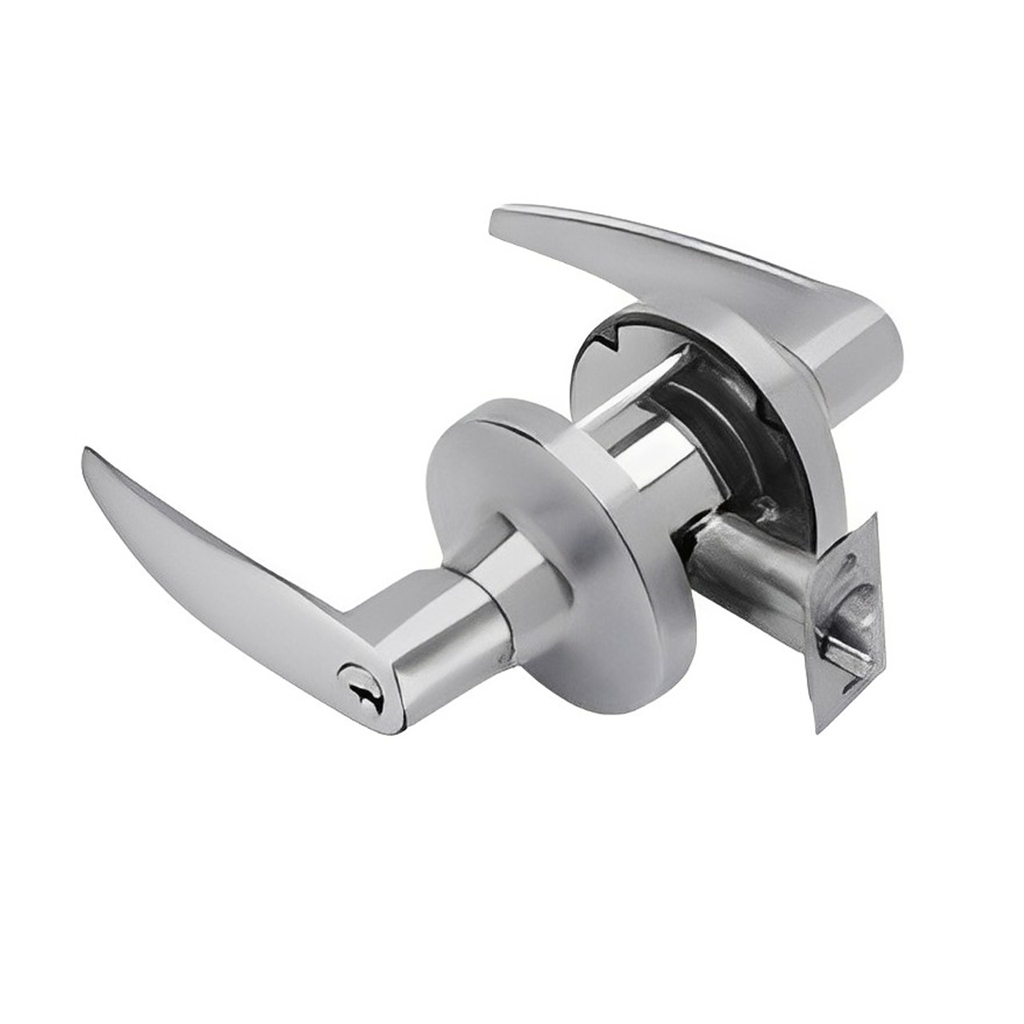

Falcon T501 Grade 1 Entry Cylindrical Lock

Falcon T501 Entry Lock -*ANSI F82*

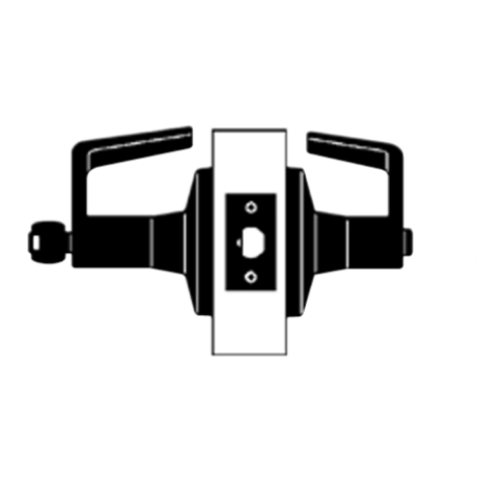

Push button locking. Button on inside locks outside lever until unlocked by key or by rotating inside lever. Inside lever always free. Deadlocking latch bolt.

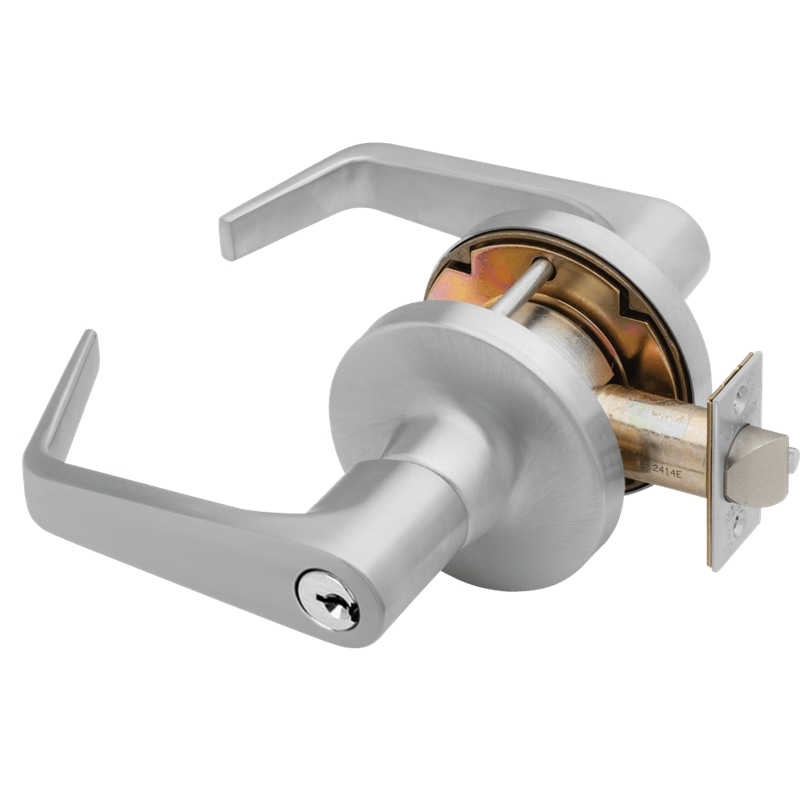

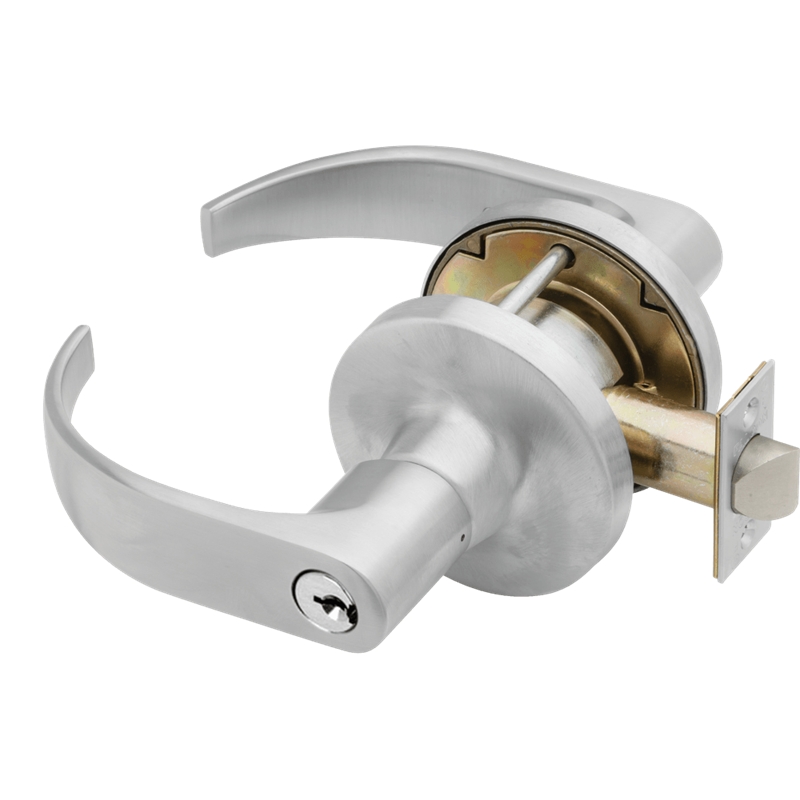

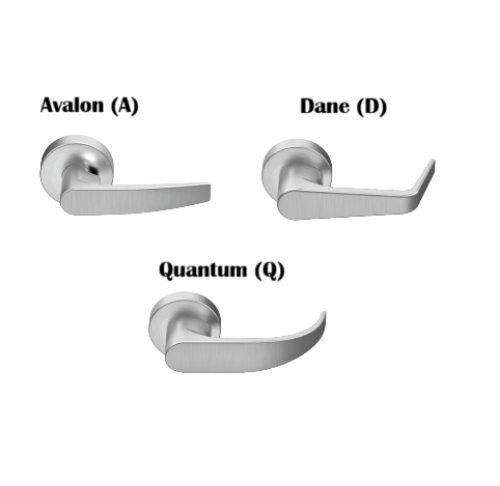

Lever Styles:Avalon (A), Dane (D), Quantum (Q).

ANSI/BHMA:Meets ANSI/BHMA A156.2,Series 4000,Grade 1.

Door Thickness:1-3/4" to 2-1/8" standard. Thin door adapter kit (A30775-000-00) vailable for doors thinner than 1-3/4". Thicker door locks also vailable, consult factory.

Backset:2-3/4" standard. 2-3/8" and 5" also available.

Handing:Locks are non-handed.

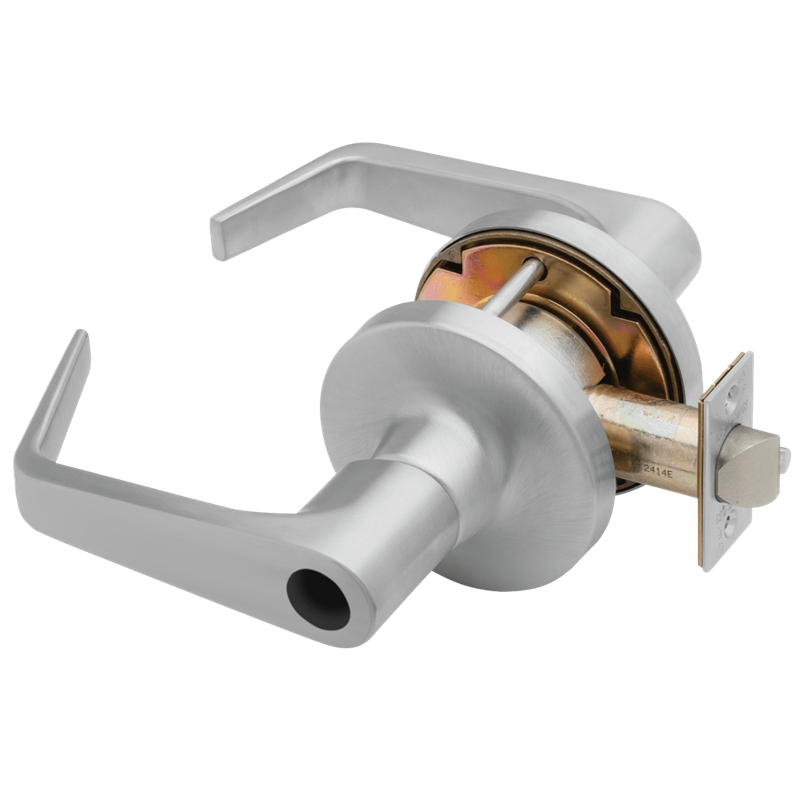

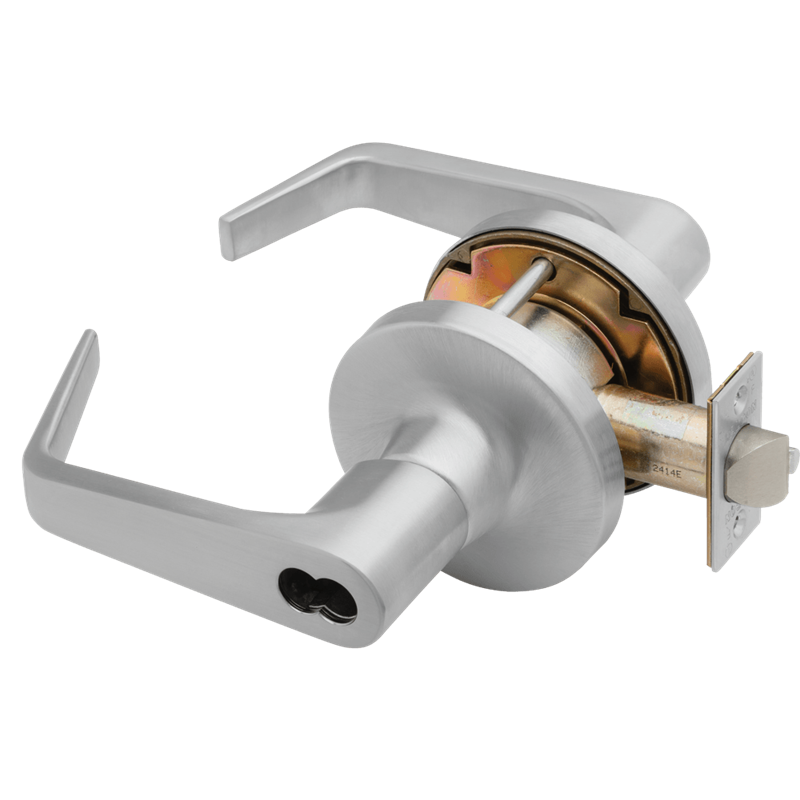

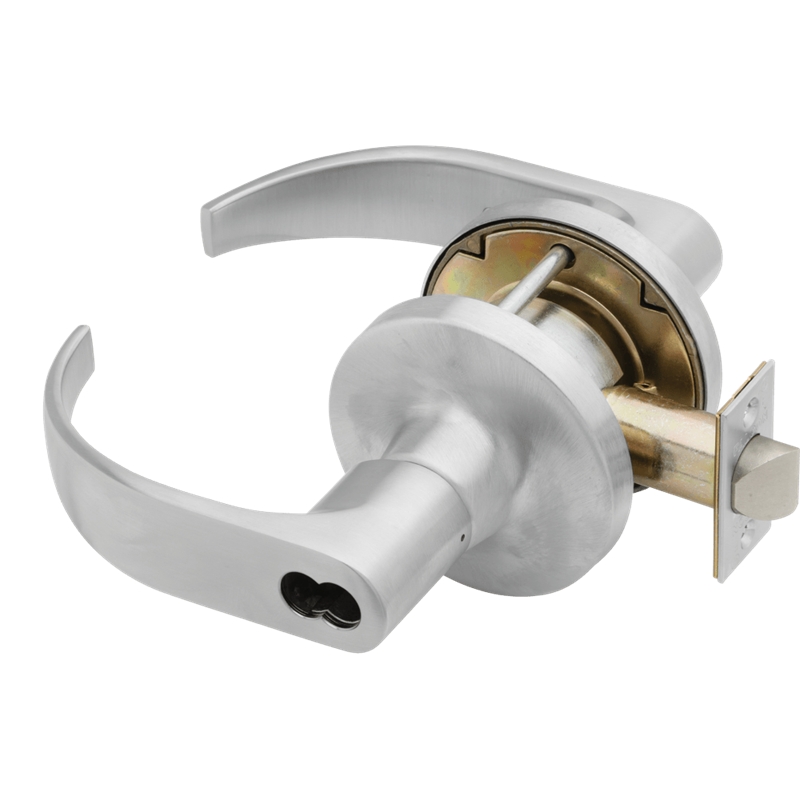

Cylinders:Drilled with 6 pin chambers, pinned in 5. Pinning in 6 chambers vailable when specified. 7 pin cylinders also vailable. Cylinder assemblies removable to rekey. Also vailable with 6 or 7 pin interchangeable core cylinders. Cylinder housings and plugs machined from solid brass. Springs are phosphor bronze. Two nickel silver keys furnished standard.

Keyways:G keyway standard on standard cylinders. A keyway standard on I/C core cylinders. Also available with some optional keyways.

Latches:1/2" bolt projection, UL listed with latch faceplates 2-1/4" x 1-1/8" with square corners standard. 3/4" projection, UL listed latch with 2-3/4" backset also vailable. Adjustable front standard.

Strikes:4-7/8" x 1-1/4" ANSI strike with curved lip to meet ANSI A115. 2 door frame preparation standard.

UL:3 hour A label.

Model:Falcon T501, T501PD, T501A, T501AVA, T501PDA, T501PDAVA, T501Q, T501QUA, T501PDQ, T501PDQUA, T501D, T501DAN, T501PDD, T501PDDAN

626, Satin Chrome, T501A626, T501AVA626, T501PDA626, T501PDAVA626, T501Q626, T501QUA626, T501PDQ626, T501PDQUA626, T501D626, T501DAN626, T501PDD626, T501PDDAN626

625, Bright Chrome, T501A625, T501AVA625, T501PDA625, T501PDAVA625, T501Q625, T501QUA625, T501PDQ625, T501PDQUA625, T501D625, T501DAN625, T501PDD625, T501PDDAN625

605, Bright Brass, T501A605, T501AVA605, T501PDA605, T501PDAVA605, T501Q605, T501QUA605, T501PDQ605, T501PDQUA605, T501D605, T501DAN605, T501PDD605, T501PDDAN605

613, Oil Rubbed Bronze, T501A613, T501AVA613, T501PDA613, T501PDAVA613, T501Q613, T501QUA613, T501PDQ613, T501PDQUA613, T501D613, T501DAN613, T501PDD613, T501PDDAN613

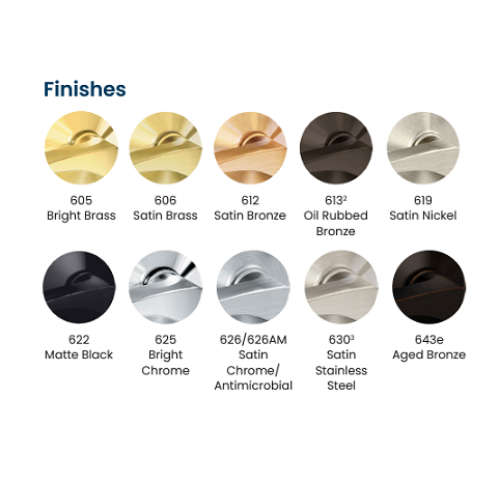

Finishes:605 - Bright Brass, 613 - Oil Rubbed Bronze, 619 - Satin Nickel, 625 - Bright Chrome, 626 - Satin Chrome

Mechanism:Parts constructed of brass or cold formed steel, zinc plated and dichromated for rust resistance. Springs are stainless steel.

Attachment:Lock chassis secured to door by threaded mounting nuts. Completely preassembled outer trim and inner spindle assembly are through-bolted over chassis using (2) 10-32 screws. Adding rose and lever to inner spindle assembly completes installation.

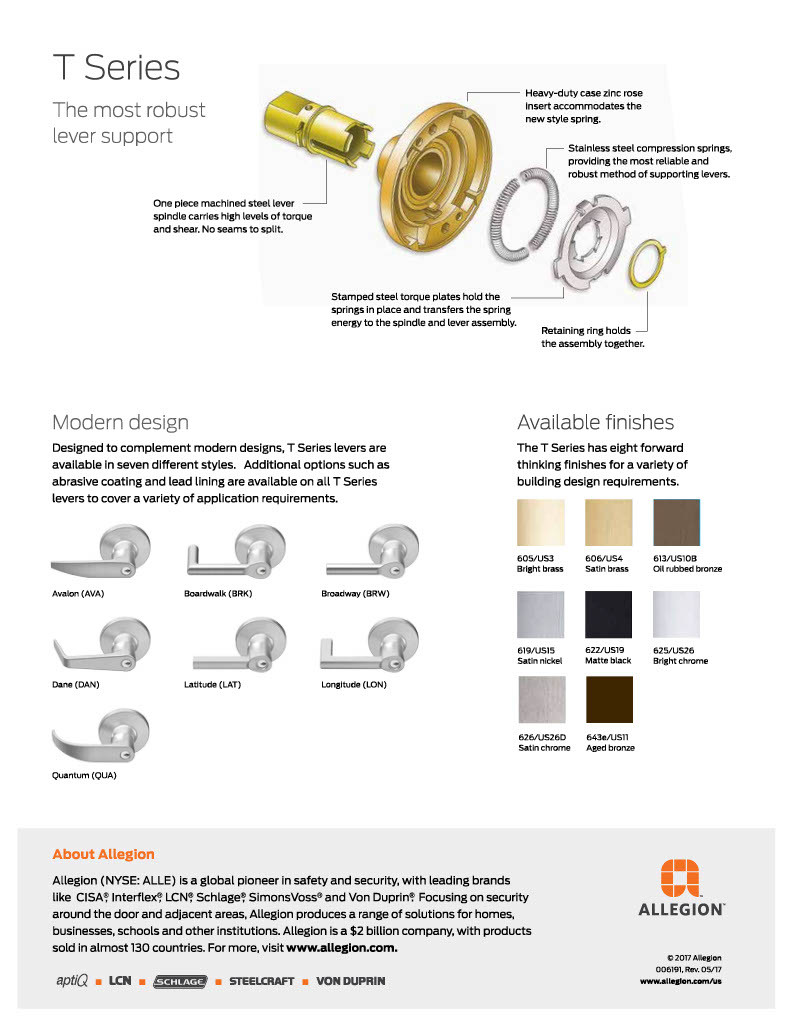

Trim:Roses are heavy wrought brass or bronze, installed over pressure cast rose inserts which are through-bolted through door. Levers are pressure cast (solid levers no inserts) material finished to match mating parts.

Pressure Release:levers are standard. Levers are secured by a spring-loaded retainer. Retainer cannot be depressed when locks have been locked.

Screws:Furnished with combination screws for use in wood or metal doors and frames.

Electrified Functions:Available in 12 or 24 VAC or VDC.
