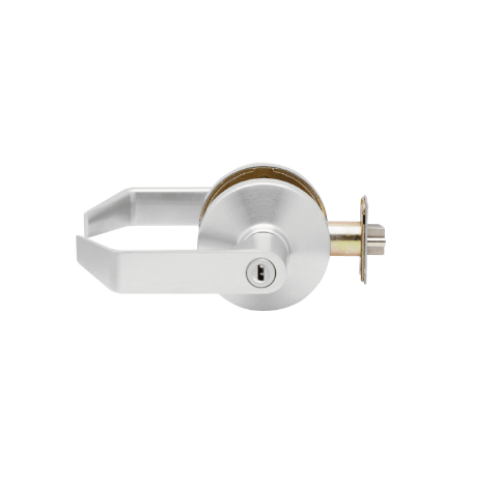

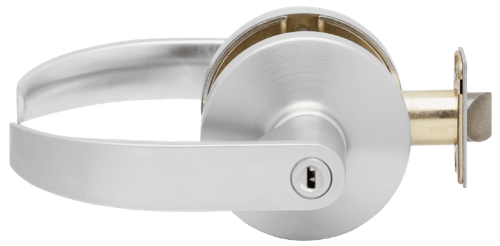

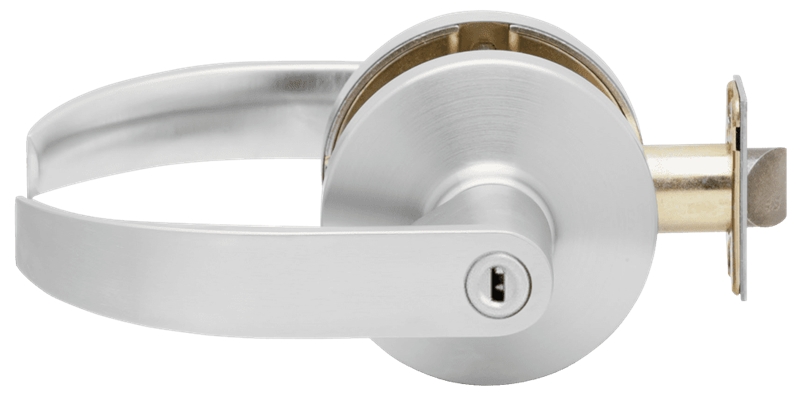

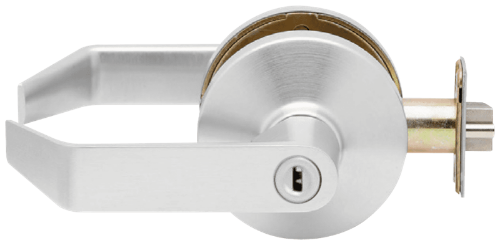

Falcon B301S Grade 2 Cylindrical Lock, Bedroom/Bath Privacy Function

Falcon B301S Grade 2 Privacy Lever Set

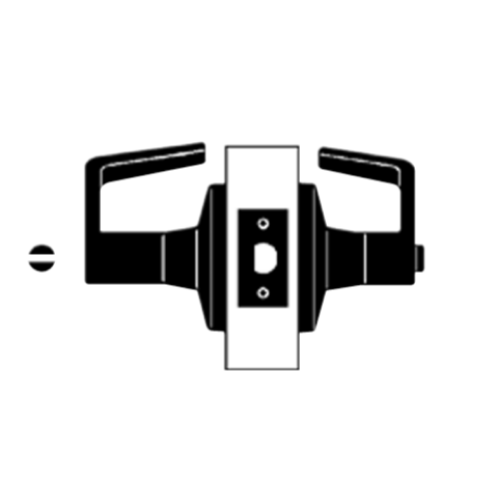

ANSI F76

Latch bolt by levers. Outside lever locked by push button in inside lever. Rotating inside lever or closing door releases push button. Emergency release in outside lever unlocks door.

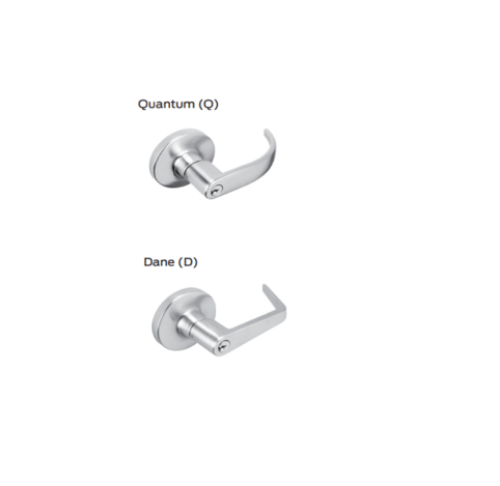

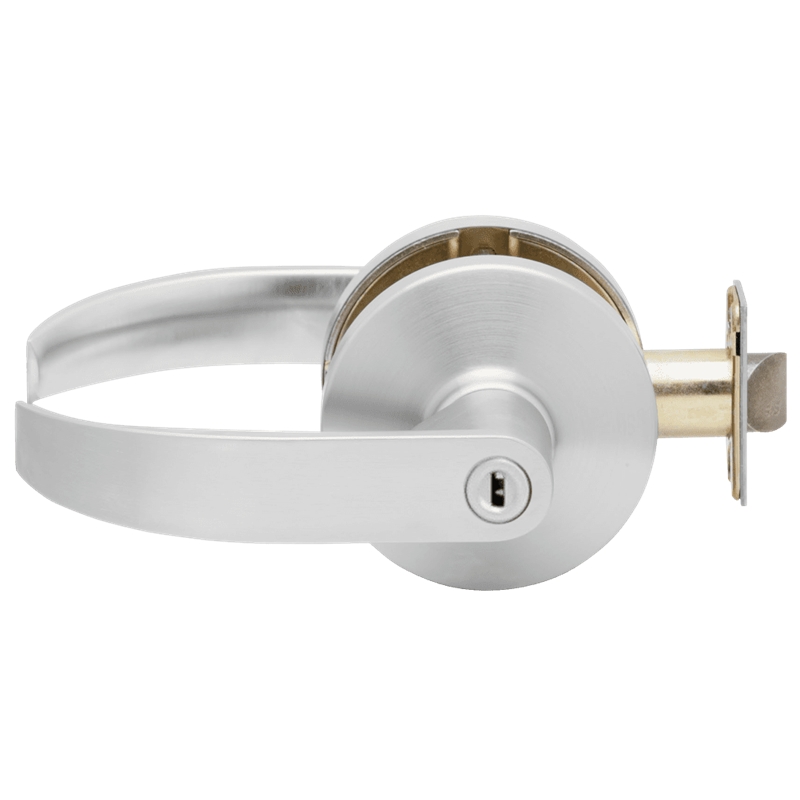

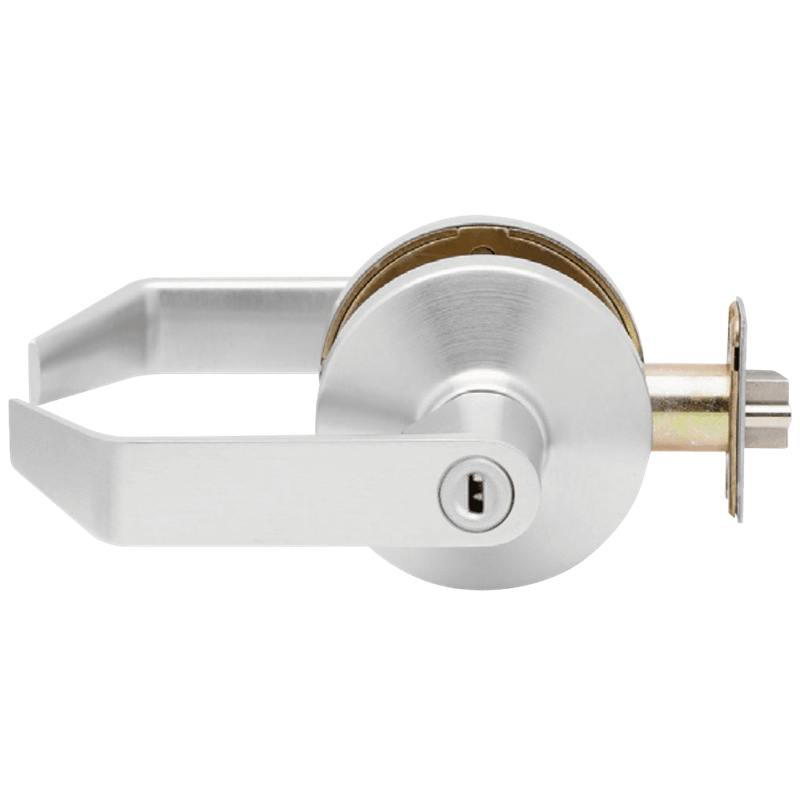

Lever: D - Dane, Q - Quantum

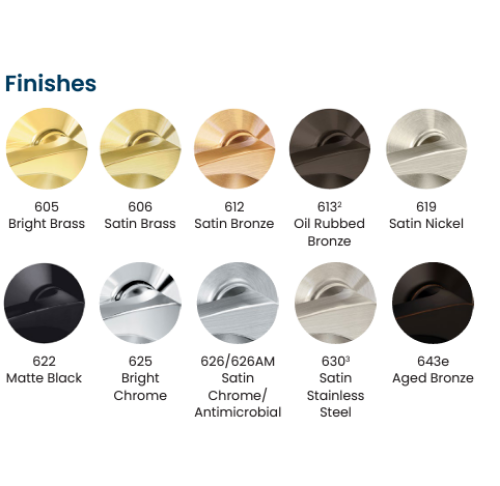

Finishes: Bright brass 605, Satin brass 606, Satin bronze 612, Oil rubbed bronze 613, Bright chrome 625, Satin chrome 626

Door Thickness: 1-3/8" to 2" standard.

Backset: 2-3/4" standard. 2-3/8",3-3/4" and 5" also available.

Handing: Locks are non-handed.

Latches: 1/2" bolt projection. UL listed. Latches have self-adjusting fronts to accommodate beveled or flat doors. 2-3/8" backset with 2-1/4" x 1" latchfaces. 2-3/4", 3-3/4" and 5" backset with 2-1/4" x 1-1/8" latchfaces. Deadlocking latches have a solid round bar stock DL bar preventing latch jamming and/or lock outs.

Strikes: 4-7/8" x 1-1/4" ANSI strike with curved lip to meet ANSI A115. or T-strike available

Screws: Furnished with combination screws for use in wood or metal doors and frames.

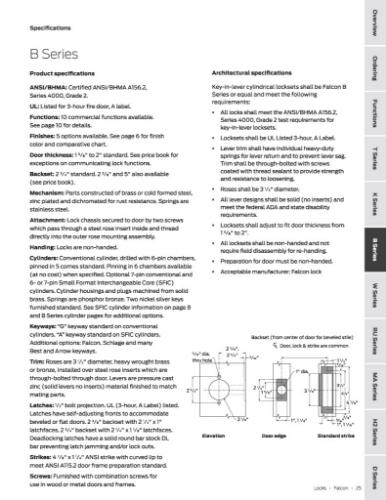

ANSI/BHMA: Meets ANSI/BHMA A156.2, Series 4000, Grade 2.

UL: 3 hour A label.

Model: Falcon, B101, B301S, B301SD, B301SQ, B301SDAN, B301SQUA,  101SD626, B301SQ626, B301SDAN626, B301SQUA626, B301SD625, B301SQ625, B301SDAN625, B301SQUA625, B301SD605, B301SQ605, B301SDAN605, B301SQUA605, B301SD606, B301SQ606, B301SDAN606, B301SQUA606, B301SD613, B301SQ613, B301SDAN613, B301SQUA613

Mechanism: Parts constructed of brass or cold formed steel, zinc plated and dichromated for rust resistance.Springs are stainless steel.

Attachment: Lock chassis secured to door by two screws which pass through a steel rose insert inside and thread directly into the outer rose mounting assembly.

Trim: Roses are 3-1/2" diameter, heavy wrought brass or bronze,installed over steel rose inserts which are through-bolted through door. Levers are pressure cast (solid levers no inserts) material finished to match mating parts.
