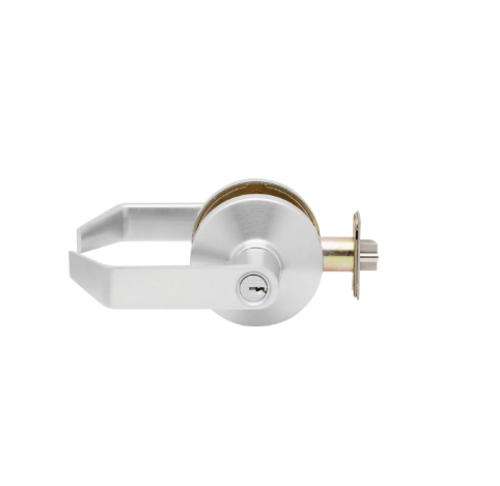

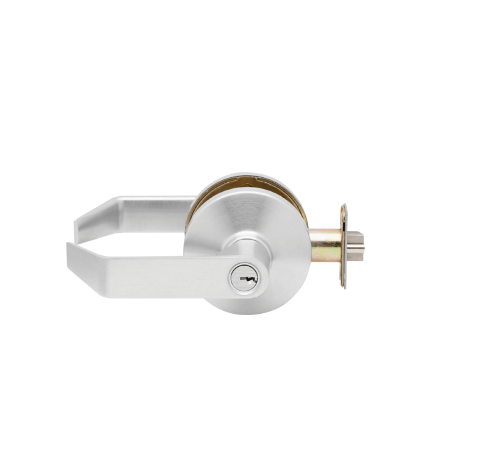

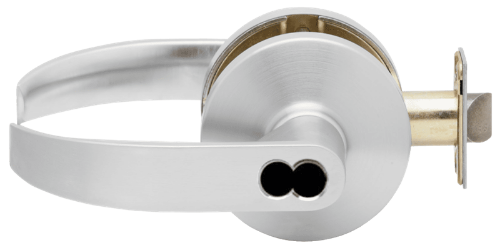

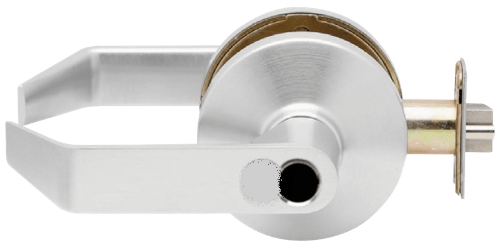

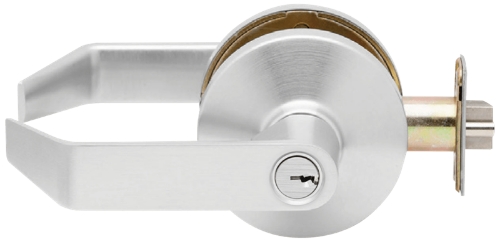

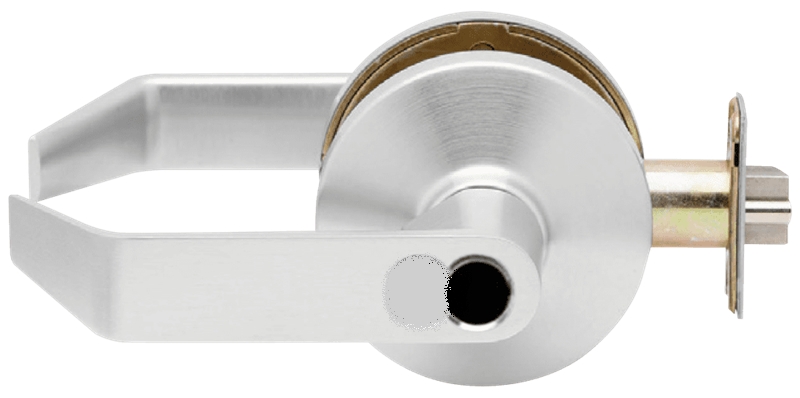

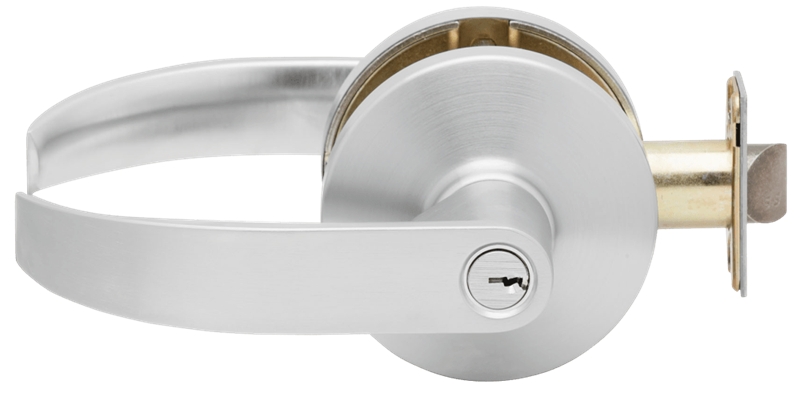

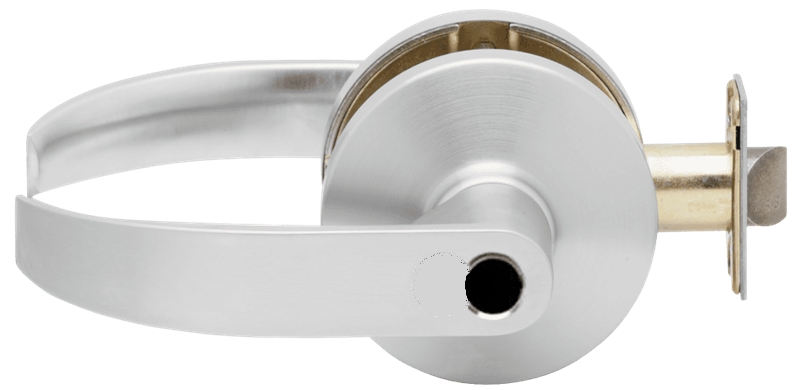

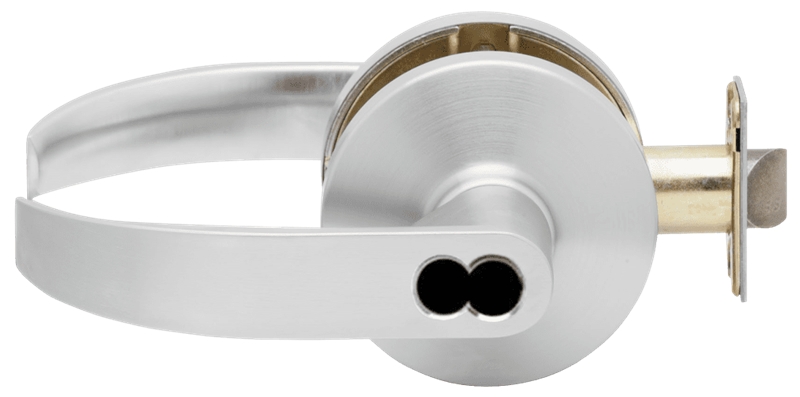

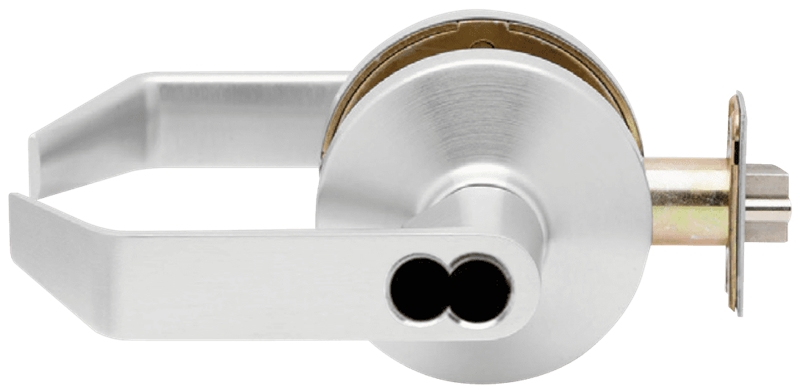

Falcon B511 Grade 2 Cylindrical Lock, Entry/Office Function

Falcon B511 Grade 2 Entry/Office Lock, Non-Handed

ANSI F109

Turn/push button locking. Pushing and turning button locks outside lever requiring use of key until button is manually unlocked. Push button locking. Pushing button locks outside lever until unlocked by key or by rotating inside lever. Inside lever always free. Deadlocking latch bolt.

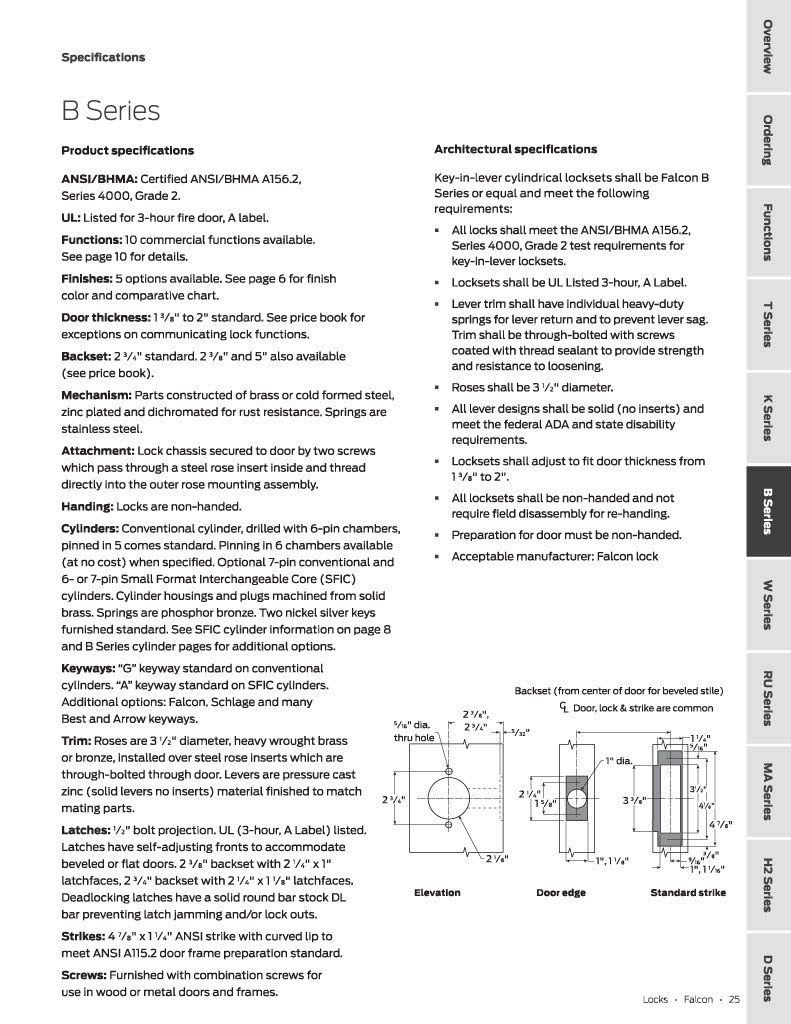

Door Thickness: 1-3/8" to 2" standard.

Backset: 2-3/4" standard. 2-3/8",3-3/4" and 5" also available.

Handing: Locks are non-handed.

Cylinders: Drilled with 6 pin chambers, pinned in 5. Cylinder assemblies removable to rekey. Also vailable with 6 or 7 pin interchangeable core cylinders. Cylinder housings and plugs machined from solid brass. Springs are phosphor bronze. Two nickel silver keys furnished standard.

Keyways: "G" keyway standard on standard cylinders. "A" keyway standard on I/C core cylinders. Also available with some optional keyways.

Latches: 1/2" bolt projection. UL listed. Latches have self-adjusting fronts to accommodate beveled or flat doors. 2-3/8" backset with 2-1/4" x 1" latchfaces. 2-3/4", 3-3/4" and 5" backset with 2-1/4" x 1-1/8" latchfaces. Deadlocking latches have a solid round bar stock DL bar preventing latch jamming and/or lock outs.

Strikes: 4-7/8" x 1-1/4" ANSI strike with curved lip to meet ANSI A115. or T-strike available

Screws: Furnished with combination screws for use in wood or metal doors and frames.

ANSI/BHMA: Meets ANSI/BHMA A156.2, Series 4000, Grade 2.

UL: 3 hour A label.

Mechanism: Parts constructed of brass or cold formed steel, zinc plated and dichromated for rust resistance.Springs are stainless steel.

Attachment: Lock chassis secured to door by two screws which pass through a steel rose insert inside and thread directly into the outer rose mounting assembly.

Trim: Roses are 3-1/2" diameter, heavy wrought brass or bronze,installed over steel rose inserts which are through-bolted through door. Levers are pressure cast (solid levers no inserts) material finished to match mating parts.
