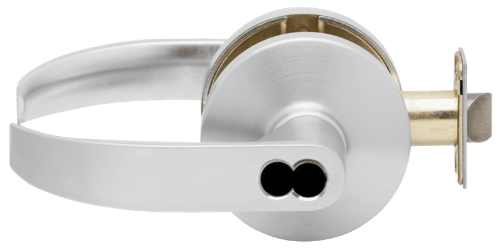

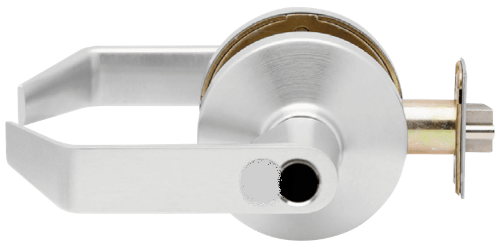

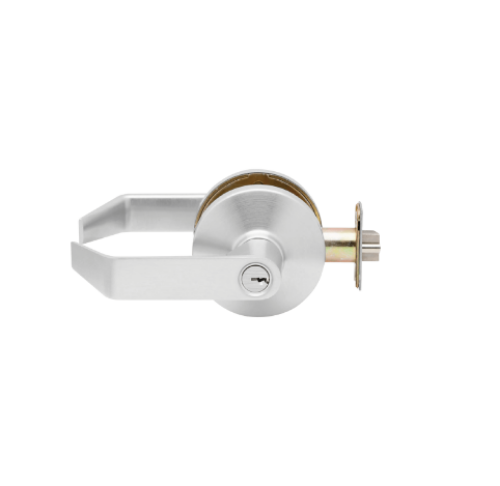

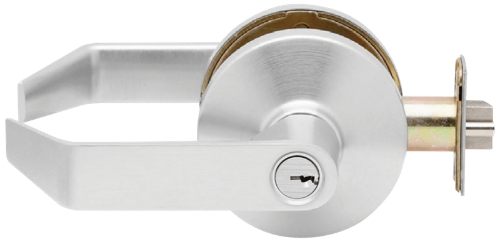

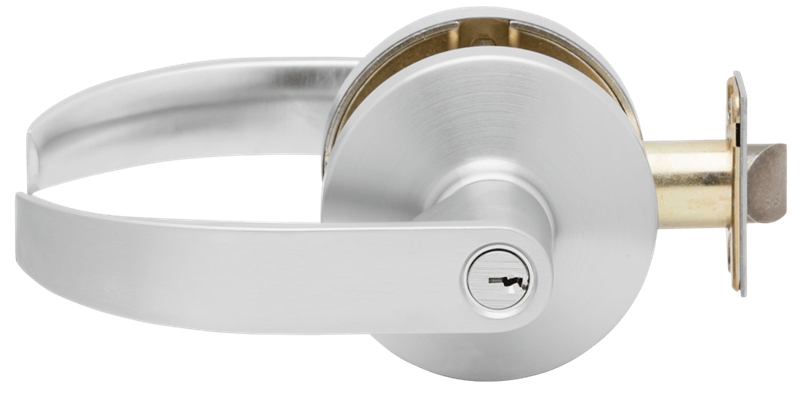

Falcon B581 Grade 2 Cylindrical Lock, Storeroom Function

Falcon B581 Grade 2 Storeroom Lock, Non-Handed

ANSI F86

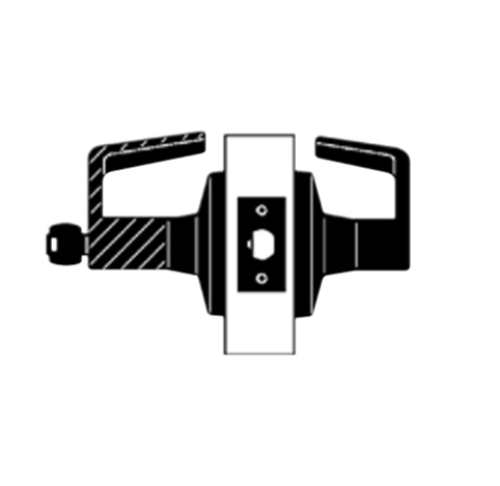

Deadlocking latch bolt by lever inside or key outside. Outside lever is rigid. Inside lever is always free.

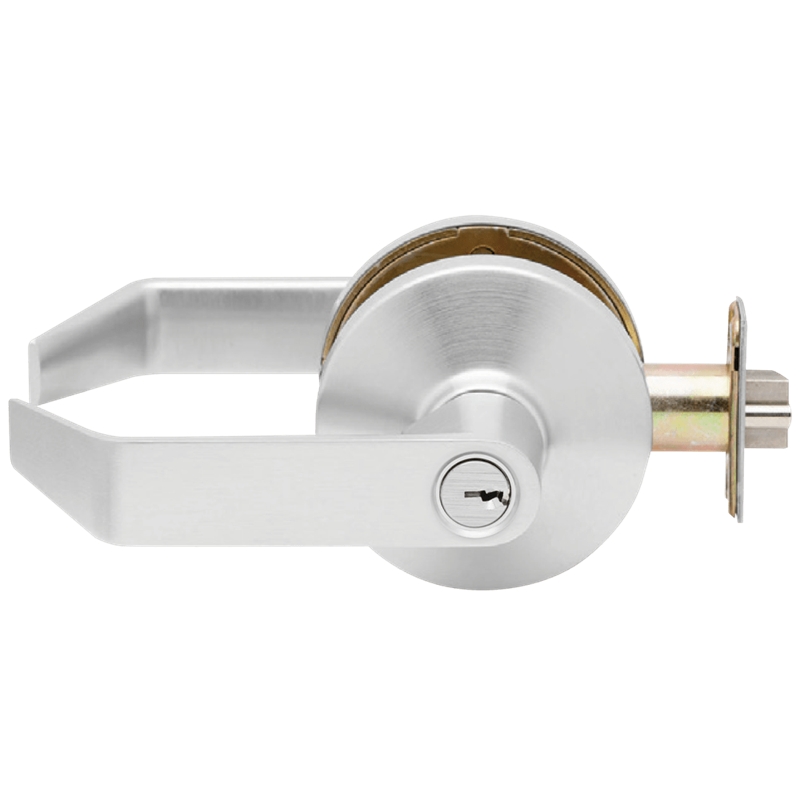

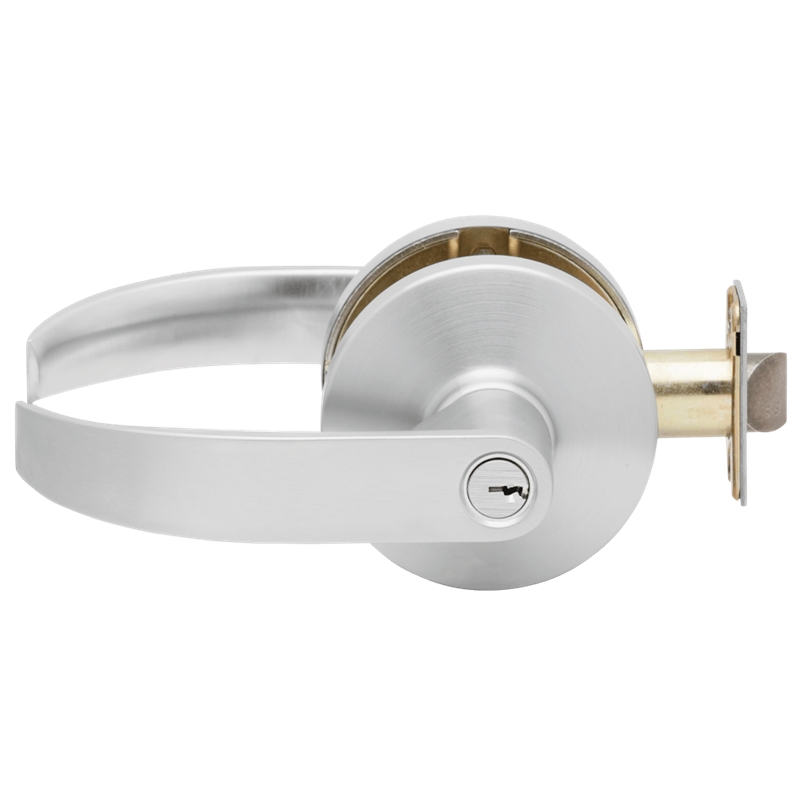

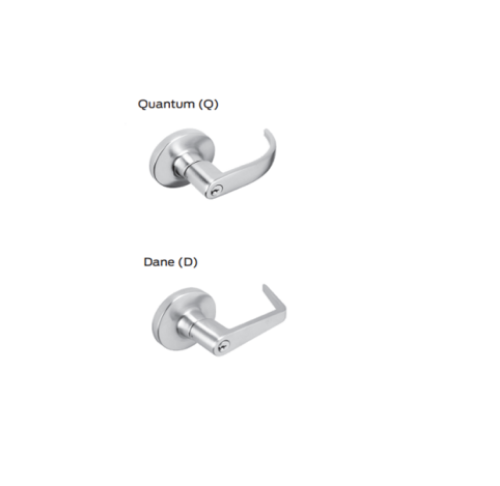

Lever: D - Dane, Q - Quantum

Finishes: Bright brass 605, Satin brass 606, Satin bronze 612, Oil rubbed bronze 613, Bright chrome 625, Satin chrome 626

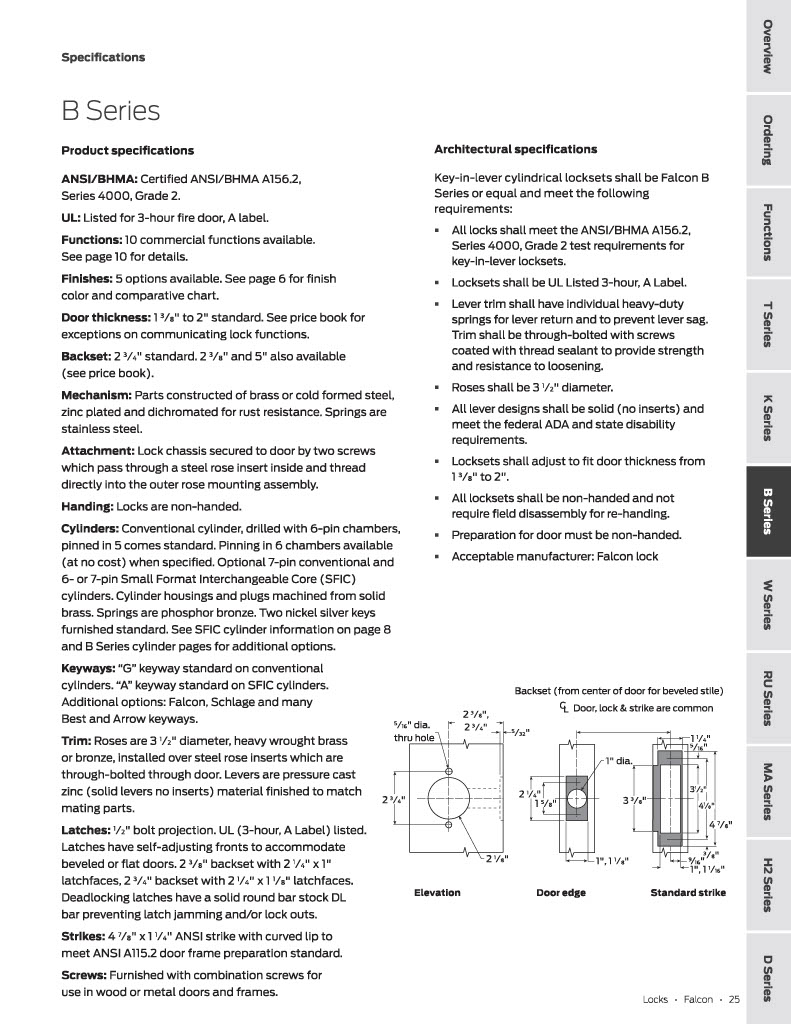

Door Thickness: 1-3/8" to 2" standard.

Backset: 2-3/4" standard. 2-3/8",3-3/4" and 5" also available.

Handing: Locks are non-handed.

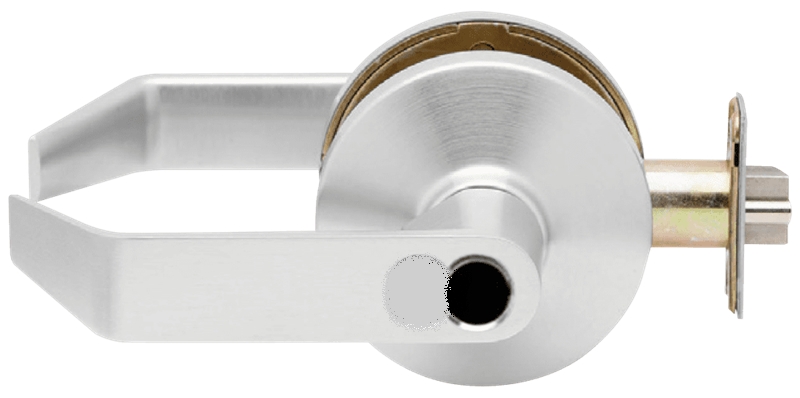

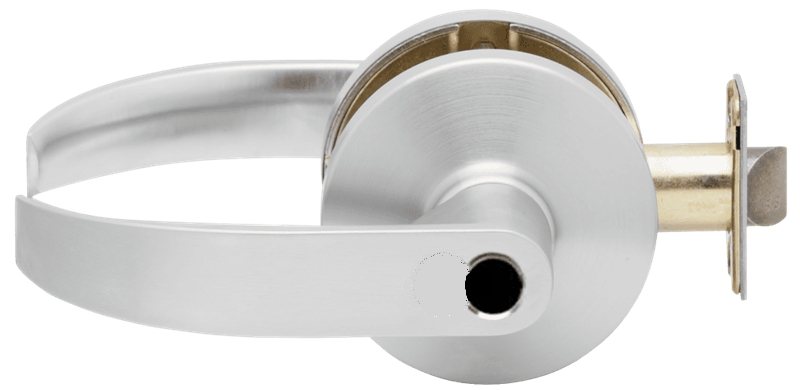

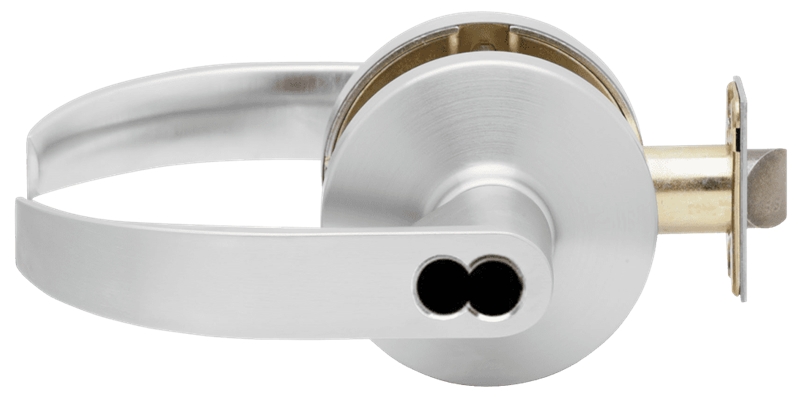

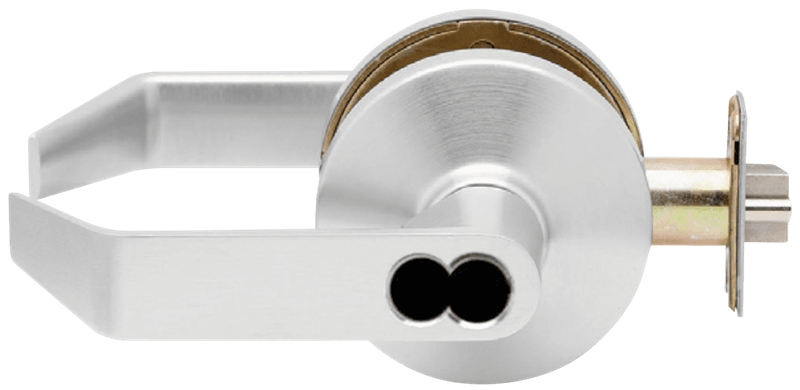

Cylinders: Drilled with 6 pin chambers, pinned in 5. Cylinder assemblies removable to rekey. Also vailable with 6 or 7 pin interchangeable core cylinders. Cylinder housings and plugs machined from solid brass. Springs are phosphor bronze. Two nickel silver keys furnished standard.

Keyways: "G" keyway standard on standard cylinders. "A" keyway standard on I/C core cylinders. Also available with some optional keyways.

Latches: 1/2" bolt projection. UL listed. Latches have self-adjusting fronts to accommodate beveled or flat doors. 2-3/8" backset with 2-1/4" x 1" latchfaces. 2-3/4", 3-3/4" and 5" backset with 2-1/4" x 1-1/8" latchfaces. Deadlocking latches have a solid round bar stock DL bar preventing latch jamming and/or lock outs.

Strikes: 4-7/8" x 1-1/4" ANSI strike with curved lip to meet ANSI A115. or T-strike available

Screws: Furnished with combination screws for use in wood or metal doors and frames.

ANSI/BHMA: Meets ANSI/BHMA A156.2, Series 4000, Grade 2.

UL: 3 hour A label.

Model:Falcon, B581, B581PD, B581PDD, B581PDQ, B581PDDAN, B581PDQUA,  101SD626, B581PDQ626, B581PDDAN626, B581PDQUA626, B581PDD625, B581PDQ625, B581PDDAN625, B581PDQUA625, B581PDD605, B581PDQ605, B581PDDAN605, B581PDQUA605, B581PDD606, B581PDQ606, B581PDDAN606, B581PDQUA606, B581PDD613, B581PDQ613, B581PDDAN613, B581PDQUA613, B581BD, B581BDD, B581BDQ, B581BDDAN, B581BDQUA,  101SD626, B581BDQ626, B581BDDAN626, B581BDQUA626, B581BDD625, B581BDQ625, B581BDDAN625, B581BDQUA625, B581BDD605, B581BDQ605, B581BDDAN605, B581BDQUA605, B581BDD606, B581BDQ606, B581BDDAN606, B581BDQUA606, B581BDD613, B581BDQ613, B581BDDAN613, B581BDQUA613

Mechanism: Parts constructed of brass or cold formed steel, zinc plated and dichromated for rust resistance.Springs are stainless steel.

Attachment: Lock chassis secured to door by two screws which pass through a steel rose insert inside and thread directly into the outer rose mounting assembly.

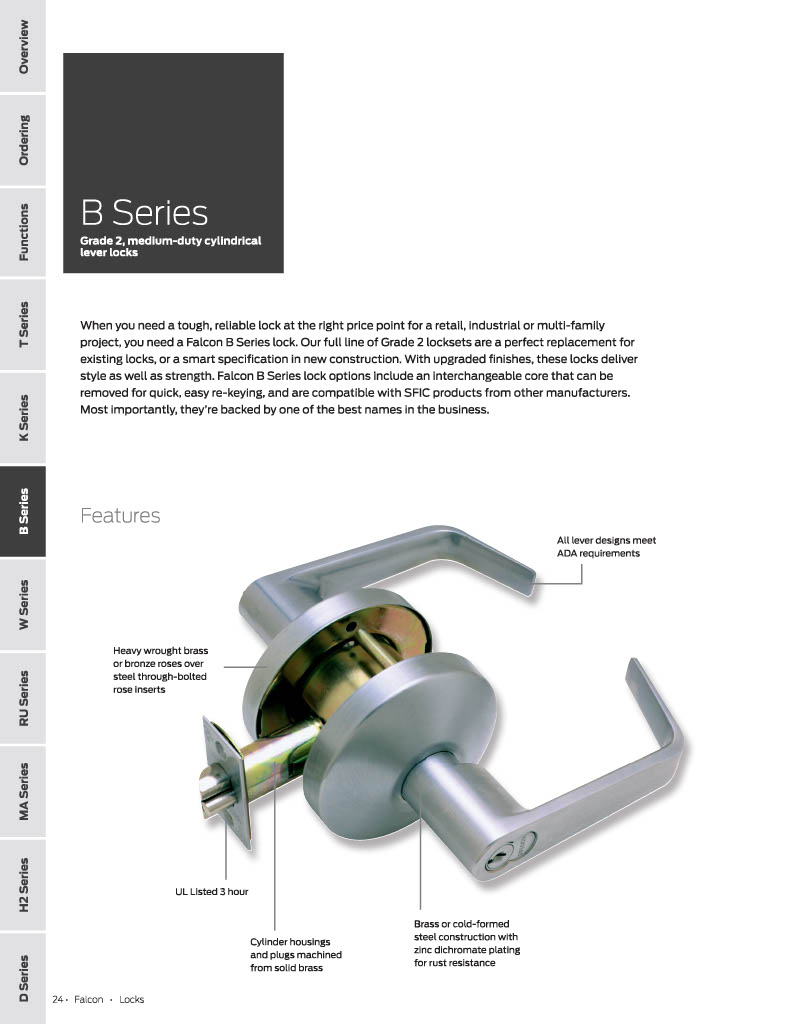

Trim: Roses are 3-1/2" diameter, heavy wrought brass or bronze,installed over steel rose inserts which are through-bolted through door. Levers are pressure cast (solid levers no inserts) material finished to match mating parts.
