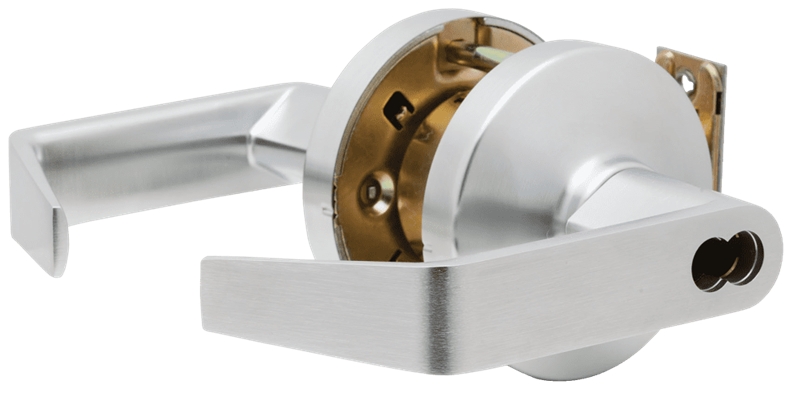

Falcon K561BD D 626 Grade 1 Classroom Cylindrical Lock, Dane Lever, SFIC Less Core, Satin Chrome Finish

Falcon K561BD-D-626 Grade 1 Push-Turnbutton Classroom Cylindrical Lock, Dane Lever, SFIC Less Core, Non-handed

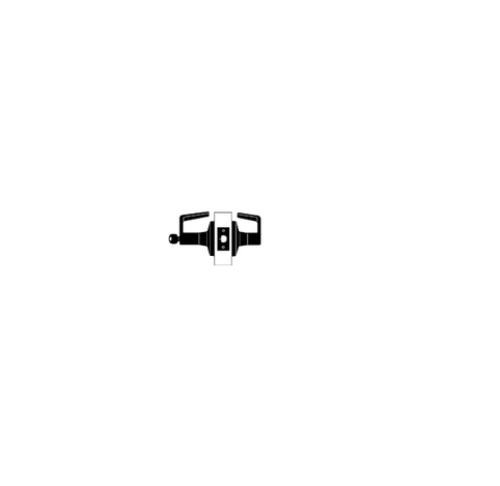

K561 - Classroom lock:Deadlocking latch bolt by levers. Outside lever is locked by key in outside lever. Inside lever is always free. ANSI- F84-1.

Features:

ANSI/BHMA:  Meets ANSI/BHMA A156.2, Series 4000, Grade 1.

UL:  UL10C 3 hour A label.

Door thickness:  Adjustable 1 3⁄8" to 2 1⁄4". Comes set for a 1 3⁄4" thick door standard.

Backset:  2 3⁄4" standard. 2 3⁄8" optional.

Mechanism:  Parts constructed of brass or cold formed steel, zinc plated and dichromated for rust resistance.  Springs are stainless steel.

Attachment:  Lock chassis secured to door by threaded mounting screws. Completely preassembled outer trim and inner spindle assembly are through-bolted both through and over chassis using four (4) screws to provide strength and resistance to loosening. Adding rose and lever to inner spindle assembly completes installation.

Handing:  Locks are non-handed.

Cylinders:Drilled with 6-pin chambers, pinned in 5. Cylinder assemblies removable to rekey. Also available with 6 or 7-pin small format interchangeable core (SFIC) cylinders. Cylinder housings and plugs machined from solid brass. Springs are stainless steel. Two nickel silver keys furnished standard.

Keyway:  standard "A" keyway.        Trim:Roses are heavy wrought brass or bronze, installed over pressure cast rose inserts which are through-bolted through door. Levers are pressure cast (solid levers no inserts) material finished to match mating parts.

Latches:2 1 ⁄4" x 1 1 ⁄8" square corner with 2 3⁄4" backset comes standard; 2 3⁄8" backset option available if specified. All latches are UL listed and conform to both beveled and non-beveled doors.

Strikes:4 7⁄8" x 1 1⁄4" ANSI strike with curved lip to meet ANSI A115.2 door frame preparation standard.

Screws:Furnished with combination screws for use in wood or metal doors and frames.

Model:Falcon K561, Falcon K561S, Falcon 1K01D, Falcon K561Q, Falcon K561A, K561 Falcon , K561S Falcon , 1K01D Falcon , K561BDQ Falcon , K561BDA Falcon, Falcon K561CBD, Falcon K561S, Falcon CBDA1K01D, Falcon K561Q626, Falcon K561A626, K561626 Falcon , K561S626 Falcon , 1K01D626 Falcon , K561CBDQ Falcon , K561A626 Falcon, K561S D 626, K561S Q 626, K561S A

Specifications:

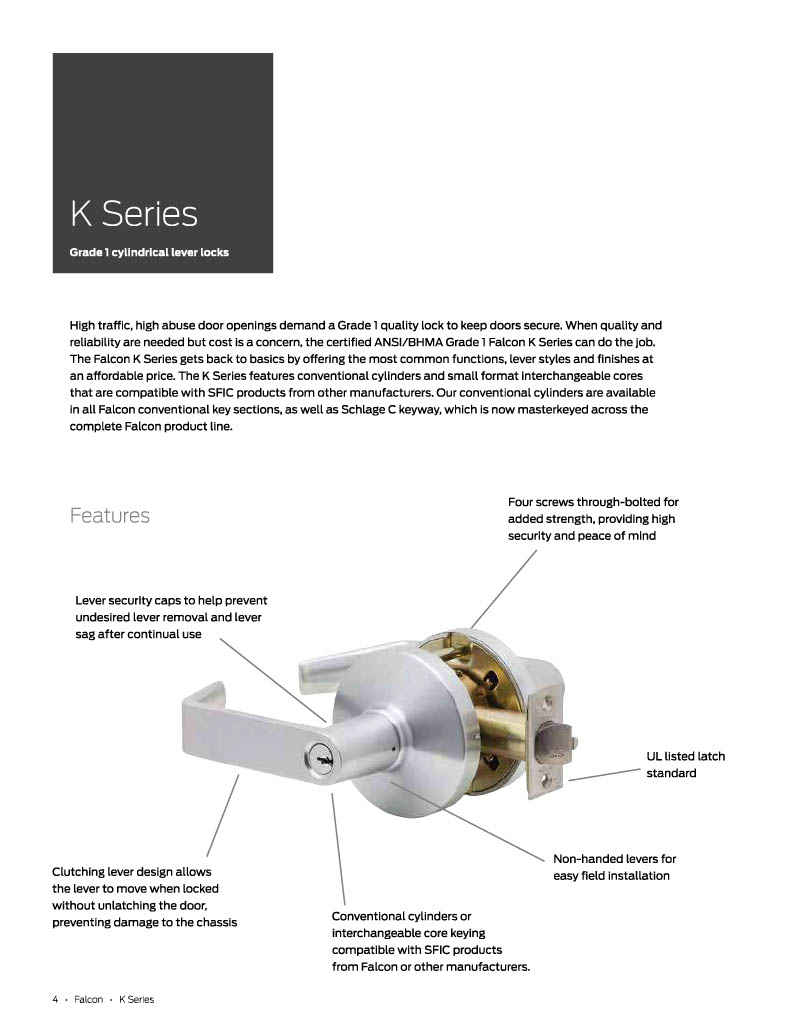

Key-in-lever cylindrical locksets shall be Falcon lock K Series or equal and meet the following requirements:

• All locks shall meet the new ANSI/BHMA A156.2, Series 4000, Grade 1 for key-in-lever locksets.

• Locksets shall be UL Listed (3 hour A Label).

• Locksets shall be provided standard with a clutching lever design. When outside lever is locked, it is not rigid but will move freely without operating the latch bolt.

• Lever trim shall have individual torsion springs behind rose for lever return and to prevent lever sag. Trim shall be through bolted with four (4) screws to provide strength and resistance to loosening. Inner and outer trim shall 'bottom out' to prevent door collapse. Roses shall be minimum of 3 1⁄2" diameter.

• All lever designs shall be solid and meet the federal ADA and state disability requirements. Inside levers shall be attached by allen-head set and lever catch to prevent tampering or vandalism.

• Locksets shall adjust to fit door thickness from 1 3⁄8" to 2 1⁄4".

• All locksets shall be non-handed and not require field disassembly for re-handing.

• Preparation for door must be non-handed.

• Cylinders to be secured by a dual retainer.

Acceptable manufacturer: Falcon Lock
