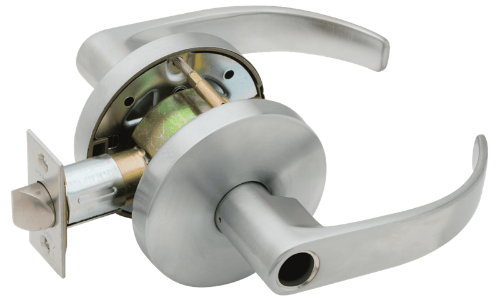

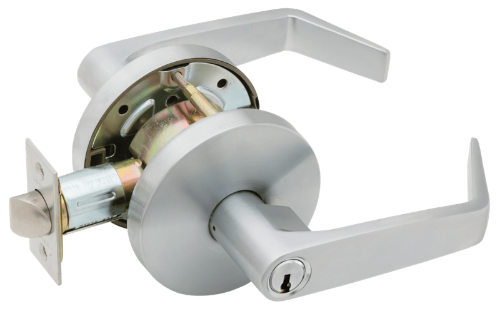

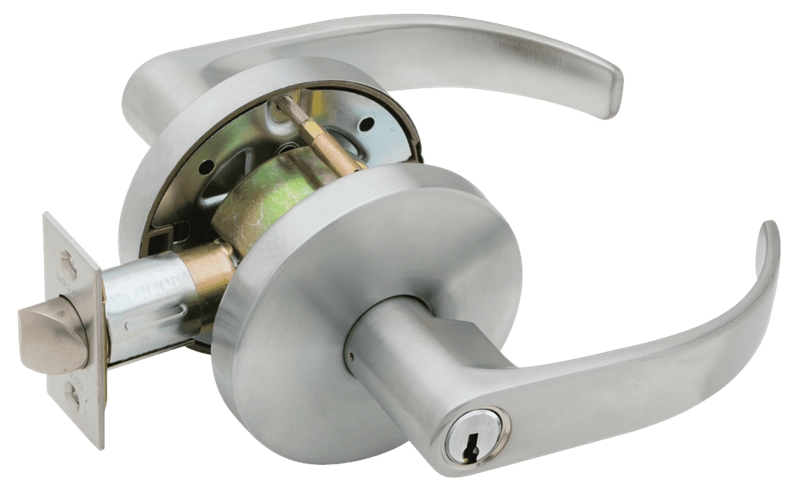

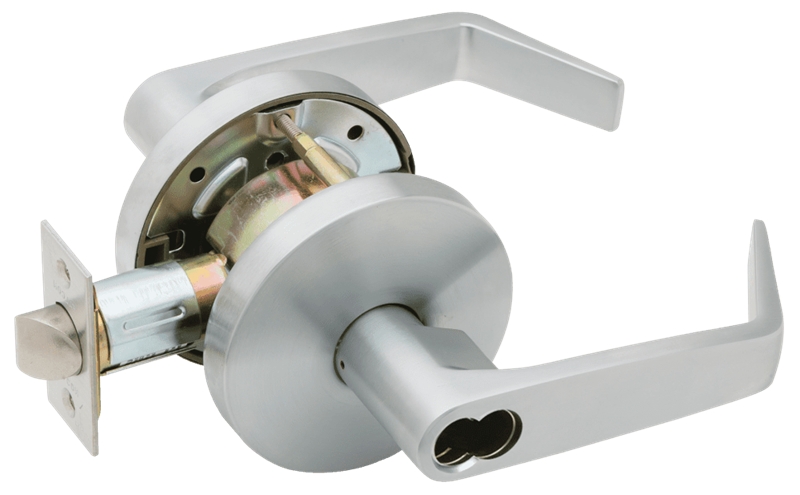

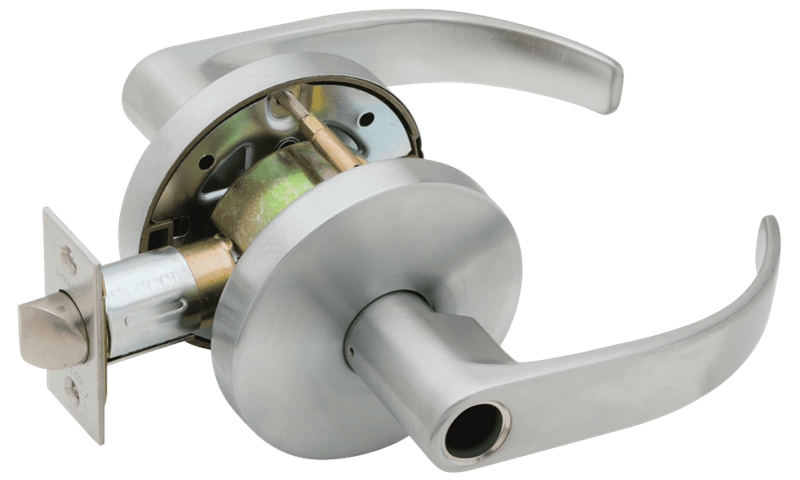

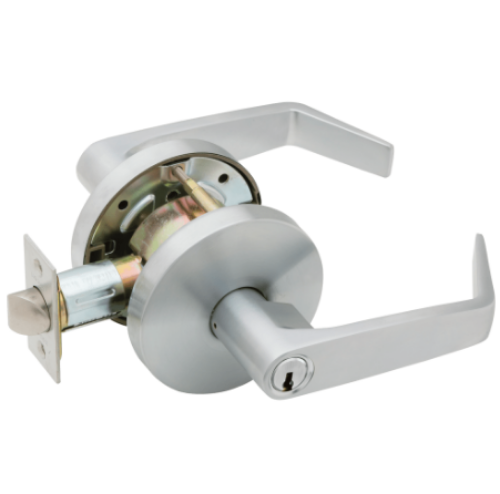

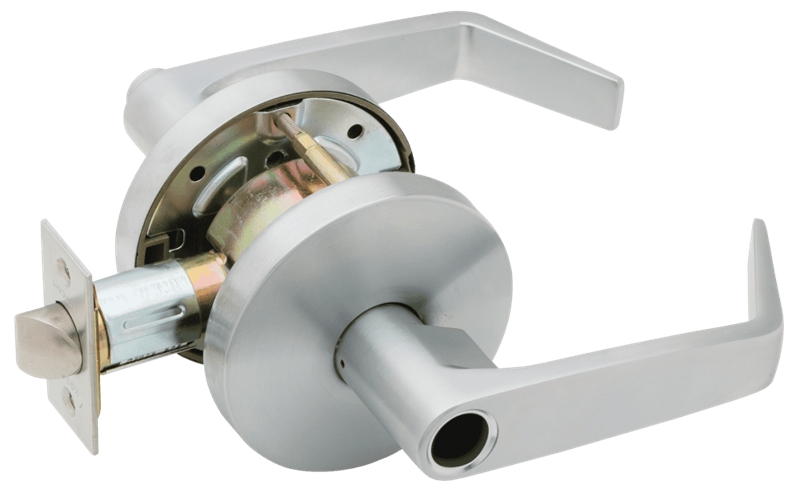

Falcon W561 SR Grade 2 Classroom Lock - Small Rose

Falcon W561 SR Grade 2 Classroom Lock - Small Rose, Non-Handed

ANSI F84

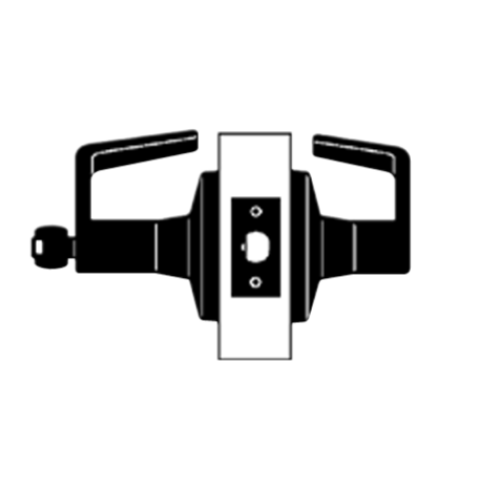

Deadlocking latch bolt by levers. Outside lever is locked by key in outside lever. Inside lever is always free.

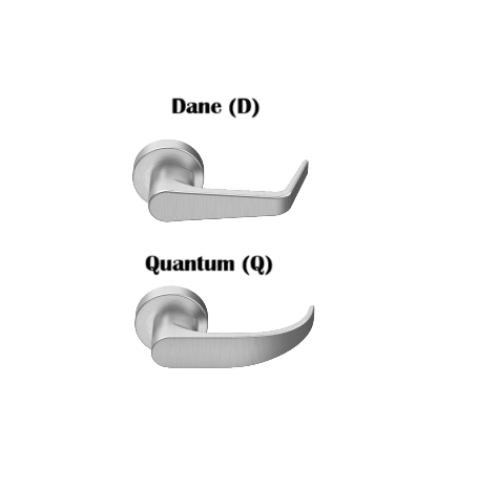

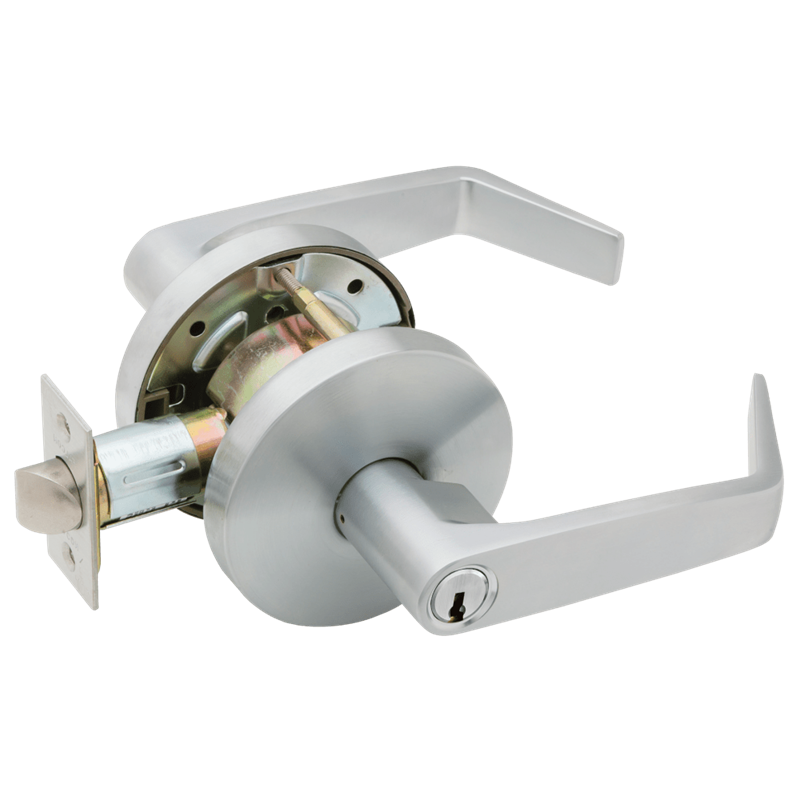

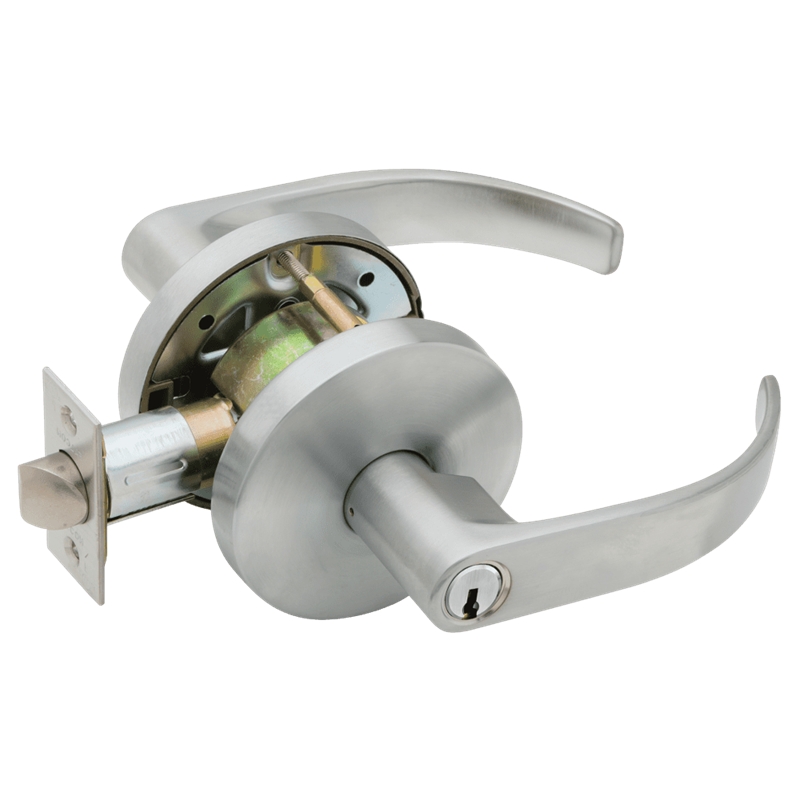

Lever: D - Dane, Q - Quantum

Finishes: Bright brass 605, Satin brass 606, Satin bronze 612, Oil rubbed bronze 613, Bright chrome 625, Satin chrome 626

Door Thickness: 1-3/8" to to 1-3/4" standard.

Backset: 2-3/4" standard; 2-3/8" also available.

Handing: Locks are non-handed.

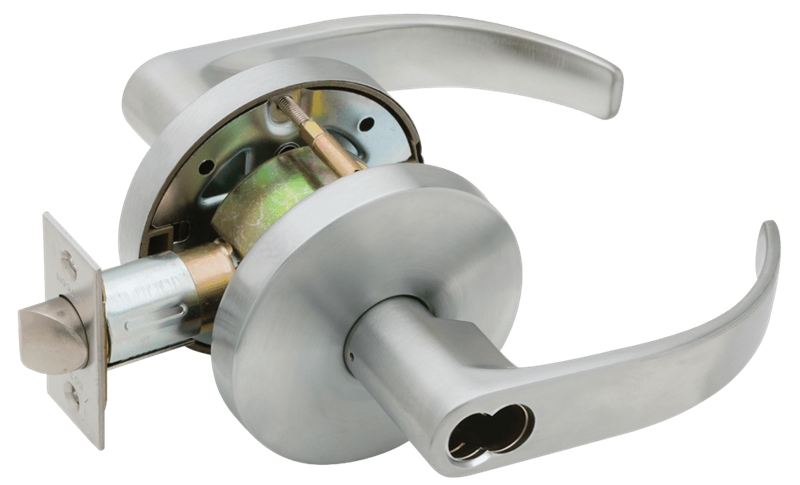

Cylinders: Pinning in six chambers. Cylinder assemblies removable to re-key. Also available with 6- or 7-pin interchangeable core cylinders. Cylinder housings and plugs machined from solid brass. Springs are stainless steel. Two nickel silver keys furnished standard.

Keyways: G keyway standard on Falcon standard cylinders. A keyway standard on I/C core cylinders. Also available with some optional keyways. SchlageCkeyway also available on standard cylinders.

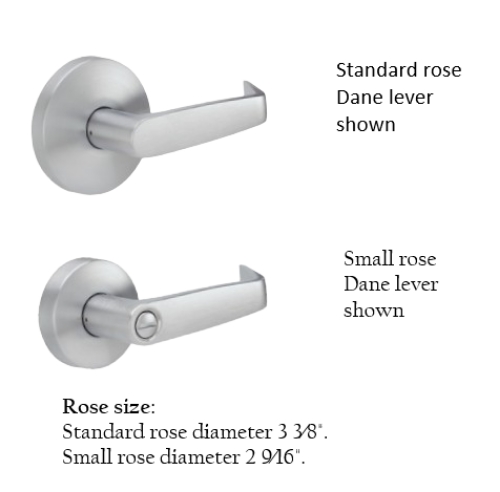

Trim: Roses are 3-5/8" diameter, heavy wrought brass or bronze, installed over steel rose inserts which are through-bolted through door. Levers are pressure-cast zinc (solid levers-no-inserts) finished to match mating parts.

Latches: 1/2" bolt projection made of stainless steel and UL listed for 3-hour door assemblies. Latches have self-adjusting fronts to accommodate beveled or flat doors. 2-3/8" backset with 2-1/4" x 1" latch faces or 2-3/4" backset with 2-1/4" x 1-1/8" latch faces.

Strikes: 4-7/8" x 1-1/4" ANSI strike with curved lip to meet ANSI A115.2 door frame preparation standard. Consult Options and Accessories section for other available strikes, sizes and configurations.

ANSI/BHMA: Meets ANSI/BHMA A156.2, Series 4000, Grade 2.

UL: 3 hour A label.

Model: Falcon, W561SR, W561PDSR, W561PDDSR, W561PDSRQ, W561PDSRDAN, W561PDSRQUA, W561SD626, W561PDQ626, W561PDDAN626, W561PDQUA626, W561PDD625, W561PDQ625, W561PDDAN625, W561PDQUA625, W561PDD605, W561PDQ605, W561PDDAN605, W561PDQUA605, W561PDD606, W561PDQ606, W561PDDAN606, W561PDQUA606, W561PDD613, W561PDQ613, W561PDDAN613, W561PDQUA613, W561BD, W561BDD, W561BDQ, W561BDDAN, W561BDQUA,  101SD626, W561BDQ626, W561BDDAN626, W561BDQUA626, W561BDD625, W561BDQ625, W561BDDAN625, W561BDQUA625, W561BDD605, W561BDQ605, W561BDDAN605, W561BDQUA605, W561BDD606, W561BDQ606, W561BDDAN606, W561BDQUA606, W561BDD613, W561BDQ613, W561BDDAN613, W561BDQUA613

Mechanism: Parts constructed of brass or cold-formed steel, zinc plated and dichromated for rust resistance. Springs are stainless steel.

Attachment: Lock chassis secured to door by two screws which pass through a steel rose insert inside and thread directly into the outer rose-mounting assembly, and two screws that screw into the chassis assembly.

Screws: Furnished with combination screws for use in wood or metal doors and frames.
