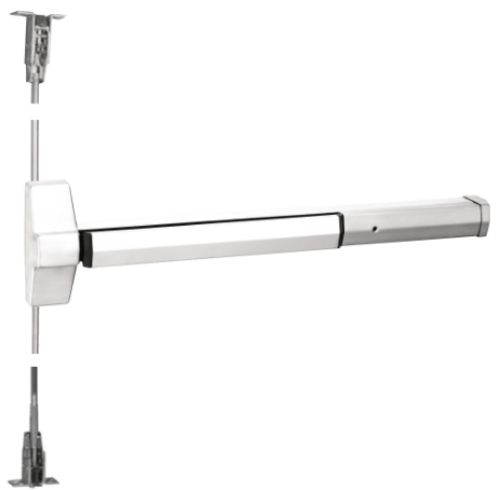

Accentra (Yale) 7120 concealed vertical rod exit device - For Metal Doors - 48"

Accentra (Yale) *7120 concealed vertical rod exit device- For Metal Doors  - 48"*

features:

Designed for wide stile and flush doorsHanded. Specify hand (field reversible)Bottom deadbolt for secure latchingFully adjustable roller strike

applications:

Pairs of doorsDouble egressMetal doors only

specifications:

Door Opening Width:  for 36" - 48" (91cm - 122cm) doors

Door Opening Height:Standard door height adjustable to 8' (244cm), with the device centerline at 39-15/16" (101cm) from floor. Optional heights up to 10' (panic) available by using rod extensions.

Door Thickness:1-3/4" (44mm) standard

Minimum Stile Width:4-1/2" (114mm)

Projection:3-1/4" (83mm) active, 2-3/4" (70mm) dogged

Latchbolt: Top: 3/4" (19mm) throw, pullman-type with automatic deadlatching Bottom: 5/8" (16mm) throw deadbolt, held retracted during door swing

Vertical Rods:1/2" (13mm) O.D. telescoping tubular rods

Strike:Top: Roller type 791 (panic and fire). Bottom: Flush mounted 790 (panic and fire).

Fasteners:Machine screws standard for panic hardware.

Dogging:Hex key dogging supplied standard on panic devices

Warranty: 5-year limited

certification/compliance:

UL/cUL Listed: FVSR/FVSR7 - Panic hardware GXHX/GXHX7

ANSI/BHMA Certified: A156.3 Type 8, Grade 1
