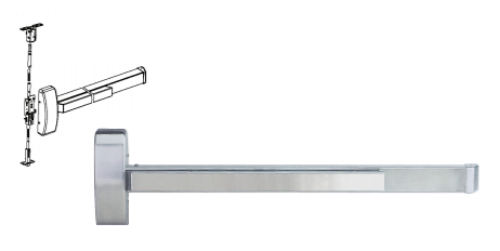

Cal-Royal WCVR9800 / FWCVR9800 Concealed Vertical Rod Exit Device for Wood Doors

Cal-Royal WCVR9800 & FWCVR9800 GRADE 1 Concealed Vertical Rod Exit Device for Wood Doors

Features & Construction:For use in institutions, schools, universities, commercial buildings where heavy duty reliable operation is a requirement.

ANSI Standard A156.3, Grade 1 heavy duty exit device

For Doors Wood:1 3/4" (44.5 mm) minimum thickness 4 1/2" (114 mm) minimum stile width

Top Chassis:Non-ferrous Alloy (Panic Grade), Steel (Fire Grade)Chassis Cover:

Non-ferrous plated material

Mounting:Furnished standard with machine screws

End Cap:Brass, Bronze or Stainless Steel construction

Hand:Handed. Easily field reversible. Specify at time of order LHR, RHR for convenience

Strikes:260 top and 265 bottom

Top and Bottom Bolts:Stainless Steel . Top and bottom bolt travel 7 /16" (11 mm) Projection adjustable up to 1" (25 mm)

Fire Exit Hardware:FWCVR9800 Series for fire exit hardware for all types of 8' x 10' double doors, LBR Series for fire exit hardware for all types of 8' x 8' double doors for up to 3-hour fire labeled installations. Conforms to standards UL10C and UBC 7-2-1997 codes

Rail Height:Specify door opening and mounting height of center line of rail when ordering a Vertical Rod Exit Device 41" from floor

Dogging Feature:Cylinder dogging available for non-rated applications

For Electrical Latch Retraction:See Specification Tab

For Signal Switch:See Specification Tab 36" wide Devices:

Actual lenght: 32" Max cut down: 6" Door size: 30 to 36 door width

48" wide Devices: Actual lenght: 44 Max cut down: 12" Door size: 36 to 48 door width

Model: WCVR9800, W98CVR3684, W98CVR3696, W98CVR4896, W98CVR36120, W98CVR48120, FW98CVR3684 FW98CVR3696, FW98CVR4896, FW98CVR36120, FW98CVR48120, US32D, US10B, US3

(ELR) Electric Latch Retraction:

MUST USE CRP POWER SUPPLIES TO HONOR WARRANTY

Our motor driven electrified latch pullback exit device allows for remote keyless access control in high occupancy / high traffic conditions where exit devices are required. Common applications include conditions such as hospitals, airports, schools, churches and they are commonly specified in applications that require automatic door openers. The device may be continuously energized allowing for a push / pull condition if desired.

Features: Available on 7700 Series, including rim, vertical rod, concealed vertical rod, mortise exit device, fire and non fire-rated devices

MM4S Smart Module: On board diagnostics with audible feedback for adjustment and power issues

"PTS" (Push to Set Technology): 5 second electronic adjustment for easy post installation adjustment

Electric dogging rated for continuous duty - Auto retraction if dogged push pad is pulled from position

Low Current Draw - Field switchable to "High Torque" mode

Up to 300" wire run with (2) 18ga wire - Long wire runs provides installer with convenience of placing the locking device power supply in a centralized location; i.e. the same closet as the access panel

8' cable with Quick Connect for MM4S module to easily connect to power supply lead

3-year "No Hassle" warranty

Specifications:

Voltage - 22 to 28V DC

System protection - unit shutdown when voltage exceeds 28V DC

Average In-rush Current - 900mA; Average Hold Current - 215mA

PTS adjustment - approx. 1/4"

Wire run: 300' with 18ga wire

Signal Switch RX and LX:

RX(request to exit) signal switch is used to signal the use of an opening from the push side. When the push pad is depressed, the switch is activated. These devices are equipped with an internal SPDT (single pole double throw) switch that monitors the touch bar.

LX(latch bolt monitoring) signal switch monitors both egress and access of an opening. When the latch bolt is retracted, the switch is activated. These devices are equipped with an internal SPDT (single pole double throw) switch that monitors the latch bolt position.

LXandRXswitches can be combined.

LX, RXswitches can be used in combination with ELR (electric latch retraction) option.

Specifications:

RXorLXSwitch rated 0.5 amps @ 24V AC / DC resistive

Low currentRXorLX.Switch rated 0.5 amps @ 24V AC / DC resistive
