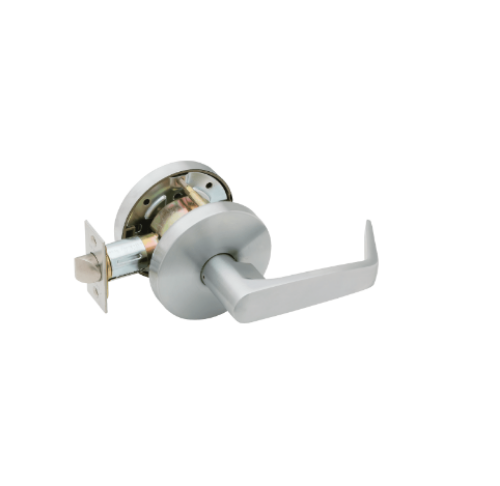

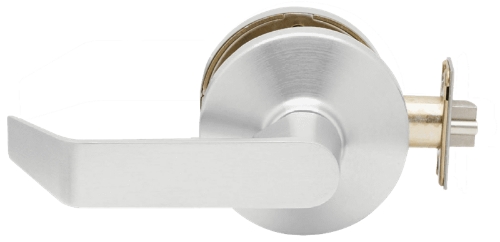

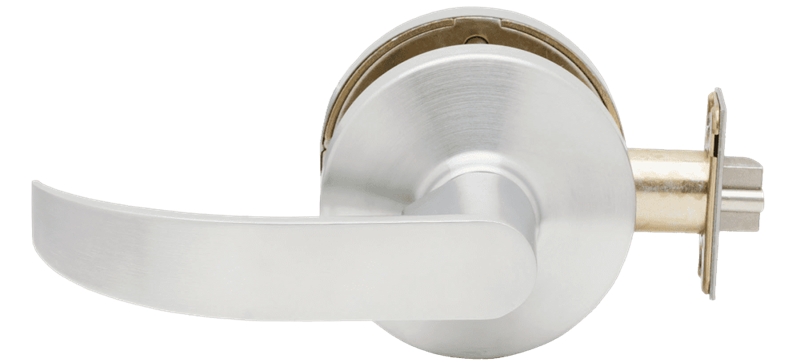

Falcon B161D Grade 2 Cylindrical Lock, Communicating Exit Function

Falcon B161D Grade 2 Communicating Exit Function Lever Set, Non-handed

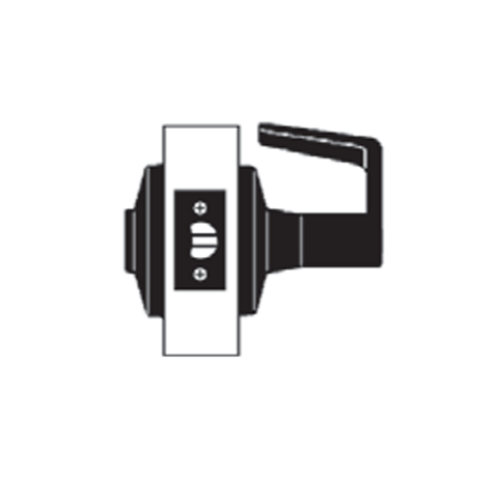

Latch bolt operated by inside lever/knob. Non-removable blank plate outside. Inside lever/knob always free for immediate egress.

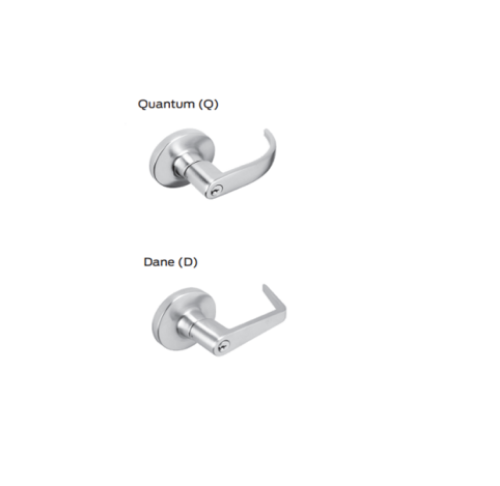

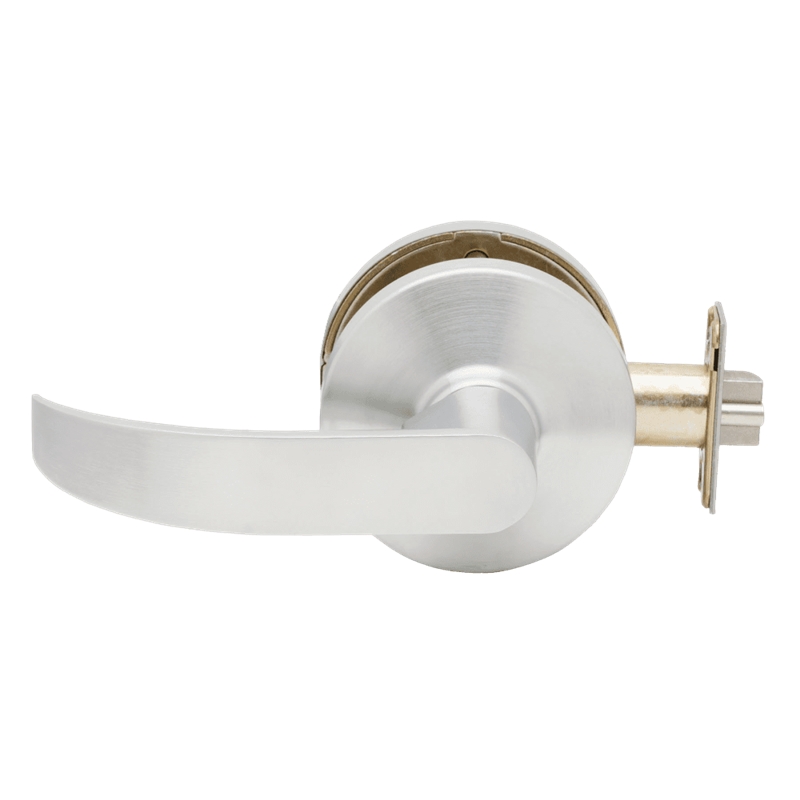

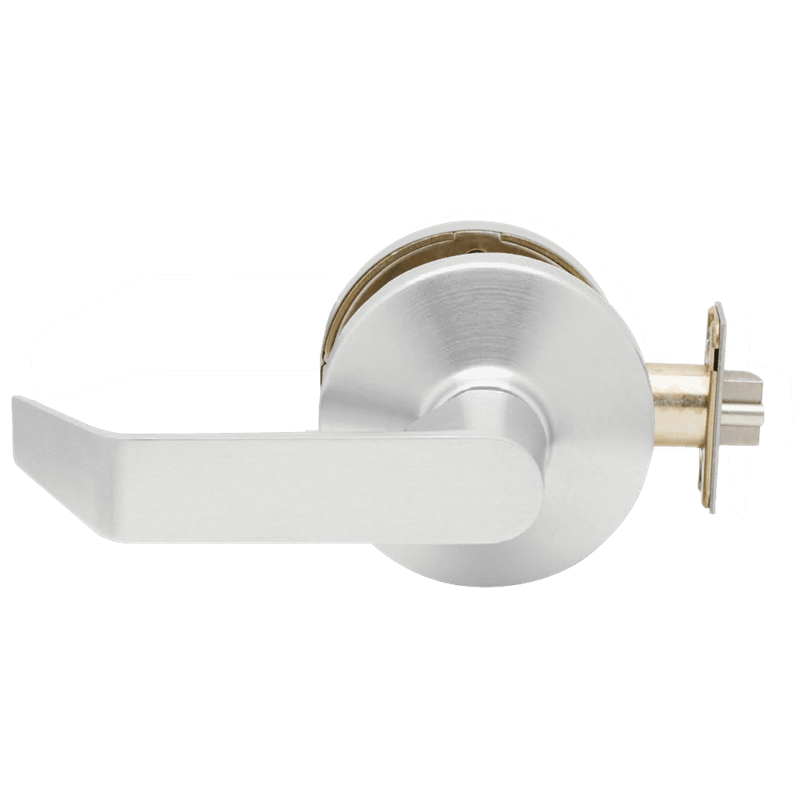

Lever: D - Dane, Q - Quantum

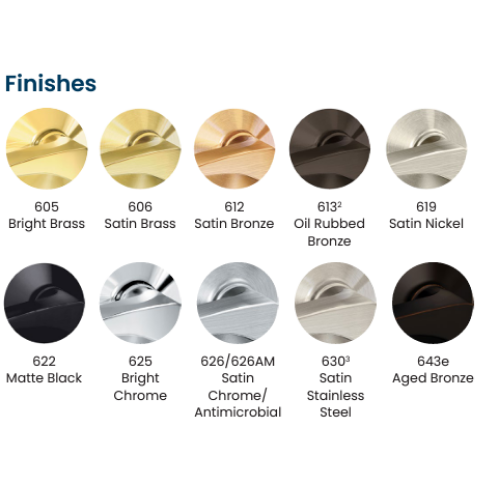

Finishes: Bright brass 605, Satin brass 606, Satin bronze 612, Oil rubbed bronze 613, Bright chrome 625, Satin chrome 626

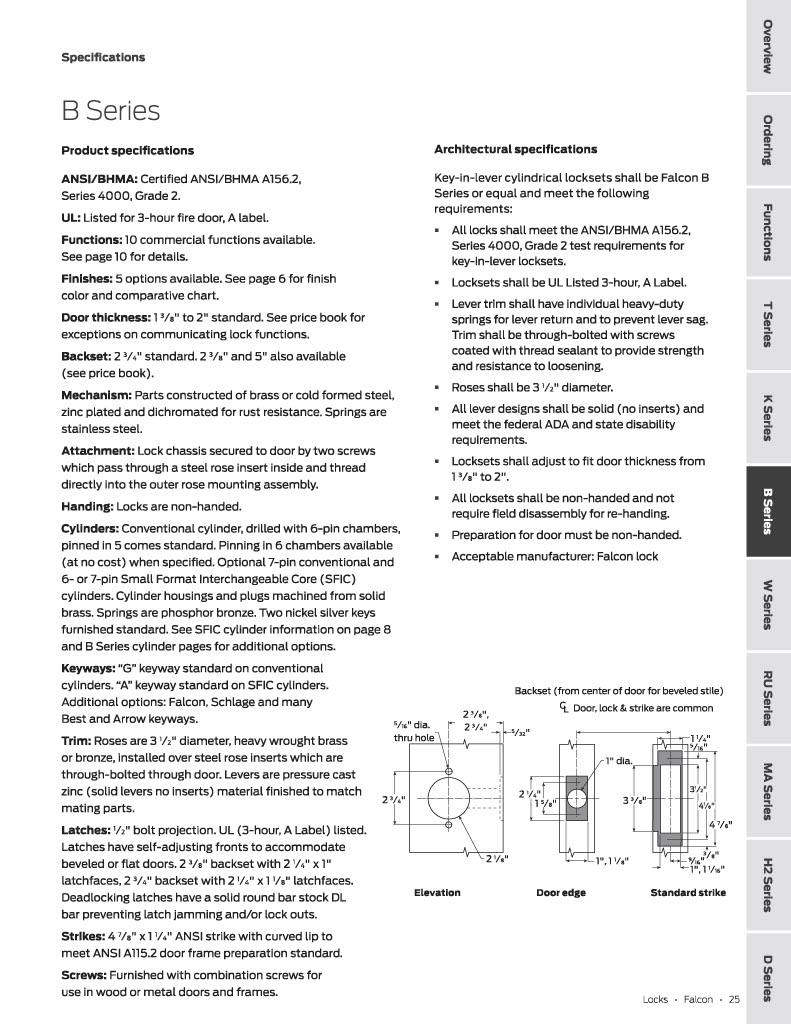

Door Thickness: 1-3/8" to 2" standard.

Backset: 2-3/4" standard. 2-3/8",3-3/4" and 5" also available.

Handing: Locks are non-handed.

Latches: 1/2" bolt projection. UL listed. Latches have self-adjusting fronts to accommodate beveled or flat doors. 2-3/8" backset with 2-1/4" x 1" latchfaces. 2-3/4", 3-3/4" and 5" backset with 2-1/4" x 1-1/8" latchfaces. Deadlocking latches have a solid round bar stock DL bar preventing latch jamming and/or lock outs.

Strikes: 4-7/8" x 1-1/4" ANSI strike with curved lip to meet ANSI A115. or T-strike available

Screws: Furnished with combination screws for use in wood or metal doors and frames.

ANSI/BHMA: Meets ANSI/BHMA A156.2, Series 4000, Grade 2.

UL: 3 hour A label.

Model: Falcon, B101, B301S, B301SD, B301SQ, B301SDAN, B301SQUA,  101SD626, B301SQ626, B301SDAN626, B301SQUA626, B301SD625, B301SQ625, B301SDAN625, B301SQUA625, B301SD605, B301SQ605, B301SDAN605, B301SQUA605, B301SD606, B301SQ606, B301SDAN606, B301SQUA606, B301SD613, B301SQ613, B301SDAN613, B301SQUA613

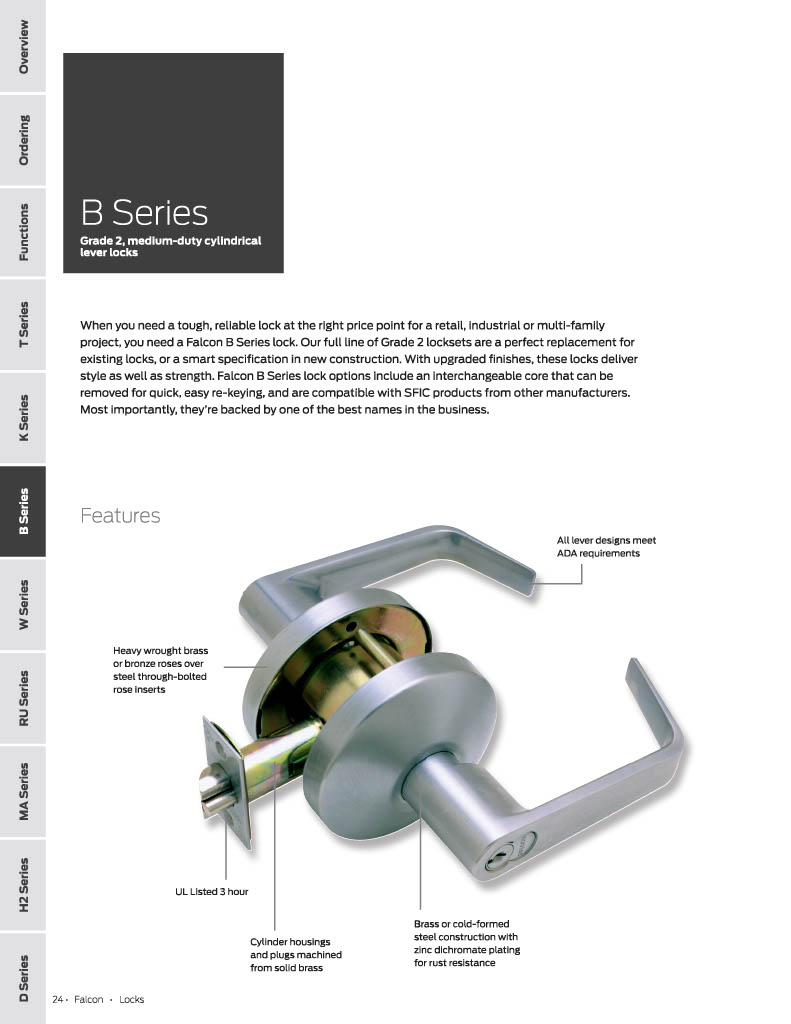

Mechanism: Parts constructed of brass or cold formed steel, zinc plated and dichromated for rust resistance.Springs are stainless steel.

Attachment: Lock chassis secured to door by two screws which pass through a steel rose insert inside and thread directly into the outer rose mounting assembly.

Trim: Roses are 3-1/2" diameter, heavy wrought brass or bronze,installed over steel rose inserts which are through-bolted through door. Levers are pressure cast (solid levers no inserts) material finished to match mating parts.
