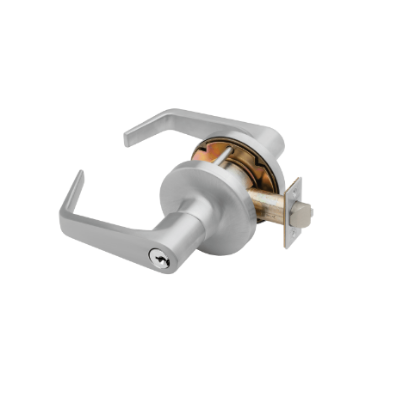

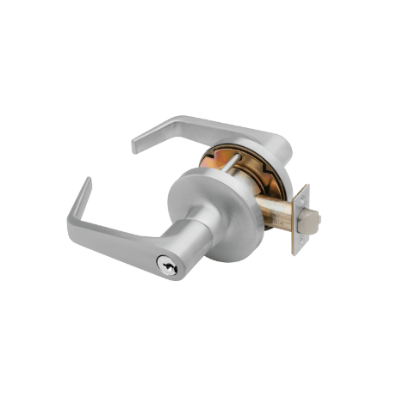

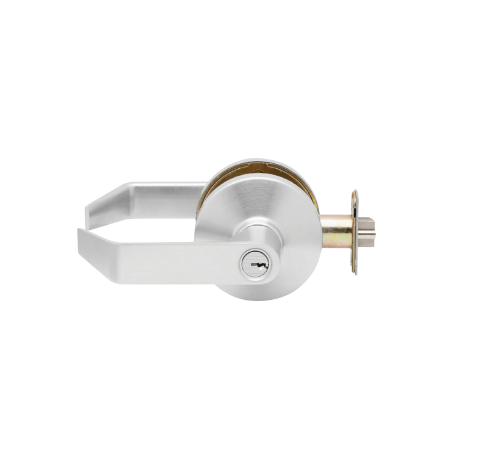

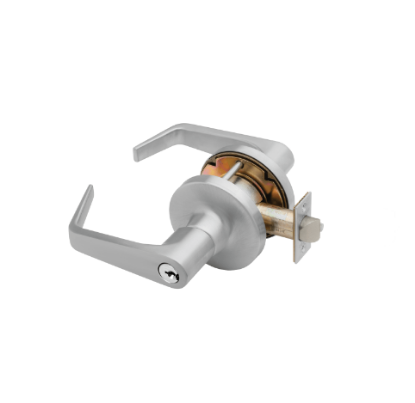

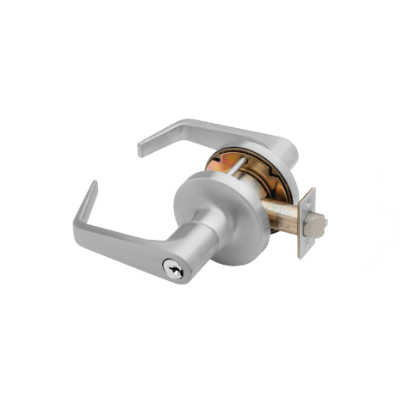

Falcon B561 - Grade 2 Cylindrical Lock, Classroom Function

Falcon B561 - Grade 2 Classroom Lock -*ANSI F84*

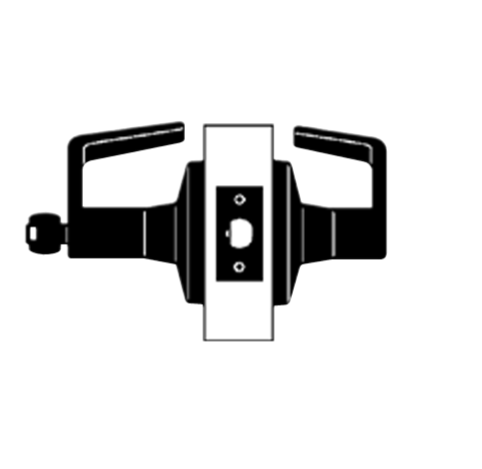

Deadlocking latch bolt by levers. Outside lever is locked by key in outside lever. Inside lever is always free.

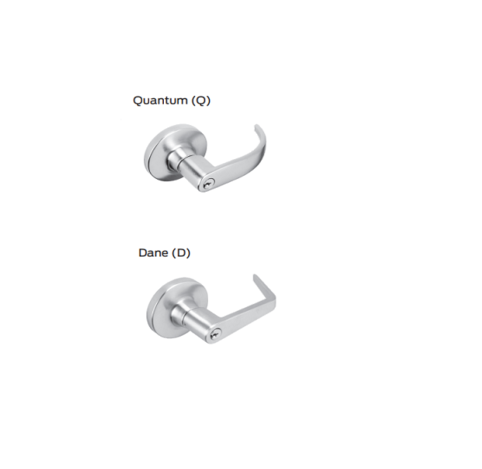

Lever:D - Dane, Q - Quantum

Finishes:Bright brass 605, Satin brass 606, Satin bronze 612, Oil rubbed bronze 613, Bright chrome 625, Satin chrome 626

Door Thickness:1-3/8" to 2" standard.

Backset:2-3/4" standard. 2-3/8",3-3/4" and 5" also available.

Handing:Locks are non-handed.

Cylinders:Drilled with 6 pin chambers, pinned in 5. Cylinder assemblies removable to rekey. Also vailable with 6 or 7 pin interchangeable core cylinders. Cylinder housings and plugs machined from solid brass. Springs are phosphor bronze. Two nickel silver keys furnished standard.

Keyways:"G" keyway standard on standard cylinders. "A" keyway standard on I/C core cylinders. Also available with some optional keyways.

Latches:1/2" bolt projection. UL listed. Latches have self-adjusting fronts to accommodate beveled or flat doors. 2-3/8" backset with 2-1/4" x 1" latchfaces. 2-3/4", 3-3/4" and 5" backset with 2-1/4" x 1-1/8" latchfaces. Deadlocking latches have a solid round bar stock DL bar preventing latch jamming and/or lock outs.

Strikes:4-7/8" x 1-1/4" ANSI strike with curved lip to meet ANSI A115. or T-strike available

Screws:Furnished with combination screws for use in wood or metal doors and frames.

ANSI/BHMA:Meets ANSI/BHMA A156.2, Series 4000, Grade 2.

UL:3 hour A label.

Model:Falcon, B561, B561PD, B561PDD, B561PDQ, B561PDDAN, B561PDQUA,  101SD626, B561PDQ626, B561PDDAN626, B561PDQUA626, B561PDD625, B561PDQ625, B561PDDAN625, B561PDQUA625, B561PDD605, B561PDQ605, B561PDDAN605, B561PDQUA605, B561PDD606, B561PDQ606, B561PDDAN606, B561PDQUA606, B561PDD613, B561PDQ613, B561PDDAN613, B561PDQUA613, B561BD, B561BDD, B561BDQ, B561BDDAN, B561BDQUA,  101SD626, B561BDQ626, B561BDDAN626, B561BDQUA626, B561BDD625, B561BDQ625, B561BDDAN625, B561BDQUA625, B561BDD605, B561BDQ605, B561BDDAN605, B561BDQUA605, B561BDD606, B561BDQ606, B561BDDAN606, B561BDQUA606, B561BDD613, B561BDQ613, B561BDDAN613, B561BDQUA613

Mechanism:Parts constructed of brass or cold formed steel, zinc plated and dichromated for rust resistance.Springs are stainless steel.

Attachment:Lock chassis secured to door by two screws which pass through a steel rose insert inside and thread directly into the outer rose mounting assembly.

Trim:Roses are 3-1/2" diameter, heavy wrought brass or bronze,installed over steel rose inserts which are through-bolted through door. Levers are pressure cast (solid levers no inserts) material finished to match mating parts.
