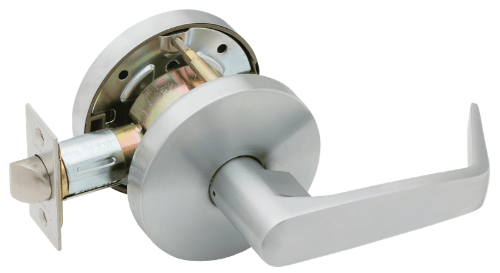

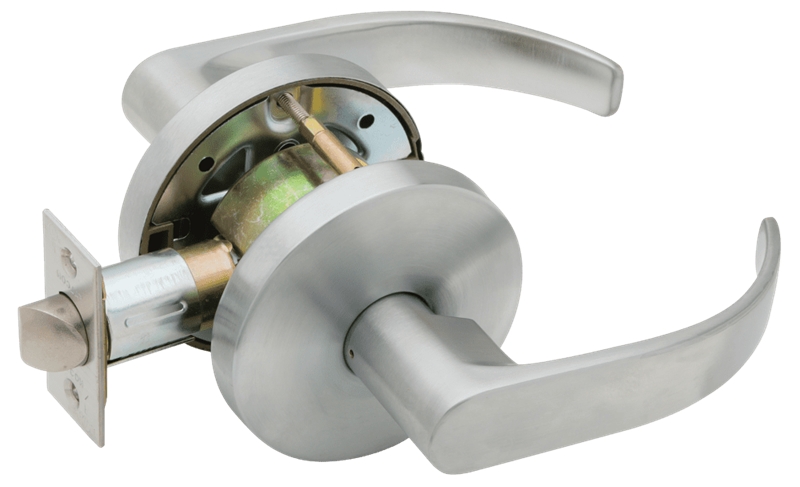

Falcon W161D Grade 2 Communicating/Exit Lever Set

Falcon W161D Grade 2 Communicating/Exit Lever Set, Non-Keyed, Non-Handed

ANSI F111

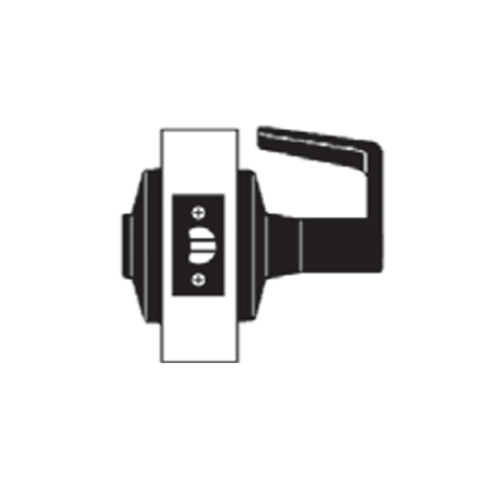

Latch bolt operated by inside lever/knob. Non-removable blank plate outside. Inside lever/knob always free for immediate egress.

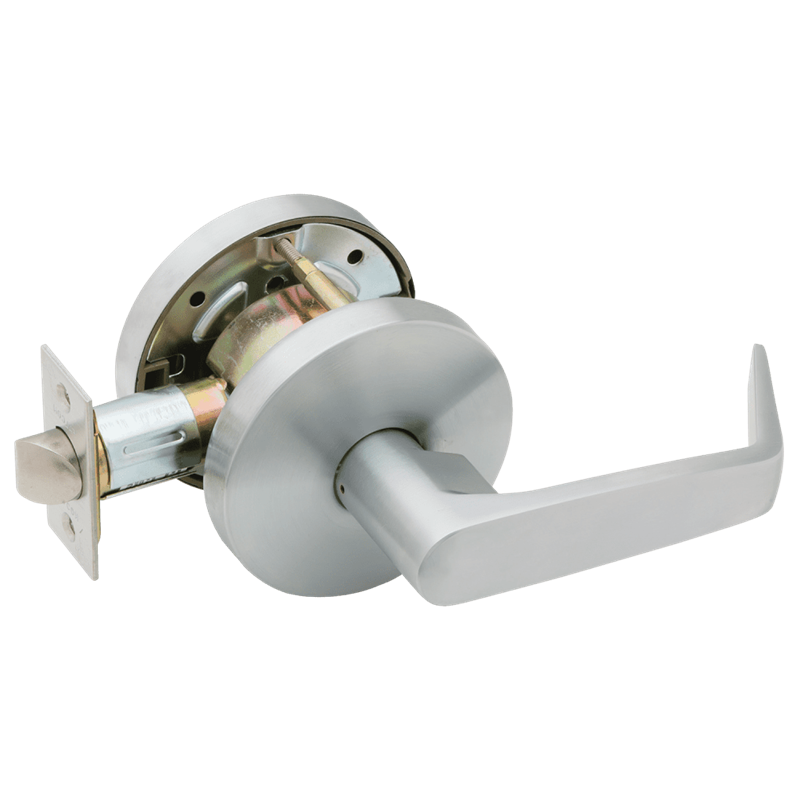

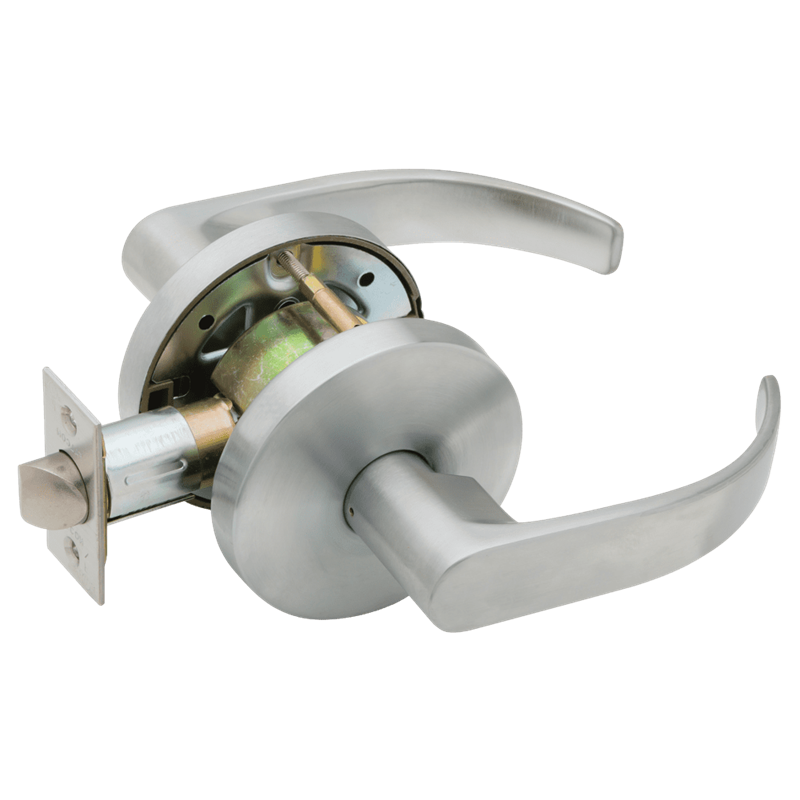

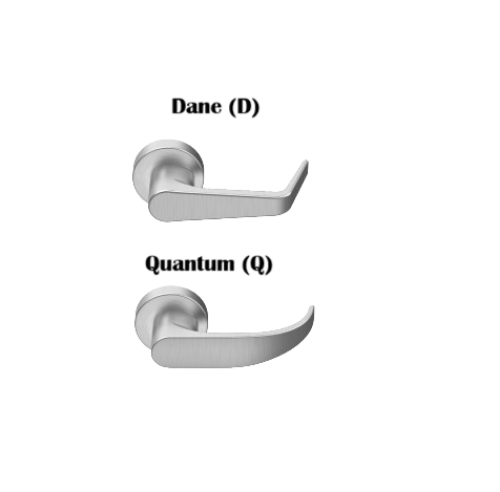

Lever: D - Dane, Q - Quantum

Finishes: Bright brass 605, Satin brass 606, Satin bronze 612, Oil rubbed bronze 613, Bright chrome 625, Satin chrome 626

Door Thickness: 1-3/8" to to 1-3/4" standard.

Backset: 2-3/4" standard; 2-3/8" also available.

Handing: Locks are non-handed.

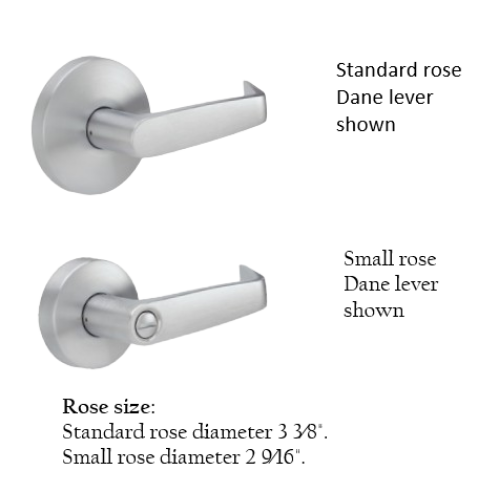

Trim: Roses are 3-5/8" diameter, heavy wrought brass or bronze, installed over steel rose inserts which are through-bolted through door. Levers are pressure-cast zinc (solid levers-no-inserts) finished to match mating parts.

Latches: 1/2" bolt projection made of stainless steel and UL listed for 3-hour door assemblies. Latches have self-adjusting fronts to accommodate beveled or flat doors. 2-3/8backset with 2-1/4" x 1latch faces or 2-3/4" backset with 2-1/4" x 1-1/8" latch faces.

Strikes: 4-7/8" x 1-1/4" ANSI strike with curved lip to meet ANSI A115.2 door frame preparation standard. Consult Options and Accessories section for other available strikes, sizes and configurations.

ANSI/BHMA: Meets ANSI/BHMA A156.2, Series 4000, Grade 2.

UL: 3 hour A label.

Model: Falcon, W101, W101S, W101SD, W101SQ, W101SDAN, W101SQUA,  101SD626, W101SQ626, W101SDAN626, W101SQUA626, W101SD625, W101SQ625, W101SDAN625, W101SQUA625, W101SD605, W101SQ605, W101SDAN605, W101SQUA605, W101SD606, W101SQ606, W101SDAN606, W101SQUA606, W101SD613, W101SQ613, W101SDAN613, W101SQUA613

Mechanism: Parts constructed of brass or cold-formed steel, zinc plated and dichromated for rust resistance. Springs are stainless steel.

Attachment: Lock chassis secured to door by two screws which pass through a steel rose insert inside and thread directly into the outer rose-mounting assembly, and two screws that screw into the chassis assembly.

Screws: Furnished with combination screws for use in wood or metal doors and frames.
