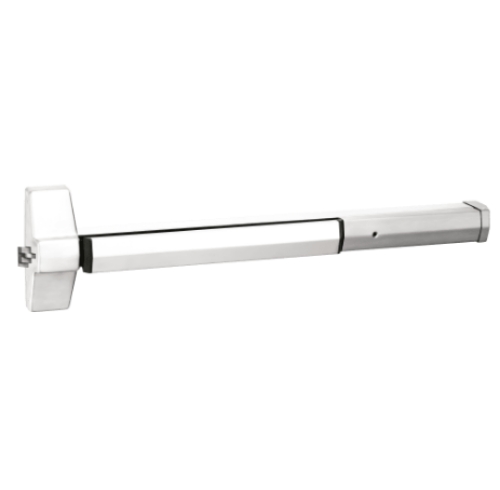

Accentra (Yale) 7150F Fire Rated Square Bolt Rim Panic Exit Device - 48"

Accentra (Yale) *7150F Fire Rated Square Bolt Rim Panic Exit Device - 48"*

Fire exit hardware:  4' x 8' single, 8' x 8' pairs, 3 hr.

features:

Patented SquareBolt security deadbolt designed for maximum holding powerNon-handed for easy installationCan be retrofitted onto existing 7100 series templated doorsFully adjustable surface-mounted 3/8" diameter roller strike complete with positive locking plate and shims

applications:

Single swing doorsPairs of doors with removable mullionsMetal, wood or composite door materials

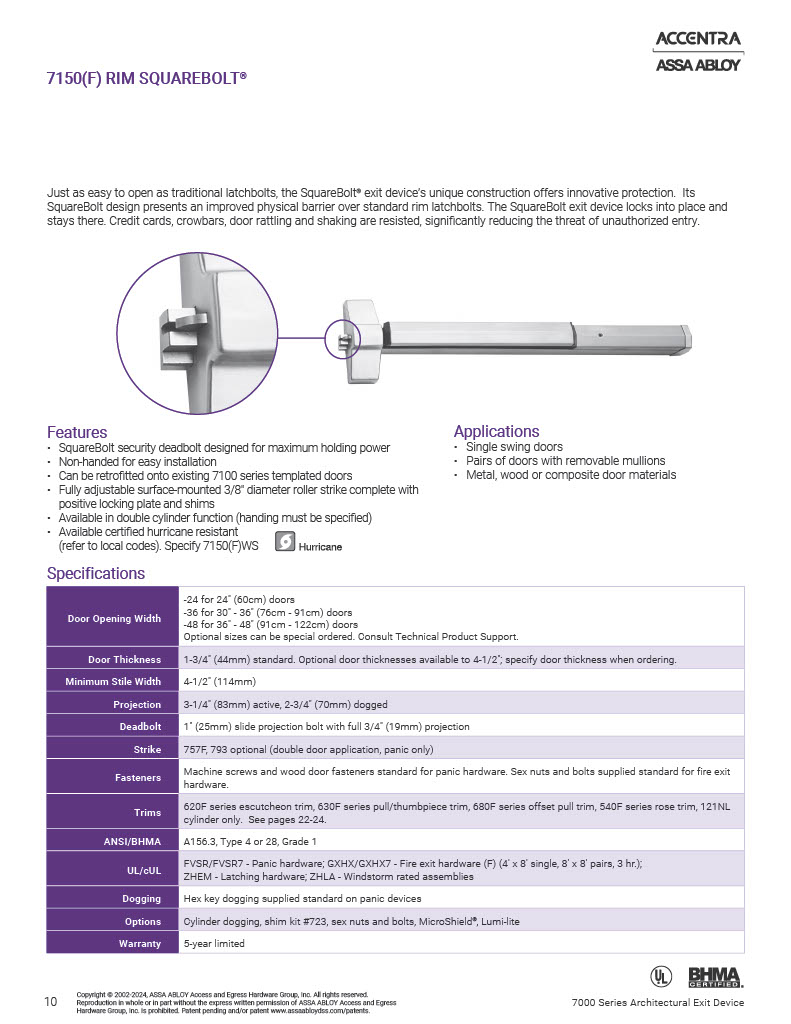

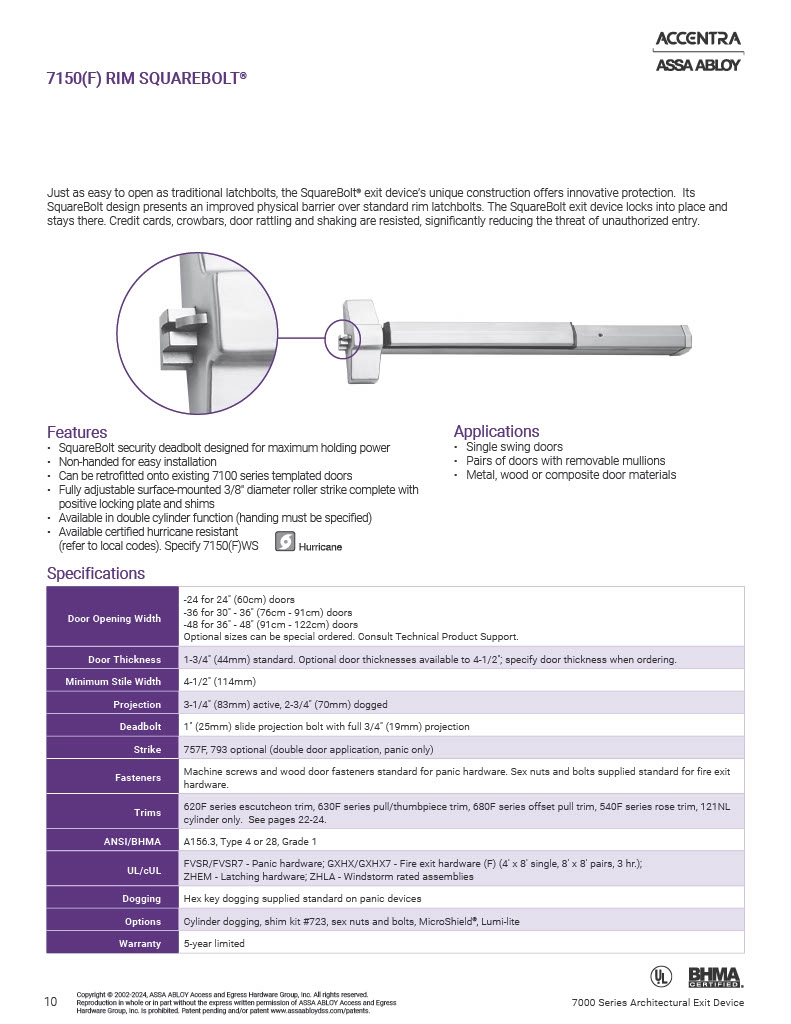

specifications:

Door Opening Width:for 36" - 48" (91cm - 122cm) doors

Door Thickness: 1-3/4" (44mm) standard

Minimum Stile Width:4-1/2" (114mm)

Projection:3-1/4" (83mm) active, 2-3/4" (70mm) dogged

Deadbolt:Patented 1" (25mm) slide projection bolt with full 3/4" (19mm) projection

Strike:757F

Fasteners:Machine screws and wood door fasteners standard for panic hardware. Sex nuts and bolts supplied standard for fire exit hardware.

Dogging:Hex key dogging supplied standard on panic devices

Warranty:5-year limited

certification/compliance:

UL/cUL Listed: FVSR/FVSR7 - Panic hardware GXHX/GXHX7, Fire exit hardware:  4' x 8' single, 8' x 8' pairs, 3 hr.

ANSI/BHMA Certified:  A156.3 Type 1 or 28, Grade 1 U.S. Patent #: 5,605,362
