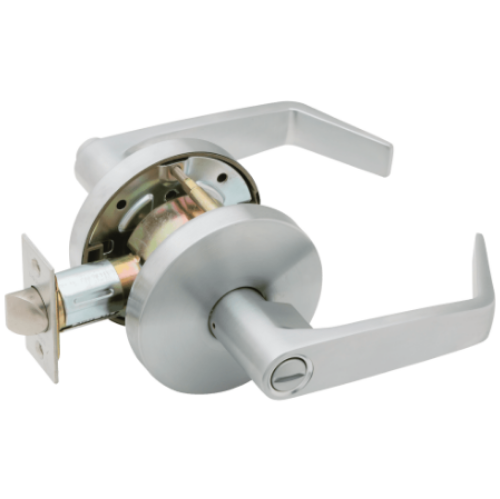

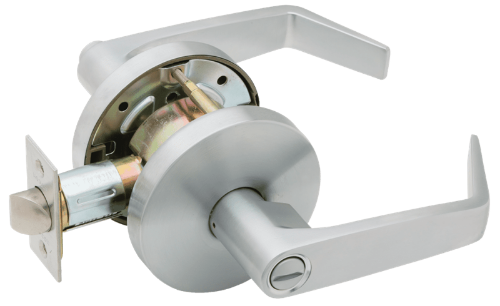

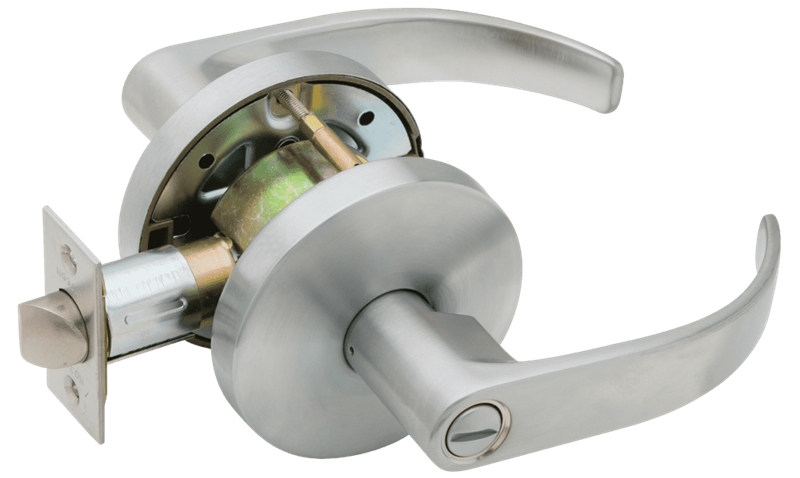

Falcon W301S SR Grade 2 Privacy Lever Set - Small Rose

Falcon W301S SR Grade 2 Privacy Lever Set Small Rose, Non-Keyed, Non-Handed

ANSI F76

Latch bolt by levers. Outside lever is locked by push button on inside lever. Rotating inside lever or closing door releases push button and frees outside lever. Inside lever is always free. Emergency release in outside lever unlocks door.

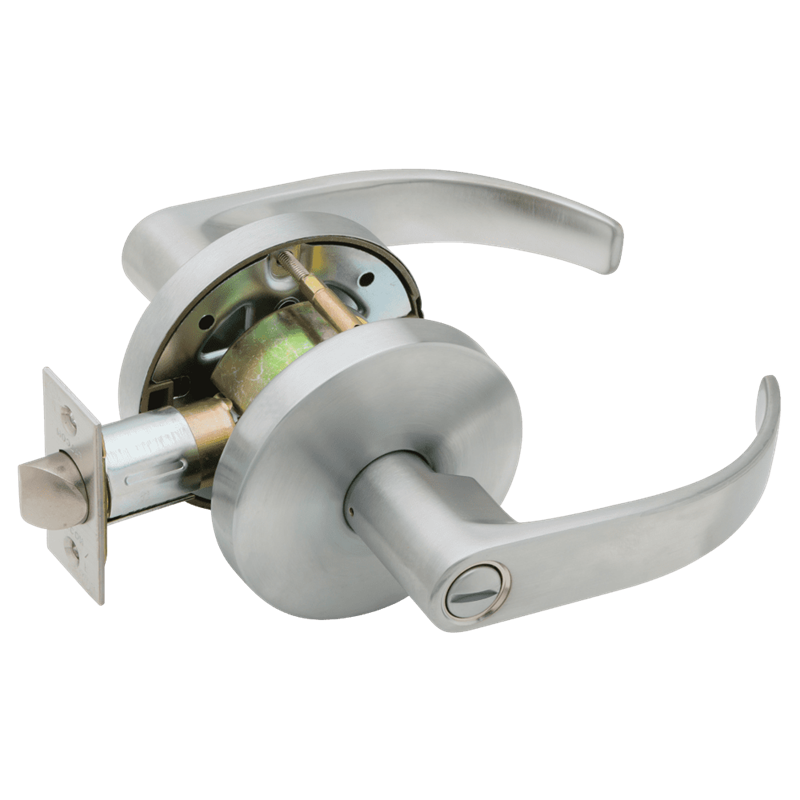

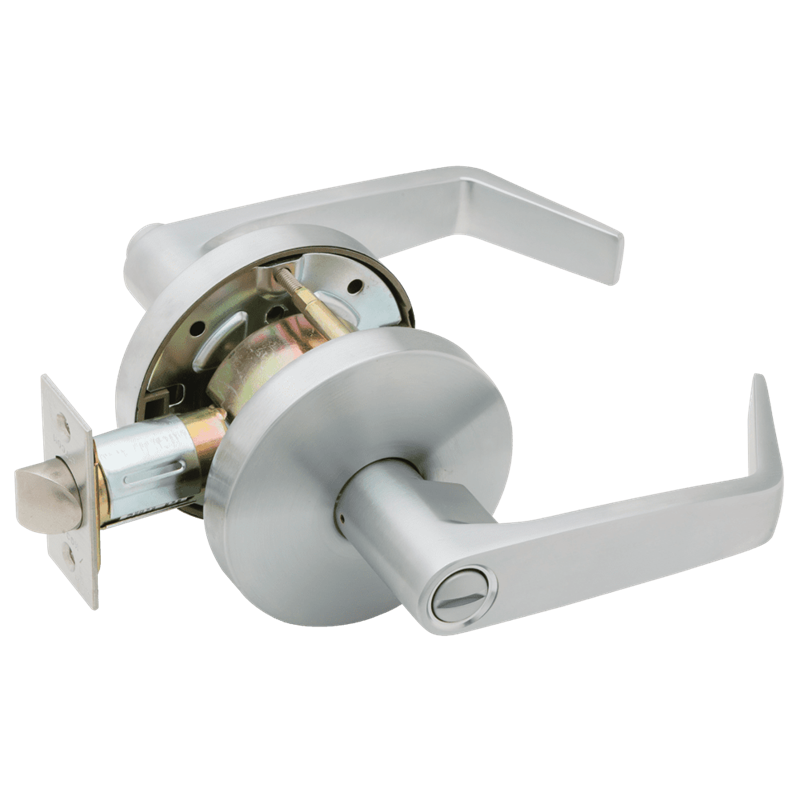

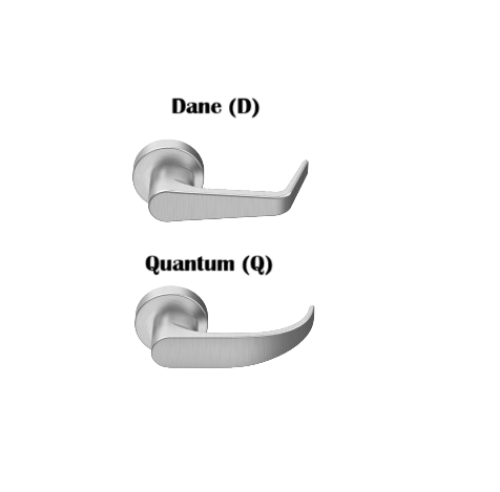

Lever: D - Dane, Q - Quantum

Finishes: Bright brass 605, Satin brass 606, Satin bronze 612, Oil rubbed bronze 613, Bright chrome 625, Satin chrome 626

Door Thickness: 1-3/8" to to 1-3/4" standard.

Backset: 2-3/4" standard; 2-3/8" also available.

Handing: Locks are non-handed.

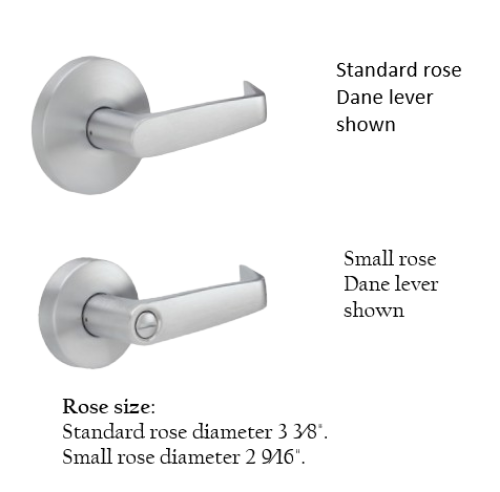

Trim: Roses are 2-9/16" diameter, heavy wrought brass or bronze, installed over steel rose inserts which are through-bolted through door. Levers are pressure-cast zinc (solid levers-no-inserts) finished to match mating parts.

Latches: 1/2" bolt projection made of stainless steel and UL listed for 3-hour door assemblies. Latches have self-adjusting fronts to accommodate beveled or flat doors. 2-3/8" backset with 2-1/4" x 1latch faces or 2-3/4" backset with 2-1/4" x 1-1/8" latch faces.

Strikes: 4-7/8" x 1-1/4" ANSI strike with curved lip to meet ANSI A115.2 door frame preparation standard. Consult Options and Accessories section for other available strikes, sizes and configurations.

ANSI/BHMA: Meets ANSI/BHMA A156.2, Series 4000, Grade 2.

UL: 3 hour A label.

Model: Falcon, W301SRS, W301SRSD, W301SRSQ, W301SRSDAN, W301SRSQUA, W301SRSD626, W301SRSQ626, W301SRSDAN626, W301SRSQUA626, W301SRSD613, W301SRSQ613, W301SRSDAN613, W301SRSQUA613.

Mechanism: Parts constructed of brass or cold-formed steel, zinc plated and dichromated for rust resistance. Springs are stainless steel.

Attachment: Lock chassis secured to door by two screws which pass through a steel rose insert inside and thread directly into the outer rose-mounting assembly, and two screws that screw into the chassis assembly.

Screws: Furnished with combination screws for use in wood or metal doors and frames.
