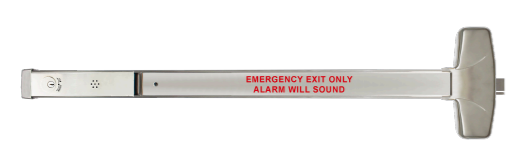

Cal-Royal NALRM6600 / FNALRM6600 Rim Push Bar Alarm Exit Device

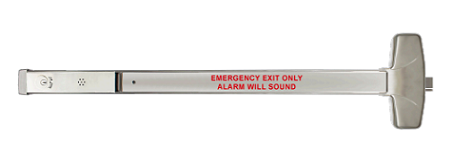

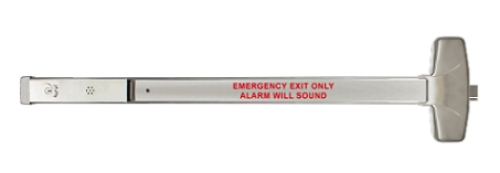

Cal-Royal NALRM6600 / FNALRM6600 Rim Push Bar Alarm Exit Device

Alarm unit has an internal horn. When the push rail is depressed, the horn sounds to provide an audible means of signaling that the door has been opened and breached.

The alarm will sound continuously for 150 seconds or until disarmed. A running alarm mode can be set to sound a 6-second beep every 6 seconds after the initial 150 seconds expires. Running alarm will sound until the unit is disarmed or until battery runs out of power.

Alarm sound frequency is 120 db

The key switch to turn alarm off is a standard 1 1/4" cylinder with "C" keyway. The alarm operates on two standard 1.5-volt AA battery.

Unit includes a decal for application on door or unit: "EMERGENCY EXIT ONLY ALARM WILL SOUND"

FIRE ALARM - a built-in heat sensor will sound a continuous 0.3 sec interval beeping sound when surrounding temperature reaches 122 F +7.2 F, until it is disarmed or the temperature goes down to 113 F For below.

LOW BATTERY ALARM - When battery voltage drops to 2.4VDC + 0.1VDC a 0.3 sec beep every 3 seconds will sound.

Door Thickness:1-3/4" thick standard optional 2-1/4" thick. 4 1/2" minimum Stile Width for single or double door application using standard 938 strike and pull lever, thumbpiece and escutcheon trims.

Chassis:Steel material for Panic and Fire Grade.

Cover:Zinc or Stainless Steel S304 material. Covers stock hollow metal doors with 161 cut out

Mounting:Furnished with wood and machine screws. Available thru-bolts on request. (5) Thru-Bolts are included and standard packaging on fire rated devices

End Cap:Steel or Stainless Steel S304 construction

End Bracket:Steel material

Hand:Non-Handed

Latch Bolt:Stainless Steel S304, 3/4" throw with anti-pick feature

Spring:Stainless Steel S304 material

ANSI Standard:A156.3, Grade 1

Rail Assembly:Heavy Gauge Extruded Steel body with Steel or Stainless Steel S304 push pad

Strike:938 packed standard (See strike page)

Dogging Feature:Allen-Type key furnished standard on non-fire labeled devices

Mullion:Available

UL and ULC Listed:6600 Series for Panic. F6600 Series for Fire Exit hardware for all types of 4' x 8' single doors and 8' x 8' double doors for up to 3 hour fire labeled installations. Conforms to standards UL10C and UBC 7-2-1997 codes

For Electrical Latch Retraction:See Specification Tab

For Signal Switch:See Specification Tab

Dimensions: Touchbar height to finished floor: 41" (1041mm) at center

Touchbar projection: Neutral 2-5/8" (67mm), Depressed 1-7/8" (48mm)

Center case:8-1/16 x 2 3/4 x 2 1/2 (205 mm X 70 mm X 63 mm)

NALRM660036 And FNALRM660036 Actual Length: 32" - Max Cut Down: 6" Door size: 30" to 36" door width - Push Bar Length 21"

NALRM662048 And FNALRM662048 Actual Length: 44" - Max Cut Down: 12" Door size: 36" to 48" door width - Push Bar Length 26 1/2"

Model: Cal Royal,NALRM660036, FNALRM660036, NALRM662048, FNALRM662048, US32D, US3, US4, US10, US10B, L1 Black

All exit devices must be listed under "Panic Hardware" in the Accident Equipment List of Underwriters' Laboratories, Inc. Where labeled doors are used as exits, they must be equipped with labeled Fire Exit Hardware and UL10C, UBC 7-2-1997 codes

All springs shall be of stainless steel throughout

All exit devices shall be of chassis mounted unit construction

All exit devices shall be ANSI A156.3, Grade 1

All exit devices shall be of touch bar design with smooth operation and be operative over 2/3 of the door's clear opening width (ELR) Electric Latch Retraction:

MUST USE CRP POWER SUPPLIES TO HONOR WARRANTY

Our motor driven electrified latch pullback exit device allows for remote keyless access control in high occupancy / high traffic conditions where exit devices are required. Common applications include conditions such as hospitals, airports, schools, churches and they are commonly specified in applications that require automatic door openers. The device may be continuously energized allowing for a push / pull condition if desired.

Features: Available on 7700 Series, including rim, vertical rod, concealed vertical rod, mortise exit device, fire and non fire-rated devices

MM4S Smart Module: On board diagnostics with audible feedback for adjustment and power issues

"PTS" (Push to Set Technology): 5 second electronic adjustment for easy post installation adjustment

Electric dogging rated for continuous duty - Auto retraction if dogged push pad is pulled from position

Low Current Draw - Field switchable to "High Torque" mode

Up to 300" wire run with (2) 18ga wire - Long wire runs provides installer with convenience of placing the locking device power supply in a centralized location; i.e. the same closet as the access panel

8' cable with Quick Connect for MM4S module to easily connect to power supply lead

3-year "No Hassle" warranty

Specifications:

Voltage - 22 to 28V DC

System protection - unit shutdown when voltage exceeds 28V DC

Average In-rush Current - 900mA; Average Hold Current - 215mA

PTS adjustment - approx. 1/4"

Wire run: 300' with 18ga wire

Signal Switch RX and LX:

RX(request to exit) signal switch is used to signal the use of an opening from the push side. When the push pad is depressed, the switch is activated. These devices are equipped with an internal SPDT (single pole double throw) switch that monitors the touch bar.

LX(latch bolt monitoring) signal switch monitors both egress and access of an opening. When the latch bolt is retracted, the switch is activated. These devices are equipped with an internal SPDT (single pole double throw) switch that monitors the latch bolt position.

LXandRXswitches can be combined.

LX, RXswitches can be used in combination with ELR (electric latch retraction) option.

Specifications:

RXorLXSwitch rated 0.5 amps @ 24V AC / DC resistive

Low currentRXorLX.Switch rated 0.5 amps @ 24V AC / DC resistive
